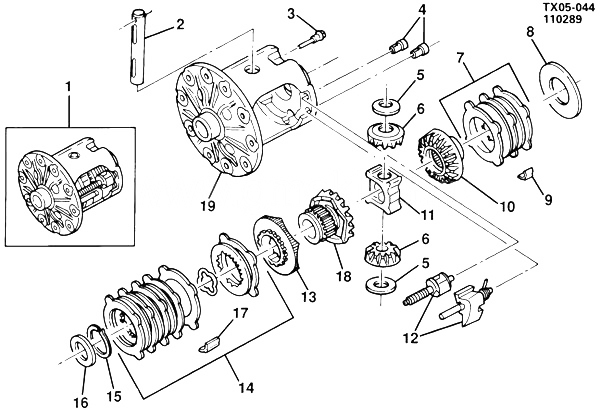

(TX05-044) - 2006-2007 CK1 МОСТ В СБОРЕ/ЗАДНИЙ 8.625 RING GEAR ЧАСТЬ 2 DIFFERENTIAL/LOCKING (G80,EXC P96) CADILLAC - ESCALADE (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25902687 DIFFERENTIAL, (RR AXLE) (INCLS 2-19) CK1 (G80) 2002-2007 01
001 25902687 DIFFERENTIAL, (RR AXLE) (INCLS 2-19) (5.510) CK1 (G80) 2002-2007 01
002 26056109 SHAFT, DIFF P/GR (PART OF 1) (124.84MM) CK1 (EXC P96) 2003-2007 01
003 14056196 БОЛТ, DIFF P/GR SHF LK (PART OF 1) (5/16-18X1 3/4) CK1 2002-2006 01
004 14048409 BUSHING, LKG DIFF LOCKOUT (PART OF 1) (EATON EDS-98648) CK1, 2, 3 (G80) 2001-2007 02
005 12471532 WASHER, DIFF P/GR THR (PART OF 1) (.820 I.D.X1.69 O.D.) (EATON EDS-89189, .06 LIP) CK1 (06-36) (G80) (EXC P96) 2003-2006 02
006 GEAR, DIFF PINION (PART OF 1) (*KIT1) 2006-2007
007 26045829 DISC SET, LKG DIFF CLU (PART OF 1) (EATON EDS-29996) CK1 (G80) 2002-2007 01
008 14063581 SHIM, DIFF SI GR (PART OF 1) (.010 THK) (BELL END) CK1 (06-36) (G80) 2002-2006 01
008 14063582 SHIM, DIFF SI GR (PART OF 1) (.015 THK) (BELL END) CK1 (06-36) (G80) 2002-2006 01
008 14063583 SHIM, DIFF SI GR (PART OF 1) (.020 THK) (BELL END) CK1 (06-36) (G80) 2002-2006 01
008 14063584 SHIM, DIFF SI GR (PART OF 1) (.025 THK) (BELL END) CK1 (06-36) (G80) 2002-2006 01
008 14063585 SHIM, DIFF SI GR (PART OF 1) (.030 THK) (BELL END) CK1 (06-36) (G80) 2002-2006 01
008 14063586 SHIM, DIFF SI GR (PART OF 1) (.035 THK) (BELL END) CK1 (06-36) (G80) 2002-2006 01
008 14063587 SHIM, DIFF SI GR (PART OF 1) (.040 THK) (BELL END) CK1 (06-36) (G80) 2002-2006 01
008 14063588 SHIM, DIFF SI GR (PART OF 1) (.045 THK) (BELL END) CK1 (06-36) (G80) 2002-2006 01
009 12471533 GUIDE, LKG DIFF CLU DISC (BELL SIDE) (PART OF 1) (WIDTH .51 INCH) CK1 (G80) 2002-2007 04
009 15599623 GUIDE, LKG DIFF CLU DISC (FLANGE SIDE) (PART OF 1) (WIDTH .93 INCH) CK1 (G80) 2001-2007 04
010 GEAR, LKG DIFF SI (PART OF 1) (SPLINED) (*KIT1) 2006-2007
011 12471393 BLOCK, LKG DIFF THR (PART OF 1) (PURPLE) (1.322 THK) CK1 (G80) 2000-2007 01
011 12471394 BLOCK, LKG DIFF THR (PART OF 1) (WHITE) (1.326 THK) CK1 (G80) 2000-2007 01
011 12471395 BLOCK, LKG DIFF THR (PART OF 1) (BROWN) (1.330 THK) CK1 (G80) 2000-2007 01
011 12471396 BLOCK, LKG DIFF THR (PART OF 1) (YELLOW) (1.334 THK) CK1 (G80) 2000-2007 01
011 12471397 BLOCK, LKG DIFF THR (PART OF 1) (ORANGE) (1.338 THK) CK1 (G80) 2002-2007 01
011 12471398 BLOCK, LKG DIFF THR (PART OF 1) (PINK) (1.342 THK) CK1 (G80) 2000-2007 01
011 12471399 BLOCK, LKG DIFF THR (PART OF 1) (GREEN) (1.346 THK) CK1 (G80) 2000-2007 01
012 GOVERNOR, LKG DIFF (PART OF 1) (*KIT2) 2004-2007
013 12471406 CAM, LKG DIFF (PART OF 1) (EATON EDS-89096) CK1 (G80) 2002-2007 01
014 12471404 DISC SET, LKG DIFF CLU (PART OF 1) (INCLS 16) (EATON EDS- 29534 INCLS WASHER, DISCS GUIDE) CK1 (G80) 2002-2007 01
015 09412303 RETAINER, EXT.SNAP RING M46 DIA SHF ( (PART OF 1)) 1999-2007 AR
016 26012909 WASHER, LKG DIFF CLU DISC THR (PART OF 1, 14) (.022 THK) CK1 (06-36) (G80) 2003-2006 01
016 26012910 WASHER, LKG DIFF CLU DISC THR (PART OF 1, 14) (.027 THK) CK1 (06-36) (G80) 2003-2006 01
016 26012912 WASHER, LKG DIFF CLU DISC THR (PART OF 1, 14) (.036 THK) CK1 (06-36) (G80) 2003-2006 01
016 26012913 WASHER, LKG DIFF CLU DISC THR (PART OF 1, 14) (.040 THK) CK1 (06-36) (G80) 2003-2006 01
016 26012914 WASHER, LKG DIFF CLU DISC THR (PART OF 1, 14) (.044 THK) CK1 (06-36) (G80) 2003-2006 01
016 26012915 WASHER, LKG DIFF CLU DISC THR (PART OF 1, 14) (.048 THK) CK1 (06-36) (G80) 2003-2006 01
016 26012916 WASHER, LKG DIFF CLU DISC THR (PART OF 1, 14) (.052 THK) CK1 (06-36) (G80) 2003-2006 01
017 12471533 GUIDE, LKG DIFF CLU DISC (BELL SIDE) (PART OF 1) (WIDTH .51 INCH) CK1 (G80) 2002-2007 04
017 15599623 GUIDE, LKG DIFF CLU DISC (FLANGE SIDE) (PART OF 1) (WIDTH .93 INCH) CK1 (G80) 2001-2007 04
018 GEAR, LKG DIFF SI (PART OF 1) (CAM FACED) (*KIT1) 2006-2007
019 CASE, DIFF (PART OF 1) 2006-2007
K01 19178111 GEAR KIT, DIFF SI PINION (INCLS 6, 10, 18) CK1 (G80) 2002-2007 01
K02 12471530 GOVERNOR KIT, LKG DIFF (INCLS 12) (EATON EDS-29672) (INCLS BRKT) CK1 (G80) 2004-2007 01
