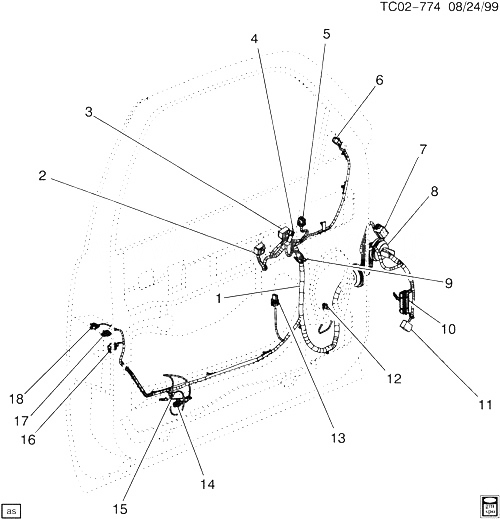

(TC02-774) - 2005-2006 CK1,2(06) ЖГУТЫ ПРОВОДОВ/FRONT SIDE DOOR CADILLAC - ESCALADE (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 10398014 HARNESS, FRT S/D DR WRG CK1, 2 (06-36) (UQ7) 2005-2006 01
001 10398017 HARNESS, FRT S/D DR WRG CK1, 2 (06-36) (AJ7, UQ3, YE9) 2005-2006 01
001 10398017 HARNESS, FRT S/D DR WRG CK1, 2 (06-36) (UQ3, YE9) (EXC AJ7) 2005-2006 01
001 10398022 HARNESS, FRT S/D DR WRG CK1, 2 (06-36) (AJ7, UQ3) 2005-2006 01
001 10398023 HARNESS, FRT S/D DR WRG CK1, 2 (06-36) (UQ7) 2005-2006 01
002 15306052 CONNECTOR, SW-DR LK (DR LOCK SWITCH) (BLACK) (6-WAY FEMALE M/P150 W/LEADS) (10.485) (ACDelco #PT1212) CK1, 2, 3 2006-2006 02
002 88986436 CONNECTOR, SW-DR LK (DOOR MODULE) (4-WAY FEMALE W/LEADS) (10.777) CK1, 2, 3 2005-2006 02
003 12129487 CONNECTOR, MOT-WDO REG (GRAY) (2-WAY FEMALE W/O LEADS) (10.783) CK1, 2, 3 2005-2006 01
003 88988609 CONNECTOR, MOT-WDO REG (GRAY) (2-WAY FEMALE) (W/LEADS) (10.783) (ACDelco #PT2072) CK1, 2 (06-36) 2006-2006 02
004 12101876 CONNECTOR, INLINE-TO HTD ST ELEMENT (GRAY) (6-WAY MALE) (W/LEADS) (2.535) (ACDelco #PT267) CK1, 2 (06-36) (AN3) 2006-2006 02
005 CONNECTOR, SW-O/S RR VIEW MIR R/CON 2005-2006
006 CONNECTOR, SW-HTD O/S RR VIEW MIR 2005-2006
007 15306105 CONNECTOR, BLK-I/P WRG JUNC (CREAM) (6 WAY FEMALE W/LEADS) (2.530) (ACDelco #PT1266) CK1, 2, 3 2005-2006 01
007 15306107 CONNECTOR, BLK-I/P WRG JUNC (BLACK) (6-WAY F W/LEADS) (2.530) (ACDelco #PT1268) CK1, 2, 3 2005-2006 01
007 15306198 CONNECTOR, BLK-I/P WRG JUNC (BLACK) (12-WAY FEMALE W/LEADS) (ACDelco #PT1353) CK1, 2, 3 2005-2006 01
007 15306341 CONNECTOR, BLK-I/P WRG JUNC (BROWN) (12-WAY FEMALE W/LEADS) (ACDelco #PT1394) CK1, 2, 3 2005-2006 01
007 19115428 CONNECTOR, BLK-I/P WRG JUNC (BLACK) (68-WAY FEMALE W/O LEADS) CK1, 2, 3 2006-2006 01
007 88988945 CONNECTOR, BLK-I/P WRG JUNC (LT GRAY) (68-WAY FEMALE W/O LEADS) CK1, 2, 3 2006-2006 01
008 15369323 GROMMET, FRT S/D DR WRG HARN CK1, 2, 3 2005-2006 02
009 12101825 CONNECTOR, SPKR-RDO (INDEX TAB CTR CAVITY AB) (BLACK) (2-WAY FEMALE) (W/LEADS) (2.535) (ACDelco #PT217) CK1, 2, 3 2005-2006 04
009 15306030 CONNECTOR, SPKR-RDO (NATURAL) (2-WAY MALE W/LEADS) (2.530) (ACDelco #PT1157) CK1, 2, 3 2005-2006 02
010 12085481 CONNECTOR, INLINE-TO I/P HARN (W/LEADS, SQUARE) (BLACK) (2-WAY MALE) (W/LEADS) (SQUARE) (2.535) (ACDelco #PT103) CK1, 2 (06-36) 2006-2006 01
010 12085669 CONNECTOR, INLINE-TO I/P HARN (BLACK) (1-WAY MALE) (W/LEADS) (ACDelco #PT1223) CK1, 2, 3 2005-2006 01
010 12101825 CONNECTOR, INLINE-TO I/P HARN (INDEX TAB CTR CAVITY AB) (BLACK) (2-WAY FEMALE) (W/LEADS) (2.535) (ACDelco #PT217) CK1 (06) (Z75) 2006-2006 01
010 12101827 CONNECTOR, INLINE-TO I/P HARN (BLACK) (8-WAY MALE) (W/LEADS) (2.535) (ACDelco #PT219) CK1, 2, 3 2005-2006 01
010 12101852 CONNECTOR, INLINE-TO I/P HARN (M/P 150) (BLACK) (6-WAY MALE) (W/LEADS) (2.535) (ACDelco #PT244) CK1, 2, 3 2005-2006 01
010 12129135 CONNECTOR, INLINE-TO I/P HARN (BLACK) (4-WAY MALE) (W/O LEADS) (2.694) CK1, 2, 3 2005-2006 01
010 12129490 CONNECTOR, INLINE-TO I/P HARN (FROM LH FRT DR) (BLACK) (3-WAY MALE) (W/O LEADS) (CLIP SLOT) (13.100) CK1, 2 2005-2006 01
010 12167122 CONNECTOR, INLINE-TO I/P HARN (NATURAL) (10-WAY M) (W/LEADS) (ACDelco #PT788) CK1, 2 (06-36) 2006-2006 01
010 15304692 CONNECTOR, INLINE-TO I/P HARN (BLACK) (18-WAY FEMALE) (W/O LEADS) CK1, 2, 3 2005-2006 01
010 15306039 CONNECTOR, INLINE-TO I/P HARN (SEAT HARN TO BODY HARN, GT150/280) (16-WAY MALE W/LEADS) (16.490) (ACDelco #PT1199) CK1, 2, 3 2005-2006 01
010 15306122 CONNECTOR, INLINE-TO I/P HARN (2IN WIDE, M/P 150/280) (BLACK) (16-WAY MALE) (W/LEADS) CK1, 2 (06-36) 2006-2006 01
010 15306231 CONNECTOR, INLINE-TO I/P HARN (GRAY) (24-WAY MALE W/O LEADS) (9.656) CK1, 2, 3 2005-2006 01
010 15306371 CONNECTOR, INLINE-TO I/P HARN (FROM HDLNG HARN, GT150) (BLACK) (16-WAY MALE) (W/LEADS) (13.100) (ACDelco #PT1423) CK1, 2, 3 2005-2006 01
010 15317322 CONNECTOR, INLINE-TO I/P HARN (GRAY) (22-WAY MALE) (W/O LEADS) CK1, 2, 3 2005-2006 01
010 19151490 CONNECTOR, INLINE-TO I/P HARN (10-WAY MALE) (W/O LEADS) (W/TPA CAVITY PLUG) (13.100) CK1, 2, 3 2005-2006 01
010 19151507 CONNECTOR, INLINE-TO I/P HARN (BLACK) (38-WAY FEMALE) (W/TPA, SEAL, CAVITY PLUGS, BRKT CM LVR) CK1 2005-2006 01
010 19153767 CONNECTOR, INLINE-TO I/P HARN CK1, 2 (06-36) 2005-2006 01
010 19181245 CONNECTOR, INLINE-TO I/P HARN (2IN WIDE, M/P 150/280) (BLACK) (16-WAY MALE) (W/O LEADS) CK1, 2 (06-36) 2006-2006 01
010 88986252 CONNECTOR, INLINE-TO I/P HARN (BLACK) (12-WAY MALE) (W/LEADS) CK1, 2, 3 2005-2006 01
010 88986262 CONNECTOR, INLINE-TO I/P HARN (BLACK) (10-WAY FEMALE) (W/LEADS) (ACDelco #PT1589) CK1 2005-2006 01
010 88986267 CONNECTOR, INLINE-TO I/P HARN (FROM FUSE BLK BRK JPR) (BLACK) (34.6MM WIDE) (12-WAY FEMALE) (W/LEADS) CK1, 2, 3 2005-2006 01
010 88987998 CONNECTOR, INLINE-TO I/P HARN (YELLOW) (4-WAY MALE) (M/P 280) (W/LEADS) (16.712) (ACDelco #PT2038) CK1, 2, 3 2005-2006 02
010 88988307 CONNECTOR, INLINE-TO I/P HARN (BLACK) (40-WAY MALE) (W/CAM LVR, TPA STABLZR) CK1, 2, 3 2005-2006 01
010 88988943 CONNECTOR, INLINE-TO I/P HARN (INCLS 20-WAY FEMALE GT280/630 32-WAY FEMALE) (W/O LEADS) CK1, 2 (06-36) 2006-2006 01
010 89047431 CONNECTOR, INLINE-TO I/P HARN (BLACK) (38-WAY FEMALE) (W/O LEADS) CK1, 2 2005-2006 01
011 CONNECTOR, INLINE-TO P/S HARN 2005-2006
012 12101825 CONNECTOR, INLINE-TO RDO SPKR (INDEX TAB CTR CAVITY AB) (BLACK) (2-WAY FEMALE) (W/LEADS) (2.535) (ACDelco #PT217) CK1, 2, 3 2005-2006 01
013 12129487 CONNECTOR, MOT-WDO REG (GRAY) (2-WAY FEMALE W/O LEADS) (10.783) CK1, 2, 3 2005-2006 01
013 88988609 CONNECTOR, MOT-WDO REG (GRAY) (2-WAY FEMALE) (W/LEADS) (10.783) (ACDelco #PT2072) CK1, 2 (06-36) 2006-2006 02
014 12126040 CONNECTOR, MDL-INFL RST SI IMP SEN (2-WAY MALE) (W/LEADS) (14.865) (ACDelco #PT1745) CK1, 2 (06-36) 2006-2006 02
015 12085535 CONNECTOR, LP-CTSY (SQUARE) (BLACK) (2-WAY FEMALE) (W/LEADS) (SQUARE) (2.535) (ACDelco #PT146) CK1, 2, 3 2005-2006 02
016 15306052 CONNECTOR, SW-DR LK (DR LOCK SWITCH) (BLACK) (6-WAY FEMALE M/P150 W/LEADS) (10.485) (ACDelco #PT1212) CK1, 2, 3 2006-2006 02
016 88986436 CONNECTOR, SW-DR LK (DOOR MODULE) (4-WAY FEMALE W/LEADS) (10.777) CK1, 2, 3 2005-2006 02
017 CONNECTOR, INLINE-TO CD PLYR 2005-2006
