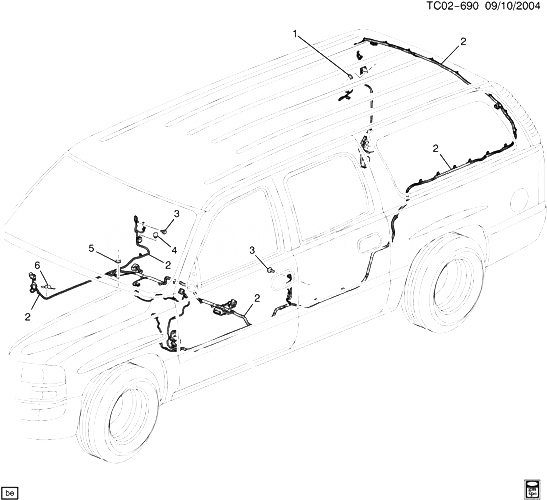

(TC02-690) - 2005-2006 CK(06) ЖГУТЫ ПРОВОДОВ/КУЗОВ CADILLAC - ESCALADE (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BODY WRG HARN GND) 2005-2006 01
002 15221482 HARNESS, BODY WRG (INCLS 4) CK157 (06) (Y91, Z75, Z88) 2006-2006 01
003 11516872 BOLT-HEX M6X1X20, 11.5 THD, 17 OD, 6202M, 6280M (BODY WRG HARN GND) 2005-2006 02
004 13502676 RELAY, L/GATE LAT ACTR (5-WAY, MICRO, STAMPED 5125) (PART OF 2) (2.485) (ACDelco #D1703A) CK1, 2 (06) 2005-2006 01
005 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BODY WRG HARN GND) 2005-2006 01
006 TAPE, BODY WRG HARN 2005-2006
