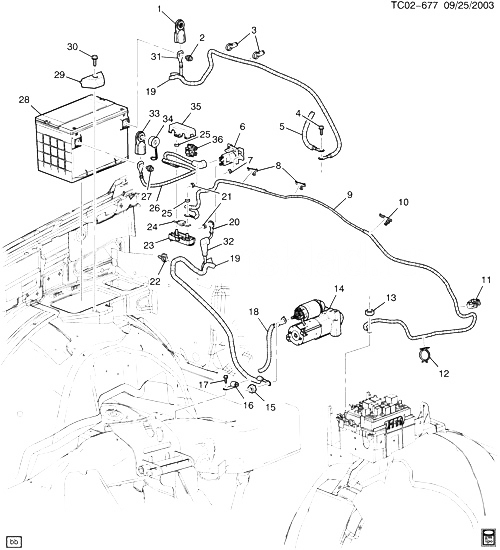

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12160209 |
COVER, BAT NEG CBL TERM (PART OF 31) (BLACK VINYL) (SURROUNDS CABLE END AT BATT SIDE TERM) |
CK1, 2, 3 |
2002-2007 |
01 |
| 002 |
19115561 |
БОЛТ, HEX HD, 3/8-16X13/32, 1/4 THD, 1 5/32 TOTAL LG, 51/64 O.D., STL, ZP (PART OF 31) (8.900) (ACDelco #19115561)
|
2002-2007 |
01 |
|
| 003 |
|
CLIP, BAT NEG CBL |
|
2002-2007 |
|
| 004 |
11513703 |
БОЛТ, HFH M8X1.25X18 (ENG WRG HARN GND) |
|
2002-2007 |
01 |
| 005 |
|
HARNESS, ENG WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/ДВИГАТЕЛЬ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2002-2007 |
|
| 006 |
12135194 |
RELAY, AUX BAT |
CK1, 2, 3 (TP2, 8B0) |
2002-2007 |
01 |
| 007 |
03530297 |
ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (AUX BAT RLY) |
|
2002-2007 |
02 |
| 008 |
|
CLIP, BAT POS CBL (PART OF 9) |
|
2002-2007 |
|
| 009 |
15372009 |
CABLE, BAT POS (2336.8MM LG) (INCLS 8, 10-12) (ACDelco #12SX92) |
CK1, 2, 3 (TP2, 8B0) |
2002-2007 |
01 |
| 010 |
|
CLIP, BAT POS CBL (PART OF 9) |
|
2002-2007 |
|
| 011 |
|
CLIP, BAT POS CBL (PART OF 9) |
|
2002-2007 |
|
| 012 |
|
RETAINER, BAT POS CBL (PART OF 9) |
|
2002-2007 |
|
| 013 |
11517031 |
ГАЙКА, HFH, M8X1.25, 9.4THK, 17.4 O.D., 10, TIN ZN (ACSRY PWR FUSE BLK FRT WRG HARN) |
|
2002-2007 |
01 |
| 014 |
|
STARTER, (СМ. ГРУППУ 02.000 КРЕПЛЕНИЕ СТАРТЕРА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2002-2007 |
|
| 015 |
21021808 |
ГАЙКА, STRTR SOL CBL (M8X1.25X6, BRASS)
| CK1, 2, 3 (EXC HP2, T64) |
2006-2007 |
01 |
|
| 016 |
15326073 |
CLIP, BAT CBL (PART OF 20) (RETAINS 10MM CONDUIT AND HAS AN 8MM DIA HOLE FOR MOUNTING) |
CK1, 2, 3 |
2002-2007 |
01 |
| 017 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (AUX BAT POS CBL) |
|
2002-2007 |
01 |
| 018 |
|
CABLE, BAT POS (СМ. ГРУППУ 02.000 АККУМУЛЯТОР ПРОВОДА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2002-2007 |
|
| 019 |
12125347 |
CONDUIT, 10MM X 15 FEET (BLA/GRA NYLON) (PART OF 20) |
|
2002-2007 |
AR |
| 020 |
15321259 |
CABLE, AUX BAT POS (INCLS 16, 22, 19, 32) (STARTER TO AUX RELAY ON FRT OF DASH) (ACDelco #6SX43FS) |
CK1, 2, 3 (TP2, 8B0) (EXC 5X7) |
2004-2007 |
01 |
| 021 |
21021808 |
ГАЙКА, AUX BAT POS CBL (M8X1.25X6, BRASS)
| CK1, 2, 3 |
2002-2007 |
02 |
|
| 022 |
19130464 |
STRAP, TIE 0.38 WIDTH, BUNDLE DIA 1/16-1-3/4, 8.27 LENGTH, NYLON 6/6 FITS 0. (PART OF 20)
|
2002-2007 |
01 |
|
| 023 |
19151476 |
BLOCK, AUX BAT POS CBL JUNC (INCLS 35) (2.483) |
CK1, 2, 3 |
2006-2007 |
01 |
| 024 |
15383342 |
FUSE, 40 AMP MEGA (FUSE COLOR, BLACK W/SIZE STAMPED IN WHITE ON CASE) |
|
2002-2007 |
01 |
| 025 |
11517031 |
ГАЙКА, HFH, M8X1.25, 9.4THK, 17.4 O.D., 10, TIN ZN (BAT POS FUSE BLK CBL) |
|
2002-2007 |
02 |
| 026 |
15372010 |
CABLE, AUX BAT POS (558.8MM LG) (AUXILIARY RELAY TO AUXILIARY АККУМУЛЯТОР) (INCLS 27, 33, 34, 36) (ACDelco #6SX22-1FS) |
CK1, 2, 3 (TP2, 8B0) |
2002-2007 |
01 |
| 027 |
|
БОЛТ, BAT POS CBL (PART OF 26) |
|
2002-2007 |
|
| 028 |
|
АККУМУЛЯТОР, AUX (SEE AC DELCO CATALOG FOR SERVICE) |
|
2002-2007 |
|
| 029 |
00356668 |
RETAINER, BAT HOLDN (PLASTIC) |
CK1, 2, 3 (8B0) |
2002-2007 |
02 |
| 030 |
11509853 |
БОЛТ, HEX W/CON WA, M8X1.25X45, 24 O.D., HDR PT, 9.8, PS (BAT HOLDN RET)
|
2002-2007 |
01 |
|
| 031 |
15321207 |
CABLE, AUX BAT NEG (1168.4MM LG) (INCLS 1, 2) (ACDelco #6SX46A) |
CK1, 2, 3 (TP2, 8B0, 8Y9) |
2002-2006 |
01 |
| 032 |
12146808 |
COVER, BAT POS CBL TERM (AT BLOCK SWITCH) (PART OF 20) (BLACK) (TERMINAL BOOT COVER) (2.313) |
CK1, 2, 3 |
2002-2007 |
01 |
| 033 |
|
COVER, BAT POS CBL TERM (PART OF 26) |
|
2002-2007 |
|
| 034 |
|
COVER, BAT POS NEG CBL DUMMY RCPT (PART OF 26) |
|
2002-2007 |
|
| 035 |
|
COVER, BAT POS CBL J/BLK (PART OF 23) |
|
2002-2007 |
|
| 036 |
|
CLIP, BAT POS CBL (PART OF 26) |
|
2002-2007 |
|
