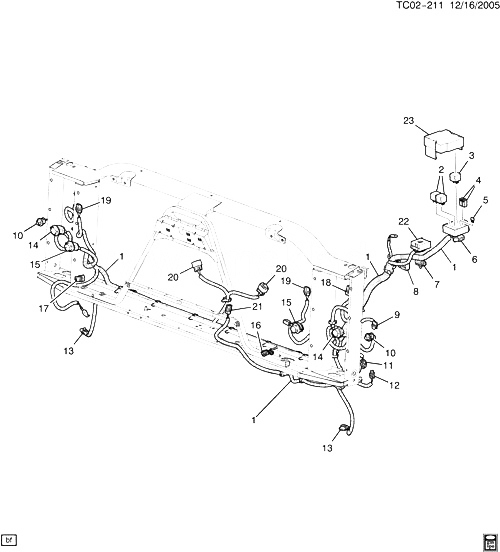

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15236077 |
HARNESS, FWD LP WRG (INCLS 2-23) |
CK1 (06) (Z75) |
2005-2006 |
01 |
| 002 |
12193604 |
RELAY, ENG COOL FAN (GRAY) (SPST 280 MINI) (4-TERMINAL) (CODE 3604) (9.778) (ACDelco #15-8733) |
CK1, 2, 3 |
2005-2007 |
02 |
| 003 |
12193602 |
RELAY, ENG COOL FAN (BLACK) (5-TERMINAL) (SPDT 280 MINI) (2.100) (ACDelco #D954A)
| CK1, 2, 3 |
2005-2007 |
01 |
|
| 004 |
15319478 |
FUSE, 40AMP, GREEN, J-CASE, FEMALE (PART OF 1) (ACDelco #15319478)
|
2005-2007 |
02 |
|
| 005 |
12092079 |
FUSE, 10A, MINI, RED (PART OF 1) |
|
2005-2007 |
01 |
| 006 |
15306159 |
CONNECTOR, FUSE-MAXI (PART OF 1) (BLACK) (1-WAY FEMALE) (W/LEADS) (2.530) (ACDelco #PT1317) |
CK1 |
2005-2006 |
01 |
| 007 |
19151499 |
CONNECTOR, ENG COOL FAN HARN (PART OF 1) (BLACK) (2-WAY MALE) (GT 150 SERIES) (SEALED) (3.682) (ACDelco #PT2267) |
CK1 |
2005-2006 |
01 |
| 008 |
12101852 |
CONNECTOR, INLINE-TO I/P HARN (M/P 150) (PART 0F 1)) (BLACK) (6-WAY MALE) (W/LEADS) (2.535) (ACDelco #PT244) |
CK1, 2, 3 |
2005-2006 |
01 |
| 009 |
15306302 |
CONNECTOR, СИГНАЛ (SIDE TAB) (PART OF 1) (GRAY) (2-WAY FEMALE) (W/LEADS) (4.710) (ACDelco #PT1357) |
CK1, 2, 3 |
2005-2007 |
02 |
| 010 |
08901283 |
SOCKET, FRT SI MKR LP (PART OF 1) (GRAY) (2-WAY FEMALE) (ACDelco #LS102) |
CK1 (06) (Z75) |
2005-2006 |
02 |
| 011 |
12101856 |
CONNECTOR, SEN-O/S AIR TEMP (PART OF 1) (GREEN) (2-WAY FEMALE) (W/LEADS) (OUTSIDE) (2.535) (ACDelco #PT248) |
CK1, 2, 3 |
2005-2006 |
01 |
| 011 |
12102747 |
CONNECTOR, SEN-O/S AIR TEMP (PART OF 1) (BLACK) (ACCEPTS 1.5MM TERMS) (2-WAY FEMALE) (M/P150) (W/LEADS) (REAR) (1.203) (ACDelco #PT374) |
CK1, 2 |
2005-2006 |
01 |
| 012 |
12102747 |
CONNECTOR, SW-WSWA SOLV LVL (PART OF 1) (BLACK) (ACCEPTS 1.5MM TERMS) (2-WAY FEMALE) (M/P150) (W/LEADS) (REAR) (1.203) (ACDelco #PT374) |
CK1, 2 (06-36) |
2006-2006 |
01 |
| 013 |
12101898 |
CONNECTOR, LP-FOG (FLAT TERM, W/LEADS, TAN SEAL) (PART OF 1) (BLACK) (2-WAY FEMALE) (W/LEADS) (2.535) (ACDelco #PT168) |
CK1, 2, 3 |
2005-2007 |
02 |
| 013 |
12102664 |
CONNECTOR, LP-FOG (ORANGE SEAL) (PART OF 1) (BLACK) (2-WAY FEMALE) (W/LEADS) (M/P 280 W/ORANGE SEAL) (ROUND) (2.535) (ACDelco #PT331)
| CK1, 2 |
2005-2006 |
02 |
|
| 013 |
12162343 |
CONNECTOR, LP-FOG (PART OF 1) (GRAY) (2-WAY MALE) (W/O LEADS) (4.720) |
CK157 (06) |
2005-2006 |
01 |
| 013 |
15306302 |
CONNECTOR, LP-FOG (PART OF 1) (GRAY) (2-WAY FEMALE) (W/LEADS) (4.710) (ACDelco #PT1357) |
CK157 (06) |
2005-2006 |
01 |
| 013 |
88986438 |
CONNECTOR, LP-FOG (PART OF 1) (GRAY) (10-WAY FEMALE) (W/LEADS) (16.480) |
CK1, 2, 3 |
2005-2006 |
01 |
| 014 |
12083689 |
SOCKET, PARK T/SIG LP (FRT) (PART OF 1) (NATURAL) (3 WAY FEMALE) (WEDGE BASE RT ANGLE) (W/ LEADS) (2.694) (ACDelco #LS15) |
CK1 (06) (Z75) |
2006-2006 |
02 |
| 014 |
12083689 |
SOCKET, PARK T/SIG LP (FRT) (PART OF 1) (NATURAL) (3 WAY FEMALE) (WEDGE BASE RT ANGLE) (W/ LEADS) (2.694) (ACDelco #LS15) |
CK1 (06) (Z75) |
2006-2006 |
02 |
| 014 |
12159662 |
SOCKET, PARK T/SIG LP (RR) (PART OF 1) (GRAY) (3-WAY FEMALE) (W/LEADS) (2.594) (ACDelco #LS54)
| CK1 (06) (Z75) |
2006-2006 |
02 |
|
| 014 |
12159662 |
SOCKET, PARK T/SIG LP (RR) (PART OF 1) (GRAY) (3-WAY FEMALE) (W/LEADS) (2.594) (ACDelco #LS54)
| CK1 (06) (Z75) |
2006-2006 |
02 |
|
| 014 |
15306147 |
SOCKET, PARK T/SIG LP (PART OF 1) (BROWN) (3-WAY FEMALE) (WEDGE BASE RT ANGLE) (SEALED) (W/LEADS) (ACDelco #LS92)
| CK1, 2 |
2005-2006 |
02 |
|
| 014 |
15306147 |
SOCKET, PARK T/SIG LP (PART OF 1) (BROWN) (3-WAY FEMALE) (WEDGE BASE RT ANGLE) (SEALED) (W/LEADS) (2.596) (ACDelco #LS92)
| CK1, 2 |
2005-2006 |
02 |
|
| 015 |
15306188 |
SOCKET, DAYTIME RUNNING LP (PART OF 1) (NATURAL) (3-WAY FEMALE WEDGE BASE) (W/LEADS) (ACDelco #LS95) |
CK1 (06-36) (Y91, Z75) |
2005-2006 |
02 |
| 016 |
15306384 |
CONNECTOR, SEN-INFL RST ARMING (PART OF 1) (YELLOW) (2-WAY FEMALE GT 150) (W/LEADS) (14.865) (ACDelco #PT1436) |
CK1, 2, 3 |
2006-2006 |
AR |
| 017 |
12102747 |
CONNECTOR, MOT-WSWA PUMP (PART OF 1) (BLACK) (ACCEPTS 1.5MM TERMS) (2-WAY FEMALE) (M/P150) (W/LEADS) (REAR) (1.203) (ACDelco #PT374) |
CK1, 2, 3 |
2005-2007 |
01 |
| 018 |
12101898 |
CONNECTOR, LP-HDLP LOW BEAM (FLAT TERM, W/LEADS, TAN SEAL) (PART OF 1) (BLACK) (2-WAY FEMALE) (W/LEADS) (2.535) (ACDelco #PT168) |
CK1, 2, 3 (Y91, Z88) |
2005-2007 |
02 |
| 018 |
88953349 |
CONNECTOR, LP-HDLP LOW BEAM (TO BALLAST) (PART OF 1) (3-WAY FEMALE) (W/LEADS) (ACDelco #PT1639) |
CK1 (06-36) (Z75) |
2005-2006 |
02 |
| 019 |
12101898 |
CONNECTOR, LP-HDLP HIGH BEAM (FLAT TERM, W/LEADS) (PART OF 1) (BLACK) (2-WAY FEMALE) (W/LEADS) (2.535) (ACDelco #PT168) |
CK1, 2, 3 |
2005-2007 |
02 |
| 020 |
88987983 |
CONNECTOR, MOT-ENG COOL FAN (PART OF 1) (BLACK) (2-WAY FEMALE W/LEADS) (ACDelco #PT1767) |
CK1, 2 (06-36) |
2006-2006 |
02 |
| 021 |
12101856 |
CONNECTOR, SEN-O/S AIR TEMP (PART OF 1) (GREEN) (2-WAY FEMALE) (W/LEADS) (OUTSIDE) (2.535) (ACDelco #PT248) |
CK1, 2, 3 |
2005-2006 |
01 |
| 021 |
12102747 |
CONNECTOR, SEN-O/S AIR TEMP (PART OF 1) (BLACK) (ACCEPTS 1.5MM TERMS) (2-WAY FEMALE) (M/P150) (W/LEADS) (REAR) (1.203) (ACDelco #PT374) |
CK1, 2 |
2005-2006 |
01 |
| 022 |
19167006 |
CONNECTOR, BLK-ACSRY WRG JUNC (PART OF 1) (GREEN) (32-WAY FEMALE UNSEALED W/O LEADS W/TPAS) |
CK1, 2, 3 |
2006-2006 |
01 |
| 023 |
88988431 |
COVER, FWD LP WRG HARN FUSE BLK (PART OF 1) |
CK1 |
2005-2007 |
01 |
