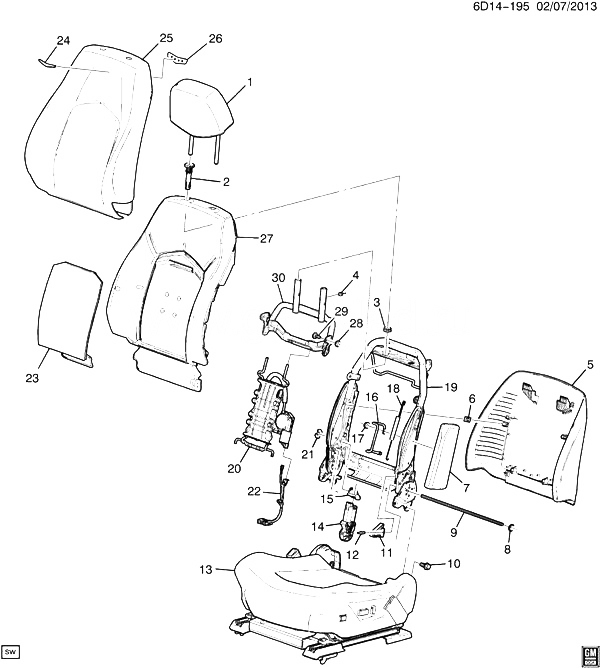

(6D14-195) 2011-2013 DM,DN35 СИДЕНЬЕ В СБОРЕ/ВОДИТЕЛЯ-СПИНКА (POWER LUMBAR AL2, EXC VENTED/HEATED KB6) CADILLAC - CTS WAGON 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20867414 RESTRAINT, D/SEAT HD (CASHMERE) DM (01D) 2011-2013 01
001 20867413 RESTRAINT, D/SEAT HD (TITANIUM) DM35-47-69 (AQ9, EBS, ECH, 01C) 2011-2013 01
001 20867413 RESTRAINT, D/SEAT HD (TITANIUM) DN35-47-69 (AQ9, ECH, KA1, 01C) (EXC KB6) 2011-2013 01
001 20812526 RESTRAINT, D/SEAT HD (EBONY) (LEATHER) DM, DN (AL2, AQ9, EBS, ECH, 01G) 2012-2013 01
002 25785786 GUIDE, D/SEAT H/RST (CASHMERE) (W/BUTTON) DM (01D) 2011-2013 01
002 25785788 GUIDE, D/SEAT H/RST (EBONY) (W/BUTTON) DN (01G, 02W) 2011-2013 01
002 25908135 GUIDE, D/SEAT H/RST (TITANIUM) (W/BUTTON) DM (01C) 2011-2013 01
002 25908135 GUIDE, D/SEAT H/RST (TITANIUM) (W/BUTTON) DN (01C) 2011-2013 01
002 25785788 GUIDE, D/SEAT H/RST (EBONY) (W/BUTTON) DM (01G) 2011-2013 01
002 25785789 GUIDE, D/SEAT H/RST (CASHMERE) (W/O BUTTON) DM (01D) 2011-2013 01
002 25785791 GUIDE, D/SEAT H/RST (EBONY) (W/O BUTTON) DM (01G) 2011-2013 01
002 88994612 GUIDE, D/SEAT H/RST (CASHMERE) (W/O BUTTON) (11.625) DM35 (01D) 2012-2013 01
002 19123683 GUIDE, D/SEAT H/RST (TITANIUM) (W/O BUTTON) DM35 (EBS, 01C) 2011-2013 01
002 25785788 GUIDE, D/SEAT H/RST (EBONY) (W/BUTTON) DN (07P) 2013-2013 01
002 25908165 GUIDE, D/SEAT H/RST (TITANIUM) (W/O BUTTON) DM (01C) 2011-2013 01
002 19123683 GUIDE, D/SEAT H/RST (TITANIUM) (W/O BUTTON) DN35 (ECH, 01C) (EXC A82) (EXPORT) 2011-2013 01
002 19123683 GUIDE, D/SEAT H/RST (TITANIUM) (W/O BUTTON) DM35 (ECH, WBL, 01C) (EXC A82) (EXPORT) 2012-2013 01
003 25994444 RETAINER, D/SEAT H/RST GDE D35-47-69 2011-2013 01
004 25995123 BUMPER, F/SEAT BK DM 2011-2013 02
004 25995123 BUMPER, F/SEAT BK DN 2011-2013 02
005 25939325 PANEL, D/SEAT BK FIN (INCLS 6) (EBONY) (PANEL IS WRAPPED IN LEATHER) DM35-69 (AL2, AQ9, A45, ECH, 01G) 2011-2013 01
005 25939323 PANEL, D/SEAT BK FIN (INCLS 6) (CASHMERE) (PANEL IS WRAPPED IN LEATHER) DM (AQ9, 01D) 2011-2013 01
005 25939325 PANEL, D/SEAT BK FIN (INCLS 6) (EBONY) (PANEL IS WRAPPED IN LEATHER) DM (AL2, AQ9, A45, EBS, 01G) 2011-2013 01
005 25939326 PANEL, D/SEAT BK FIN (INCLS 6) (TITANIUM) (PANEL IS WRAPPED IN LEATHER) DM35-69 (AQ9, 01C) 2012-2013 01
006 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 5) 2011-2013 04
007 20970105 AIRBAG, D/SEAT SI D35-69 2011-2013 01
008 11571066 NUT, PUSH-ON, FOR 9/32 (6.9MM) DIA STUDS, 18.4 OD, SAE 1050 STL, GMW30 (PART OF 19) 2011-2013 02
009 15894212 BAR, F/SEAT BK FRM CR (PART OF 19) DM, DN 2011-2013 02
010 25828643 BOLT, F/SEAT (PART OF 19) DM 2011-2013 08
010 25828643 BOLT, F/SEAT (PART OF 19) DN 2011-2013 08
011 25994443 BRACKET, D/SEAT (11.419) DN35-47-69 2011-2013 02
011 25994443 BRACKET, D/SEAT (11.419) DM 2011-2013 02
012 RIVET, D/SEAT ADJR BRKT 2011-2013
013 PAD, D/SEAT CUSH (SEE GROUP 14.000 SEAT ASM/DRIVER-CUSHION FOR DETAILED ILLUSTRATED VIEW) 2011-2013 01
014 15894214 ACTUATOR, D/SEAT RECL (PART OF 19) DM 2011-2013 01
014 15894214 ACTUATOR, D/SEAT RECL (PART OF 19) DN 2011-2013 01
015 BRACKET, D/SEAT RECL ACTR (PART OF 19) 2011-2013
016 25994418 BRACKET, D/SEAT SI AIRBAG DM, DN (AQ9) 2011-2013 01
017 11516075 NUT, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (D/SEAT SI AIRBAG) 2011-2013 02
018 25994445 SPRING, F/SEAT H/RST ADJ RET DM, DN 2011-2013 02
019 25807063 FRAME, D/SEAT BK (INCLS 8-10, 14, 15, 21) (14.896) DM35-69 (AL2, AQ9, A45) 2012-2013 01
019 25807063 FRAME, D/SEAT BK (INCLS 8-10, 14, 15, 21) (14.896) DN35-69 (AL2, AQ9, A45, ECH, KA1) 2012-2013 01
020 25939289 LUMBAR SUB, D/SEAT (W/ACTIVE H/RST-HT OF BK PNL INDENTATION ABOVE MAP PKT=3IN) DN35-69 (AL2, AQ9, A45, ECH, KA1) (EXC KB6) 2011-2013 01
020 25939289 LUMBAR SUB, D/SEAT (W/ACTIVE H/RST-HT OF BK PNL INDENTATION ABOVE MAP PKT=3IN) DM35-69 (AL2, AQ9, A45, ECH, KA1, WBL) (EXC KB6) 2012-2013 01
020 25939289 LUMBAR SUB, D/SEAT (W/ACTIVE H/RST-HT OF BK PNL INDENTATION ABOVE MAP PKT=3IN) DM35-69 (AL2, AQ9, A45, EBS) 2011-2013 01
021 CLIP, ACTUATOR D/SEAT RECL) (PART OF 19) 2011-2013
022 25994400 HARNESS, D/SEAT WRG (RECL POTENTIOMETER) (MEMRY JMPR) DM, DN35-69 (AL2, AQ9, A45, EBS, KA1) (EXC KB6) 2011-2013 01
023 25994410 HEATER, D/SEAT BK DM (KA1) (EXC KB6) 2011-2013 01
023 25994410 HEATER, D/SEAT BK DN (KA1) (EXC KB6) 2011-2013 01
024 22958608 PANEL, F/SEAT BK UPR FIN (EMBLEM) DM, DN35-69 2012-2013
024 22958608 PANEL, F/SEAT BK UPR FIN (EMBLEM) DM35-69 (AQ9, A45, EBS) 2012-2013 01
025 22737839 COVER, D/SEAT BK (TITANIUM) DM35-69 (AL2, A45, EBS, KA1, 01C) (EXC KB6) 2011-2013 01
025 22737840 COVER, D/SEAT BK (CASHMERE) DM35-69 (AL2, A45, EBS, KA1, 01D) (EXC KB6) 2011-2013 01
025 22737835 COVER, D/SEAT BK (TITANIUM) (SUEDE) DM35-69 (AL2, A45, ECH, KA1, 01C) (EXC KB6) 2012-2013 01
025 22784990 COVER, D/SEAT BK (EBONY) DM35-69 (AL2, AQ9, A45, EBS, KA1, 01G) (EXC KB6) 2012-2013 01
025 22784996 COVER, D/SEAT BK (EBONY) DM35-69 (AL2, AQ9, A45, ECH, KA1, WBL, 01G) (EXC KB6) 2012-2013 01
025 22784996 COVER, D/SEAT BK (EBONY) DN35-69 (AL2, AQ9, A45, ECH, KA1, 01G) (EXC KB6) 2012-2013 01
025 22789874 COVER, D/SEAT BK (TITANIUM) DN35-69 (AL2, AQ9, A45, ECH, KA1, 01C) (EXC KB6) 2012-2013 01
026 22958609 PANEL, F/SEAT BK UPR FIN (RETAINER) DM, DN35-69 2012-2013
026 22958609 PANEL, F/SEAT BK UPR FIN (RETAINER) DN35-69 2012-2013
026 22958609 PANEL, F/SEAT BK UPR FIN (RETAINER) DM35-69 2012-2013
027 25939292 PAD, F/SEAT BK DM35-69 (AL2, AQ9, A45, EBS, KA1) (EXC KB6) 2011-2013 01
027 25939292 PAD, F/SEAT BK DN35-69 (AL2, AQ9, A45, ECH, KA1) (EXC KB6) 2011-2013 01
027 25939292 PAD, F/SEAT BK DM35-69 (AL2, AQ9, A45, ECH, KA1, WBP) (EXC KB6) 2012-2013 01
028 25995124 BUSHING, F/SEAT BK PIV DM 2011-2013 02
028 25995124 BUSHING, F/SEAT BK PIV DN 2011-2013 02
029 BOLT, F/SEAT H/RST 2011-2013
030 25994442 SUPPORT, D/SEAT H/RST DN35-69 2011-2013 01
030 25994442 SUPPORT, D/SEAT H/RST DM35-69 2011-2013 01
