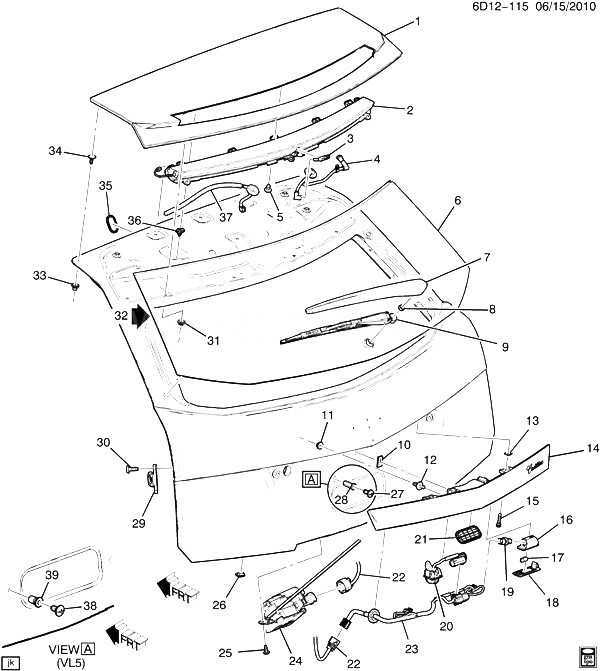

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20940050 |
APPLIQUE, L/GATE UPR (W/HIGH MT S/LP) (INCLS 34, 36) (PAINT TO MATCH) |
D35 |
2011-2013 |
01 |
| 002 |
20813425 |
LAMP, HIGH MT STOP (INCLS ANTENNA MODULE PIGTAIL CABLE) |
DM35 |
2011-2013 |
01 |
| 002 |
20813425 |
LAMP, HIGH MT STOP (INCLS ANTENNA MODULE PIGTAIL CABLE) |
DN35 |
2011-2013 |
01 |
| 002 |
20813425 |
LAMP, HIGH MT STOP (INCLS ANTENNA MODULE PIGTAIL CABLE) |
DR35 (EXPORT) |
2011-2013 |
01 |
| 003 |
25808593 |
NOZZLE, R/WDO WA |
D35 |
2011-2013 |
01 |
| 004 |
25888259 |
HOSE, WSWA L/GATE EXTN RR (ACDelco #25888259) |
D35 |
2011-2013 |
01 |
| 005 |
15809005 |
BOLT, L/GATE UPR APLQ (D40X1.46X12, 9.5THD) (3.682) |
D35 |
2011-2013 |
08 |
| 006 |
25809984 |
WINDOW, RR |
DM35 |
2011-2013 |
02 |
| 006 |
25809984 |
WINDOW, RR |
DN35 |
2011-2013 |
02 |
| 006 |
25809984 |
WINDOW, RR |
DR35 (EXPORT) |
2011-2013 |
02 |
| 007 |
25937776 |
COVER, WSW ARM |
D35 |
2011-2013 |
01 |
| 008 |
11589150 |
NUT, HEX, W/ADH, M8X1.25X6.80, 5, GMW3359 (R/WDO WPR ARM) |
|
2011-2013 |
01 |
| 009 |
|
ARM, R/WDO WPR (W/BLADE) (SEE GROUP 12.000 WIPER SYSTEM/REAR WINDOW FOR DETAILED ILLUSTRATED VIEW) |
|
2011-2013 |
|
| 010 |
11570518 |
CLIP, L/GATE CTR APLQ (PART OF 14) |
D35 |
2011-2013 |
01 |
| 011 |
11611049 |
NUT, HX CON SPR WA W/SEALER M6X1.0 6H GM510M (9) STL GM7111M (L/GATE CTR APLQ) |
|
2011-2013 |
04 |
| 012 |
11570746 |
STUD, L/GATE LWR MLDG (PART OF 14) (FLANGE, M6X1X17, M6.3X1.69X12, 15 OD, 8.8) |
D35 |
2011-2013 |
04 |
| 013 |
11610510 |
NUT, PUSH-IN, M4.2X1.41, 0.7-2.15 PNL THK, SAE 1050-65, GMW3359 W/BLK SEAL (L/GATE CTR APLQ) |
|
2011-2013 |
02 |
| 014 |
22893992 |
APPLIQUE, RR CLSR CTR W/LIC PLT LP (INCLS 10, 12, 21, 23) |
D35 (EXC UVC) |
2013-2013 |
01 |
| 014 |
20940864 |
APPLIQUE, L/GATE CTR (INCLS 10, 12) |
D35 (UVC) (EXPORT) |
2011-2013 |
01 |
| 014 |
20940864 |
APPLIQUE, L/GATE CTR (INCLS 10, 12) |
D35 (UVC) |
2011-2013 |
01 |
| 015 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (L/GATE CTR APLQ) (9.665) |
|
2011-2013 |
02 |
| 016 |
13502179 |
LAMP, RR LIC PLT (INCLS 17-19) |
DM35 |
2011-2013 |
02 |
| 016 |
13502179 |
LAMP, RR LIC PLT (INCLS 17-19) |
DN35 |
2011-2013 |
02 |
| 016 |
13502179 |
LAMP, RR LIC PLT (INCLS 17-19) |
DR35 (EXPORT) |
2011-2013 |
02 |
| 017 |
13500812 |
BULB, RR LIC PLT LP (PART OF 16) (TRADE #W5WLL) (ACDelco #13500812) |
DM35-69 |
2011-2013 |
01 |
| 017 |
13500812 |
BULB, RR LIC PLT LP (PART OF 16) (TRADE #W5WLL) (ACDelco #13500812) |
DN35-69 |
2011-2013 |
01 |
| 017 |
13500812 |
BULB, RR LIC PLT LP (PART OF 16) (TRADE #W5WLL) (ACDelco #13500812) |
DR35-69 (EXPORT) |
2011-2013 |
01 |
| 018 |
|
COVER, RR LIC PLT LP HOLE (PART OF 16) |
|
2012-2013 |
|
| 019 |
|
SOCKET, RR LIC PLT LP (PART OF 16) |
|
2012-2013 |
|
| 020 |
20909171 |
MODULE, RR VIEW CAMERA IMAGE DISPLAY |
DR35 (UVC) (EXPORT) |
2011-2013 |
01 |
| 020 |
20909171 |
MODULE, RR VIEW CAMERA IMAGE DISPLAY |
DM, DN35 (UVC) |
2011-2013 |
01 |
| 021 |
20877759 |
SWITCH, L/GATE REL (PART OF 14, 23) (BLACK) (EXTERNALLY MOUNTED ABOVE LICENSE PLATE) (ACDelco #D1433H) |
DM35 |
2011-2013 |
01 |
| 021 |
20877759 |
SWITCH, L/GATE REL (PART OF 14, 23) (BLACK) (EXTERNALLY MOUNTED ABOVE LICENSE PLATE) (ACDelco #D1433H) |
DR35 (EXPORT) |
2011-2013 |
01 |
| 022 |
22779296 |
HARNESS, BODY RR L/GATE WRG |
D35 |
2012-2013 |
01 |
| 023 |
22894424 |
HARNESS, RR LIC PLT LP WRG (PART OF 14) (INCLS 21) |
DM, DN35 (EXC UVC) |
2013-2013 |
01 |
| 023 |
22894424 |
HARNESS, RR LIC PLT LP WRG (PART OF 14) (INCLS 21) |
DR35 (EXC UVC) (EXPORT) |
2013-2013 |
01 |
| 024 |
13581405 |
LATCH, L/GATE |
DN35 |
2011-2013 |
01 |
| 024 |
13581405 |
LATCH, L/GATE |
DM35 |
2011-2013 |
01 |
| 024 |
13581405 |
LATCH, L/GATE |
DR35 (EXPORT) |
2011-2013 |
01 |
| 025 |
11609341 |
SCREW, RD WA HD M6X1X19, 13.55 THD, 16 OD, 10.9, GMW4205, W/ADH GM6175M, MATPT (L/GATE LAT) |
|
2011-2013 |
03 |
| 026 |
25888200 |
PLUG, L/GATE INR PNL DRN HOLE (RECTANGULAR) |
DM35 |
2011-2013 |
02 |
| 026 |
25888200 |
PLUG, L/GATE INR PNL DRN HOLE (RECTANGULAR) |
DN35 |
2011-2013 |
02 |
| 026 |
25888200 |
PLUG, L/GATE INR PNL DRN HOLE (RECTANGULAR) |
DR35 (EXPORT) |
2011-2013 |
02 |
| 027 |
11570951 |
BOLT, RR LIC PLT (M6X1X13) (TRUSS HEAD) |
D35 |
2012-2013 |
02 |
| 028 |
11611290 |
NUT, RR LIC PLT (M6X1X24) |
D35 |
2011-2013 |
01 |
| 029 |
20940114 |
WEDGE, L/GATE (L/GATE SI) |
D35 |
2012-2013 |
02 |
| 030 |
11571248 |
BOLT, L/GATE WGE (L/GATE SI) |
DM35 |
2011-2013 |
04 |
| 030 |
11571248 |
BOLT, L/GATE WGE (L/GATE SI) |
DN35 |
2011-2013 |
04 |
| 030 |
11571248 |
BOLT, L/GATE WGE (L/GATE SI) |
DR35 (EXPORT) |
2011-2013 |
04 |
| 031 |
11611049 |
NUT, HX CON SPR WA W/SEALER M6X1.0 6H GM510M (9) STL GM7111M (L/GATE UPR APLQ) |
|
2011-2013 |
07 |
| 032 |
|
ADHESIVE, R/WDO |
|
2012-2013 |
|
| 033 |
11570702 |
NUT, HWX W/CON WA, SEALER, M6X1X5.7, 19 OD, 8 STEEL, GMW4205, ACORN (L/GATE UPR APLQ) |
|
2011-2013 |
02 |
| 034 |
11570746 |
STUD, L/GATE LWR MLDG (PART OF 1) (FLANGE, M6X1X17, M6.3X1.69X12, 15 OD, 8.8) |
D35 |
2011-2013 |
04 |
| 035 |
20811135 |
PLUG, L/GATE INR PNL ACC HOLE |
DM35 |
2011-2013 |
03 |
| 035 |
20811135 |
PLUG, L/GATE INR PNL ACC HOLE |
DN35 |
2011-2013 |
03 |
| 035 |
20811135 |
PLUG, L/GATE INR PNL ACC HOLE |
DR35 (EXPORT) |
2011-2013 |
03 |
| 036 |
15893516 |
CLIP, L/GATE UPR APLQ (PART OF 1) (10.056) |
D35 |
2011-2013 |
05 |
| 037 |
20814506 |
CABLE, RDO ANT CBL EXTN (APPLIQUE/SPOILER COAX CABLE) (ACDelco #20814506) |
D35 |
2011-2013 |
01 |
| 038 |
11570951 |
BOLT, RR LIC PLT (M6X1X13) (TRUSS HEAD) (*KIT1) |
D35 |
2012-2013 |
02 |
| 039 |
11609302 |
NUT, RR LIC PLT (M6X1X16) (*KIT1) (12.944) |
DR35-69 |
2012-2013 |
02 |
| 039 |
11609302 |
NUT, RR LIC PLT (M6X1X16) (*KIT1) (12.944) |
DM, DN |
2012-2013 |
02 |
| K01 |
25953538 |
ATTACHMENT KIT, RR LIC PLT (INCLS 38, 39) |
DM (BAG, VL5) |
2011-2013 |
01 |
| K01 |
25953538 |
ATTACHMENT KIT, RR LIC PLT (INCLS 38, 39) |
DR (BAG, VL5) |
2011-2013 |
01 |
| K01 |
25953538 |
ATTACHMENT KIT, RR LIC PLT (INCLS 38, 39) |
DN (BAG, VL5) |
2011-2013 |
01 |
