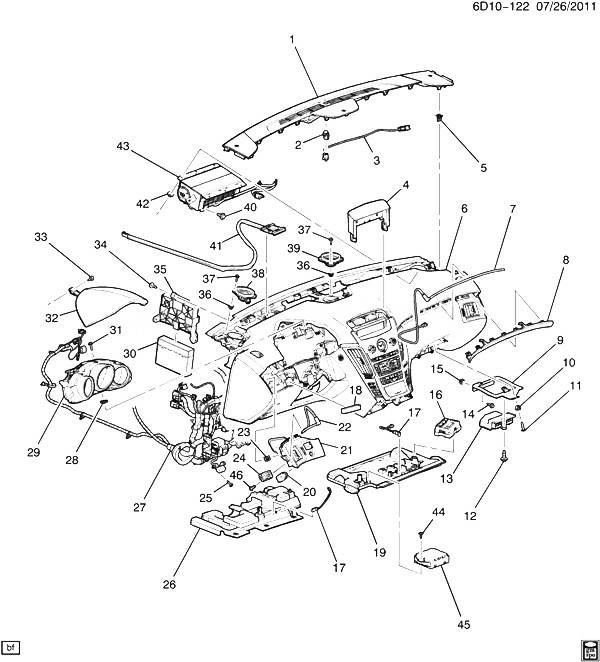

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25934791 |
GRILLE, W/S DEFR NOZ (INCLS 2, 3, 5) (COCOA) |
D35 (4AC) |
2010-2013 |
01 |
| 001 |
25934790 |
GRILLE, W/S DEFR NOZ (INCLS 2, 3, 5) (EBONY) |
D35-69 (4AL, 4AM, 4EV) |
2013-2013 |
01 |
| 002 |
25713063 |
SENSOR, HDLP AUTO CONT AMB LGT (PART OF 1) (DUAL SOLAR TWILIGHT) (ACDelco #25713063) |
D35 |
2010-2013 |
01 |
| 003 |
25879548 |
HARNESS, I/P WRG HARN EXTN (PART OF 1) (FOR SOLAR SENSOR) |
D35 |
2010-2013 |
01 |
| 004 |
|
COVER, NAVN INFO DISPLAY OPG (SEE GROUP 10.000 INSTRUMENT PANEL CENTER CONTROL FOR DETAILED ILLUSTRATED VIEW) (COCOA) |
|
2010-2013 |
|
| 005 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 1) |
|
2010-2013 |
12 |
| 006 |
|
PANEL, INST (SEE GROUP 10.000 INSTRUMENT PANEL TRIM FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 006 |
|
PANEL, INST (SEE GROUP 10.000 INSTRUMENT PANEL TRIM FOR DETAILED ILLUSTRATED VIEW) |
|
2011-2013 |
|
| 007 |
20905200 |
LAMP, I/P FLOOD |
D35-47-69 (TSQ) |
2011-2013 |
01 |
| 008 |
|
APPLIQUE, I/P TR PLT (SEE GROUP 10.000 INSTRUMENT PANEL TRIM FOR DETAILED ILLUSTRATED VIEW) (SAPELE) (LHD PASS) |
|
2010-2013 |
01 |
| 009 |
15902864 |
BRACKET, PEDESTRIAN IMP DETECTION MDL (INCLS 10) |
DM, DN (B3T) |
2012-2013 |
01 |
| 010 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 9) (10.701) |
|
2010-2013 |
01 |
| 011 |
11609406 |
SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (PEDESTRIAN IMP DETECTION MDL BRKT) |
|
2010-2013 |
01 |
| 012 |
11609989 |
BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (PEDESTRIAN IMP DETECTION MDL) |
|
2010-2013 |
03 |
| 013 |
25916158 |
MODULE, PEDESTRIAN IMPACT DETECTION (LABELED 25916158) |
DM, DN (B3T) (EXPORT) |
2010-2013 |
01 |
| 014 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (PEDESTRIAN IMP DETECTION MDL) |
|
2010-2013 |
02 |
| 015 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PEDESTRIAN IMP DETECTION MDL BRKT) (10.701) |
|
2010-2013 |
02 |
| 016 |
24253648 |
MODULE, TRFER CASE SHFT CONT |
DM35-69 (MYA, MX7, FE1, FE2, FE3, FE4) |
2011-2013 |
01 |
| 016 |
24257214 |
MODULE, TRFER CASE SHFT CONT |
DM35-69 (MYA, MX7, FE5) |
2012-2013 |
01 |
| 017 |
15855916 |
LAMP, CTSY (LED LAMP) |
DM35 (EXC TSQ) |
2010-2013 |
01 |
| 018 |
20863651 |
REINFORCEMENT, I/P LWR T/PNL |
D35 |
2010-2013 |
01 |
| 020 |
22866924 |
SWITCH, DIMR (PART OF 21) (MAY REQUIRE CONN #19115655) (ACDelco #22866924) |
D |
2012-2013 |
01 |
| 021 |
20791081 |
DEFLECTOR, I/P OTR AIR OTLT (INCLS 20, 23, 24) (CASHMERE) |
DM35-69 (4AC) |
2010-2013 |
01 |
| 021 |
20791082 |
DEFLECTOR, I/P OTR AIR OTLT (INCLS 20, 23, 24) (TITANIUM) |
DM (4AM) |
2010-2013 |
01 |
| 021 |
20791082 |
DEFLECTOR, I/P OTR AIR OTLT (INCLS 20, 23, 24) (TITANIUM) |
DN (4AM) |
2011-2013 |
01 |
| 021 |
20791080 |
DEFLECTOR, I/P OTR AIR OTLT (INCLS 20, 23, 24) (EBONY) |
DM (4AL, 4EV) |
2013-2013 |
01 |
| 021 |
20791080 |
DEFLECTOR, I/P OTR AIR OTLT (INCLS 20, 23, 24) (EBONY) |
DN35-69 (4AL, 4EV) |
2013-2013 |
01 |
| 023 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 21) |
|
2010-2013 |
04 |
| 024 |
15882574 |
SWITCH, DRVR INFO DISPLAY (PART OF 21) (ARGENT) (LABELED 15882574) |
D35-47-69 |
2013-2013 |
01 |
| 024 |
22964970 |
SWITCH, DRVR INFO DISPLAY (PART OF 21) (LABELED 22964970) |
D35-47-69 |
2013-2013 |
01 |
| 025 |
11609406 |
SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (INST CARR) |
|
2010-2013 |
02 |
| 026 |
25917889 |
INSULATOR, I/P (SEE GROUP 10.000 INSTRUMENT PANEL TRIM FOR DETAILED ILLUSTRATED VIEW) (BLACK) (DRVR SI HUSH PNL) |
DN (MG9) |
2011-2013 |
01 |
| 026 |
20791084 |
INSULATOR, I/P (SEE GROUP 10.000 INSTRUMENT PANEL TRIM FOR DETAILED ILLUSTRATED VIEW) (BLACK) (DRVR SI HUSH PNL, AUTO BASE) |
DN (MYD) |
2011-2013 |
01 |
| 026 |
20791084 |
INSULATOR, I/P (SEE GROUP 10.000 INSTRUMENT PANEL TRIM FOR DETAILED ILLUSTRATED VIEW) (BLACK) (DRVR SI HUSH PNL, AUTO BASE) |
DM (MYA) |
2012-2013 |
01 |
| 027 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 028 |
11516993 |
NUT, M4.2X1.41 (I/P) |
|
2010-2013 |
04 |
| 029 |
22822932 |
CLUSTER, INST (ACDelco #22822932) |
DN (MG9) (EXC UC2, U19) |
2013-2013 |
01 |
| 029 |
22822934 |
CLUSTER, INST (ACDelco #22822934) |
DN (MYD) (EXC UC2, U19) |
2013-2013 |
01 |
| 029 |
22822937 |
CLUSTER, INST (ACDelco #22822937) |
DM (LFW, LFX, MYA) (EXC UC2, U19) |
2013-2013 |
01 |
| 029 |
22822939 |
CLUSTER, INST (ACDelco #22822939) |
DM (MV7) (EXC UC2, U19) |
2013-2013 |
01 |
| 029 |
22822933 |
CLUSTER, INST (ACDelco #22822933) |
DN (MG9, UC2, U19) (EXPORT) |
2013-2013 |
01 |
| 029 |
22822935 |
CLUSTER, INST (ACDelco #22822935) |
DN (MYD, UC2, U19) (EXPORT) |
2012-2013 |
01 |
| 029 |
22822938 |
CLUSTER, INST (ACDelco #22822938) |
DM (LFW, LFX, MYA, UC2, U19) (EXPORT) |
2013-2013 |
01 |
| 029 |
22822940 |
CLUSTER, INST (ACDelco #22822940) |
DM (MV7, UC2, U19) (EXPORT) |
2013-2013 |
01 |
| 029 |
20898908 |
CLUSTER, INST (ACDelco #20898908) |
DN (MYD, UC2, U19) (EXPORT) |
2013-2013 |
01 |
| 030 |
22860591 |
MODULE, BODY CONT (2.560) (ACDelco #22860591) |
DM, DN |
2013-2013 |
01 |
| 030 |
22860591 |
MODULE, BODY CONT (ACDelco #22860591) |
DM, DN |
2011-2013 |
01 |
| 031 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (INST CSTR) |
|
2010-2013 |
04 |
| 032 |
15862527 |
COVER, I/P CSTR TR PLT (EBONY) |
DM, DN (4EV) |
2013-2013 |
01 |
| 032 |
15862527 |
COVER, I/P CSTR TR PLT (EBONY) |
DM, DN (4AM, 4EV) |
2013-2013 |
01 |
| 032 |
22756975 |
COVER, I/P CSTR TR PLT (COCOA) |
DM35 (4AC) |
2010-2013 |
01 |
| 033 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (I/P CSTR TR PLT) |
|
2010-2013 |
01 |
| 034 |
11609989 |
BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (BCM BRKT) |
|
2010-2013 |
03 |
| 035 |
15819564 |
BRACKET, BCM |
DM, DN |
2010-2013 |
01 |
| 036 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (RDO FRT SPKR) (10.701) |
|
2010-2013 |
06 |
| 037 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RDO FRT SPKR) |
|
2010-2013 |
06 |
| 038 |
15122573 |
SPEAKER, RDO FRT (ACDelco #15122573) |
D (UQS) |
2011-2013 |
02 |
| 038 |
15122573 |
SPEAKER, RDO FRT (ACDelco #15122573) |
D35 (UQA) |
2011-2013 |
02 |
| 039 |
15122573 |
SPEAKER, RDO FRT (ACDelco #15122573) |
D (UQS) |
2011-2013 |
02 |
| 039 |
15122573 |
SPEAKER, RDO FRT (ACDelco #15122573) |
D35 (UQA) |
2011-2013 |
02 |
| 041 |
15226445 |
ANTENNA, ELEK NAVIGATION (ACDelco #15226445) |
D35-47-69 (UAV, U2X, U2Y) |
2011-2013 |
01 |
| 042 |
15685170 |
NUT, I/P AIRBAG (PSIR MODULE TO I/P RETAINER) (M6X1.0, 19.0MM OD) (8.917) |
DM |
2010-2013 |
06 |
| 042 |
15685170 |
NUT, I/P AIRBAG (PSIR MODULE TO I/P RETAINER) (M6X1.0, 19.0MM OD) (8.917) |
DN |
2011-2013 |
06 |
| 043 |
22836131 |
AIRBAG, I/P |
DM35-69 (EF7, Z49) |
2013-2013 |
01 |
| 043 |
22836132 |
AIRBAG, I/P |
DM35-69 (EXC EF7, Z49) |
2013-2013 |
01 |
| 043 |
22836132 |
AIRBAG, I/P |
DN35-69 |
2013-2013 |
01 |
| 044 |
11509231 |
SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (HTR A/C CONT) |
|
2010-2013 |
02 |
| 046 |
11570587 |
BOLT, DRVR INFO DISPLAY SW (D 30 X 1.12 X 10) (10.260) |
D35-47-69 |
2011-2013 |
03 |
