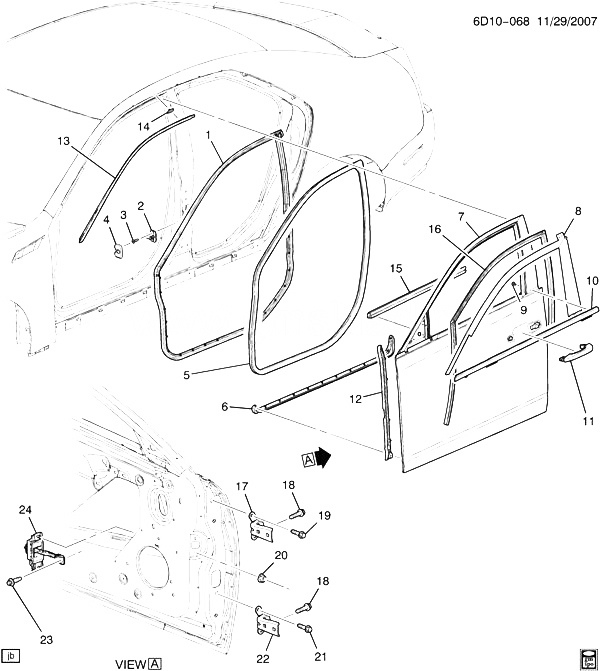

(6D10-068) 2011-2013 DM,DN,DR35 ФУРНИТУРА ДВЕРИ/ПЕРЕДНЯЯ PART 1 CADILLAC - CTS WAGON 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20968724 WEATHERSTRIP, FRT S/D (BODY SI) (TITANIUM) DM (4AM) 2010-2013 02
001 20968724 WEATHERSTRIP, FRT S/D (BODY SI) (TITANIUM) DN (4AM) 2011-2013 02
001 20968722 WEATHERSTRIP, FRT S/D (BODY SI) (CASHMERE) DM35-69 (4AC) 2010-2013 02
001 20968723 WEATHERSTRIP, FRT S/D (BODY SI) (EBONY) D35-69 (4AL) 2010-2013 02
001 20968722 WEATHERSTRIP, FRT S/D (BODY SI) (CASHMERE) DR35-69 (4AC) (EXPORT) 2010-2013 02
002 13503001 STRIKER, FRT S/D LK DM, DN, DR 2010-2013 02
003 11518445 SCREW, FLAT-HD HEX ALLEN, CSINK, M8X1.25X25, 18.05 THD, 14.7 OD, 8.8, GMW3044. (FRT S/D LAT STKR) 2010-2013 04
004 13503106 COVER, FRT S/D LAT STKR (BLACK) D35-69 2010-2013 02
005 20805481 WEATHERSTRIP, FRT S/D (DOOR SI) D35 2010-2013 01
005 20805482 WEATHERSTRIP, FRT S/D (DOOR SI) D35 2010-2013 01
006 25948402 WEATHERSTRIP, FRT S/D LWR AUX D35 2010-2013 01
006 25948403 WEATHERSTRIP, FRT S/D LWR AUX D35 2010-2013 01
007 DOOR, FRT SI (SEE GROUP 12.000 SHEET METAL/ BODYSIDE FOR DETAILED ILLUSTRATED VIEW) 2010-2013
008 25955037 APPLIQUE, FRT S/D WDO FRM RR D35-69 2010-2013 01
008 25955038 APPLIQUE, FRT S/D WDO FRM RR D35-69 2010-2013 01
009 11509231 SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (FRT S/D WDO BELT R/MLDG) 2010-2013 02
010 22923353 MOLDING, FRT S/D WDO BELT RVL D35-69 2010-2013 01
010 22923354 MOLDING, FRT S/D WDO BELT RVL D35-69 2010-2013 01
011 HANDLE, FRT S/D O/S (SEE GROUP 10.000 DOOR HARDWARE/ SIDE FRONT FOR DETAILED ILLUSTRATED VIEW) (HANDLE ONLY) (PAINT TO MATCH) 2010-2013
012 22840937 WEATHERSTRIP, FRT S/D FRT AUX D35 2010-2013 01
012 22840938 WEATHERSTRIP, FRT S/D FRT AUX D35 2010-2013 01
013 25866792 MOLDING, BODY SI WDO RVL (INCLS 14) D35 2010-2013 01
013 25866793 MOLDING, BODY SI WDO RVL (INCLS 14) D35 2010-2013 01
014 22797490 CLIP, BODY OPG FRM G/MLDG (PART OF 13) D35 2010-2013 02
015 20828785 SEALING STRIP, FRT S/D WDO INR D35 2010-2013 01
015 20828786 SEALING STRIP, FRT S/D WDO INR D35 2010-2013 01
016 20944861 WEATHERSTRIP, FRT S/D WDO D35 2010-2013 01
016 20944860 WEATHERSTRIP, FRT S/D WDO D35 2010-2013 01
017 13501712 HINGE, FRT S/D UPR (10.454) D35 2010-2013 01
017 13501711 HINGE, FRT S/D UPR (10.454) D35 2010-2013 01
018 11609222 BOLT, HEX HD, W/FL WA, M9X1.25X35, 24 O.D., 6202M, 7114M (FRT S/D HGE (BODY SI)) 2010-2013 AR
019 11610041 BOLT, HFH W/SHLDR, M8X1.25X25, 12.55 THD, 21 OD, 10.9 (FRT S/D UPR HGE (DR SI)) 2010-2013 04
020 11508277 NUT, HEX W/CON WA M6X1 THD, OD-19 PEOR 9 (FRT S/D CHK LINK (DR SI)) 2010-2013 04
021 11610041 BOLT, HFH W/SHLDR, M8X1.25X25, 12.55 THD, 21 OD, 10.9 (FRT S/D LWR HGE (DR SI)) 2010-2013 04
022 13501712 HINGE, FRT S/D LWR D35 2010-2013 01
022 13501711 HINGE, FRT S/D LWR D35 2010-2013 01
023 11570007 BOLT, HEX W/CON WA, M8X1.25X23, 16 THD, 15 OD, 10.9, GMW3359 (BLACK), GMW146 (FRT S/D CHK LINK (BODY SI)) 2010-2013 02
024 15269871 LINK, FRT S/D CHK D35-69 2010-2013 02
