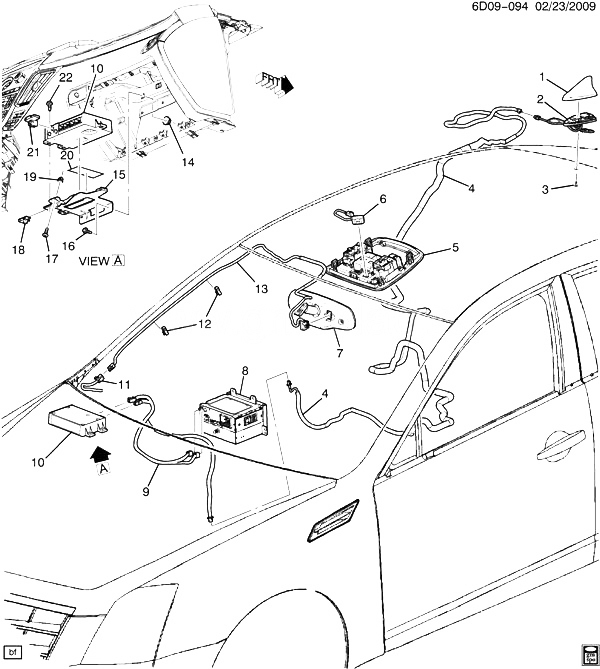

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20758514 |
ANTENNA, M/TEL DIGITAL (BLACK) (ACDelco #20758514) |
D35 (GBA, UE1) |
2010-2013 |
01 |
| 001 |
20758514 |
ANTENNA, M/TEL DIGITAL (BLACK) (ACDelco #20758514) |
D35 (GBE, UE1) |
2010-2013 |
01 |
| 001 |
20758514 |
ANTENNA, M/TEL DIGITAL (BLACK) (ACDelco #20758514) |
D35 (GBN, UE1) |
2010-2013 |
01 |
| 001 |
20758514 |
ANTENNA, M/TEL DIGITAL (BLACK) (ACDelco #20758514) |
D35 (GLH, UE1) |
2010-2013 |
01 |
| 001 |
20758514 |
ANTENNA, M/TEL DIGITAL (BLACK) (9.647) (ACDelco #20758514) |
D35 (GBA, UE1) |
2010-2013 |
01 |
| 001 |
20758514 |
ANTENNA, M/TEL DIGITAL (BLACK) (9.647) (ACDelco #20758514) |
D35 (GBE, UE1) |
2010-2013 |
01 |
| 001 |
20758514 |
ANTENNA, M/TEL DIGITAL (BLACK) (9.647) (ACDelco #20758514) |
D35 (GBN, UE1) |
2010-2013 |
01 |
| 001 |
20758514 |
ANTENNA, M/TEL DIGITAL (BLACK) (9.647) (ACDelco #20758514) |
D35 (GLH, UE1) |
2010-2013 |
01 |
| 002 |
22763482 |
BASE, DIGITAL RDO M/TEL VEH LOC (INCLS 3) (ACDelco #22763482) |
D35-47 (UE1) |
2012-2013 |
01 |
| 003 |
|
BOLT, RDO ANT BASE (PART OF 2) |
|
2011-2013 |
|
| 004 |
|
CABLE KIT, (SEE GROUP 09.000 CABLE KIT FOR DETAILED ILLUSTRATED VIEW) |
|
2011-2013 |
|
| 005 |
|
CONSOLE, RF (INCLS 6) (SEE GROUP 10.000 CONSOLE/ROOF FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 006 |
13576669 |
MICROPHONE, MOBILE TEL (PART OF 5) (2-CAVITY) |
D |
2012-2013 |
01 |
| 007 |
|
MIRROR, I/S RR VIEW (SEE GROUP 10.000 WINDSHIELD TRIM HARDWARE FOR DETAILED ILLUSTRATED VIEW) (W/O MIC) (MATING CONN W/LEADS USE 15306351) (16.068) |
|
2010-2013 |
|
| 008 |
|
RADIO, AM/FM STEREO AUDIO DISC PLYR MP3 PLYR (SEE GROUP 09.000 RADIO MOUNTING FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 009 |
|
CABLE KIT, (SEE GROUP 09.000 CABLE KIT FOR DETAILED ILLUSTRATED VIEW) |
|
2013-2013 |
|
| 010 |
22899600 |
MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) (LABELED 22899600) (ACDelco #22899600) |
DM, DN35-47-69 (UE1, UPF) (EXC FCN) |
2013-2013 |
01 |
| 011 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 012 |
|
CLIP, COMN INTERFACE MODULE CBL |
|
2011-2013 |
|
| 013 |
|
HARNESS, W/S HDR WRG (SEE GROUP 14.000 ROOF HEADLINER FOR DETAILED ILLUSTRATED VIEW) |
|
2011-2013 |
|
| 014 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (COMN INTERFACE MDL) (10.701) |
|
2010-2013 |
02 |
| 015 |
20976412 |
BRACKET, COMMUNICATION INTERFACE MDL (WHEN REPLACING 25918336, REPL PUSHNUT W/ U-NUT P/N 11513599) |
DM, DN (UE1) |
2010-2013 |
01 |
| 016 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (VEH LOC ANT MDL BRKT) |
|
2010-2013 |
02 |
| 017 |
11609457 |
SCREW, ROUNDWA, M4.2X1.41X20, 14.1 THD, 11.35 OD, 6010M, GMW4205, TAP, (NAVIGATION RCVR BRKT) |
|
2010-2013 |
01 |
| 018 |
11518121 |
NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (VEH LOC RCVR BRKT) |
|
2010-2013 |
02 |
| 019 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (NAVN RCVR BRKT) (10.701) |
|
2010-2013 |
01 |
| 020 |
|
INSULATOR, COMMUNICATION INTERFACE MDL |
|
2011-2013 |
|
| 021 |
15938939 |
ANTENNA, WIRELESS COMN INTERFACE (BLUETOOTH) (ACDelco #15938939) |
D35 (UE1, UPF) |
2010-2013 |
01 |
| 022 |
11570136 |
BOLT, HEX HD, W/CON SPR WA, M6X1X23, 14 THD, 17 O.D., 8.8, GMW3359 (VEH LOC ANT BRKT) |
|
2010-2013 |
02 |
