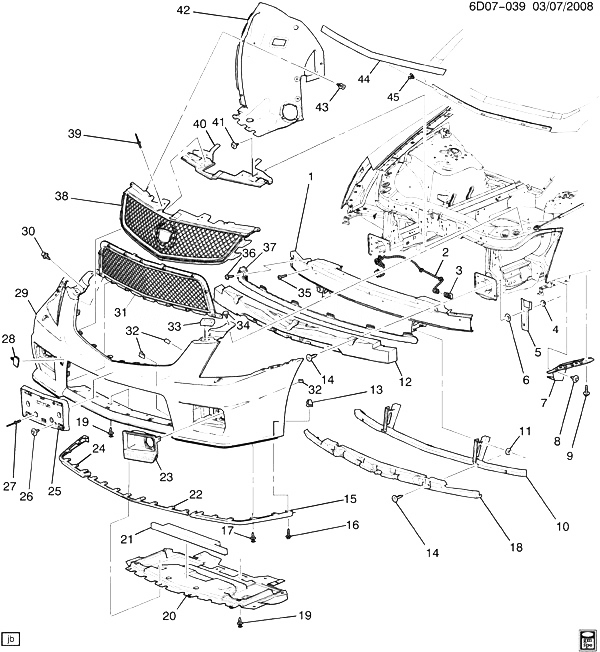

(6D07-039) 2011-2013 DN35-47-69 БАМПЕР ПЕРЕДНИЙ (PEDESTRIAN PROTECTION B3T) CADILLAC - CTS WAGON 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20999011 BAR, FRT BPR IMP DM, DN (B3T, V76) (EXPORT) 2012-2013 01
002 25952187 HARNESS, I/P WRG HARN EXTN (FOR SAFINGDISCRM SENSOR) DM, DN (B3T) 2011-2013 01
003 25916157 SENSOR, PEDESTRIAN IMPACT DETECTION (SEE GROUP 02.000 PEDESTRIAN PROTECTION SYSTEM FOR DETAILED ILLUSTRATED VIEW) DM, DN (B3T) 2011-2013 01
004 11517397 NUT, HEX W/CON WA, 8X1.25, 28 O.D., 7.5 THK, 9, PEOR (FRT BPR ENGY ABS) 2011-2013 08
005 15869580 BRACKET, HDLP (TO FRONT SIDE RAIL) D35-47-69 2011-2013 01
005 25924112 BRACKET, HDLP (TO FRONT SIDE RAIL) D35-47-69 2011-2013 01
006 11609344 NUT, STAMP SPECIAL BOLT RETAINER, 35.0X17.42X2.50, SAE 1050-1065 SPR STL, GM7111M (FRT BPR IMP BAR ANC PLT (PUSH ON)) 2011-2013 01
007 20831753 REINFORCEMENT, FRT BPR FASCIA D35 2011-2013 01
007 20831754 REINFORCEMENT, FRT BPR FASCIA D35 2011-2013 01
008 11561674 BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (FRT BPR FASCIA REINF) 2011-2013 02
009 11561674 BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (FRT BPR FASCIA RET) 2011-2013 02
010 25860887 BAR, FRT BPR LWR IMP D35 (B3T) (EXPORT) 2011-2013 01
011 11517397 NUT, HEX W/CON WA, 8X1.25, 28 O.D., 7.5 THK, 9, PEOR (FRT BPR ENGY ABS LWR) 2011-2013 04
012 25880228 ABSORBER, FRT BPR FASCIA ENGY UPR DN (B3T, V76) (EXPORT) 2011-2013 01
013 11515638 NUT, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (FRT BPR UPR FASCIA) 2011-2013 04
014 21077131 RETAINER, FRT BPR FASCIA ENGY ABS DN 2011-2013 03
015 FASCIA, FRT BPR LWR (*KIT1) 2011-2013
016 11589015 BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (FRT BPR FASCIA OTR RET) (*KIT1) 2011-2013 04
017 21030249 RETAINER, EXPAN, 21 LG, 20. OD, 8.0 HOLE, 3.0-5.0 PNL, NYLON 6/6, BLK (FRT BPR LWR FASCIA) (*KIT1) (8.950) (PUSH IN) 2011-2013 14
018 25880230 ABSORBER, FRT BPR FASCIA ENGY LWR DN (B3T, V76) (EXPORT) 2011-2013 01
019 11589291 RETAINER, PUSH-IN, FITS 6.5 HOLE IN 7-9.5 THK PNL, NYLON 6/6 (F/CMPT SPH SHLD (PUSH IN)) 2011-2013 12
020 20844261 DEFLECTOR, FRT AIR (INCLS 21) DN (LSA) 2011-2013 01
021 20844262 SEAL, RAD AIR LWR (PART OF 20) DN (LSA) 2011-2013 01
022 FASCIA, FRT BPR LWR (*KIT1) 2011-2013
023 25863012 BEZEL, FRT FOG LP (OUTER) DN35-47-69 (CE4, T4F) 2013-2013 01
023 25863013 BEZEL, FRT FOG LP DN35-47-69 (CE4, T4F) 2013-2013 01
024 FASCIA, FRT BPR LWR (*KIT1) 2011-2013
025 25819989 BRACKET, FRT LIC PLT DN (VK3) 2011-2013 01
025 25820118 BRACKET, FRT LIC PLT DN (VL6) (EXPORT) 2011-2013 01
025 25820117 BRACKET, FRT LIC PLT DN (VLF, VL4) (EXPORT) 2013-2013 01
026 09423101 SCREW, TAP, M6.3X1.81X16, 14.55 O.D., 7114M, PZ0R (FRT LIC PLT) 2011-2013 04
027 11516807 RIVET, POP, 4.8 DIA, 19.9 LONG, 16 OD, 5-5.25 HOLE, 1-9 GRIP RANGE, AL, BLACK (FRT LIC PLT BRKT) 2011-2013 02
028 25891070 COVER, FRT BPR FASCIA FRT TOW HOOK ACC HOLE DN 2011-2013 01
029 25947966 FASCIA, FRT BPR (PAINT TO MATCH) DN 2011-2013 01
030 21030249 RETAINER, EXPAN, 21 LG, 20. OD, 8.0 HOLE, 3.0-5.0 PNL, NYLON 6/6, BLK (FRT BPR UPR FASCIA) (8.950) (PUSH IN) 2011-2013 02
031 25891997 GRILLE, FRT LWR (SEE GROUP 01.000 GRILLE FOR DETAILED ILLUSTRATED VIEW) DN (CE4) 2011-2013 01
032 11562364 RETAINER, FRT BPR FASCIA (CLIP-18X10X11.6) (1.269) DN 2011-2013 33
033 25768800 BUMPER, FRT BPR FASCIA D35 2011-2013 02
034 11589293 RETAINER, PUSH-IN, FITS 8.5 DIA HOLE, 4.5-7 THK PNL, NYLON 6/6 GMP.PA66.0 (FRT BPR FASCIA (PUSH IN)) 2011-2013 02
035 11561427 SCREW, RND HD W/SHLDR M6X1X24 (FRT BPR IMP BAR) 2011-2013 05
036 11570143 BOLT, FRT BPR IMP BAR (0.206) D35 (B3T) (EXPORT) 2011-2013 01
038 25891998 GRILLE, FRT UPR (SEE GROUP 01.000 GRILLE FOR DETAILED ILLUSTRATED VIEW) DN (CE4) 2011-2013 01
039 10125439 RIVET, FLAT HD, 3 LEG EXPANSION, M4.8 SHAFT, 23.5 LG, 9.8 O.D., AL (FRT BPR FASCIA SUPT) 2011-2013 04
040 22845695 SUPPORT, FRT BPR FASCIA D35 2011-2013 01
041 11609540 BOLT, HWH, M6X1X20, 16.15 THD, 17 OD, 8.8, GMW4205, HDR PT. (FRT BPR CTR FIL SUPT) (8.977) 2011-2013 04
042 25796003 EXTENSION, FRT BPR FASCIA DN 2011-2013 01
042 25796004 EXTENSION, FRT BPR FASCIA DN 2011-2013 01
043 11589291 RETAINER, PUSH-IN, FITS 6.5 HOLE IN 7-9.5 THK PNL, NYLON 6/6 (FRT BPR FASCIA EXTN) 2011-2013 06
044 MOLDING, HOOD FRT 2011-2013
045 11570524 RETAINER, HOOD CTR MLDG (10.5 X 11.8 X 8.73) D35 2011-2013 08
K01 25882978 DEFLECTOR PKG, RAD AIR LWR (INCLS 15-17, 22, 24) (7.831) DN 2011-2013 01
