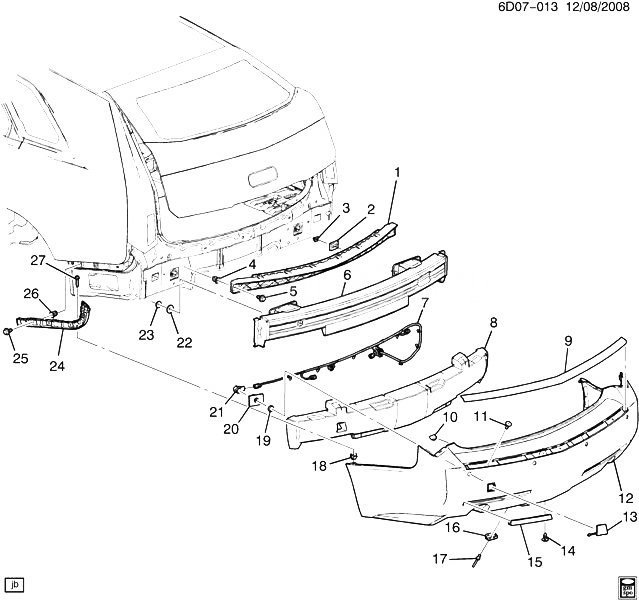

(6D07-013) 2011-2013 DM,DN,DR35 БАМПЕР ЗАДНИЙ CADILLAC - CTS WAGON 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25818205 BRACKET, RR BPR FASCIA CTR (INCLS 2, 3) D35 2010-2013 01
002 BRACKET, RR BPR FASCIA CTR (PART OF 1) 2011-2013
003 11570524 NUT, RR BPR FASCIA CTR BRKT (PART OF 1) (10.5 X 11.8 X 8.73) (8.056) D35 2010-2013 02
004 11562503 RETAINER, RR BPR FASCIA (M6X1.0) (NUT-PUSH-IN) (W/SEAL) (7.836) D35 2011-2013 05
005 11519116 BOLT, WASHER, M6.3X1.8X20, 14 THD, 17 OD, GM6010M, 7153M (RR BPR FASCIA) 2010-2013 05
006 20850894 BAR, RR BPR IMP D35 2011-2013 01
007 20928039 HARNESS, B/U ALARM WRG DM35 (ATG, UD7) 2010-2013 01
007 20928039 HARNESS, B/U ALARM WRG DN35 (ATG, UD7) 2011-2013 01
007 20928040 HARNESS, B/U ALARM WRG DM35 (ATH, UD7) 2010-2013 01
007 20928039 HARNESS, B/U ALARM WRG DR35 (ATG, UD7) (EXPORT) 2010-2013 01
007 20928040 HARNESS, B/U ALARM WRG DR35 (ATH, UD7) (EXPORT) 2010-2013 01
008 25829907 ABSORBER, RR BPR ENGY D35 2010-2013 01
009 25829906 MOLDING, RR BPR FASCIA D35 2010-2013 01
010 11562364 CLIP, RR BPR FASCIA MLDG (CLIP-18X10X11.6) (1.269) D35 2010-2013 10
011 25631448 RETAINER, RR BPR FASCIA SUPT (7.2 DIA, 22.0 O.D., 30.75 LG) (W/#3 SQ ROBERTSON DR) (7.831) D35 2010-2013 02
012 20976888 FASCIA, RR BPR (INCLS 13, 16, 17, 20) (PAINT TO MATCH) D35 (EXC UD7) 2010-2013 01
012 20976903 FASCIA, RR BPR (INCLS 13, 16, 17, 20) (PAINT TO MATCH) D35 (ATH, UD7) 2010-2013 01
012 20976873 FASCIA, RR BPR (INCLS 13, 16, 17, 20) (PAINT TO MATCH) DN35 (ATG, UD7) 2011-2013 01
012 20976873 FASCIA, RR BPR (INCLS 13, 16, 17, 20) (PAINT TO MATCH) DM35 (ATG, UD7) 2010-2013 01
012 20976873 FASCIA, RR BPR (INCLS 13, 16, 17, 20) (PAINT TO MATCH) DR35 (ATG, UD7) (EXPORT) 2010-2013 01
013 25920283 COVER, RR BPR FASCIA TOW HOOK ACC HOLE (PART OF 12) D35 (ATG, ATH) 2010-2013 01
014 01605396 RETAINER, PUSH-IN, FITS .250 HOLE, .92 LG.700-OD NYLON BLACK (RR BPR FASCIA (PUSH IN)) 2010-2013 03
015 25880226 REFLECTOR, RR BPR FASCIA DM35-47 (ATG, ATH) 2011-2013 01
015 25894905 REFLECTOR, RR BPR FASCIA DM35-47 (ATG, ATH) 2011-2013 01
015 25880226 REFLECTOR, RR BPR FASCIA DN35 (ATG) 2011-2013 01
015 25880226 REFLECTOR, RR BPR FASCIA DR35 (ATG, ATH) (EXPORT) 2011-2013 01
015 25894905 REFLECTOR, RR BPR FASCIA DR35 (ATG, ATH) (EXPORT) 2011-2013 01
016 25886155 BRACKET, IGN LK KEY XMTR ANT (PART OF 12) (EASY KEY SYSTEM) D35 2010-2013 01
017 11588308 RIVET, IGN LK KEY XMTR ANT BRKT (PART OF 12) (48MM) (7.831) DM35 2010-2013 02
017 11588308 RIVET, IGN LK KEY XMTR ANT BRKT (PART OF 12) (48MM) (7.831) DN35 2011-2013 02
017 11588308 RIVET, IGN LK KEY XMTR ANT BRKT (PART OF 12) (48MM) (7.831) DR35 (EXPORT) 2010-2013 02
018 11610157 NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (RR BPR FASCIA) (10.701) 2010-2013 02
019 RETAINER, RR OBJECT SEN (PART OF 21) 2011-2013
020 15271277 BRACKET, RR PARK ASST ALARM SEN (PART OF 12) (7.831) DN 2011-2013 04
020 15271277 BRACKET, RR PARK ASST ALARM SEN (PART OF 12) (7.831) DM 2011-2013 04
020 15271277 BRACKET, RR PARK ASST ALARM SEN (PART OF 12) (7.831) DR (EXPORT) 2011-2013 04
021 20914917 SENSOR KIT, PARK ASST ALARM (INCLS 19) (7.831) D35 (UD7) 2010-2013 04
021 20914917 SENSOR KIT, PARK ASST ALARM (INCLS 19) D35 (UD7) 2010-2013 04
022 10009923 NUT, BOLT RETAINING SPRING, M8X1.25, 25 O.D., ZOR (RR BPR IMP BAR RET (PUSH ON)) 2010-2013 02
023 11516650 NUT, HEX W/CON WA, M8X1.25, 28 O.D., 7.5 THK, 9, GM7111M. (RR BPR ENGY ABS) 2010-2013 06
024 25818203 BRACKET, RR BPR FASCIA D35 2010-2013 01
024 25818204 BRACKET, RR BPR FASCIA D35 2010-2013 01
025 11519116 BOLT, WASHER, M6.3X1.8X20, 14 THD, 17 OD, GM6010M, 7153M (RR BPR FASCIA BRKT) 2010-2013 08
026 11562503 RETAINER, RR BPR FASCIA SI (M6X1.0) (NUT-PUSH-IN) (W/SEAL) (7.836) D35 2011-2013 08
027 11589012 BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RR BPR FASCIA) (9.665) 2010-2013 02
