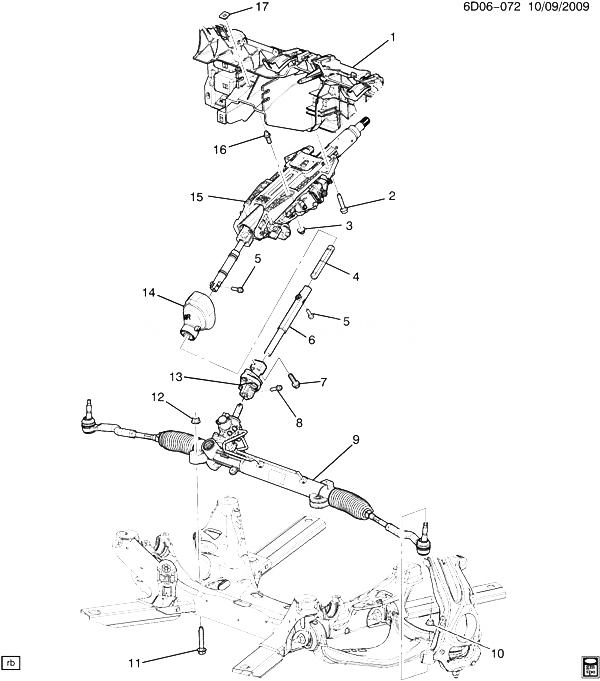

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
CARRIER, I/P (SEE GROUP 10.000 INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) (INCLS 16, 17) |
|
2010-2013 |
|
| 002 |
|
BOLT, STRG COL HSG (PART OF 15) |
|
2010-2013 |
|
| 003 |
11517996 |
NUT, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (STRG COL) (ACDelco #11517996) |
|
2010-2013 |
02 |
| 004 |
25924052 |
SHAFT, STRG |
DR (EXPORT) |
2010-2013 |
01 |
| 005 |
11610011 |
BOLT, INTER STRG SHF (M8X1.25X31, 17THD) |
DR |
2010-2013 |
02 |
| 006 |
15218206 |
SHAFT, LWR INTER STRG (INCLS 7, 13) |
DR (EXPORT) |
2010-2013 |
01 |
| 007 |
11571223 |
BOLT, INTER STRG SHF (PART OF 6) (M8X1.25X36, 27THD) |
DR (EXPORT) |
2012-2013 |
01 |
| 008 |
11609752 |
BOLT, INTER STRG SHF LWR (M10X1.5X39, 6H THD) (16OD, 16 THRU HOLE) |
DR |
2010-2013 |
01 |
| 009 |
|
GEAR, STRG (SEE GROUP 06.000 STEERING GEAR FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 010 |
11516078 |
NUT, STRG LNKG OTR TIE ROD (M12X1.75X14THK, 25 OD) (8.917) |
DR (EXPORT) |
2013-2013 |
02 |
| 010 |
11609282 |
NUT, STRG LNKG OTR TIE ROD (M12X1.75X16, 26OD) (16.714) |
DM, DN, DR |
2013-2013 |
02 |
| 011 |
11589278 |
BOLT, S/GR (M12X1.75X75.9, 45THD) (8.900) |
D |
2010-2013 |
03 |
| 013 |
|
SHAFT, STRG LNKG PIV (PART OF 6) |
|
2010-2013 |
|
| 014 |
|
SEAL, INTER STRG SHF LWR (PART OF 15) |
|
2010-2013 |
|
| 015 |
|
COLUMN, STRG (W/ INT STRG SHFT) (SEE GROUP 06.000 STEERING COLUMN FOR DETAILED ILLUSTRATED VIEW) (INCLS 2, 14) |
|
2010-2013 |
|
| 016 |
11609875 |
STUD, FLANGE, M10X1.5X12.5, M10X1.5X29, 18 OD, 9.8, GMW3044, HDR-PT (PART OF 1) (8.981) |
|
2010-2013 |
02 |
| 017 |
11516819 |
NUT, STAMPED M10 X 1.5 (PART OF 1) |
|
2010-2013 |
02 |
