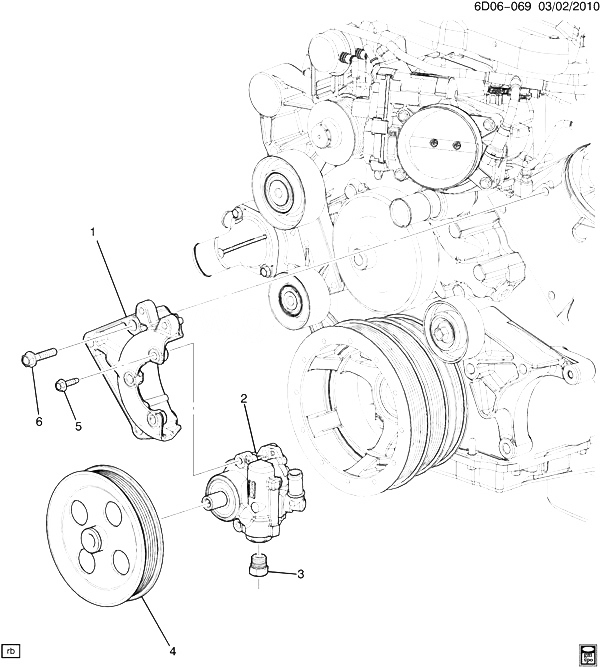

(6D06-069) 2011-2013 DN35-47-69 КРЕПЛЕНИЕ НАСОСА РУЛЕВОГО УПРАВЛЕНИЯ (LSA/6.2P) CADILLAC - CTS WAGON 2013
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 12611905 | BRACKET, P/S PUMP | DN (LSA) | 2011-2013 | 01 |
| 002 | 20806165 | PUMP, P/S (INCLS 3) (ACDelco #20806165) | DN | 2011-2013 | 01 |
| 003 | 25969500 | FITTING, P/S GR INL HOSE (PART OF 2) | DN | 2011-2013 | 01 |
| 004 | 12611906 | PULLEY, P/S PUMP | DN (LSA) | 2011-2013 | 01 |
| 005 | 11900254 | BOLT, HFH, M8X1.25X29, 19 THD, 18 OD, 8.8, GMW3359, M-POINT (P/S PUMP) | 2011-2013 | 03 | |
| 006 | 11588747 | BOLT, HFH, M10X1.5X75 (P/S PUMP BRKT) | 2011-2013 | 03 |
