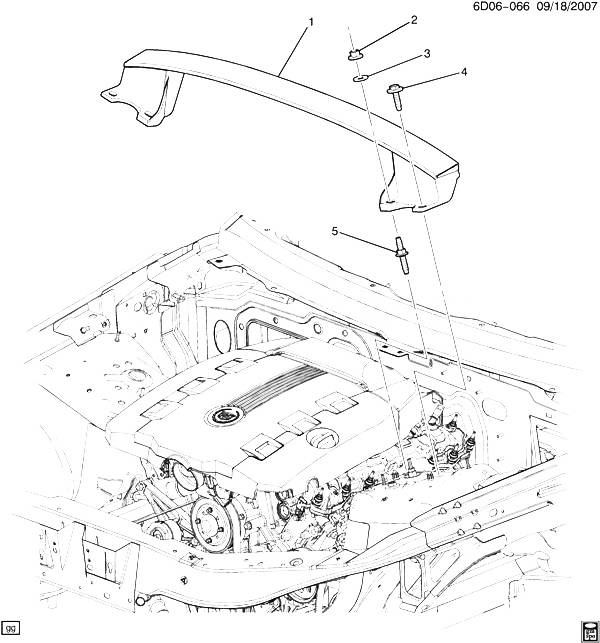

(6D06-066) 2011-2013 DM,DN,DR35 КРОНШТЕЙН ПЕРЕДНЕЙ ПОДВЕСКИ CADILLAC - CTS WAGON 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25817028 BRACE, F/END SH MET CR DN 2011-2013 01
001 25889925 BRACE, F/END SH MET CR DM 2010-2013 01
001 25889925 BRACE, F/END SH MET CR DR (EXPORT) 2010-2013 01
002 11519005 NUT, HFH LOCK, M12X1.75, 15THK, 31.5 O.D., 10, 7111M, PREV TORQ. (F/END SH MET CR BR) 2010-2013 01
003 14047726 WASHER, F/END SH MET CR BR (M13X35X3) (7.347) DM 2010-2013 02
003 14047726 WASHER, F/END SH MET CR BR (M13X35X3) (7.347) DN 2011-2013 02
003 14047726 WASHER, F/END SH MET CR BR (M13X35X3) (7.347) DR (EXPORT) 2010-2013 02
004 11589407 BOLT, HWH, M8X1.25X35, 23.5 THD, 24 OD, 10.9, GMW3359, M-PT. (FRT S/ABS UPR BRKT) 2010-2013 02
005 11561669 STUD, DOUBLE ENDED, M3.0X1.12X12.0, GM512M STL GRADE B, GMW4205 (FRT S/ABS) 2010-2013 02
