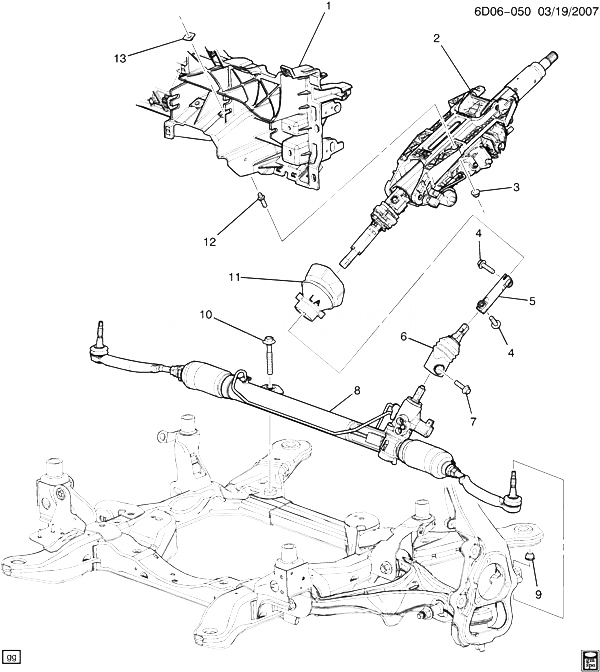

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
CARRIER, I/P (SEE GROUP 10.000 INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) (INCLS 12, 13) |
|
2010-2013 |
|
| 002 |
|
COLUMN, STRG (W/ INT STRG SHFT) (SEE GROUP 06.000 STEERING COLUMN FOR DETAILED ILLUSTRATED VIEW) (INCLS 11) |
|
2010-2013 |
|
| 003 |
11517996 |
NUT, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (STRG COL) (ACDelco #11517996) |
|
2010-2013 |
01 |
| 004 |
11610011 |
BOLT, INTER STRG SHF (M8X1.25X31, 17THD) |
D |
2010-2013 |
02 |
| 005 |
15218202 |
SHAFT, STRG |
DM (MX7) |
2010-2013 |
01 |
| 006 |
25970295 |
SHAFT, LWR INTER STRG |
DM (MX7) |
2010-2013 |
01 |
| 007 |
11518143 |
BOLT, INTER STRG SHF LWR (M10X1.5X38, 14.5THD) (8.900) |
D |
2010-2013 |
01 |
| 008 |
|
GEAR, STRG (SEE GROUP 06.000 STEERING GEAR FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 009 |
11516078 |
NUT, STRG LNKG OTR TIE ROD (M12X1.75X14THK, 25 OD) (8.917) |
DM, DN |
2013-2013 |
02 |
| 009 |
11516078 |
NUT, STRG LNKG OTR TIE ROD (M12X1.75X14THK, 25 OD) (8.917) |
DR (EXPORT) |
2013-2013 |
02 |
| 009 |
11609282 |
NUT, STRG LNKG OTR TIE ROD (M12X1.75X16, 26OD) (16.714) |
DM, DN, DR |
2013-2013 |
02 |
| 010 |
11589135 |
BOLT, S/GR (M12X1.75X85, 60THD) (8.900) |
DM (FE1, FE2, JJL, MX7) |
2010-2013 |
02 |
| 011 |
|
SEAL, INTER STRG SHF LWR (PART OF 2) |
|
2011-2013 |
|
| 012 |
11609875 |
STUD, FLANGE, M10X1.5X12.5, M10X1.5X29, 18 OD, 9.8, GMW3044, HDR-PT (PART OF 1) (8.981) |
|
2010-2013 |
02 |
| 013 |
11516819 |
NUT, STAMPED M10 X 1.5 (PART OF 1) |
|
2010-2013 |
02 |
