| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

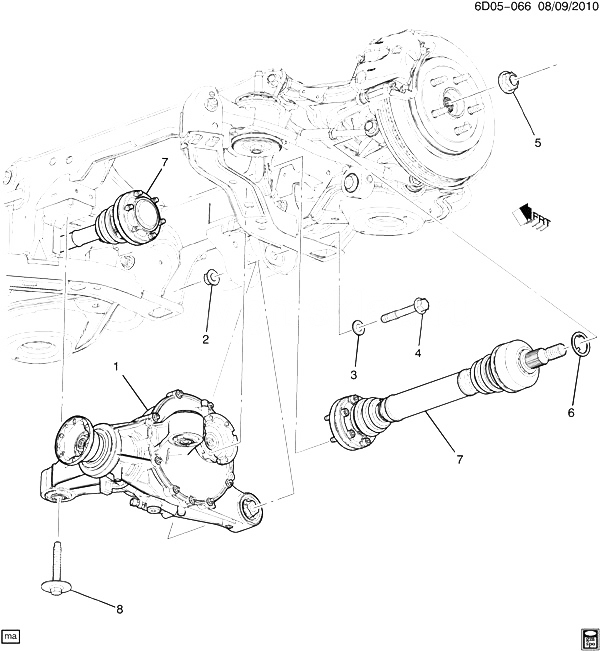

| 001 |
|
CARRIER, DIFF (3.23 RATIO) (SEE GROUP 05.000 DIFFERENTIAL CARRIER FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 002 |
11516383 |
NUT, HFH LK 16X2X18.9 34.2 OD 10 7111M PREV TORQ (DIFF) |
|
2010-2013 |
01 |
| 003 |
11609636 |
WASHER, FLAT M16X32X3, SAE1050, GMW3044 (DIFF CARR BRKT) |
|
2010-2013 |
01 |
| 004 |
11518933 |
BOLT, DIFF CARR RR (M16X2X110, 43THD, 35OD) (8.900) |
DM |
2010-2013 |
01 |
| 004 |
11518933 |
BOLT, DIFF CARR RR (M16X2X110, 43THD, 35OD) (8.900) |
DN |
2011-2013 |
01 |
| 004 |
11518933 |
BOLT, DIFF CARR RR (M16X2X110, 43THD, 35OD) (8.900) |
DR (EXPORT) |
2010-2013 |
01 |
| 005 |
10289657 |
NUT, RR WHL DRV UJT SHF (M24X2.0X19.6) (W/WASHER) (6.056) |
D |
2010-2013 |
02 |
| 006 |
11611232 |
WASHER, RR WHL DRV SHF (BLACK) (ID 30.7, OD 54.7) |
DM |
2010-2013 |
02 |
| 006 |
11611965 |
WASHER, RR WHL DRV SHF (.53 THK) |
DN |
2012-2013 |
02 |
| 006 |
11611232 |
WASHER, RR WHL DRV SHF (BLACK) (ID 30.7, OD 54.7) |
DR (EXPORT) |
2010-2013 |
02 |
| 006 |
11611962 |
WASHER, RR WHL DRV SHF (ID 31.7, OD 65) |
DM |
2013-2013 |
02 |
| 006 |
11611962 |
WASHER, RR WHL DRV SHF (ID 31.7, OD 65) |
DR (EXPORT) |
2013-2013 |
02 |
| 007 |
|
SHAFT, RR WHL DRV (SEE GROUP 05.000 AXLE SHAFT/REAR FOR DETAILED ILLUSTRATED VIEW) (CODE 7952) |
|
2010-2013 |
|
| 008 |
11569732 |
BOLT, DIFF CARR FRT (M14X2X101.68, 48THD) (63OD) |
DM |
2010-2013 |
02 |
| 008 |
11569732 |
BOLT, DIFF CARR FRT (M14X2X101.68, 48THD) (63OD) |
DN |
2011-2013 |
02 |
| 008 |
11569732 |
BOLT, DIFF CARR FRT (M14X2X101.68, 48THD) (63OD) |
DR (EXPORT) |
2010-2013 |
02 |
