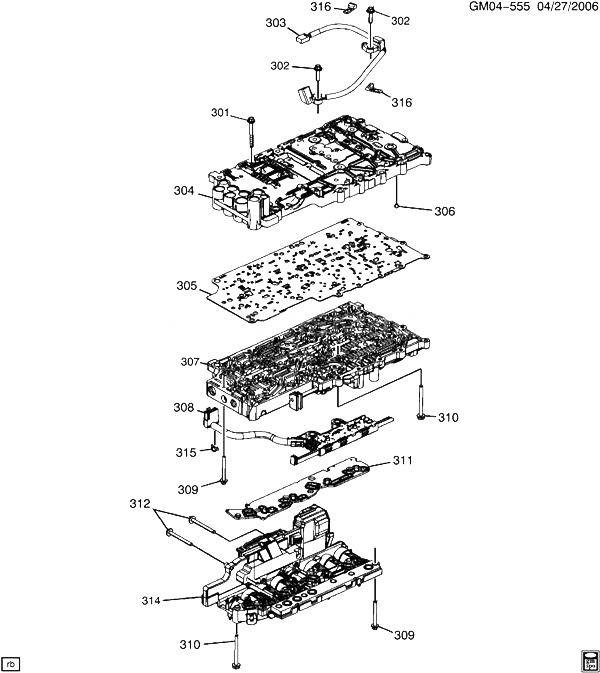

(GM04-555) 2012-2013 D35-47-69 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (MYA) (6L45) CONTROL VALVE ASSEMBLY CADILLAC - CTS WAGON 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
307 24251431 BODY, C/VLV LWR (SEE GROUP 04.000 AUTOMATIC TRANSMISSION/LOWER CONTROL VALVE BODY FOR DETAILED ILLUSTRATED VIEW) (W/O MANUAL VALVE) (ACDelco #24251431) DM (MYA) 2010-2013 01
307 24251431 BODY, C/VLV LWR (SEE GROUP 04.000 AUTOMATIC TRANSMISSION/LOWER CONTROL VALVE BODY FOR DETAILED ILLUSTRATED VIEW) (W/O MANUAL VALVE) (ACDelco #24251431) DR (MYA) (EXPORT) 2010-2013 01
308 24242938 SWITCH, A/TRNS MAN SHFT SHF POSN (INCLS 315) (INTERNAL MODE SWITCH) (ACDelco #24242938) DM 2010-2013 01
308 24242938 SWITCH, A/TRNS MAN SHFT SHF POSN (INCLS 315) (INTERNAL MODE SWITCH) (ACDelco #24242938) DR (MYA) (EXPORT) 2010-2013 01
309 24240848 BOLT, C/VLV LWR BODY (MX50.8X45.0) DM (MYA) 2010-2013 06
309 24240848 BOLT, C/VLV LWR BODY (MX50.8X45.0) DR (MYA) 2010-2013 06
310 24224822 BOLT, C/VLV LWR BODY (M5X0.8X55) DM (MYA) 2010-2013 06
310 24224822 BOLT, C/VLV LWR BODY (M5X0.8X55) DR (MYA) 2010-2013 06
311 24238925 PLATE KIT, CONT SOL VLV FLTR (ACDelco #24238925) DM (MYA) 2010-2013 01
311 24238925 PLATE KIT, CONT SOL VLV FLTR (ACDelco #24238925) DR (MYA) (EXPORT) 2010-2013 01
312 24240845 BOLT, CONT SOL VLV HEAT SINK (W/ BODY TCM) (M5X0.8X53.0) (ACDelco #24240845) DM (MYA) 2010-2013 02
312 24240845 BOLT, CONT SOL VLV HEAT SINK (W/ BODY TCM) (M5X0.8X53.0) (ACDelco #24240845) DR (MYA) (EXPORT) 2010-2013 02
314 24257213 VALVE, CONT SOL (W/ BODY TCM) (MUST ALSO ORDER EITHER A BODY KIT-C/VLV, OR A SEAL KIT-A/TRNS SERV, DEPENDING ON REPAIR.) (ELECTRONIC TRANS CONTROLLER ASM W/SOLENOIDS TCM (NOT A CONTROL VAL VE BODY ASM WITH VALVE BODY, VALVES, AND SPRINGS) (CODE 2D2A, DM (MYA) 2012-2013 01
314 24257213 VALVE, CONT SOL (W/ BODY TCM) (MUST ALSO ORDER EITHER A BODY KIT-C/VLV, OR A SEAL KIT-A/TRNS SERV, DEPENDING ON REPAIR.) (ELECTRONIC TRANS CONTROLLER ASM W/SOLENOIDS TCM (NOT A CONTROL VALVE BODY ASM WITH VALVE BODY, VALVES, AND SPRINGS) (CODE 2D2A, DR (MYA) 2013-2013 01
315 24236233 CLIP, A/TRNS MAN SHFT SHF POSN SW WRG HARN (PART OF 308) DM, DN 2010-2013 01
315 24236233 CLIP, A/TRNS MAN SHFT SHF POSN SW WRG HARN (PART OF 308) DR (EXPORT) 2010-2013 01
316 24236504 CLIP, A/TRNS INPUT OUTPUT SPD SEN WRG HARN (PART OF 303) (SILVER) (NON-UNIGEAR) DM 2011-2013 02
316 24236504 CLIP, A/TRNS INPUT OUTPUT SPD SEN WRG HARN (PART OF 303) (SILVER) (NON-UNIGEAR) DR (EXPORT) 2011-2013 02
301 24227130 BOLT, C/VLV UPR BODY (M5X0.8X36) DM (MYA) 2010-2013 12
301 24227130 BOLT, C/VLV UPR BODY (M5X0.8X36) DR (MYA) (EXPORT) 2010-2013 12
302 24225398 BOLT, A/TRNS INPUT OUTPUT SPD SEN (M6 X 1.0 X 20) D35 2010-2013 02
303 24265507 SENSOR, A/TRNS INPUT OUTPUT SPD (INCLS 316) (NON-UNIGEAR/NO STEP) (4.329) (ACDelco #24265507) DM35-47-69 (MYA, MX0, MX7) 2012-2013 01
303 24265507 SENSOR, A/TRNS INPUT OUTPUT SPD (INCLS 316) (NON-UNIGEAR/NO STEP) (ACDelco #24265507) DM35-47-69 (MYA, MX0, MX7) 2012-2013 01
303 24265507 SENSOR, A/TRNS INPUT OUTPUT SPD (INCLS 316) (NON-UNIGEAR/NO STEP) (ACDelco #24265507) DR35-69 (MYA, MX0, MX7) 2012-2013 01
303 24265507 SENSOR, A/TRNS INPUT OUTPUT SPD (INCLS 316) (NON-UNIGEAR/NO STEP) (4.329) (ACDelco #24265507) DR35-69 (MYA, MX0, MX7) (EXPORT) 2012-2013 01
304 96043296 BODY, C/VLV UPR (ACDelco #96043296) DM (MYA) 2010-2013 01
304 96043296 BODY, C/VLV UPR (ACDelco #96043296) DR (MYA) (EXPORT) 2010-2013 01
305 24261077 PLATE, C/VLV BODY SPCR (W/GSKT) (ACDelco #24261077) DM (MYA) 2010-2013 01
305 24261077 PLATE, C/VLV BODY SPCR (W/GSKT) (ACDelco #24261077) DR (MYA) (EXPORT) 2010-2013 01
306 96020431 VALVE, C/VLV BODY BALL CHK (ACDelco #96020431) DM (MYA) 2010-2013 07
306 96020431 VALVE, C/VLV BODY BALL CHK (ACDelco #96020431) DR (MYA) 2010-2013 07
