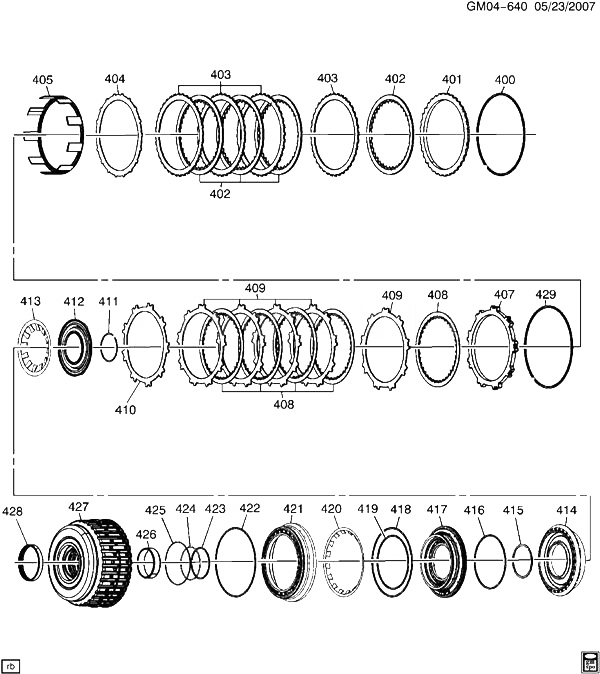

(GM04-640) 2011-2013 DN АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (MYD) (6L90) 1-2-3-4 3-5 REVERSE CLUTCH ASSEMBLY CADILLAC - CTS WAGON 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
400 24240195 RING, 3-5 REV CLU BKG PLT RET (GREEN) (1.88-1.98) (ACDelco #24240195) DN (MYD) 2011-2013 01
400 24240196 RING, 3-5 REV CLU BKG PLT RET (YELLOW) (2.15-2.25) (ACDelco #24240196) DN (MYD) 2011-2013 01
400 24240197 RING, 3-5 REV CLU BKG PLT RET (NO COLOR) (2.42-2.52) (ACDelco #24240197) DN (MYD) 2011-2013 01
400 24240199 RING, 3-5 REV CLU BKG PLT RET (BLUE) (2.96-3.06) (ACDelco #24240199) DN (MYD) 2011-2013 01
400 24240198 RING, 3-5 REV CLU BKG PLT RET (PURPLE) (2.69-2.79) (ACDelco #24240198) DN (MYD) 2011-2013 01
401 24224149 PLATE, 3-5 REV CLU BKG (ACDelco #24224149) DN (MYD) 2011-2013 01
402 24235681 PLATE, 3-5/REV CLU (PKG OF 5) (FIBER) (ACDelco #24235681) DN (MYD) 2011-2013 01
403 24232498 PLATE, 3-5 REV CLU (STEEL) (ACDelco #24232498) DN (MYD) 2011-2013 01
404 24239828 PLATE, 3-5 REV CLU (WAVED) (ACDelco #24239828) DN (MYD) 2011-2013 01
405 24226735 RING, 3-5-REV CLU APPLY (ACDelco #24226735) DN (MYD) 2011-2013 01
407 24265955 PLATE, 1-2-3-4 CLU BKG (KIT) (ACDelco #26245955) DN (MYD) 2011-2013 01
408 24224147 PLATE, 1-2-3-4 CLU (PKG OF 6) (FIBER) (ACDelco #24224147) DN (MYD) 2011-2013 01
409 24238701 PLATE, 1-2-3-4 CLU (STEEL) DN (MYD) 2011-2013 01
410 24239615 PLATE, 1-2-3-4 CLU (WAVED) (ACDelco #24239615) DN (MYD) 2011-2013 01
411 RING, 1-2-3-4 CLU PSTN DAM RET (*KIT1, KIT2) 2011-2013
412 24224708 DAM, 1-2-3-4 CLU PSTN (ACDelco #24224708) DN (MYD) 2011-2013 01
413 24224707 SPRING, 1-2-3-4 CLU (ACDelco #24224707) DN (MYD) 2011-2013 01
414 24238700 PISTON, 1-2-3-4 CLU (ACDelco #24238700) DN (MYD) 2011-2013 01
415 RING, 1-2-3-4 CLU PSTN HSG RTN (*KIT1, KIT2) 2011-2013
416 SEAL, 1-2-3-4 CLU PSTN (*KIT1, KIT3) 2011-2013
417 24238699 HOUSING, 1-2-3-4 CLU PSTN DN (MYD) 2011-2013 01
418 SEAL, 3-5-REV CLU PSTN OTR (*KIT3) 2011-2013
419 SEAL, 3-5-REV CLU PSTN INR (*KIT1, KIT3) 2011-2013
420 24237308 SPRING, 3-5-REV CLU (ACDelco #24237308) DN (MYD) 2011-2013 01
421 24242871 PISTON, 3-5/REV CLU (INCLS 422) (ACDelco #24242871) DN (MYD) 2011-2013 01
422 SEAL, 3-5-REV CLU PSTN OTR (PART OF 421) (*KIT3) 2011-2013
423 SEAL, 1-2-3-4 CLU PSTN INR (*KIT1, KIT3) 2011-2013
424 SEAL, 1-2-3-4 CLU PSTN HSG (*KIT1, KIT3) 2011-2013
425 SEAL, 1-2-3-4 CLU PSTN HSG (*KIT1, KIT3) 2011-2013
426 BUSHING, 1-2-3-4 3-5/REV CLU HSG RR (PART OF 427) 2011-2013
427 24263592 HOUSING, 1-2-3-4 3-5 REV CLU (INCLS 426) (W/ BUSHINGS BEARINGS) (ACDelco #24263592) (CONTAINS REQUIRED 1-2-3-4 3-5-REV CLUTCH HOUSING BEARING ASM) (DOES NOT INCL CLU DAM, PSTN, SPRINGS, SEALS, PLTS, OR RETAINERS) DN (MYD) 2011-2013 01
428 24226393 BEARING, 1-2-3-4 3-5-REV CLU (ACDelco #24226393) DN (MYD) 2011-2013 01
429 24240197 RING, 1-2-3-4 CLU BKG PLT RET (NO COLOR) (2.42-2.52) (ACDelco #24240197) DN (MYD) 2011-2013 01
429 24240198 RING, 1-2-3-4 CLU BKG PLT RET (PURPLE) (2.69-2.79) (ACDelco #24240198) DN (MYD) 2011-2013 01
429 24240199 RING, 1-2-3-4 CLU BKG PLT RET (BLUE) (2.96-3.06) (ACDelco #24240199) DN (MYD) 2011-2013 01
429 24240200 RING, 1-2-3-4 CLU BKG PLT RET (ORANGE) (3.23-3.33) (ACDelco #24240200) DN (MYD) 2011-2013 01
429 24240201 RING, 1-2-3-4 CLU BKG PLT RET (WHITE) (3.50-3.60) (ACDelco #24240201) DN (MYD) 2011-2013 01
K01 24248579 SEAL KIT, A/TRNS SERV (INCLS 411, 415, 416, 419, 423-425) (ACDelco #24248579) DN (MYD) 2011-2013 01
K02 24237851 RING KIT, RET (INCLS 411, 415) (1234 DAM, 1234 HSG, 456 DAM) (4.224) (ACDelco #24237851) DN (MYD) 2011-2013 01
K03 24243898 SEAL KIT, A/TRNS SERV (INCLS 416, 418, 419, 422-425) (CLUTCHES) (ACDelco #24243898) DN (LSA, MYD, JJB) 2011-2013 01
