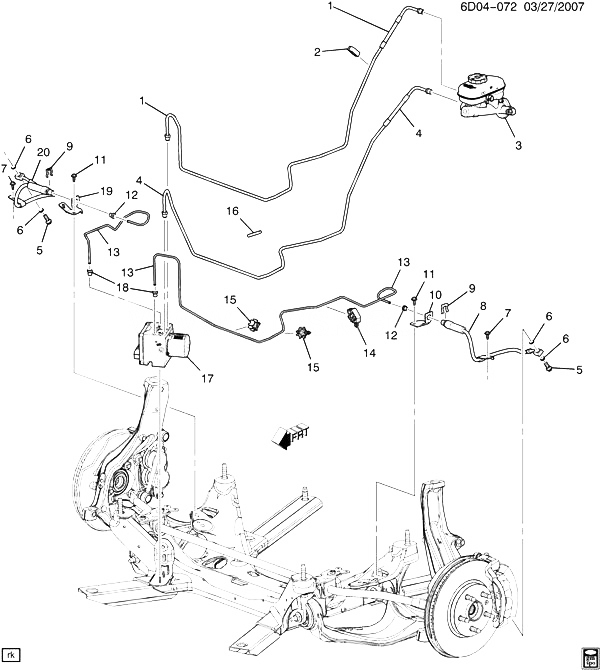

(6D04-072) 2011-2013 DM35-47-69 ТОРМОЗНЫЕ МАГИСТРАЛИ/ПЕРЕДНЯЯ ЧАСТЬ (REAR WHEEL DRIVE MN6,MX0) CADILLAC - CTS WAGON 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25882809 PIPE, BRK PRESS MOD VLV FRT (ACDelco #25882809) DM (LFW, LFX, MN6, MX0) 2012-2013 01
002 15904915 SPACER, FRT BRK PIPE DM 2010-2013 01
003 CYLINDER, BRK MAS (SEE GROUP 04.000 BRAKE MASTER CYLINDER FOR DETAILED ILLUSTRATED VIEW) 2010-2013
004 20779883 PIPE, BRK PRESS MOD VLV RR (ACDelco #20779883) DM (LFW, LFX, MN6, MX0) 2012-2013 01
005 11569590 BOLT, FRT BRK HOSE (PART OF 8, 20) (M10X1X27.5, 16.9THD) (BANJO) DM 2010-2013 01
006 21012386 WASHER, FRT BRK HOSE (PART OF 8, 20) (10.3X14.5X1.61) (COPPER) (ACDelco #21012386) D 2010-2013 04
007 11516546 BOLT, HFL, M8X1.25X50, 37.2 THD, 18 OD, 10.9, PZO 7114M (FRT S/ABS) 2010-2013 02
008 15818105 HOSE, FRT BRK (INCLS 5, 6, 9, 10) (ACDelco #176-1651) DM (MN6, MX0) 2010-2013 01
009 11569742 RETAINER, FRT BRK HOSE (PART OF 8, 20) (28X25X4.7) (1 SIDED RETAINER) D 2010-2013 02
010 BRACKET, FRT BRK HOSE (PART OF 8) 2011-2013
011 11514623 BOLT, HEX W/CON WA, M6X1X20 (FRT BRK HOSE) 2010-2013 02
012 11569751 NUT, HX TUBE INVERTED FLARE, M10X1X16, SAE1010, GMW4707M (FRT BRK PIPE) 2010-2013 02
013 88983905 PIPE, BRK (3/16 X 16) (BULK TUBING) (NYLON COATING) (ACDelco #88983905) D 2010-2013 AR
014 25957289 RETAINER, FRT BRK PIPE (4 TUBE W/TREE) DM (MN6, MX0) 2010-2013 01
015 15904901 RETAINER, FRT BRK PIPE (STAR SHAPED 3 TUBE W/TREE) DM (MN6, MX0, MX7) 2010-2013 02
016 12477665 PROTECTOR, BRK PIPE (FOR 1/4 PIPE) (HT SHRINK) D 2010-2013 AR
017 VALVE, BRK PRESS MOD (W/ELEK BRK TRACT CONT MDL) (SEE GROUP 04.000 BRAKE PRESSURE MODULATOR VALVE FOR DETAILED ILLUSTRATED VIEW) 2010-2013
018 11569750 NUT, HX FLARED TUBE, M12X1.0X17, 5.3 TUBE, SAE1010, GMW4707M (FRT BRK PIPE) 2010-2013 02
019 BRACKET, FRT BRK HOSE (PART OF 20) 2011-2013
020 15818106 HOSE, FRT BRK (INCLS 5, 6, 9, 19) (ACDelco #176-1652) DM (MN6, MX0) 2010-2013 01
