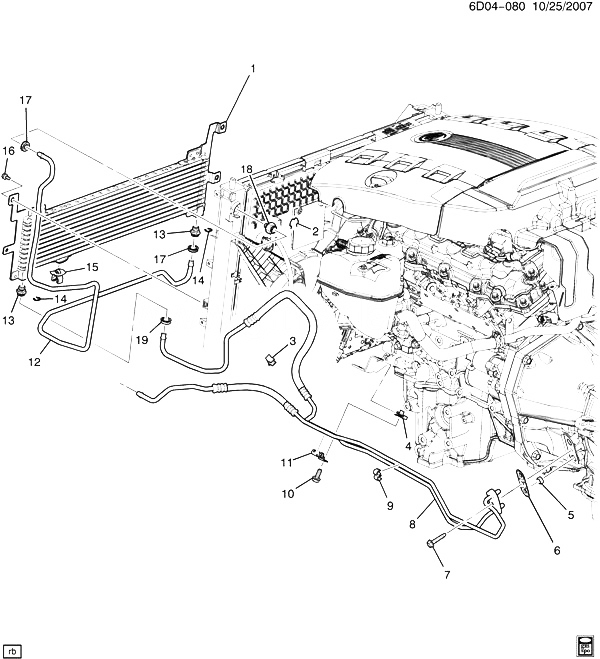

(6D04-080) 2012-2013 DM,DR35-47-69 МАСЛОПРОВОДЫ ОХЛАЖДЕНИЯ АВТОМАТИЧЕСКОЙ КОРОБКИ ПЕРЕДАЧ (MYA, REAR WHEEL DRIVE MX0, EXTRA CAPACITY V03) CADILLAC - CTS WAGON 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25829909 COOLER, TRANS FLUID AUX (INCLS 13-15) (ACDelco #25829909) DM (V03) 2010-2013 01
001 25829909 COOLER, TRANS FLUID AUX (INCLS 13-15) (ACDelco #25829909) DR (V03) (EXPORT) 2010-2013 01
002 RETAINER, TRANS FLUID CLR PIPE FTG 2012-2013
003 25830126 CLIP, TRANS FLUID CLR PIPE (FITS 7 DIA HOLE, HOLDS 10.5 DIA TUBE) DM 2010-2013 01
003 25830126 CLIP, TRANS FLUID CLR PIPE (FITS 7 DIA HOLE, HOLDS 10.5 DIA TUBE) DR 2010-2013 01
004 11516149 NUT, U, 8X1.25, MULTI THD, .08-4.0 THK PNL, PZ (TRANS FLUID CLR HOSE CLIP BRKT) 2010-2013 01
005 24237658 SEAL, TRANS FLUID CLR PIPE FTG (AT TRANS) (SEALS ONE PIPE) (ACDelco #24237658) D 2010-2013 02
006 15251488 SEAL, TRANS FLUID CLR HOSE (PART OF 8) (SEALS TWO PIPES) (ACDelco #15251488) DM 2010-2013 01
006 15251488 SEAL, TRANS FLUID CLR HOSE (PART OF 8) (SEALS TWO PIPES) (ACDelco #15251488) DR (EXPORT) 2010-2013 01
007 11515758 BOLT, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (TRANS FLUID CLR PIPE BRKT) 2010-2013 01
008 20977542 HOSE, TRANS FLUID CLR (INCLS 6, 9, 11, 19) (ACDelco #20977542) DM (MYA, MYB, JJB, MX0, V03) 2010-2013 01
008 20977542 HOSE, TRANS FLUID CLR (INCLS 6, 9, 11, 19) (ACDelco #20977542) DR (MYA, MYB, JJB, MX0, V03) (EXPORT) 2010-2013 01
009 10405874 CLIP, TRANS FLUID CLR HOSE (PART OF 8) (LESS MNTG TAB) (HOLDS TWO 9.5 DIA TUBES) DM, DN 2010-2013 01
009 10405874 CLIP, TRANS FLUID CLR HOSE (PART OF 8) (LESS MNTG TAB) (HOLDS TWO 9.5 DIA TUBES) DR (EXPORT) 2010-2013 01
010 11570082 BOLT, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (TRANS FLUID CLR PIPE BRKT) (ACDelco #11570082) 2010-2013 01
011 BRACKET, TRANS OIL CLR INL OTLT PIPE (PART OF 8) 2012-2013
012 25829910 PIPE, TRANS FLUID AUX CLR (INCLS 17) (ACDelco #25829910) DM (LFW, LFX, V03) 2012-2013 01
012 25829910 PIPE, TRANS FLUID AUX CLR (INCLS 17) (ACDelco #25829910) DR (LFW, LFX, V03) (EXPORT) 2012-2013 01
013 19129762 FITTING, TRANS FLUID CLR PIPE (PART OF 1) (ACDelco #19129762) DM 2010-2013 02
013 19129762 FITTING, TRANS FLUID CLR PIPE (PART OF 1) (ACDelco #19129762) DR (EXPORT) 2010-2013 02
014 24205103 RETAINER, TRANS FLUID AUX CLR (PART OF 1) (EXPANDING SPRING WIRE) (ACDelco #24205103) DM 2010-2013 01
014 24205103 RETAINER, TRANS FLUID AUX CLR (PART OF 1) (EXPANDING SPRING WIRE) (ACDelco #24205103) DR (EXPORT) 2010-2013 01
015 CLIP, TRANS FLUID CLR HOSE (PART OF 1) 2012-2013
016 11570324 BOLT, TRANS FLUID AUX CLR (M6X1X14, 9 THD) (9.190) DM 2010-2013 04
016 11570324 BOLT, TRANS FLUID AUX CLR (M6X1X14, 9 THD) (9.190) DR (EXPORT) 2010-2013 04
017 15052228 CAP, TRANS FLUID CLR PIPE CONN (PART OF 12) (PLASTIC RETAINER) (ACDelco #15052228) DM 2010-2013 02
017 15052228 CAP, TRANS FLUID CLR PIPE CONN (PART OF 12) (PLASTIC RETAINER) (ACDelco #15052228) DR (EXPORT) 2010-2013 02
018 FITTING, TRANS FLUID CLR PIPE 2012-2013
019 15052228 CAP, TRANS FLUID CLR PIPE CONN (PART OF 8) (PLASTIC RETAINER) (ACDelco #15052228) DM 2010-2013 02
019 15052228 CAP, TRANS FLUID CLR PIPE CONN (PART OF 8) (PLASTIC RETAINER) (ACDelco #15052228) DR (EXPORT) 2010-2013 02
