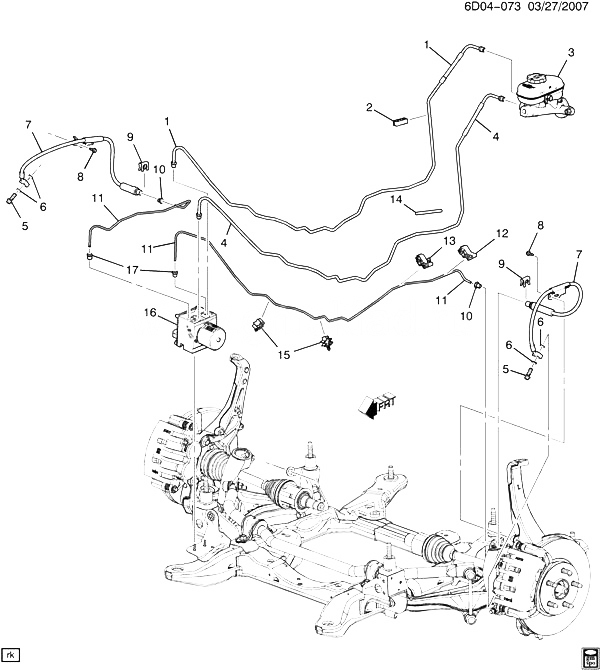

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20779886 |
PIPE, BRK PRESS MOD VLV RR (ACDelco #20779886) |
DM (LFW, LFX, MX7) |
2012-2013 |
01 |
| 002 |
15904915 |
SPACER, FRT BRK PIPE |
DM |
2010-2013 |
01 |
| 003 |
|
CYLINDER, BRK MAS (SEE GROUP 04.000 BRAKE MASTER CYLINDER FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 004 |
20779887 |
PIPE, BRK PRESS MOD VLV FRT (ACDelco #20779887) |
DM (LFW, LFX, MX7) |
2012-2013 |
01 |
| 005 |
11569590 |
BOLT, FRT BRK HOSE (PART OF 7) (M10X1X27.5, 16.9THD) (BANJO) |
DM |
2010-2013 |
01 |
| 006 |
21012386 |
WASHER, FRT BRK HOSE (PART OF 7) (10.3X14.5X1.61) (COPPER) (ACDelco #21012386) |
D |
2010-2013 |
04 |
| 007 |
22837065 |
HOSE, FRT BRK (INCLS 5, 6) (ACDelco #176-1757) |
DM (MX7) |
2010-2013 |
01 |
| 007 |
22837066 |
HOSE, FRT BRK (INCLS 5, 6) (ACDelco #176-1758) |
DM (MX7) |
2010-2013 |
01 |
| 008 |
11516521 |
BOLT, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (FRT BRK HOSE) |
|
2010-2013 |
02 |
| 009 |
11569742 |
RETAINER, FRT BRK HOSE (28X25X4.7) (1 SIDED RETAINER) |
D |
2010-2013 |
02 |
| 010 |
11569751 |
NUT, HX TUBE INVERTED FLARE, M10X1X16, SAE1010, GMW4707M (PART OF 11) |
|
2010-2013 |
02 |
| 011 |
20779885 |
PIPE, FRT BRK (INCLS 10, 17) (ACDelco #20779885) |
DM (LFW, LFX, MX7) |
2012-2013 |
01 |
| 012 |
15904902 |
RETAINER, FRT BRK PIPE (UPSIDE DOWN 3 TUBE CLIP W/O TREE) |
DM (MX7) |
2010-2013 |
02 |
| 013 |
15904903 |
RETAINER, FRT BRK PIPE (UPSIDE DOWN 3 TUBE WITH TREE) |
DM (MX7) |
2010-2013 |
01 |
| 014 |
12477665 |
PROTECTOR, BRK PIPE (FOR 1/4 PIPE) (HT SHRINK) |
D |
2010-2013 |
AR |
| 015 |
15904901 |
RETAINER, FRT BRK PIPE (STAR SHAPED 3 TUBE W/TREE) |
DM (MN6, MX0, MX7) |
2010-2013 |
02 |
| 016 |
|
VALVE, BRK PRESS MOD (W/ELEK BRK TRACT CONT MDL) (SEE GROUP 04.000 BRAKE PRESSURE MODULATOR VALVE FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 017 |
11569750 |
NUT, HX FLARED TUBE, M12X1.0X17, 5.3 TUBE, SAE1010, GMW4707M (PART OF 11) |
|
2010-2013 |
02 |
