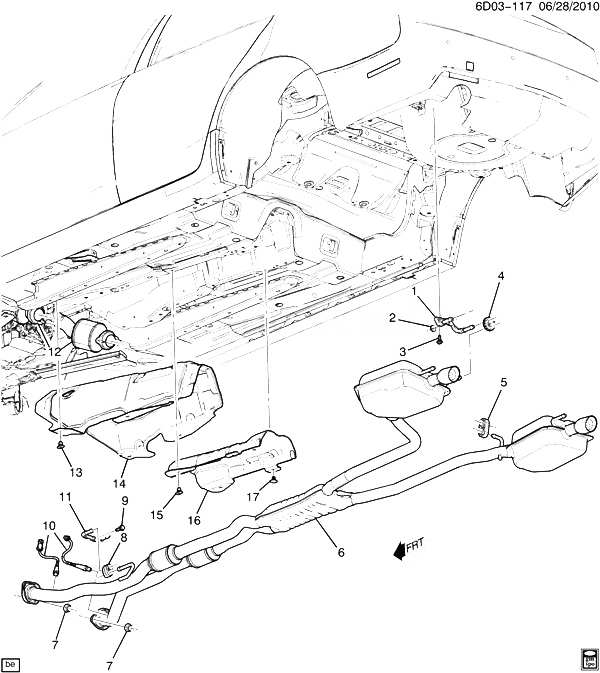

(6D03-117) 2012-2013 DM35-69 ВЫПУСКНАЯ СИСТЕМА/REAR DUAL EXHAUST (LFW/3.0-5, ALL-WHEEL DRIVE MX7,FE2,FE3) CADILLAC - CTS WAGON 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25866387 BRACKET, EXH TAIL PIPE HNGR (INCLS 4) DM35 2012-2013 02
002 11516650 NUT, HEX W/CON WA, M8X1.25, 28 O.D., 7.5 THK, 9, GM7111M. (RR BPR ENGY ABS) 2012-2013 06
003 11589407 BOLT, HWH, M8X1.25X35, 23.5 THD, 24 OD, 10.9, GMW3359, M-PT. (EXH MUFF RR HNGR) 2012-2013 04
004 20857446 INSULATOR, EXH MUFF RR HNGR (PART OF 1) DM 2012-2013 02
005 25918352 INSULATOR, EXH MUFF HNGR BRKT (PART OF 6) (WHEN REPLACING MUST REPL BOTH LHRH FRT MUFF INSULATORS) DM 2012-2013 02
006 20896635 MUFFLER, EXH (W/EXH TAIL PIPE 3 WAY CTLTC CONV) (INCLS 5) (W/FORE-AFT HANGER) DM35 (LFW, MX7) 2012-2013 01
007 11516076 NUT, PREVAILING TORQUE TENSION FLG HD (M8X1.25X17.4 OD (EXH MUFF) 2012-2013 04
008 25924159 INSULATOR, EXH PIPE HNGR (PART OF 11) (61.0X48.8X31.0) (SINGLE) D 2012-2013 02
009 11515776 BOLT, HFH, M12X1.75X35, 31 THD, 26.6 OD, 10.9 MAT, 7114M FIN, MACH (EXH PIPE FRT HNGR BRKT) 2012-2013 02
010 12634062 SENSOR, HTD OXY (PRE-CATALYST BANK 2 SEN 1) (ACDelco #12634062) DM (LFW, LFX) 2012-2013 02
011 20895810 BRACKET, EXH PIPE FRT HNGR (INCLS 8) (W/FORE-AFT HANGER) DM (MX7) 2012-2013 01
012 22882836 CONVERTER, 3WAY CTLTC (W/EXH RR MANIF PIPE) (SEE GROUP 03.000 EXHAUST SYSTEM/FRONT FOR DETAILED ILLUSTRATED VIEW) DM (LFW, LFX) 2013-2013 01
012 22882837 CONVERTER, 3WAY CTLTC (W/EXH RR MANIF PIPE) (SEE GROUP 03.000 EXHAUST SYSTEM/FRONT FOR DETAILED ILLUSTRATED VIEW) DM (LFW, LFX) 2013-2013 01
013 11570585 RETAINER, EXH MANIF PIPE HNGR INSL (PART OF 14) D 2012-2013 04
014 20987571 INSULATOR, EXH H/SHLD (INCLS 13) DM (MX7) 2012-2013 01
015 11570586 RETAINER, EXH H/SHLD (PART OF 16) (PUSH IN 13 MM HOLE W/ 20 X 36 MM HEAD) DM 2012-2013 02
016 20971705 INSULATOR, EXH H/SHLD (AT INTER FLR PNL) (INCLS 15, 17) DM 2012-2013 01
017 24501057 RETAINER, EXH H/SHLD (PART OF 16) (PUSH-IN) (6.9 HOLE DIA) (19MM LG) (1.840) DM 2012-2013 02
