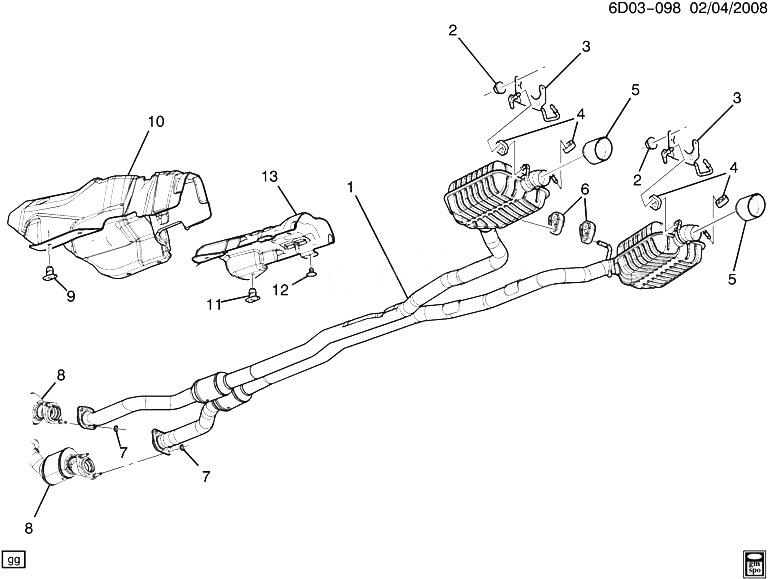

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20945125 |
MUFFLER, EXH RR (W/ EXH PIPE) (INCLS 5, 6) (3.701) |
DN35 (LSA) |
2011-2013 |
01 |
| 002 |
10009923 |
NUT, BOLT RETAINING SPRING, M8X1.25, 25 O.D., ZOR (RR BPR IMP BAR RET (PUSH ON)) |
|
2011-2013 |
04 |
| 003 |
15240254 |
BRACKET, EXH TAIL PIPE HNGR (INCLS 4) |
DN35-69 |
2011-2013 |
01 |
| 003 |
25902026 |
BRACKET, EXH TAIL PIPE HNGR (INCLS 4) |
DN |
2011-2013 |
01 |
| 004 |
15284207 |
INSULATOR, EXH TAIL PIPE HNGR (PART OF 3) |
DN |
2011-2013 |
04 |
| 005 |
|
PIPE, EXH TAIL (PART OF 1) |
|
2011-2013 |
|
| 006 |
25918352 |
INSULATOR, EXH MUFF HNGR BRKT (PART OF 1) (WHEN REPLACING MUST REPL BOTH LHRH FRT MUFF INSULATORS) |
DN (LSA) |
2011-2013 |
02 |
| 007 |
15032594 |
NUT, CTLTC CONV (HEX M10X1.5) (ATTACH EXH MANIFOLD PIPE) (3.613) |
DN |
2011-2013 |
04 |
| 008 |
22940824 |
CONVERTER, 3WAY CTLTC (SEE GROUP 03.000 EXHAUST SYSTEM FRONT FOR DETAILED ILLUSTRATED VIEW) |
DN (LSA) |
2013-2013 |
01 |
| 008 |
22940825 |
CONVERTER, 3WAY CTLTC (SEE GROUP 03.000 EXHAUST SYSTEM FRONT FOR DETAILED ILLUSTRATED VIEW) |
DN (LSA) |
2013-2013 |
01 |
| 009 |
11570585 |
RETAINER, EXH MANIF PIPE HNGR INSL (PART OF 10) |
D |
2011-2013 |
04 |
| 010 |
20987571 |
INSULATOR, EXH H/SHLD (INCLS 9) |
DN |
2011-2013 |
01 |
| 011 |
11570586 |
RETAINER, EXH H/SHLD (PART OF 13) (PUSH IN 13 MM HOLE W/ 20 X 36 MM HEAD) |
DN |
2011-2013 |
02 |
| 012 |
24501057 |
RETAINER, EXH H/SHLD (PART OF 13) (PUSH-IN) (6.9 HOLE DIA) (19MM LG) (1.840) |
DN |
2011-2013 |
02 |
| 013 |
20971704 |
INSULATOR, EXH H/SHLD (AT INTER FLR PNL) (INCLS 11, 12) |
DN |
2012-2013 |
01 |
