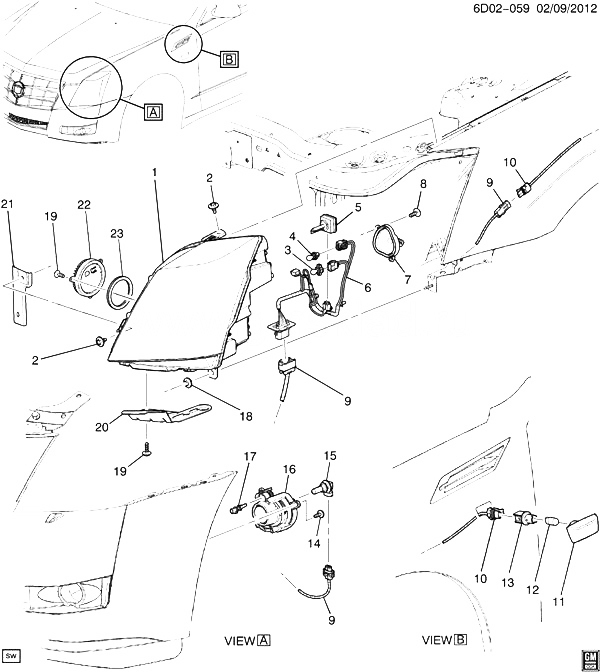

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
22755331 |
HEADLAMP, (INCLS 3-8, 19, 20, 22, 23) |
DM (T4F) (EXC TB8, T94) |
2011-2013 |
01 |
| 001 |
22755332 |
HEADLAMP, (INCLS 3-8, 19, 20, 22, 23) |
DM (T4F) (EXC TB8, T94) |
2011-2013 |
01 |
| 002 |
11518094 |
BOLT, HES W/FL WA, M6X1X21, 11.75 THD, 24 OD, 9.8, 7114M, MACH, DOG-PT (HDLP) |
|
2010-2013 |
04 |
| 003 |
10351675 |
BULB, HDLP (PART OF 1) (CLEAR) (DAYTIME RUNNING LAMP) (ACDelco #10351675) |
DM35-69 (T4F) |
2010-2013 |
02 |
| 004 |
15782705 |
BULB, HDLP (PART OF 1) (AMBER) (W/SOCKET) (8.991) (ACDelco #15782705) |
DM35-47-69 (T4F) (EXC TB8, T94) |
2013-2013 |
02 |
| 005 |
25911883 |
BULB, HDLP (PART OF 1) (D1S) (ACDelco #25911883) |
DM, DN (T4F) |
2010-2013 |
02 |
| 006 |
|
HARNESS, HDLP WRG (PART OF 1) |
|
2010-2013 |
|
| 007 |
25794778 |
CAP, HDLP SOC BULB LK (PART OF 1) (2.725) |
D35-47-69 |
2011-2013 |
02 |
| 008 |
|
BOLT, HDLP (PART OF 1) |
|
2011-2013 |
|
| 009 |
|
HARNESS, FWD LP WRG (SEE GROUP 02.000 WIRING HARNESS/FORWARD LAMPS FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 010 |
20834597 |
HARNESS, AUX MKR LP WRG |
D35 |
2010-2013 |
02 |
| 011 |
25894827 |
LAMP, FRT SI T/SIG (INCLS 12, 13) |
DM35 (T79) (EXPORT) |
2010-2013 |
01 |
| 011 |
25894828 |
LAMP, FRT SI T/SIG (INCLS 12, 13) |
DM35 (T79) (EXPORT) |
2010-2013 |
01 |
| 012 |
10351682 |
BULB, AUX SI FRT T/SIG LP (PART OF 11) (TRADE # WY5W) (8.991) (ACDelco #WY5W) |
D35-69 (T79) (EXPORT) |
2010-2013 |
02 |
| 013 |
|
SOCKET, FRT SI T/SIG LP (PART OF 11) |
|
2010-2013 |
|
| 014 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (FRT FOG LP BRKT) |
|
2010-2013 |
02 |
| 015 |
92095787 |
BULB, FRT FOG LP (PART OF 16) (TRADE #H11) (ACDelco #92095787) |
D |
2010-2013 |
02 |
| 015 |
13503417 |
BULB, FRT FOG LP (PART OF 16) (TRADE #H11LL) (ACDelco #13503417) |
D |
2010-2013 |
02 |
| 016 |
25829654 |
LAMP, FRT FOG (INCLS 15, 17) |
DM (FE2, FE3, FE5) (EXC TB8, T94) |
2011-2013 |
02 |
| 017 |
|
ADJUSTER, FRT FOG LP (PART OF 16) |
|
2010-2013 |
|
| 018 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (HDLP) |
|
2010-2013 |
02 |
| 019 |
11570322 |
BOLT, HDLP (PART OF 1) (M4.8X1.59X16) (HEX WASHER HEAD) (2.727) |
D35 |
2010-2013 |
AR |
| 020 |
15896562 |
BRACKET, HDLP (PART OF 1) (W/ FRT SI MKR PARK T/SIG LP) (TO FRONT FASCIA) |
D35 |
2010-2013 |
01 |
| 020 |
15896563 |
BRACKET, HDLP (PART OF 1) (W/ FRT SI MKR PARK T/SIG LP) (TO FRONT FASCIA) |
D35 |
2010-2013 |
01 |
| 021 |
15869580 |
BRACKET, HDLP (TO FRONT SIDE RAIL) |
D35-47-69 |
2011-2013 |
01 |
| 021 |
25924112 |
BRACKET, HDLP (TO FRONT SIDE RAIL) |
D35-47-69 |
2011-2013 |
01 |
| 022 |
25794777 |
BALLAST KIT, HDLP (PART OF 1) (2.725) |
DM, DN35-47-69 |
2011-2013 |
01 |
| 023 |
|
SEAL, HDLP BALLAST (PART OF 1) |
|
2010-2013 |
|
