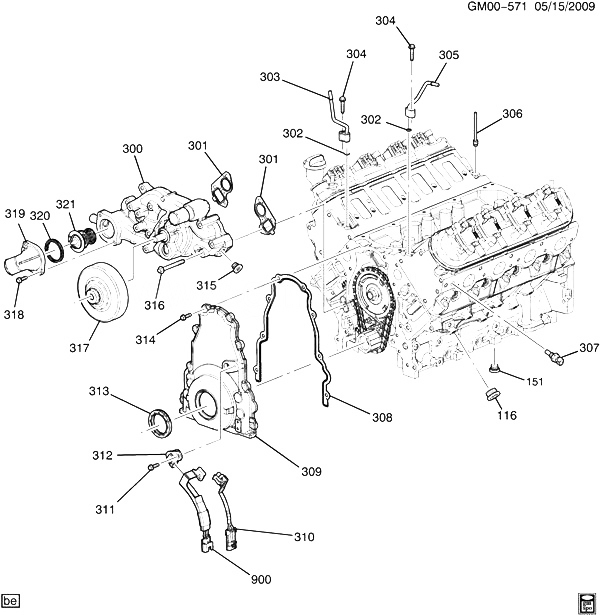

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 116 |
11609289 |
PLUG, HEX, M28X1.25X13, 10.9, GMW3044, INT DRIVER W/THD SEAL 9985 (ENG BLK COOL DRN HOLE) (8.971) |
|
2011-2013 |
01 |
| 151 |
11588949 |
PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK COOL DRN HOLE) |
|
2011-2013 |
01 |
| 300 |
19180610 |
PUMP KIT, WAT (INCLS 301, 315-321) (ACDelco #251-728) |
DN (LSA) |
2011-2013 |
01 |
| 301 |
12630223 |
GASKET, W/PMP (2 OBLONG 1 ROUND MTG HOLES, AT PUMP MANIFOLD) (PART OF 300) (ACDelco #251-663) |
D (LSA) |
2011-2013 |
02 |
| 302 |
12602541 |
SEAL, ENG COOL AIR BL PIPE (O RING) (PART OF 303, 305) |
DN (LSA) |
2011-2013 |
02 |
| 303 |
12614997 |
PIPE, ENG COOL AIR BL (INCLS 302, 304) |
DN (LSA) |
2011-2013 |
01 |
| 304 |
11588715 |
BOLT, HFH, M6X1X35, 18 THD, 14.2 OD, 8.8, GMW3359, 5MM M POINT (PART OF 303, 305) |
|
2011-2013 |
02 |
| 305 |
12606243 |
PIPE, ENG COOL AIR BL (INCLS 302, 304) |
DN (LSA) |
2011-2013 |
01 |
| 306 |
12602048 |
PLUG, ENG COOL AIR BL (50MM, ALUMINUM) |
DN (LSA) |
2011-2013 |
02 |
| 307 |
12608814 |
SENSOR, ENG COOL TEMP (MATING CONN W/LEADS USE 88987993) (ACDelco #213-4333) |
DN (LSA) |
2011-2013 |
01 |
| 307 |
12608814 |
SENSOR, ENG COOL TEMP (MATING CONN W/LEADS USE 88987993) (1.150) (ACDelco #213-4333) |
DN (LSA) |
2011-2013 |
01 |
| 308 |
12633904 |
GASKET, ENG FRT CVR |
DN (LSA, MYD) |
2011-2013 |
01 |
| 308 |
12633904 |
GASKET, ENG FRT CVR |
DN (LSA, MG9) |
2011-2013 |
01 |
| 309 |
12600326 |
COVER, ENG FRT (MCHG) (USE T/W FRT SEAL PN 12585673 AND FRT COVER GASKET PN 12633904) |
DN (LSA, MYD) |
2011-2013 |
01 |
| 309 |
12600326 |
COVER, ENG FRT (MCHG) (USE T/W FRT SEAL PN 12585673 AND FRT COVER GASKET PN 12633904) |
DN (LSA, MG9) |
2011-2013 |
01 |
| 310 |
12627501 |
WIRE, CM/SHF POSN SEN (INCLS 900) |
DN (LSA, MYD) |
2011-2013 |
01 |
| 310 |
12627501 |
WIRE, CM/SHF POSN SEN (INCLS 900) |
DN (LSA, MG9) |
2011-2013 |
01 |
| 311 |
11588712 |
BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (ENG FRT CVR) |
|
2011-2013 |
02 |
| 312 |
12591720 |
SENSOR, CM/SHF POSN (ACDelco #213-3826) |
DN (LSA) |
2011-2013 |
01 |
| 313 |
12585673 |
SEAL, CR/SHF FRT OIL (ACDelco #296-02) |
DN (LSA) |
2011-2013 |
01 |
| 314 |
11515758 |
BOLT, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (ENG FRT CVR) |
|
2011-2013 |
08 |
| 315 |
11588949 |
PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (PART OF 300) |
|
2011-2013 |
01 |
| 316 |
12551926 |
BOLT, W/PMP (PART OF 300) (M8X1.25X83) |
DN (LSA) |
2011-2013 |
06 |
| 317 |
|
PULLEY, W/PMP (PART OF 300) |
|
2011-2013 |
|
| 318 |
11516480 |
BOLT, W/PMP INL (PART OF 300) (M6X1X25-10MM SOC) (ACDelco #15-75247) |
DN (LSA) |
2011-2013 |
02 |
| 319 |
|
INLET, W/PMP (PART OF 300) |
|
2011-2013 |
|
| 320 |
12587397 |
SEAL, WAT INL (PART OF 300, 321) (ACDelco #12587397) |
DN (LSA, MYD, MG9) |
2011-2013 |
01 |
| 321 |
89018168 |
THERMOSTAT KIT, ENG COOL (PART OF 300) (INCLS 320) (ACDelco #131-160) |
DN (LSA) |
2011-2013 |
01 |
| 900 |
|
BRACKET, CM/SHF POSN SEN LEAD CLIP (PART OF 310) |
|
2011-2013 |
|
