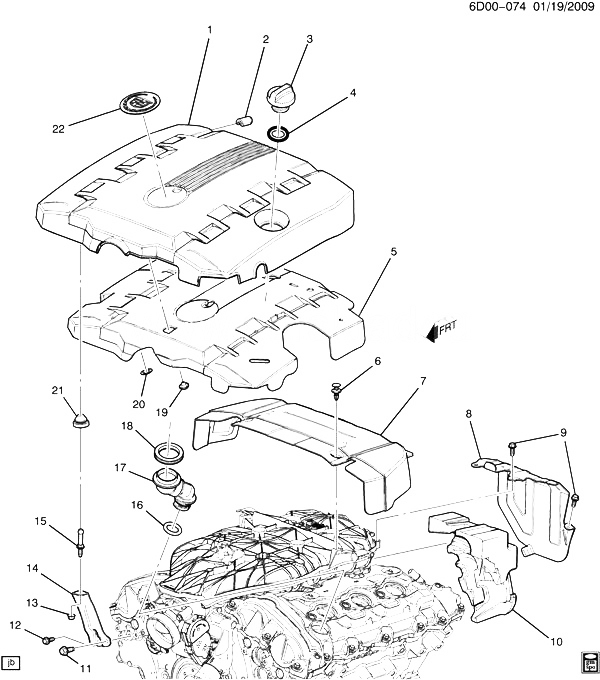

(6D00-074) 2012-2013 DM,DR ЭКРАН ВПУСКНОГО КОЛЛЕКТОРА/КРЫШКИ (LFX/3.6-3) CADILLAC - CTS WAGON 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12632150 COVER, INT MANIF (INCLS 2, 5, 18-22) (ENGINE COVER) DM (LFW, LFX) 2012-2013 01
001 12632150 COVER, INT MANIF (INCLS 2, 5, 18-22) (ENGINE COVER) (3.265) DM (LFW, LFX) 2012-2013 01
001 12632150 COVER, INT MANIF (INCLS 2, 5, 18-22) (ENGINE COVER) DR (LFW, LFX) (EXPORT) 2012-2013 01
001 12632150 COVER, INT MANIF (INCLS 2, 5, 18-22) (ENGINE COVER) (3.265) DR (LFW, LFX) (EXPORT) 2012-2013 01
002 24507878 INSULATOR, F/INJR SIGHT SHLD BRKT (PART OF 1) DM (LFW, LFX) 2012-2013 01
002 24507878 INSULATOR, F/INJR SIGHT SHLD BRKT (PART OF 1) DR (LFW, LFX) (EXPORT) 2012-2013 01
003 12642516 CAP, OIL FIL (PART OF 17) (INCLS 4) (TOP HALF SHOULD SAY DEXOS AND BOTTOM HALF 5W-30) (ACDelco #FC243) DM (LFW, LFX) 2013-2013 01
003 12642516 CAP, OIL FIL (PART OF 17) (INCLS 4) (TOP HALF SHOULD SAY DEXOS AND BOTTOM HALF 5W-30) (ACDelco #FC243) DR (LFW, LFX) (EXPORT) 2013-2013 01
004 12593348 SEAL, OIL FIL CAP (O RING) (PART OF 3, 17) (27.94MM I.D.) (SIZE #320) DM (LFW, LFX) 2012-2013 01
004 12593348 SEAL, OIL FIL CAP (O RING) (PART OF 3, 17) (27.94MM I.D.) (SIZE #320) DR (LFW, LFX) (EXPORT) 2012-2013 01
005 INSULATOR, INT MANIF CVR (PART OF 1) 2012-2013
006 11589290 RETAINER, PUSH-IN, FITS 6.5 HOLE, 4.5 -7.0 THK PNL, NYLON 6/6 GMP.PA66.0 (UPR INT MANIF SIGHT SHLD) 2012-2013 02
007 12639005 INSULATOR, INT MANIF DM (LFW, LFX) 2012-2013 01
008 12642664 SHIELD, FUEL PIPE DM 2012-2013 01
008 12642664 SHIELD, FUEL PIPE DR (EXPORT) 2012-2013 01
009 11588712 BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (FUEL PIPE SHLD) 2012-2013 03
010 12643423 SHIELD, ENG RR NOISE DM (LFW, LFX) 2012-2013 01
010 12643423 SHIELD, ENG RR NOISE DR (LFW, LFX) (EXPORT) 2012-2013 01
011 11588723 BOLT, HFH, M8X1.25X25, 18 THD, 18 OD, 8.8 STL, GMW3359, M-PT (INT MANIF SIGHT SHLD) 2012-2013 01
012 11588712 BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (INT MANIF SIGHT SHLD) 2012-2013 01
013 11516075 NUT, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (PART OF 14) 2012-2013 01
014 12616618 BRACKET, INT MANIF SIGHT SHLD (INCLS 13, 15) DM (LFW, LFX) 2012-2013 01
014 12616618 BRACKET, INT MANIF SIGHT SHLD (INCLS 13, 15) DR (LFW, LFX) (EXPORT) 2012-2013 01
015 11588967 STUD, BALL W/HFH, M6X1X20.65, 14.2 O.D., 8.8, GMW3359 (PART OF 14) 2012-2013 01
016 12593348 SEAL, OIL FIL TUBE (O RING) (PART OF 17) (27.94MM I.D.) (SIZE #320) (1.758) DM (LFX) 2012-2013 01
016 12593348 SEAL, OIL FIL TUBE (O RING) (PART OF 17) (27.94MM I.D.) (SIZE #320) (1.758) DR (LFX) (EXPORT) 2012-2013 01
017 12650616 TUBE, OIL FIL (INCLS 3, 4, 16) DR (LFW, LFX, MYA, MX0) (EXPORT) 2013-2013 01
017 12650616 TUBE, OIL FIL (INCLS 3, 4, 16) DM (LFW, LFX, MYA, MX0) 2012-2013 01
018 12591714 GROMMET, UPR INT MANIF SIGHT SHLD (PART OF 1) (60MM OD @ TOP) (ROUND TOP BOTTOM) DM (LFX) 2012-2013 01
018 12591714 GROMMET, UPR INT MANIF SIGHT SHLD (PART OF 1) (60MM OD @ TOP) (ROUND TOP BOTTOM) DR (LFX) 2012-2013 01
019 INSULATOR, F/INJR SIGHT SHLD BRKT (PART OF 1) 2012-2013
020 10042521 NUT, INT MANIF INSL (PART OF 1) (7.831) DM (LFW, LFX) 2012-2013 04
020 10042521 NUT, INT MANIF INSL (PART OF 1) (7.831) DR (LFW, LFX) (EXPORT) 2012-2013 04
021 12591715 GROMMET, UPR INT MANIF SIGHT SHLD (PART OF 1) (32MM OD @ TOP) (ROUND AT TOP/TAPERED CONICAL BOTTOM) DM (LFX) 2012-2013 01
021 12591715 GROMMET, UPR INT MANIF SIGHT SHLD (PART OF 1) (32MM OD @ TOP) (ROUND AT TOP/TAPERED CONICAL BOTTOM) DR (LFX) 2012-2013 01
022 EMBLEM, INT MANIF CVR (PART OF 1) 2012-2013
