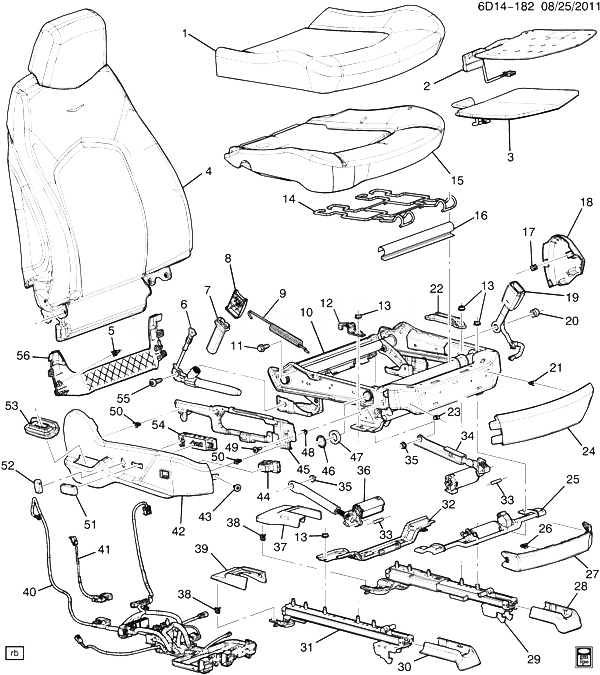

(6D14-182) 2011-2013 DM35-47-69 СИДЕНЬЕ В СБОРЕ/ПАССАЖИРА-ПОДУШКА (POWER ADJUSTER AH8, POWER LUMBAR AL2, EXC VENTED/HEATED KB6) CADILLAC - CTS WAGON 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25994122 COVER, P/SEAT CUSH (CASHMERE) DM35-69 (AL2, AQ9, EBS, KA1, 01D) (EXC KB6) 2011-2013 01
001 22784971 COVER, P/SEAT CUSH (EBONY) DM35-69 (AH8, AL2, AQ9, EBS, KA1, 01G) (EXC KB6) 2012-2013 01
001 22784973 COVER, P/SEAT CUSH (EBONY) DM35-69 (AH8, AL2, AQ9, ECH, KA1, WBL, 01G) (EXC KB6) 2012-2013 01
001 22784973 COVER, P/SEAT CUSH (EBONY) DN35-69 (AH8, AL2, AQ9, ECH, KA1, 01G) (EXC KB6) 2012-2013 01
001 22789788 COVER, P/SEAT CUSH (TITANIUM) DM35-69 (AH8, AL2, AQ9, ECH, KA1, WBL, 01C) (EXC KB6) 2012-2013 01
001 22789788 COVER, P/SEAT CUSH (TITANIUM) DN35-69 (AH8, AL2, AQ9, ECH, KA1, 01C) (EXC KB6) 2012-2013 01
001 20981875 COVER, P/SEAT CUSH (TITANIUM) DM35-69 (AL2, AQ9, EBS, KA1, 01C) (EXC KB6) 2011-2013 01
002 22739287 MODULE KIT, AIRBAG FRT PASS PRESENCE (W/ SEN) (INCLS 3, 15) DM, DN (EBS, ECH, KA1) (EXC KB6) 2011-2013 01
002 20778918 MODULE KIT, AIRBAG FRT PASS PRESENCE (W/ SEN) (INCLS 3, 15) DM (EXC KB6, KA1) 2011-2013 01
003 25994411 HEATER, P/SEAT CUSH (PART OF 2) DM, DN35-69 (KA1) (EXC KB6) 2011-2013 01
004 COVER, P/SEAT BK (SEE GROUP 14.000 SEAT ASM/PASSENGER-BACK FOR DETAILED ILLUSTRATED VIEW) (CASHMERE) 2011-2013
005 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 56) 2011-2013 04
006 19257694 TENSIONER KIT, P/SEAT BELT (RETR SI) (INCLS 55) D35-69 2011-2013 01
007 22766989 COVER, F/SEAT BELT TENSR (RETR SI) (INCLS 8) (EBONY) (LOWER) DM, DN (01G, 02W) 2012-2013 02
007 22766990 COVER, F/SEAT BELT TENSR (RETR SI) (INCLS 8) (CASHMERE) (LOWER) D35-69 (01D) 2012-2013 02
007 22766991 COVER, F/SEAT BELT TENSR (RETR SI) (INCLS 8) (TITANIUM) (LOWER) D (01C) 2012-2013 02
008 COVER, F/SEAT BELT TENSR (RETR SI) (PART OF 7) 2011-2013
009 SPRING, P/SEAT ADJR VERT ASST (PART OF 10) 2011-2013
010 20993914 FRAME, P/SEAT CUSH (INCLS 9, 12-14, 16, 22, 25, 29, 31-36, 46, 47) (HAS BOLT HOLE NOT A STUD) DM35-69 (AH8, AL2, AQ9, EBS) 2011-2013 01
010 20993914 FRAME, P/SEAT CUSH (INCLS 9, 12-14, 16, 22, 25, 29, 31-36, 46, 47) (HAS BOLT HOLE NOT A STUD) DN35-69 (AH8, AL2, AQ9, ECH, KA1) (EXC KB6) 2011-2013 01
010 20993914 FRAME, P/SEAT CUSH (INCLS 9, 12-14, 16, 22, 25, 29, 31-36, 46, 47) (HAS BOLT HOLE NOT A STUD) DM35-69 (AH8, AL2, AQ9, ECH, KA1, WBL) (EXC KB6) 2012-2013 01
011 25828643 BOLT, F/SEAT DM 2011-2013 08
011 25828643 BOLT, F/SEAT DN 2011-2013 08
012 BRACKET, P/SEAT CUSH FRM RR OTR (PART OF 10) 2011-2013
013 NUT, P/SEAT CUSH FRM (PART OF 10) 2011-2013
014 15894132 WIRE, P/SEAT CUSH PAD (PART OF 10) DN35-47-69 2011-2013 01
014 15894132 WIRE, P/SEAT CUSH PAD (PART OF 10) DM35-47-69 2011-2013 01
015 PAD, P/SEAT CUSH (PART OF 2) 2011-2013
016 INSULATOR, P/SEAT CUSH FRM (PART OF 10) 2011-2013
017 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 18) 2011-2013 01
018 25908859 COVER, P/SEAT RECL LWR FIN (INCLS 17) (TITANIUM) DM, DN (01C) 2011-2013 01
018 15947255 COVER, P/SEAT RECL LWR FIN (INCLS 17) (EBONY) DM (01G) 2011-2013 01
018 15947253 COVER, P/SEAT RECL LWR FIN (INCLS 17) (CASHMERE) DM (01D) 2011-2013 01
018 15947255 COVER, P/SEAT RECL LWR FIN (INCLS 17) (EBONY) DN35-69 (01G) 2011-2013 01
019 19259317 BELT KIT, P/SEAT (BKL SI) (INCLS 20) (EBONY) DM, DN (01G) 2012-2013 01
019 19259318 BELT KIT, P/SEAT (BKL SI) (INCLS 20) (CASHMERE) DM, DN (01D) 2012-2013 01
019 19259319 BELT KIT, P/SEAT (BKL SI) (INCLS 20) (TITANIUM) DM, DN (01C) 2012-2013 01
020 NUT, P/SEAT BELT (BKL SI) (PART OF 19) 2011-2013
021 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 24) 2011-2013 03
022 BRACKET, P/SEAT CUSH FRM FRT INR (PART OF 10) 2011-2013
023 NUT, P/SEAT 2011-2013
024 15947234 COVER, P/SEAT OTR ADJR FRT FIN (INCLS 21) (CASHMERE) DM (01D) 2011-2013 01
024 15947236 COVER, P/SEAT OTR ADJR FRT FIN (INCLS 21) (EBONY) DM (01G) 2011-2013 01
024 25908857 COVER, P/SEAT OTR ADJR FRT FIN (INCLS 21) (TITANIUM) DM (01C) 2011-2013 01
024 15947236 COVER, P/SEAT OTR ADJR FRT FIN (INCLS 21) (EBONY) DN35 (01G) 2011-2013 01
024 25908857 COVER, P/SEAT OTR ADJR FRT FIN (INCLS 21) (TITANIUM) DN (KA1, 01C) (EXC KB6) 2011-2013 01
025 15894137 MOTOR, P/SEAT ADJR ACTR (PART OF 10) (W/O SEAT ADJR MEMORY MDL) (ACDelco #15894137) DN 2011-2013 01
025 15894137 MOTOR, P/SEAT ADJR ACTR (PART OF 10) (W/O SEAT ADJR MEMORY MDL) (ACDelco #15894137) DM 2011-2013 01
026 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 27) 2011-2013 02
027 20777456 COVER, P/SEAT ADJR FIN (INCLS 26) (EBONY) (CARPET) DM, DN 2011-2013 01
028 15947313 COVER, P/SEAT INR ADJR TRK FRT FIN (CASHMERE) DM35-69 (01D) 2011-2013 01
028 15947315 COVER, P/SEAT INR ADJR TRK FRT FIN (EBONY) DM35-69 (01C, 01G) 2011-2013 01
028 15947315 COVER, P/SEAT INR ADJR TRK FRT FIN (EBONY) DN35 (01C, 01G) 2012-2013 01
029 TRACK, P/SEAT INR ADJR (PART OF 10) 2011-2013
030 15947305 COVER, P/SEAT OTR ADJR TRK FRT FIN (CASHMERE) DM35-69 (01D) 2011-2013 01
030 15947307 COVER, P/SEAT OTR ADJR TRK FRT FIN (EBONY) DM35-69 (01C, 01G) 2011-2013 01
030 15947307 COVER, P/SEAT OTR ADJR TRK FRT FIN (EBONY) DN35 (01C, 01G) 2011-2013 01
031 TRACK, P/SEAT OTR ADJR (PART OF 10) 2011-2013
032 BRACE, F/SEAT CUSH FRM (PART OF 10) 2011-2013
033 RETAINER, F/SEAT ADJR ACTR (PART OF 10) 2011-2013
034 15894154 ACTUATOR, P/SEAT INR ADJR RR VERT (PART OF 10) DN 2011-2013 01
034 15894154 ACTUATOR, P/SEAT INR ADJR RR VERT (PART OF 10) DM35-69 2012-2013 01
035 NUT, F/SEAT ADJR ACTR BRKT (PART OF 10) 2011-2013
036 15894170 ACTUATOR, F/SEAT TILT ADJR (PART OF 10) DN (AH8, AL2) 2011-2013 01
036 15894170 ACTUATOR, F/SEAT TILT ADJR (PART OF 10) DM (AH8, AL2) 2011-2013 01
037 15947297 COVER, P/SEAT INR ADJR TRK RR FIN (INCLS 38) (CASHMERE) DM35-69 (01D) 2011-2013 01
037 15947299 COVER, P/SEAT INR ADJR TRK RR FIN (INCLS 38) (EBONY) DM35 (01C, 01G) 2011-2013 01
037 15947299 COVER, P/SEAT INR ADJR TRK RR FIN (INCLS 38) (EBONY) DN35 (01C, 01D, 01G) 2011-2013 01
038 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 37, 39) 2011-2013 02
039 15947289 COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 38) (CASHMERE) DM35-69 (01D) 2011-2013 01
039 15947291 COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 38) (EBONY) DM35-69 (01C, 01G) 2011-2013 01
039 15947291 COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 38) (EBONY) DN35 (01C, 01G) 2011-2013 01
040 20844841 HARNESS, P/SEAT CONT MDL WRG DM35-69 (AH8, AL2, AQ9, EBS, KA1) (EXC KB6) 2012-2012 01
040 20844841 HARNESS, P/SEAT CONT MDL WRG DN35-69 (AH8, AL2, AQ9, ECH, KA1) (EXC KB6) 2012-2012 01
040 20844841 HARNESS, P/SEAT CONT MDL WRG DM35-69 (AH8, AL2, AQ9, ECH, KA1, WBL) (EXC KB6) 2012-2012 01
042 15947244 BEZEL, P/SEAT ADJR SW (USED W/O PRETENSIONER) (INCLS 50) (EBONY) DM35-69 (AH8, AL2, AQ9, 01G) 2011-2012 01
042 25994757 BEZEL, P/SEAT ADJR SW (USED W/PRETENSIONER) (INCLS 50) (TITANIUM) DN (AQ9, KA1, 01C) (EXC KB6) 2011-2013 01
042 25994757 BEZEL, P/SEAT ADJR SW (USED W/PRETENSIONER) (INCLS 50) (TITANIUM) DM (AQ9, EBS, ECH, EWH, 01C) 2011-2013 01
042 25994758 BEZEL, P/SEAT ADJR SW (USED W/PRETENSIONER) (INCLS 50) (CASHMERE) DM35-69 (AH8, AL2, AQ9, EBS, 01D) 2011-2013 01
042 25908858 BEZEL, P/SEAT ADJR SW (USED W/O PRETENSIONER) (INCLS 50) (TITANIUM) (8-WAY) DM35-69 (AH8, AL2, AQ9, ECH, 01C) 2012-2012 01
042 25994756 BEZEL, P/SEAT ADJR SW (USED W/PRETENSIONER) (INCLS 50) (EBONY) DM, DN35-69 (AQ9, EBS, ECH, EWH, 01G) 2011-2013 01
043 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (P/SEAT ADJR FIN CVR) 2011-2013 01
044 15210786 SWITCH, P/SEAT LUMBAR CONT (CASHMERE) DM (01D) 2011-2013 01
044 25908452 SWITCH, P/SEAT LUMBAR CONT (TITANIUM) DM (EBS, ECH, 01C) 2011-2013 01
044 10315826 SWITCH, P/SEAT LUMBAR CONT (EBONY) DN (01G) 2011-2013 01
044 25908452 SWITCH, P/SEAT LUMBAR CONT (TITANIUM) DN (01C) 2011-2013 01
044 25802502 SWITCH, P/SEAT LUMBAR CONT (EBONY) (16.682) DN (AL2, 01G) 2012-2013 01
044 25802505 SWITCH, P/SEAT LUMBAR CONT (TITANIUM) (16.682) DM (ECH, 01C) (EXC KA1) 2012-2013 01
045 25994140 BRACKET, P/SEAT RECL HDL BZL DM (AQ9, EBS, EAM, EWH) 2011-2013 01
045 25994140 BRACKET, P/SEAT RECL HDL BZL DM (AQ9, ECH) 2011-2013 01
046 NUT, F/SEAT (PART OF 10) 2011-2013
047 WASHER, F/SEAT (PART OF 10) 2011-2013
048 NUT, P/SEAT 2011-2013
049 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (P/SEAT RECL HDL BZL BRKT) 2011-2013 04
050 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 42) 2011-2013 04
051 15222981 KNOB, P/SEAT ADJR SW (TITANIUM) DM, DN (01C) 2011-2013 01
051 15889524 KNOB, P/SEAT ADJR SW (EBONY) (16.682) DM, DN35-47-69 (01G) 2011-2013 01
051 15889525 KNOB, P/SEAT ADJR SW (CASHMERE) (16.682) DM35-69 (01D) 2011-2013 01
052 15222985 KNOB, P/SEAT RECL (TITANIUM) DM (01C) 2011-2013 01
052 15222985 KNOB, P/SEAT RECL (TITANIUM) DN (01C) 2011-2013 01
052 15889530 KNOB, P/SEAT RECL (EBONY) (16.682) DN35-69 (01G) 2011-2013 01
052 15889530 KNOB, P/SEAT RECL (EBONY) (16.682) DM35-69 (01G) 2011-2013 01
052 15889531 KNOB, P/SEAT RECL (CASHMERE) (16.682) DM35-69 (01D) 2011-2013 01
053 25982262 COVER, F/SEAT BELT TENSR (RETR SI) (EBONY) (BOOT SIDE) DM (01G) 2011-2013 01
053 25982262 COVER, F/SEAT BELT TENSR (RETR SI) (EBONY) (BOOT SIDE) DN (01G) 2011-2013 01
053 25982263 COVER, F/SEAT BELT TENSR (RETR SI) (CASHMERE) (BOOT SIDE) DM (01D) 2011-2013 01
054 12451498 SWITCH, P/SEAT ADJR RECL (8-WAY) DM 2011-2013 01
054 12451498 SWITCH, P/SEAT ADJR RECL (8-WAY) DN 2011-2013 01
055 BOLT, P/SEAT BELT TENSR (RETR SI) (PART OF 6) 2011-2013
056 15947257 COVER, P/SEAT CUSH CLOSEOUT (INCLS 5) (CASHMERE) (11.573) DM (01D) 2011-2013 01
056 15947259 COVER, P/SEAT CUSH CLOSEOUT (INCLS 5) (EBONY) (11.573) DM, DN (01G) 2011-2013 01
056 25908343 COVER, P/SEAT CUSH CLOSEOUT (INCLS 5) (TITANIUM) (11.573) D35-47-69 (01C) 2011-2013 01
