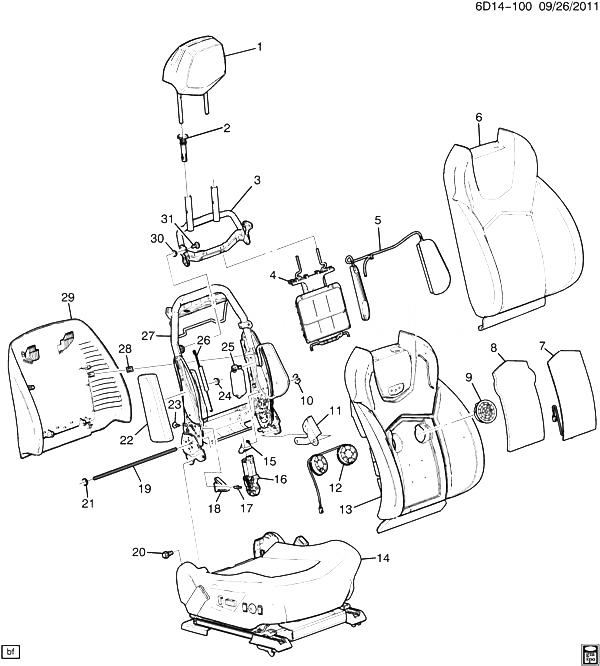

(6D14-100) 2012-2013 DM35 СИДЕНЬЕ В СБОРЕ/ПАССАЖИРА-СПИНКА (VENTED/HEATED KB6, RECARO W2E) CADILLAC - CTS WAGON 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20793234 RESTRAINT, P/SEAT HD (TITANIUM) DM (ECH, KB6, W2E, 01C) (EXC KA1) 2012-2013 01
001 20793234 RESTRAINT, P/SEAT HD (TITANIUM) DN35-69 (KB6, W2E, 01C) (EXC KA1) 2011-2013 01
001 20793234 RESTRAINT, P/SEAT HD (TITANIUM) DM35 (ECH, KB6, WBL, 01C) (EXC KA1) 2012-2013 01
001 22787999 RESTRAINT, P/SEAT HD (EBONY) DM, DN (ECH, W2E, 01G) (EXC KA1) 2012-2013 01
002 25785791 GUIDE, P/SEAT H/RST (EBONY) (W/O BUTTON) DN35-69 (01G, 02W) 2011-2013 01
002 25785791 GUIDE, P/SEAT H/RST (EBONY) (W/O BUTTON) DM (01G) 2012-2013 01
002 25908135 GUIDE, P/SEAT H/RST (TITANIUM) (W/BUTTON) DM (01C) 2012-2013 01
002 25908135 GUIDE, P/SEAT H/RST (TITANIUM) (W/BUTTON) DN (01C) 2011-2013 01
002 25785788 GUIDE, P/SEAT H/RST (EBONY) (W/BUTTON) DN (01G) 2011-2013 01
002 25908165 GUIDE, P/SEAT H/RST (TITANIUM) (W/O BUTTON) DN (01C) 2011-2013 01
002 25908165 GUIDE, P/SEAT H/RST (TITANIUM) (W/O BUTTON) DM (01C) 2012-2013 01
003 25994442 SUPPORT, P/SEAT H/RST (PART OF 27) DM35-69 2012-2013 01
003 25994442 SUPPORT, P/SEAT H/RST (PART OF 27) DN35-69 2011-2013 01
004 20793293 LUMBAR SUB, P/SEAT DM (KB6, W2E) (EXC KA1) 2012-2013 01
004 20793293 LUMBAR SUB, P/SEAT DN (KB6, W2E) (EXC KA1) 2011-2013 01
004 LUMBAR SUB, P/SEAT (EBS, ECH, IL5) 2011-2013
005 20793000 BLADDER, F/SEAT CUSH SI BOLS (BACK FRAME) DN35-69 (W2E) 2011-2013 02
005 20793000 BLADDER, F/SEAT CUSH SI BOLS (BACK FRAME) DM35 (W2E) 2012-2013 02
006 22788005 COVER, P/SEAT BK (INCLS 7-9, 13) (EBONY) DN35-69 (AH8, AL2, ECH, KB6, W2E, 01G) (EXC KA1) 2012-2013 01
006 22788007 COVER, P/SEAT BK (INCLS 7-9, 13) (EBONY) DM35 (AH8, AL2, ECH, KB6, WBL, W2E, 01G) (EXC KA1) 2012-2013 01
006 22789609 COVER, P/SEAT BK (INCLS 7-9, 13) (TITANIUM) DN35-69 (AH8, AL2, ECH, KB6, W2E, 01C) (EXC KA1) 2012-2013 01
006 22789610 COVER, P/SEAT BK (INCLS 7-9, 13) (TITANIUM) DM35 (AH8, AL2, ECH, KB6, WBL, W2E, 01C) (EXC KA1) 2012-2013 01
007 HEATER, P/SEAT BK (PART OF 6) 2011-2013
007 HEATER, P/SEAT BK (PART OF 6) 2012-2013
008 MAT, F/SEAT VENT FAN (PART OF 6) 2011-2013
008 MAT, F/SEAT VENT FAN (PART OF 6) 2012-2013
009 FAN, F/SEAT BK CUSH VENT (PART OF 6) 2011-2013
009 FAN, F/SEAT BK CUSH VENT (PART OF 6) 2012-2013
010 CLIP, ACTUATOR P/SEAT RECL) (PART OF 27) 2011-2013
010 CLIP, ACTUATOR P/SEAT RECL) (PART OF 27) 2012-2013
011 20875405 COVER, P/SEAT RECL FIN (EBONY) DM (01G) 2012-2013 01
011 20875406 COVER, P/SEAT RECL FIN (TITANIUM) DM (01C) 2012-2013 01
011 20875408 COVER, P/SEAT RECL FIN (EBONY) DM (01G) 2012-2013 01
011 20875409 COVER, P/SEAT RECL FIN (TITANIUM) DM (01C) 2012-2013 01
011 20875405 COVER, P/SEAT RECL FIN (EBONY) DN (01G) 2011-2013 01
011 20875406 COVER, P/SEAT RECL FIN (TITANIUM) DN (01C) 2011-2013 01
011 20875408 COVER, P/SEAT RECL FIN (EBONY) DN (01G) 2011-2013 01
011 20875409 COVER, P/SEAT RECL FIN (TITANIUM) DN (01C) 2011-2013 01
012 20793341 BLOWER, P/SEAT BACK VENTILATION HEAT COOL DN35-69 (KB6, W2E) (EXC KA1) 2012-2013 01
012 20793341 BLOWER, P/SEAT BACK VENTILATION HEAT COOL DM35-69 (ECH, KB6, W2E) (EXC KA1) 2012-2013 01
012 20793341 BLOWER, P/SEAT BACK VENTILATION HEAT COOL DN (KB6, W2E) (EXC KA1) 2011-2013 01
013 PAD, P/SEAT BK (PART OF 6) 2011-2013
013 PAD, P/SEAT BK (PART OF 6) 2012-2013
014 COVER, P/SEAT CUSH (SEE GROUP 14.000 SEAT ASM/PASSENGER-CUSHION FOR DETAILED ILLUSTRATED VIEW) 2011-2013
015 BRACKET, P/SEAT RECL ACTR (PART OF 27) 2011-2013
015 BRACKET, P/SEAT RECL ACTR (PART OF 27) 2012-2013
016 15894214 ACTUATOR, P/SEAT RECL (PART OF 27) DM 2012-2013 01
016 15894214 ACTUATOR, P/SEAT RECL (PART OF 27) DN 2011-2013 01
017 11610252 RIVET, POP, 4.7 DIA SHANK, 16.39 LENGTH, 1.52-9.52 GRP RNG, SAE 1008 STL, GM (F/SEAT BK FRM REINF) 2011-2013 02
018 25994443 BRACKET, P/SEAT FRT DM, DN35-69 2011-2013 02
019 15894212 BAR, F/SEAT BK FRM CR (PART OF 27) DM, DN 2011-2013 02
020 25828643 BOLT, F/SEAT (PART OF 27) DM 2012-2013 08
020 25828643 BOLT, F/SEAT (PART OF 27) DN 2011-2013 08
021 13183232 NUT, P/SEAT RECL (PART OF 27) DM35 2012-2013 02
021 13183232 NUT, P/SEAT RECL (PART OF 27) DN35-69 2011-2013 02
022 20970098 AIRBAG, P/SEAT SI DM, DN (W2E) 2011-2013 01
023 11610086 RETAINER, P/SEAT CUSH (7.6 DIA X 29.5) (FABRIC HEAD MATCHES TRIM) (11.573) DN35 (W2E) 2011-2013 02
023 11610086 RETAINER, P/SEAT CUSH (7.6 DIA X 29.5) (FABRIC HEAD MATCHES TRIM) (11.573) DM35 (W2E) 2012-2013 02
024 11517068 NUT, METRIC HEX FLANGE, M6X1, 10MM SOCKET (P/SEAT) 2011-2013 AR
025 20793256 PUMP, D/SEAT P/SEAT CUSH AIR DN (W2E) 2011-2013 02
025 20793256 PUMP, D/SEAT P/SEAT CUSH AIR DM (W2E) 2012-2013 02
026 25994445 SPRING, F/SEAT H/RST ADJ RET (PART OF 27) DM, DN 2011-2013 02
027 20793060 FRAME, P/SEAT BK (INCLS 3, 10, 15, 16, 19-21, 26, 30, 31) DN35-69 (AH8, AL2, KB6) (EXC KA1) 2011-2013 01
027 25807066 FRAME, P/SEAT BK (INCLS 3, 10, 15, 16, 19-21, 26, 30, 31) (14.896) DM35-69 (AH8, AL2, AQ9, EBS, ECH) 2012-2013 01
027 25807066 FRAME, P/SEAT BK (INCLS 3, 10, 15, 16, 19-21, 26, 30, 31) (14.896) DM35-69 (AH8, ECH, KB6, W2E) (EXC KA1) 2012-2013 01
028 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 29) 2011-2013 04
029 25939489 PANEL, P/SEAT BK FIN (INCLS 28) (EBONY) (PANEL IS WRAPPED IN LEATHER) DN35-69 (AH8, ECH, W2E, 01G) 2011-2013 01
029 25939326 PANEL, P/SEAT BK FIN (INCLS 28) (TITANIUM) (PANEL IS WRAPPED IN LEATHER) DN35-69 (W2E, 01C) 2011-2013 01
029 25939326 PANEL, P/SEAT BK FIN (INCLS 28) (TITANIUM) (PANEL IS WRAPPED IN LEATHER) DM35-69 (W2E, 01C) 2012-2013 01
030 25995124 BUSHING, F/SEAT BK PIV (PART OF 27) DM 2012-2013 02
030 25995124 BUSHING, F/SEAT BK PIV (PART OF 27) DN 2011-2013 02
031 BOLT, F/SEAT H/RST (PART OF 27) 2011-2013
