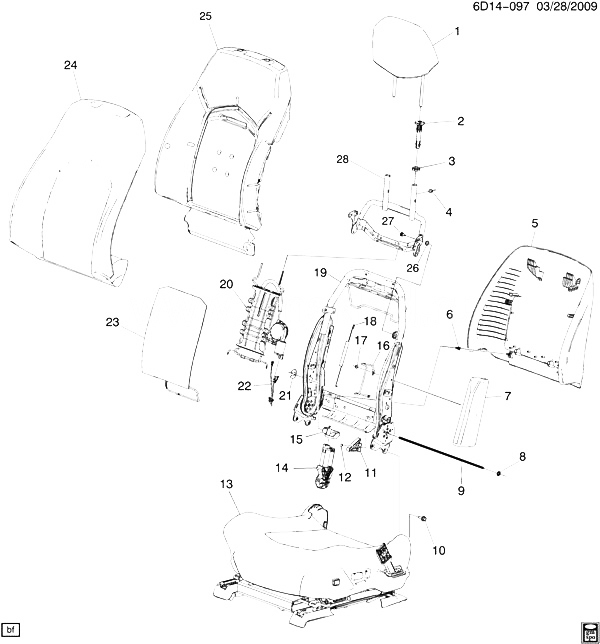

(6D14-097) 2011-2013 DR35 СИДЕНЬЕ В СБОРЕ/ВОДИТЕЛЯ-СПИНКА (POWER LUMBAR AL2, EXC VENTED/HEATED KB6) CADILLAC - CTS WAGON 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20867414 RESTRAINT, D/SEAT HD (CASHMERE) DR (01D) (EXPORT) 2010-2013 01
001 20867413 RESTRAINT, D/SEAT HD (TITANIUM) DR (AQ9, EBS, 01C) (EXPORT) 2010-2013 01
001 20812526 RESTRAINT, D/SEAT HD (EBONY) (LEATHER) DR (AL2, AQ9, EBS, ECH, 01G) (EXPORT) 2012-2013 01
001 20812527 RESTRAINT, D/SEAT HD (EBONY) (LEATHERETTE) DR35-69 (AQ9, EAM, 01G) (EXC A45) (EXPORT) 2012-2013 01
001 20830413 RESTRAINT, D/SEAT HD (TITANIUM) DR35-69 (AQ9, EAM, 01C) (EXPORT) 2011-2013 01
002 25785786 GUIDE, D/SEAT H/RST (CASHMERE) (W/BUTTON) DR (01D) (EXPORT) 2011-2013 01
002 25785788 GUIDE, D/SEAT H/RST (EBONY) (W/BUTTON) DR35-69 (01G) (EXPORT) 2011-2013 01
002 25908135 GUIDE, D/SEAT H/RST (TITANIUM) (W/BUTTON) DR35-69 (01C) (EXPORT) 2011-2013 01
002 25785789 GUIDE, D/SEAT H/RST (CASHMERE) (W/O BUTTON) DR (01D) (EXPORT) 2011-2013 01
002 25785791 GUIDE, D/SEAT H/RST (EBONY) (W/O BUTTON) DR35-69 (01G) (EXPORT) 2011-2013 01
002 88994612 GUIDE, D/SEAT H/RST (CASHMERE) (W/O BUTTON) (11.625) DR35 (01D) (EXPORT) 2012-2013 01
002 25908165 GUIDE, D/SEAT H/RST (TITANIUM) (W/O BUTTON) DR35-69 (01C) (EXPORT) 2011-2013 01
003 25994444 RETAINER, D/SEAT H/RST GDE D35-47-69 2011-2013 01
004 25995123 BUMPER, F/SEAT BK DR (EXPORT) 2010-2013 02
005 25939494 PANEL, D/SEAT BK FIN (INCLS 6) (EBONY) (PANEL IS PLASTIC AND NOT WRAPPED IN LEATHER) DR35-69 (AQ9, AX4, EAM, 01G) (EXC A45) (EXPORT) 2010-2013 01
005 25939494 PANEL, D/SEAT BK FIN (INCLS 6) (EBONY) (PANEL IS PLASTIC AND NOT WRAPPED IN LEATHER) DR35-69 (AQ9, AX4, A45, EBS, 01G) (EXPORT) 2012-2013 01
005 25939495 PANEL, D/SEAT BK FIN (INCLS 6) (TITANIUM) (PANEL IS PLASTIC AND NOT WRAPPED IN LEATHER) DR (AL2, AQ9, AX4, EAM, 01C) (EXC A45) (EXPORT) 2010-2012 01
006 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 5) 2010-2013 04
007 20970105 AIRBAG, D/SEAT SI D35-69 2011-2013 01
008 11571066 NUT, PUSH-ON, FOR 9/32 (6.9MM) DIA STUDS, 18.4 OD, SAE 1050 STL, GMW30 (PART OF 19) 2010-2013 02
009 15894212 BAR, F/SEAT BK FRM CR (PART OF 19) DR35-69 (EXPORT) 2010-2013 02
010 25828643 BOLT, F/SEAT (PART OF 19) DR35-69 (EXPORT) 2011-2013 08
011 25994443 BRACKET, D/SEAT (11.419) DR35-69 (EXPORT) 2010-2013 02
012 RIVET, D/SEAT ADJR BRKT 2011-2013
013 PAD, D/SEAT CUSH (SEE GROUP 14.000 SEAT ASM/DRIVER-CUSHION FOR DETAILED ILLUSTRATED VIEW) 2010-2013
014 15894214 ACTUATOR, D/SEAT RECL (PART OF 19) DR35-69 (EXPORT) 2010-2013 01
015 BRACKET, D/SEAT RECL ACTR (PART OF 19) 2011-2013
016 25994419 BRACKET, D/SEAT SI AIRBAG (14.685) DR (EXPORT) 2010-2013 01
017 NUT, D/SEAT SI AIRBAG (PART OF 19) 2011-2013
018 25994445 SPRING, F/SEAT H/RST ADJ RET DR35-69 (EXPORT) 2011-2013 02
019 25807064 FRAME, D/SEAT BK (INCLS 8-10, 14, 15, 17, 21) (PWR) (W/MEMORY) (14.896) DR35-69 (AL2, AQ9, AX4, A45, EBS) (EXPORT) 2010-2013 01
019 25807065 FRAME, D/SEAT BK (INCLS 8-10, 14, 15, 17, 21) (8-WAY) (PWR) (W/O MEMORY) DR35-69 (AH8, AL2, AQ9, AX4, EBS) (EXPORT) 2010-2013 01
019 25807066 FRAME, D/SEAT BK (INCLS 8-10, 14, 15, 17, 21) (14.896) DR35-69 (AL2, AQ9, AX4, EAM) (EXC A45) (EXPORT) 2011-2013 01
020 25939270 LUMBAR SUB, D/SEAT (SHALE) (W/ACTIVE H/RST-HT OF BK PNL INDENTATION ABOVE MAP PKT=3IN) DR35-69 (AL2, AQ9, AX4, EAM) (EXC A45) (EXPORT) 2011-2012 01
020 25994157 LUMBAR SUB, D/SEAT DR35-69 (AH8, AL2, AQ9, AX4, EBS) (EXPORT) 2011-2013 01
020 25994157 LUMBAR SUB, D/SEAT DR35-69 (AH8, AL2, AQ9, AX4, EAM) (EXPORT) 2011-2013 01
021 CLIP, ACTUATOR D/SEAT RECL) (PART OF 19 2011-2013
022 25994400 HARNESS, D/SEAT WRG (RECL POTENTIOMETER) (MEMRY JMPR) DR35-69 (AL2, AQ9, AX4, A45, EBS) (EXPORT) 2010-2013 01
023 25994410 HEATER, D/SEAT BK DR35-69 (KA1) (EXC KB6) (EXPORT) 2011-2013 01
024 22737820 COVER, D/SEAT BK (TITANIUM) DR35-69 (AL2, AX4, EAM, 01C) (EXC A45) (EXPORT) 2011-2013 01
024 22737840 COVER, D/SEAT BK (CASHMERE) DR35-69 (AL2, AQ9, EBS, KA1, 01D) (EXC KB6) (EXPORT) 2011-2013 01
024 22737844 COVER, D/SEAT BK (CASHMERE) DR35-69 (AL2, AQ9, KA1, 01D) (EXC KB6) (EXPORT) 2011-2013 01
024 22784988 COVER, D/SEAT BK (EBONY) DR35-69 (AL2, AQ9, AX4, EAM, 01G) (EXC A45) (EXPORT) 2012-2013 01
024 22784997 COVER, D/SEAT BK (EBONY) DR35-69 (AL2, AQ9, AX4, A45, EBS, KA1, 01G) (EXC KB6) (EXPORT) 2012-2013 01
024 22737843 COVER, D/SEAT BK (TITANIUM) DR35-69 (AL2, AQ9, A45, EBS, KA1, 01C) (EXC KB6) (EXPORT) 2010-2013 01
025 25939292 PAD, F/SEAT BK DR35-69 (AH8, AL2, AQ9, AX4, EBS, KA1) (EXC KB6) (EXPORT) 2010-2013 01
025 25939292 PAD, F/SEAT BK DR35-69 (AH8, AL2, AX4, EAM) (EXPORT) 2010-2013 01
026 25995124 BUSHING, F/SEAT BK PIV DR35-69 (EXPORT) 2011-2013 02
027 BOLT, F/SEAT H/RST 2011-2013
028 25994442 SUPPORT, D/SEAT H/RST DR35-69 (EXPORT) 2011-2013 01
