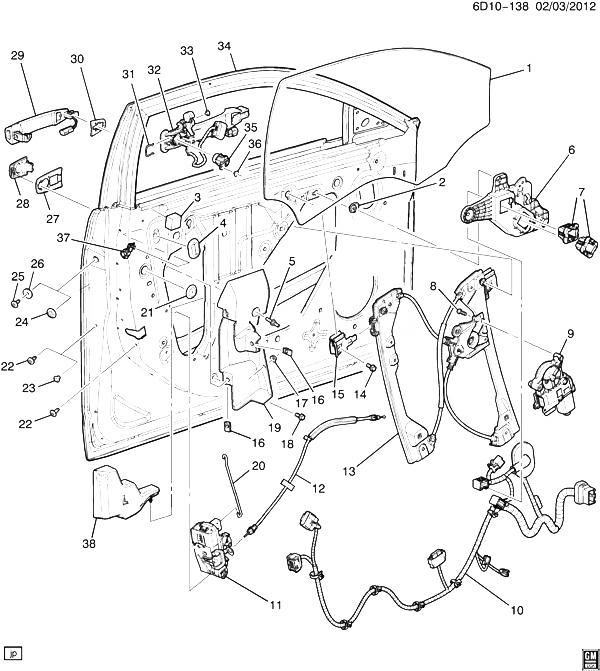

(6D10-138) 2011-2013 DR35-69 ФУРНИТУРА ДВЕРИ/ПЕРЕДНЯЯ PART 2 CADILLAC - CTS WAGON 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15242616 WINDOW, FRT S/D DR35-69 (EXPORT) 2011-2013 01
001 15242617 WINDOW, FRT S/D DR35-69 (EXPORT) 2011-2013 01
002 11570209 STUD, ELEK SYS PWR SPLY MDL BRKT D 2011-2013 04
003 INSULATOR, FRT S/D LKG ROD 2011-2013
004 20880973 GROMMET, FRT S/D LKG ROD (16.341) D35 2011-2013 02
005 11589303 BOLT, HFH, M6X1X38, 30 THD, 14.2 OD, 8.8 STL, GMW3359, M-PT (FRT S/D LK CVR) 2011-2013 01
006 25785810 BRACKET, ELEK SYS PWR SPLY MDL D 2011-2013 01
006 25785811 BRACKET, ELEK SYS PWR SPLY MDL D 2011-2013 01
007 88956522 RETAINER, FRT S/D WRG HARN (12-WAY DOCK LOCK, FEMALE) (W/O LEADS) (7.068) D35-47-69 2011-2013 01
008 BOLT, FRT S/D WDO REG MOT (PART OF 13) 2011-2013
009 MOTOR, FRT S/D WDO REG (PART OF 13) 2011-2013
010 22744762 HARNESS, FRT S/D DR WRG DR35 (EXPORT) 2012-2013 01
010 22744768 HARNESS, FRT S/D DR WRG DR35 (EXPORT) 2012-2013 01
011 20952745 LATCH, FRT S/D (INCLS 12) DR (UTT) (EXPORT) 2011-2013 01
011 22770950 LATCH, FRT S/D (INCLS 12) DR (UTT) (EXPORT) 2011-2013 01
012 CABLE, FRT S/D I/S HDL (PART OF 11) 2011-2013
013 20888397 REGULATOR, FRT S/D WDO (INCLS 8, 9, 14, 15) (INCLS MOTOR) (10.783) (ACDelco #20888397) D35 2011-2013 01
013 20888397 REGULATOR, FRT S/D WDO (INCLS 8, 9, 14, 15) (INCLS MOTOR) (ACDelco #20888397) D35 2011-2013 01
013 20888398 REGULATOR, FRT S/D WDO (INCLS 8, 9, 14, 15) (10.783) (ACDelco #20888398) D35 2011-2013 01
013 20888398 REGULATOR, FRT S/D WDO (INCLS 8, 9, 14, 15) (ACDelco #20888398) D35 2011-2013 01
014 BOLT, FRT S/D WDO (PART OF 13) 2011-2013
015 RETAINER, FRT S/D WDO (PART OF 13) 2011-2013
016 NUT, FRT S/D LK CVR (PART OF 19) 2011-2013
017 11517068 NUT, METRIC HEX FLANGE, M6X1, 10MM SOCKET (FRT S/D LK CVR) 2011-2013 01
018 11519381 BOLT, WASHER M6X1X15, 5.75 THD, 17 OD, 8.8, GMW3359, M-POINT, 1.65 CON SPRWA (FRT S/D WDO REG) 2011-2013 06
019 15269129 COVER, FRT S/D LK (INCLS 16) DR35-69 (EXPORT) 2011-2013 01
020 15269118 ROD, FRT S/D LK CYL DR35-69 (EXPORT) 2011-2013 01
021 25652432 PLUG, FRT S/D INR PNL HOLE (35MM DIA) (FITS 25MM HOLE) (ROUND) (12.934) D 2011-2013 02
022 11609341 SCREW, RD WA HD M6X1X19, 13.55 THD, 16 OD, 10.9, GMW4205, W/ADH GM6175M, MATPT (FRT S/D LAT) 2011-2013 04
023 15259076 PLUG, FRT S/D INR PNL HOLE (6.35MM) (ROUND) (10.571) D35-69 2011-2013 04
024 25676040 PLUG, FRT S/D ACC HOLE (25MM OD) (12.809) D35 2011-2013 02
025 11609665 SCREW, MACH RD WA HD 6-LOBED M6X1X20 (FRT S/D LK CVR) (UA2) 2011-2013 03
026 11509262 WASHER, FL 6.8X25.40X2.30 STL PEOR (FRT S/D LK CVR) (UA2) 2011-2013 01
027 25737166 SEAL, FRT S/D O/S HDL (REAR OF HANDLE) DM, DN 2011-2013 02
027 25737166 SEAL, FRT S/D O/S HDL (REAR OF HANDLE) DR 2011-2013 02
028 20806462 CAP, FRT S/D O/S HDL END (KEYLESS) (PAINT TO MATCH) D35-69 2011-2013 01
028 20806452 CAP, FRT S/D O/S HDL END (KEY) (PAINT TO MATCH) DR35-69 (EXPORT) 2011-2013 01
028 20806458 CAP, FRT S/D O/S HDL END (KEYLESS) (PAINT TO MATCH) DR35-69 (EXPORT) 2011-2013 01
029 20806428 HANDLE, FRT S/D O/S (HANDLE ONLY) (PAINT TO MATCH) D35 2011-2013 01
029 20806427 HANDLE, FRT S/D O/S (HANDLE ONLY) (PAINT TO MATCH) D35 2011-2013 01
029 20869088 HANDLE, FRT S/D O/S (W/CONN) (PAINT TO MATCH) D35-69 (ATH) 2011-2013 01
029 20869089 HANDLE, FRT S/D O/S (W/CONN) (PAINT TO MATCH) D35-69 (ATH) 2011-2013 01
030 25866293 SEAL, FRT S/D O/S HDL (FRONT OF HANDLE) DM, DN 2011-2013 02
030 25866293 SEAL, FRT S/D O/S HDL (FRONT OF HANDLE) DR 2011-2013 02
031 RETAINER, FRT S/D LK CYL (PART OF 32) 2011-2013
032 25979140 HOUSING, FRT S/D O/S HDL (INCLS 31, 33) (W/2 CONNS) DR35-69 (ATH) (EXPORT) 2011-2013 01
032 25979141 HOUSING, FRT S/D O/S HDL (INCLS 31, 33) (W/2 CONNS) DR35-69 (ATH) (EXPORT) 2011-2013 01
032 20778199 HOUSING, FRT S/D O/S HDL (INCLS 31, 33) DR35-69 (ATG) (EXPORT) 2011-2013 01
032 20778200 HOUSING, FRT S/D O/S HDL (INCLS 31, 33) DR35-69 (ATG) (EXPORT) 2011-2013 01
033 CLIP, FRT S/D LK REL LVR LKG ROD (PART OF 32) 2011-2013
034 DOOR, FRT SI (SEE GROUP 12.000 SHEET METAL/BODYSIDE FOR DETAILED ILLUSTRATED VIEW) 2011-2013
035 CYLINDER KIT, FRT S/D LK (UNCODED) (INCLS 36) (SEE GROUP 10.000 LOCK CYLINDER SET/DOOR FOR DETAILED ILLUSTRATED VIEW) 2011-2013
036 CLIP, FRT S/D LKG ROD (PART OF 35) 2011-2013
037 25688849 RETAINER, FRT S/D O/S HDL (PUSH IN) (2.343) DR35-69 (ATH) (EXPORT) 2011-2013 02
038 20785178 ABSORBER, FRT S/D OTR PNL ENGY DR35-69 (EXC UTT) (EXPORT) 2011-2013 01
038 20785179 ABSORBER, FRT S/D OTR PNL ENGY DR35-69 (EXC UTT) (EXPORT) 2011-2013 01
