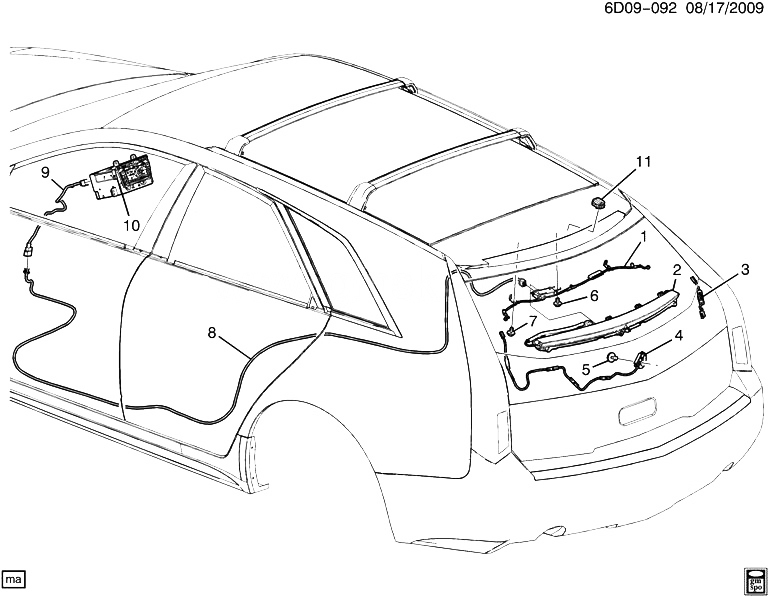

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20861114 |
MODULE, RDO ANT (INCLS 7) (ACDelco #20861114) |
D35 |
2010-2013 |
01 |
| 002 |
20813425 |
LAMP, HIGH MT STOP (SEE GROUP 02.000 REAR/LAMP FOR DETAILED ILLUSTRATED VIEW) (INCLS ANTENNA MODULE PIGTAIL CABLE) |
DM35 |
2010-2013 |
01 |
| 002 |
20813425 |
LAMP, HIGH MT STOP (SEE GROUP 02.000 REAR/LAMP FOR DETAILED ILLUSTRATED VIEW) (INCLS ANTENNA MODULE PIGTAIL CABLE) |
DN35 |
2011-2013 |
01 |
| 002 |
20813425 |
LAMP, HIGH MT STOP (SEE GROUP 02.000 REAR/LAMP FOR DETAILED ILLUSTRATED VIEW) (INCLS ANTENNA MODULE PIGTAIL CABLE) |
DR35 (EXPORT) |
2010-2013 |
01 |
| 003 |
25831140 |
COIL, RDO ANT (LOW SIDE) |
D35 |
2010-2012 |
01 |
| 004 |
25831139 |
COIL, RDO ANT (HIGH SIDE) (ACDelco #25831139) |
D35 |
2010-2012 |
01 |
| 005 |
11570584 |
BOLT, HEX W/FL WA, M6X1X14, 7 THD, 17 OD, GMW15170 STL, GMW3200, TAPPI (RDO ANT COIL) |
|
2010-2013 |
01 |
| 006 |
11570584 |
BOLT, HEX W/FL WA, M6X1X14, 7 THD, 17 OD, GMW15170 STL, GMW3200, TAPPI (RDO ANT MDL GRD) |
|
2010-2013 |
01 |
| 007 |
|
BOLT, RDO ANT MDL (PART OF 1) |
|
2011-2013 |
|
| 009 |
20814506 |
CABLE, RDO ANT CBL EXTN (APPLIQUE/SPOILER COAX CABLE) (ACDelco #20814506) |
D35 |
2010-2013 |
01 |
| 010 |
|
RADIO, AM/FM STEREO AUDIO DISC PLYR MP3 PLYR (SEE GROUP 09.000 RADIO MOUNTING FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 011 |
20821891 |
MODULE, RDO AM ANT SIG FLTR (ACDelco #20821891) |
DM, DN35 |
2011-2013 |
01 |
| 011 |
20821891 |
MODULE, RDO AM ANT SIG FLTR (ACDelco #20821891) |
DR35 (EXPORT) |
2011-2013 |
01 |
