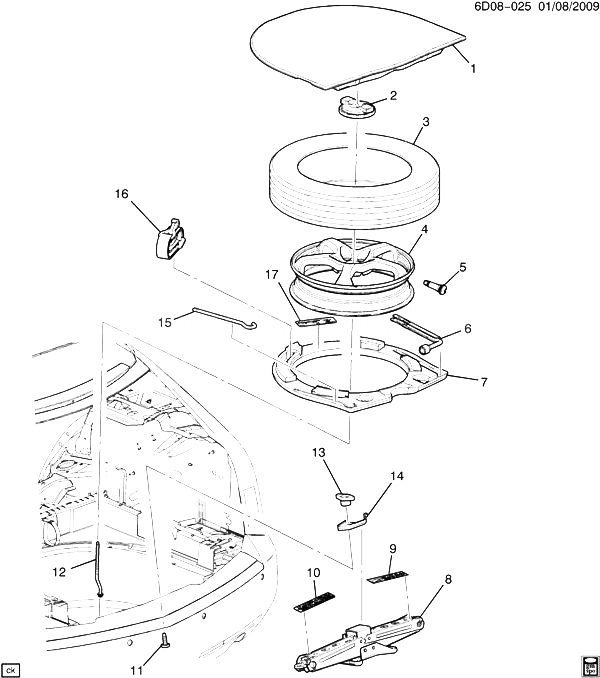

(6D08-025) 2012-2013 D35 МЕСТО ХРАНЕНИЯ ЗАПАСНОГО КОЛЕСА И ДОМКРАТА (COMPACT SPARE TIRE PYZ) CADILLAC - CTS WAGON 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25866304 COVER, R/CMPT FLR PNL HOLE (12.579) DM35 (EXC CZ9) 2011-2013 01
001 25866304 COVER, R/CMPT FLR PNL HOLE (12.579) DM, DN35-69 2011-2013 01
001 25866304 COVER, R/CMPT FLR PNL HOLE (12.579) DR35-69 (EXPORT) 2010-2013 01
002 11562183 RETAINER, JK STOW (M8X1.25X90) (7.633) D 2012-2013 01
003 TIRE, SPARE 2012-2013
004 09596625 WHEEL, SPA (COMPACT SPARE) (BLACK) (18X4) (CODE UXY) D35-69 (PYZ) 2012-2013 01
005 00274288 STEM, COMPACT SPARE TIRE VLV (.453 HOLE, 1.25 LONG) (INCLS CAP) D35-69 (ZFK) 2012-2013 01
006 22787726 WRENCH, WHL (DESIGN USED ON HEX HEAD STYLE JACK) DM35 (ZFK) 2012-2013 01
006 22787726 WRENCH, WHL (DESIGN USED ON HEX HEAD STYLE JACK) DR35 (ZFK) (EXPORT) 2012-2013 01
007 25909328 SUPPORT, SPA WHL DM35 (ZFK) 2012-2013 01
007 25909328 SUPPORT, SPA WHL DR35 (ZFK) (EXPORT) 2012-2013 01
008 13500011 JACK, DM35-69 2012-2013 01
008 13500011 JACK, DR35-69 (EXPORT) 2012-2013 01
009 LABEL, JK LOCATION INFO 2012-2013
010 LABEL, JK WRNG 2012-2013
011 STUD, JK STOW BRKT 2012-2013
012 11588355 BOLT, JK STOW (SQHD, M8X1.25X225, 110 THD, 5.8, GMW3044, 9 MM P-POINT, FLAT WASHER) D35-69 (9L3) 2012-2013 01
012 11571201 BOLT, JK STOW DM35-69 (ZFK) 2012-2013 01
012 11571201 BOLT, JK STOW DR35-69 (ZFK) (EXPORT) 2012-2013 01
013 11609971 RETAINER, JK STOW (M8X1.25) (35.2MM WING SPAN) DM35 (ZFK) 2012-2013 01
013 11609971 RETAINER, JK STOW (M8X1.25) (35.2MM WING SPAN) DR35 (ZFK) (EXPORT) 2012-2013 01
014 20814844 BRACKET, JK TOOL STOW DM35 (ZFK) 2012-2013 01
014 20814844 BRACKET, JK TOOL STOW DR35 (ZFK) (EXPORT) 2012-2013 01
015 25892542 EXTENSION, JK HDL D35 (ZFK) 2012-2013 01
016 20916374 STRAP, SPA WHL STOW DM35 (ZFK) 2012-2013 01
016 20916374 STRAP, SPA WHL STOW DR35 (ZFK) (EXPORT) 2012-2013 01
017 LABEL, JK LOCATION INFO 2012-2013
