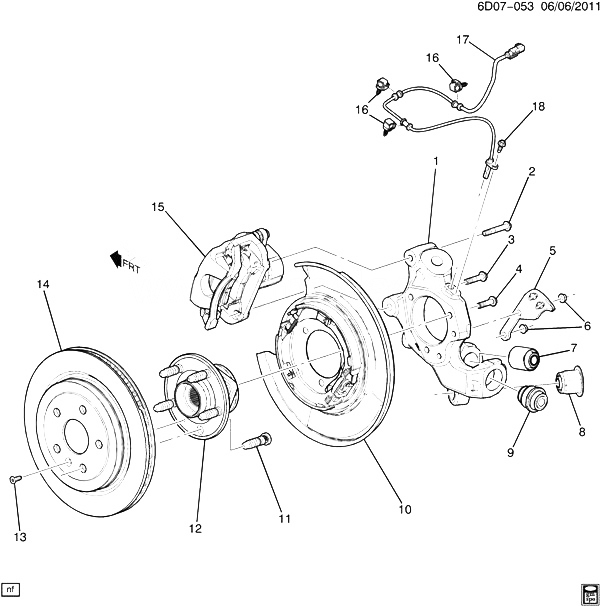

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15775071 |
KNUCKLE, RR SUSP (INCLS 7-9) |
D35 |
2010-2013 |
01 |
| 001 |
15775072 |
KNUCKLE, RR SUSP (INCLS 7-9) |
D35 |
2010-2013 |
01 |
| 002 |
11518337 |
BOLT, HFH M12X1.75X75, 26.6 OD, 30 THD, 10.9, 7114M, ADH 6194M, REDUCED BODY (RR BRK CLPR BRKT) |
|
2010-2013 |
02 |
| 003 |
11570580 |
BOLT, RR BRK CLPR BRKT (M12X1.75X51, 20THD) (5.812) |
DM |
2010-2013 |
02 |
| 003 |
11570580 |
BOLT, RR BRK CLPR BRKT (M12X1.75X51, 20THD) (5.812) |
DR (EXPORT) |
2010-2013 |
02 |
| 004 |
11570580 |
BOLT, RR WHL HUB (M12X1.75X51, 20THD) (5.812) |
D |
2010-2013 |
06 |
| 005 |
25693149 |
BRACKET, PARK BRK RR CBL (ATTACHES TO RR SUSP) |
D |
2010-2013 |
01 |
| 005 |
25693150 |
BRACKET, PARK BRK RR CBL (ATTACHES TO RR SUSP) |
D |
2010-2013 |
01 |
| 006 |
11517996 |
NUT, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (PARK BRK RR CBL BRKT) (ACDelco #11517996) |
|
2010-2013 |
04 |
| 007 |
|
BUSHING, RR SUSP SUPT (PART OF 1) |
|
2010-2013 |
|
| 008 |
|
BUSHING, RR SUSP TRAILING ARM (PART OF 1) |
|
2010-2013 |
|
| 009 |
|
BUSHING, RR SUSP LWR CONT ARM (PART OF 1) |
|
2010-2013 |
|
| 010 |
|
BRAKE, PARK (SEE GROUP 04.000 PARKING BRAKE ASM FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 011 |
11588811 |
BOLT, WHL (PART OF 12) (M14X1.5X58, 24THD) (21 OD) |
DM35 |
2010-2013 |
20 |
| 011 |
11588811 |
BOLT, WHL (PART OF 12) (M14X1.5X58, 24THD) (21 OD) |
DR35 (EXPORT) |
2010-2013 |
20 |
| 012 |
13504970 |
HUB, RR WHL (W/ BRG) (INCLS 11) (6.307) (ACDelco #FW384) |
DM |
2010-2013 |
02 |
| 012 |
13504970 |
HUB, RR WHL (W/ BRG) (INCLS 11) (6.307) (ACDelco #FW384) |
DR (EXPORT) |
2010-2013 |
02 |
| 013 |
11570339 |
BOLT, RR BRK ROT (M6X1X20, 12.3 OD) (14.2 THD) (8.908) |
D |
2010-2013 |
02 |
| 014 |
20808621 |
ROTOR, RR BRK (315X23X201) (ACDelco #177-1060) |
DM (JE5) |
2010-2013 |
02 |
| 014 |
20808622 |
ROTOR, RR BRK (339X23X201) (ACDelco #177-1055) |
DM (J55) |
2011-2013 |
02 |
| 014 |
20808621 |
ROTOR, RR BRK (315X23X201) (ACDelco #177-1060) |
DR (JE5) (EXPORT) |
2010-2013 |
02 |
| 014 |
20808622 |
ROTOR, RR BRK (339X23X201) (ACDelco #177-1055) |
DR (J55) (EXPORT) |
2010-2013 |
02 |
| 015 |
|
CALIPER, RR BRK (SEE GROUP 04.000 BRAKE CALIPER/REAR FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 016 |
10317605 |
CLIP, WHL SPD SEN WIRE (PART OF 17) (6.8MM HOLE) (9.242) |
DM |
2010-2013 |
03 |
| 016 |
10317605 |
CLIP, WHL SPD SEN WIRE (PART OF 17) (6.8MM HOLE) (9.242) |
DR |
2010-2013 |
03 |
| 017 |
25996838 |
SENSOR, RR WHL SPD (INCLS 16) (ACDelco #25996838) |
DM |
2010-2013 |
02 |
| 017 |
25996838 |
SENSOR, RR WHL SPD (INCLS 16) (ACDelco #25996838) |
DR (EXPORT) |
2010-2013 |
02 |
| 018 |
11516521 |
BOLT, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (RR WHL SPD SEN) |
|
2010-2013 |
02 |
