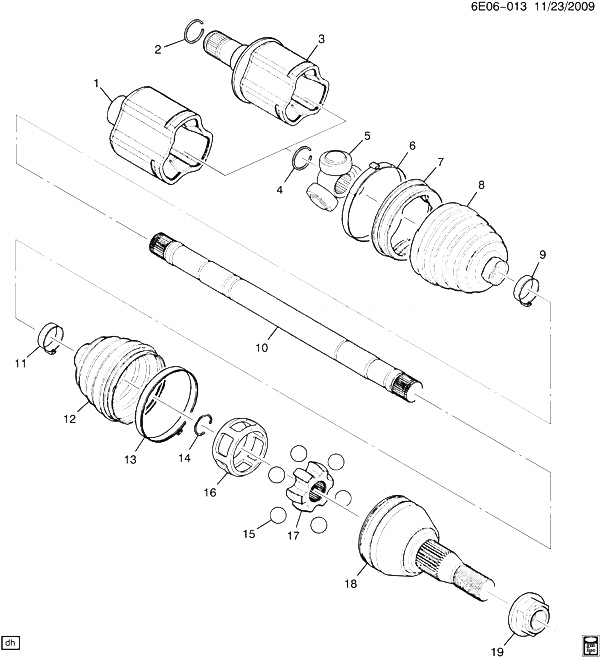

(6E06-013) 2011-2013 DM35-47-69 ПРИВОДНОЙ ВАЛ/FRONT WHEEL (ALL-WHEEL DRIVE MX7) CADILLAC - CTS WAGON 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88957232 JOINT KIT, FRT WHL DRV SHF TRI-POT (INCLS 2, 4-9) (PART OF 10) DM (MX7) 2010-2013 01
002 RING, FRT WHL DRV SHF RET (PART OF 1, 3, 10) 2011-2013
003 88957231 JOINT KIT, FRT WHL DRV SHF TRI-POT (INCLS 2, 4-9) (PART OF 10) DM (MX7) 2010-2013 01
004 RING, FRT WHL DRV SHF TRI-POT JT SPIDER RET (PART OF 1, 3, 10) 2011-2013
005 SPIDER, FRT WHL DRV SHF TRI-POT JT (PART OF 1, 3, 10) 2011-2013
006 88957213 CLAMP, FRT WHL DRV SHF TRI-POT JT BOOT OTR (PART OF 1, 3, 10) (*KIT1) DM (MX7) 2010-2013 02
007 BUSHING, FRT WHL DRV SHF TRI-POT JT BOOT (PART 1, 3, 10) 2011-2013
008 BOOT, FRT WHL DRV SHF TRI-POT JT (PART OF 1, 3, 10) (*KIT1) 2011-2013
009 88957214 CLAMP, FRT WHL DRV SHF TRI-POT JT BOOT INR (PART OF 1, 3, 10) (*KIT1) DM (MX7) 2010-2013 02
010 88957150 SHAFT KIT, FRT WHL DRV (INCLS 1-9, 11-18) (ACDelco #88957150) DM (MX7) 2010-2013 01
010 88957151 SHAFT KIT, FRT WHL DRV (INCLS 1-9, 11-18) (ACDelco #88957151) DM (MX7) 2010-2013 01
011 88957214 CLAMP, FRT WHL DRV SHF CV JT BOOT INR (PART OF 10) (*KIT2, KIT3) DM (MX7) 2010-2013 02
012 BOOT, FRT WHL DRV SHF CV JT (PART OF 10) (*KIT2, KIT3) 2011-2013
013 88957215 CLAMP, FRT WHL DRV SHF CV JT BOOT OTR (PART OF 10) (*KIT2, KIT3) DM (MX7) 2010-2013 02
014 RING, FRT WHL DRV SHF CV JT INR RACE RET (PART OF 10) (*KIT2, KIT3) 2011-2013
015 BALL, FRT WHL DRV SHF CV JT (PART OF 10) (*KIT3) 2011-2013
016 CAGE, FRT WHL DRV SHF CV JT BALL (PART OF 10) (*KIT3) 2011-2013
017 RACE, FRT WHL DRV SHF CV JT INR (PART OF 10) (*KIT3) 2011-2013
018 JOINT, FRT WHL DRV SHF CV (PART OF 10) (*KIT3) 2011-2013
019 10289657 NUT, FRT WHL DRV SHF (M24X2.0X19.6) (W/WASHER) DM (MX7) 2010-2013 02
K01 88957225 BOOT KIT, FRT WHL DRV SHF TRI-POT JT (INCLS 6, 8, 9) DM (MX7) 2010-2013 02
K02 88957226 BOOT KIT, FRT WHL DRV SHF CV JT (INCLS 11-14) DM (MX7) 2010-2013 02
K03 88957233 JOINT KIT, FRT WHL DRV SHF C/V (INCLS 11-18) DM (MX7) 2010-2013 02
