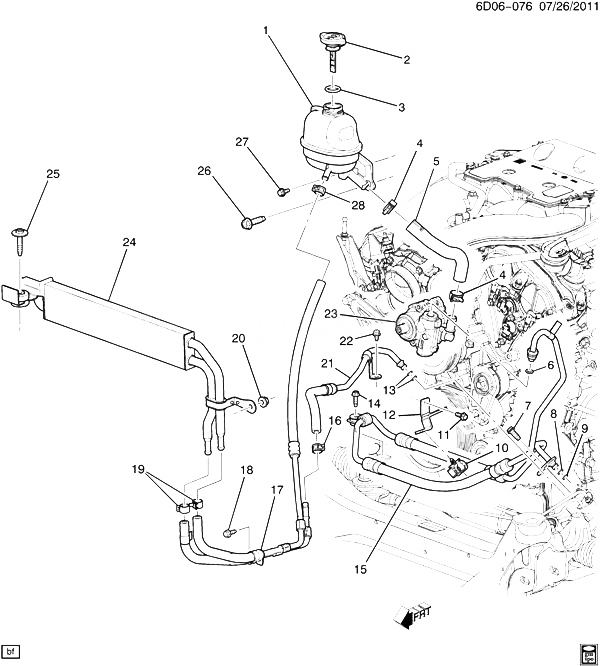

(6D06-076) 2011-2013 DM35-47-69 МАГИСТРАЛИ НАСОСА РУЛЕВОГО УПРАВЛЕНИЯ (REAR WHEEL DRIVE MN6,MX0) CADILLAC - CTS WAGON 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
004 11516222 CLAMP, SPRINGBAND, HOSE DIA=23, WIDTH=15, 6298M, MM (PART OF 5) 2010-2013 02
005 25821309 HOSE, P/S FLUID RSVR OTLT (INCLS 4) DM (LFX, LFW) 2012-2013 01
006 25948282 SEAL, P/S GR INL HOSE (PUMP SIDE) (PART OF 15) DM (LFW, LFX) 2012-2013 01
007 11517937 BOLT, HWH, M8X1.25X22.1, 13.85 THD, 15 OD, 9.8, 7114M, MACH, 6175M ADH, MAT-PT (P/S GR INL PIPE BRKT) 2010-2013 01
008 25948283 SEAL, P/S GR INL HOSE (PART OF 15) (NATURAL) (12.08 OD-2.06W) (PRESSURE BACKING RING) DM (LF1, LLT, MN6, MX0, MX7) 2010-2013 01
009 25948280 SEAL, P/S GR INL HOSE (O RING) (PART OF 15) (GREEN) (8.6/8.86ID-1.7/1.86W) (PRESSURE O-RING) DM (LF1, LLT, MN6, MX0, MX7) 2010-2013 01
010 20795155 CLIP, P/S GR INL HOSE (PART OF 15) DM (LFW, LFX, MN6, MX0) 2012-2012 01
011 11588712 BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (P/S GR INL HOSE BRKT) 2010-2013 01
012 25940656 BRACKET, P/S GR INL PIPE CLIP DM (LFW, LFX, MN6, MX0) 2012-2012 01
013 25948284 SEAL, P/S GR INL HOSE (O RING) (PART OF 21) (BLUE) DM (LFX, LFW, MN6, MX0, MX7) 2012-2013 01
014 11516424 BOLT, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (P/S GR INL HOSE BRKT) 2010-2013 01
015 22818714 HOSE, P/S GR INL (INCLS 6, 8-10) DM (LFW, LFX, MN6, MX0) 2012-2012 01
016 11517127 CLAMP, SPRING, 17MM-NOM, BLK (PART OF 21) 2010-2013 01
017 20900056 HOSE, P/S FLUID CLR OTLT (INCLS 19, 28) DM (LFX, LFW) 2012-2013 01
018 11514623 BOLT, HEX W/CON WA, M6X1X20 (P/S FLUID CLR BRKT) 2010-2013 01
019 11571140 CLAMP, SPRINGBAND, 16 DIA, 15 WIDTH, STL PER GM6298M, GMW14083 (PART OF 17) 2010-2013 02
020 11517397 NUT, HEX W/CON WA, 8X1.25, 28 O.D., 7.5 THK, 9, PEOR (FRT BPR ENGY ABS) 2010-2013 08
021 25821305 HOSE, P/S GR OTLT (INCLS 13, 16) DM (MN6, MX0) 2010-2012 01
022 11518061 BOLT, HFH, M6X1X13, 10 THD, 14.2 OD, GMW25M (8.8) STL, GMW14C-PT (P/S GR OTLT HOSE BRKT) 2010-2013 01
023 25914590 PUMP, P/S (SEE GROUP 06.000 STEERING PUMP MOUNTING FOR DETAILED ILLUSTRATED VIEW) (ACDelco #25914590) DM (LFX, LFW, MN6, MX0) 2012-2012 01
024 25821303 COOLER, P/S FLUID DM 2010-2013 01
025 11516931 BOLT, FLAT WA METRIC HEX HD MACHINE, M8X1.25X50 (P/S FLUID CLR BRKT) 2010-2013 01
026 11561026 BOLT, HFH, M6X1X25, 22 THD, 14.2 OD, 9.8, GMW3200, MACH, HDR-PT (P/S FLUID RSVR) 2010-2013 01
001 22765742 RESERVOIR, P/S FLUID (INCLS 2, 3) DM (LFW, LFX) 2012-2013 01
002 22771254 CAP, P/S FLUID RSVR (PART OF 1) (INCLS 3) DM 2011-2013 01
003 SEAL, P/S FLUID RSVR CAP (O RING) (PART OF 1, 2) 2011-2013
027 11588712 BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (P/S FLUID RSVR) 2010-2013 01
028 25878706 CLAMP, P/S FLUID RSVR INL HOSE (PART OF 17) DM 2010-2013 01
