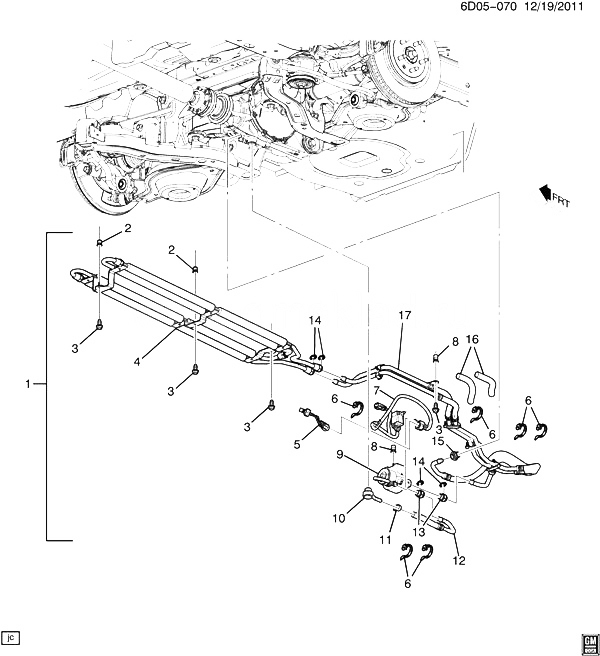

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
22849901 |
COOLER PKG, DIFF OIL (INCLS 2-17) |
DN (KNR) |
2011-2013 |
01 |
| 002 |
|
NUT, DIFF OIL CLR (NUT-RIVET) (*KIT1) |
|
2011-2013 |
|
| 003 |
|
BOLT, DIFF OIL CLR (*KIT1) |
|
2011-2013 |
|
| 004 |
20826063 |
COOLER, DIFF OIL (INCLS 14) (COOLER ONLY) |
DN (KNR) |
2011-2013 |
01 |
| 005 |
20907436 |
SENSOR, DIFF OIL CLR TEMP |
DN (KNR) (EXPORT) |
2011-2013 |
01 |
| 006 |
|
STRAP, DIFF OIL CLR HOSE (*KIT1) |
|
2011-2013 |
|
| 007 |
20826068 |
HARNESS, BODY RR WRG HARN EXTN |
DN (KNR) (EXPORT) |
2011-2013 |
01 |
| 008 |
|
NUT, DIFF OIL CLR PUMP (NUT-RIVET) (*KIT1) |
|
2011-2013 |
|
| 009 |
22761422 |
PUMP, INTER AXLE DIFF LUB (INCLS 13, 14) (FOR VEHICLES W/CLR MTD UNDER DRIVERS SIDE FLR PAN) |
DN (KNR) |
2011-2013 |
01 |
| 010 |
20826072 |
ADAPTER, DIFF OIL CLR (PUMP INLET HOSE) |
DN (KNR) |
2011-2013 |
01 |
| 011 |
|
CLAMP, DIFF OIL CLR HOSE (*KIT1) |
|
2011-2013 |
|
| 012 |
20826064 |
PIPE, DIFF CARR COOL INL (FROM REAR DIFF TO PUMP) |
DN (KNR) |
2011-2013 |
01 |
| 015 |
20826074 |
ADAPTER, DIFF OIL CLR (PUMP OUTLET PIPE) |
DN (KNR) |
2011-2013 |
01 |
| 016 |
|
CONDUIT, DIFF OIL CLR PIPE (*KIT1) |
|
2011-2013 |
|
| 017 |
22791254 |
HOSE, DIFF OIL CLR OTLT |
DN (KNR) |
2011-2013 |
01 |
| K01 |
20826070 |
FASTENER KIT, DIFF OIL CLR (INCLS 2, 3, 6, 8, 11, 16) (FOR USE ON VEH W/ DIFF CLR MTD UND DRVR SD FLR PAN) |
DN (KNR) |
2011-2013 |
01 |
