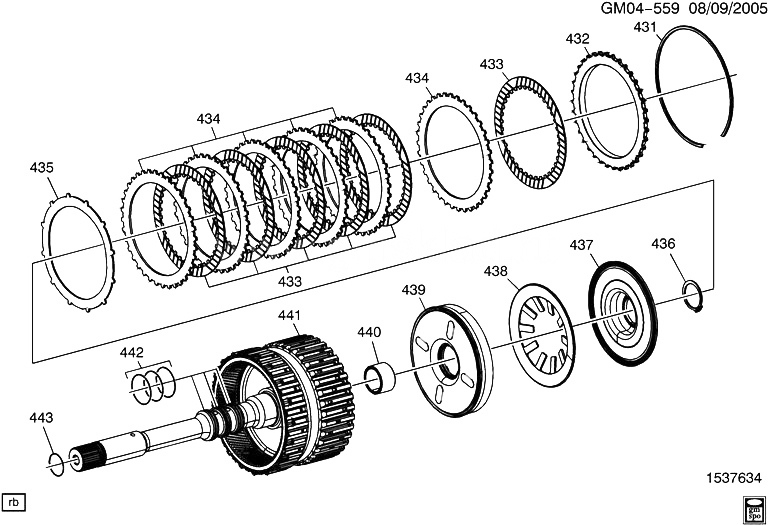

(GM04-559) 2012-2013 D35-47-69 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (MYA) (6L45) 4-5-6 CЦЕПЛЕНИЕ В СБОРЕ И ВАЛ ТУРБИНЫ CADILLAC - CTS WAGON 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
431 24225508 RING, 4-5-6 CLU BKG PLT RET (GREEN) (2.52-2.62) (ACDelco #24225508) DM (MYA) 2010-2013 01
431 24225509 RING, 4-5-6 CLU BKG PLT RET (YELLOW) (3.08-3.18) (ACDelco #24225509) DM (MYA) 2010-2013 01
431 24231591 RING, 4-5-6 CLU BKG PLT RET (GREY) (2.80-2.90) (ACDelco #24231591) DM (MYA) 2010-2013 01
431 24231592 RING, 4-5-6 CLU BKG PLT RET (ORANGE) (3.36-3.46) (ACDelco #24231592) DM (MYA) 2010-2013 01
431 24231593 RING, 4-5-6 CLU BKG PLT RET (BLUE) (3.64-3.74) (ACDelco #24231593) DM (MYA) 2010-2013 01
431 24232879 RING, 4-5-6 CLU BKG PLT RET (WHITE) (3.74-3.84) (ACDelco #24232879) DM (MYA) 2010-2013 01
431 24232880 RING, 4-5-6 CLU BKG PLT RET (YELLOW/PURPLE) (4.20-4.30) (ACDelco #24232880) DM (MYA) 2010-2013 01
431 24225508 RING, 4-5-6 CLU BKG PLT RET (GREEN) (2.52-2.62) (ACDelco #24225508) DR (MYA) (EXPORT) 2010-2013 01
431 24225509 RING, 4-5-6 CLU BKG PLT RET (YELLOW) (3.08-3.18) (ACDelco #24225509) DR (MYA) (EXPORT) 2010-2013 01
431 24231591 RING, 4-5-6 CLU BKG PLT RET (GREY) (2.80-2.90) (ACDelco #24231591) DR (MYA) (EXPORT) 2010-2013 01
431 24231592 RING, 4-5-6 CLU BKG PLT RET (ORANGE) (3.36-3.46) (ACDelco #24231592) DR (MYA) (EXPORT) 2010-2013 01
431 24231593 RING, 4-5-6 CLU BKG PLT RET (BLUE) (3.64-3.74) (ACDelco #24231593) DR (MYA) (EXPORT) 2010-2013 01
431 24232879 RING, 4-5-6 CLU BKG PLT RET (WHITE) (3.74-3.84) (ACDelco #24232879) DR (MYA) (EXPORT) 2010-2013 01
431 24232880 RING, 4-5-6 CLU BKG PLT RET (YELLOW/PURPLE) (4.20-4.30) (ACDelco #24232880) DR (MYA) (EXPORT) 2010-2013 01
432 24225652 PLATE, 4-5-6 CLU BKG (ACDelco #24225652) DM (MYA, MX0, MX7) 2010-2013 01
432 24225652 PLATE, 4-5-6 CLU BKG (ACDelco #24225652) DR (MYA, MX0, MX7) (EXPORT) 2010-2013 01
433 24225570 PLATE, 4-5-6 CLU (INT SPLINE) (PKG OF 5) (FIBER) (*KIT3) DM (MYA, MX0, MX7) 2010-2013 01
433 24225570 PLATE, 4-5-6 CLU (INT SPLINE) (PKG OF 5) (FIBER) (*KIT3) DR (MYA, MX0, MX7) (EXPORT) 2010-2013 01
434 24243585 PLATE, 4-5-6 CLU (EXT SPLINE) (FIBER) (ACDelco #24243585) DM (MYA) 2010-2013 01
434 24243585 PLATE, 4-5-6 CLU (EXT SPLINE) (FIBER) (ACDelco #24243585) DR (MYA) (EXPORT) 2010-2013 01
435 24225565 PLATE, 4-5-6 CLU (WAVED) (ACDelco #24225565) DM (MYA) 2010-2013 01
435 24225565 PLATE, 4-5-6 CLU (WAVED) (ACDelco #24225565) DR (MYA) (EXPORT) 2010-2013 01
436 RING, 4-5-6 CLU PSTN DAM RET (*KIT1, KIT2) 2012-2013
437 24225526 DAM, 4-5-6 CLU PSTN (ACDelco #24225526) DM (MYA, MX0, MX7) 2010-2013 01
437 24225526 DAM, 4-5-6 CLU PSTN (ACDelco #24225526) DR (MYA, MX0) 2010-2013 01
438 24225560 SPRING, 4-5-6 CLU (ACDelco #24225560) DM (MYA) 2010-2013 01
438 24225560 SPRING, 4-5-6 CLU (ACDelco #24225560) DR (MYA) (EXPORT) 2010-2013 01
439 24225523 PISTON, 4-5-6 CLU (ACDelco #24225523) DM (MYA, MX0, MX7) 2010-2013 01
439 24225523 PISTON, 4-5-6 CLU (ACDelco #24225523) DR (MYA, MX0, MX7) (EXPORT) 2010-2013 01
440 BUSHING, OUTPUT CARR SHF HSG (PART OF 441) 2012-2013
441 24237963 HOUSING, 4-5-6 CLU (W/ INPUT SHF) (INCLS 440) (ACDelco #24237963) DM (LF1, LFW, MYA, MX0, MX7) 2010-2013 01
441 24237963 HOUSING, 4-5-6 CLU (W/ INPUT SHF) (INCLS 440) (ACDelco #24237963) DR (LF1, MYA, MX0, MX7) (EXPORT) 2010-2013 01
442 24225511 RING, TURB SHF FLUID SEAL (ACDelco #24225511) DM (MYA) 2010-2013 03
442 24225511 RING, TURB SHF FLUID SEAL (ACDelco #24225511) DR (MYA) (EXPORT) 2010-2013 03
443 08662686 SEAL, TURB SHF (O RING) (*KIT2, KIT3) (ACDelco #8662686) DM (MYA) 2010-2013 01
443 08662686 SEAL, TURB SHF (O RING) (*KIT2, KIT3) (ACDelco #8662686) DR (MYA) (EXPORT) 2010-2013 01
K01 24238920 RING KIT, RET (INCLS 436) (ACDelco #24238920) DM (MYA) 2010-2013 01
K01 24238920 RING KIT, RET (INCLS 436) (ACDelco #24238920) DR (MYA) (EXPORT) 2010-2013 01
K02 24238913 SEAL KIT, A/TRNS SERV (FAILURE TO FOLLOW GM SERVICE BULLETIN 09-07-30-005 MAY RESULT IN THEREJECTION OF A WARRANTY CLAIM) (INCLS 436, 443) (INCLS CONTROL VLV SOL ASM) (ACDelco #24238913) DR (MYA) 2010-2013 01
K02 24238913 SEAL KIT, A/TRNS SERV (FAILURE TO FOLLOW GM SERVICE BULLETIN 09-07-30-005 MAY RESULT IN THEREJECTION OF A WARRANTY CLAIM) (INCLS 436, 443) (INCLS CONTROL VLV SOL ASM) (ACDelco #24238913) DM (MYA) 2010-2013 01
K03 24252458 PLATE KIT, CLU (INCLS 433, 443) (ACDelco #24252458) DM (MYA) 2012-2013 01
K03 24252458 PLATE KIT, CLU (INCLS 433, 443) (ACDelco #24252458) DR (MYA) (EXPORT) 2012-2013 01
