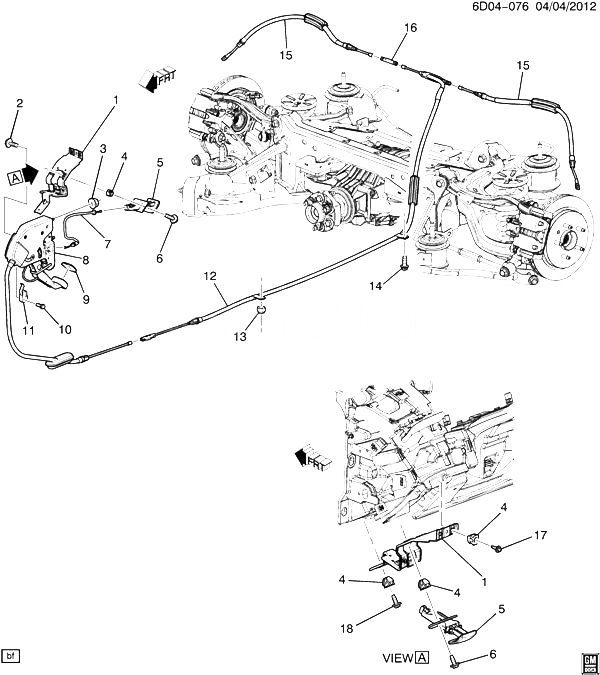

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20790299 |
REINFORCEMENT, PARK BRK LVR BRKT (INCLS 4) |
DM, DN |
2010-2013 |
01 |
| 002 |
11519375 |
BOLT, HX HD, W/FL WA, M6X1X19, 10 THD, 17 O.D., 8.8, GMW3359 (PARK BRK LVR) |
|
2010-2013 |
01 |
| 003 |
11514596 |
NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (PARK BRK LVR) (8.915) (ACDelco #11514596) |
|
2010-2013 |
02 |
| 004 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 1) (10.701) |
|
2010-2013 |
07 |
| 005 |
25880964 |
HANDLE, PARK BRK REL |
DM35-69 (EXC J77) |
2010-2013 |
01 |
| 006 |
11609406 |
SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (PARK BRK REL HDL) |
|
2010-2013 |
02 |
| 007 |
25885040 |
CABLE, PARK BRK REL (PART OF 8) (ACDelco #25885040) |
D |
2010-2013 |
01 |
| 008 |
25885037 |
LEVER, PARK BRK (INCLS 7, 9-11) |
DM |
2010-2013 |
01 |
| 009 |
|
PAD, PARK BRK LVR PED (PART OF 8) |
|
2011-2013 |
|
| 010 |
10369646 |
BOLT, PARK BRK IND SW (PART OF 8) |
DM35 |
2010-2013 |
01 |
| 011 |
22654577 |
SWITCH, PARK BRK IND (PART OF 8) (ACDelco #22654577) |
DM35-69 |
2010-2013 |
01 |
| 012 |
20823770 |
CABLE, PARK BRK INTER (INCLS 16) |
DM35-69 |
2010-2013 |
01 |
| 013 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (PARK BRK INTER CBL GDE) |
|
2010-2013 |
01 |
| 014 |
11518623 |
BOLT, PARK BRK INTER CBL GDE (HFH, M10X1.5X25, 15.3 THD, 22.3 OD, 10.9, MATPOINT) (14.870) |
DM35-69 |
2010-2013 |
01 |
| 015 |
20888143 |
CABLE, PARK BRK RR (ACDelco #20888143) |
DM, DN |
2010-2013 |
02 |
| 016 |
20823796 |
CONNECTOR, PARK BRK CBL (PART OF 12) |
DM, DN |
2010-2013 |
02 |
| 017 |
11609406 |
SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (I/P LWR BRKT) |
|
2010-2013 |
03 |
| 018 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (PARK BRK REL HDL BRKT) |
|
2010-2013 |
01 |
