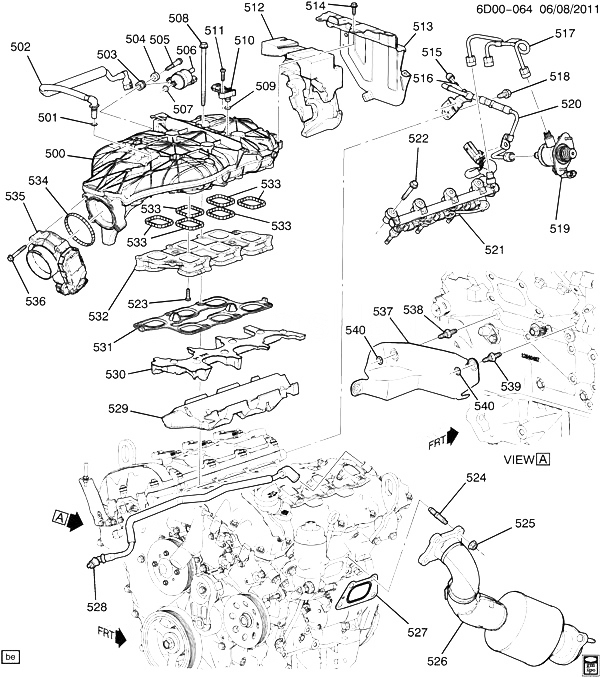

(6D00-064) 2012-2013 DM,DR35-69 ДВИГАТЕЛЬ В СБОРЕ-3.0L V6 PART 5 ВПУСКНОЙ КОЛЛЕКТОР И СОПУТСТВУЮЩИЕ ДЕТАЛИ (LFW/3.0-5) CADILLAC - CTS WAGON 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
500 12642700 MANIFOLD, UPR INT (REUSE BOLT LIMITERS FROM ORIG MANIFOLD.) (ACDelco #12642700) DM (LFW, LFX) 2012-2013 01
500 12642700 MANIFOLD, UPR INT (REUSE BOLT LIMITERS FROM ORIG MANIFOLD.) (ACDelco #12642700) DR (LFX, LFW) (EXPORT) 2012-2013 01
501 12616909 SEAL, PCV HOSE FTG (O RING) (PART OF 502) (BLACK) DM (LFX, LFW) 2012-2013 01
501 12616909 SEAL, PCV HOSE FTG (O RING) (PART OF 502) (BLACK) DR (LFX, LFW) (EXPORT) 2012-2013 01
502 12638437 TUBE, PCV (INCLS 501) (FOUL AIR) DM (LFW) 2012-2013 01
502 12638437 TUBE, PCV (INCLS 501) (FOUL AIR) DR (LFW) 2012-2013 01
503 INSULATOR, EVAP EMIS CNSTR PURGE SOL VLV (PART OF 506) 2012-2013
504 INSULATOR, EVAP EMIS CNSTR PURGE SOL VLV (PART OF 506) 2012-2013
505 BOLT, EVAP EMIS CNSTR (PART OF 506) 2012-2013
506 12610560 VALVE, EVAP EMIS CNSTR PURGE SOL (INCLS 503-505, 507) (ACDelco #214-2137) DM 2012-2013 01
506 12610560 VALVE, EVAP EMIS CNSTR PURGE SOL (INCLS 503-505, 507) (ACDelco #214-2137) DR (EXPORT) 2012-2013 01
507 SEAL, EVAP EMIS CNSTR PURGE SOL VLV (O RING) (PART OF 506) 2012-2013
508 11588930 BOLT, HFH, M8X1.25X145, 22 THD, 18 OD, 8.8 STL, GMW3359, M-PT (INT UPR MANIF) 2012-2013 05
509 SEAL, MAP SEN (PART OF 510) 2012-2013
510 55573248 SENSOR, MAP (INCLS 509) (ACDelco #213-4681) DM (LFW, LFX) 2012-2013 01
510 55573248 SENSOR, MAP (INCLS 509) (ACDelco #213-4681) DR (LFW, LFX) (EXPORT) 2012-2013 01
511 11562253 BOLT, MAP SEN (M6X2.22X24) DM, DN 2012-2013 01
511 11562253 BOLT, MAP SEN (M6X2.22X24) DR (EXPORT) 2012-2013 01
512 12643423 SHIELD, ENG RR NOISE DM (LFW, LFX) 2012-2013 01
512 12643423 SHIELD, ENG RR NOISE DR (LFW, LFX) (EXPORT) 2012-2013 01
513 12642664 SHIELD, FUEL PIPE DM 2012-2013 01
513 12642664 SHIELD, FUEL PIPE DR (EXPORT) 2012-2013 01
514 11610106 BOLT, HFH, M8X1.25X126.8, 21.6 THD, 18 OD, 8.8, GMW3359, M-PT (INT UPR MANIF) 2012-2013 01
515 25532662 CAP, FUEL PRESS SERV VLV (PART OF 520) (CAP FOR PRESSURE TEST SCHRADER VALVE) (3.163) (ACDelco #214-1044) D 2012-2013 01
516 12574525 VALVE, FUEL PRESS SERV (PART OF 520) (SCHRADER VALVE LESS CAP) (ACDelco #12574525) D 2012-2013 01
517 12639208 PIPE, FUEL FEED INTER DM (LFW) 2012-2013 01
517 12639208 PIPE, FUEL FEED INTER DR (LFW) (EXPORT) 2012-2013 01
518 11589040 BOLT, F/INJN FUEL FEED RTN PIPE RET (M10X1.5X22) (4.115) DM 2012-2013 02
518 11589040 BOLT, F/INJN FUEL FEED RTN PIPE RET (M10X1.5X22) (4.115) DR (EXPORT) 2012-2013 02
519 12641740 PUMP, FUEL (SEE GROUP 00.000 CYLINDER HEAD RELATED PARTS FOR DETAILED ILLUSTRATED VIEW) (HIGH PRESSURE) (ACDelco #43519) DM (LFW) 2012-2013 01
519 12641740 PUMP, FUEL (SEE GROUP 00.000 CYLINDER HEAD RELATED PARTS FOR DETAILED ILLUSTRATED VIEW) (HIGH PRESSURE) (ACDelco #43519) DR (LFW) (EXPORT) 2012-2013 01
520 12633597 PIPE, FUEL FEED (INCLS 515, 516) (AT ENGINE) DM (LFW, MYA, MV7, MX0, MX7) 2012-2012 01
520 12633597 PIPE, FUEL FEED (INCLS 515, 516) (AT ENGINE) DR (LFW, MYA, MV7, MX0, MX7) 2012-2012 01
521 12629929 RAIL, F/INJN FUEL (SEE GROUP 03.000 FUEL INJECTION RAIL FOR DETAILED ILLUSTRATED VIEW) DM (LFW, LFX) 2012-2013 01
521 12633593 RAIL, F/INJN FUEL (SEE GROUP 03.000 FUEL INJECTION RAIL FOR DETAILED ILLUSTRATED VIEW) DM (LFW, LFX) 2012-2013 01
521 12629929 RAIL, F/INJN FUEL (SEE GROUP 03.000 FUEL INJECTION RAIL FOR DETAILED ILLUSTRATED VIEW) DR (LFW, LFX) (EXPORT) 2012-2013 01
521 12633593 RAIL, F/INJN FUEL (SEE GROUP 03.000 FUEL INJECTION RAIL FOR DETAILED ILLUSTRATED VIEW) DR (LFW, LFX) (EXPORT) 2012-2013 01
522 11588729 BOLT, HEX HD, W/1.6 FLAT WA, M8X1.25X54.3, 43 THD, 16O.D., 8.8, GMW3359 (F/INJN FUEL RL) 2012-2013 04
523 11562253 BOLT, LWR INT MANIF (M6X2.22X24) (3.682) DM (LFW, LFX) 2012-2013 04
523 11562253 BOLT, LWR INT MANIF (M6X2.22X24) (3.682) DR (LFW, LFX) (EXPORT) 2012-2013 04
524 11609596 STUD, CTLTC CONV (M8X1.25X50, 18 OD) DM 2012-2013 02
524 11609596 STUD, CTLTC CONV (M8X1.25X50, 18 OD) DR 2012-2013 02
525 11517996 NUT, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (CTLTC CONV) (ACDelco #11517996) 2012-2013 08
526 20943055 CONVERTER, 3WAY CTLTC (W/EXH RR MANIF PIPE) (SEE GROUP 03.000 EXHAUST SYSTEM FOR DETAILED ILLUSTRATED VIEW) DM (LFW, LFX) (EXC CZ2) 2012-2012 01
526 20943056 CONVERTER, 3WAY CTLTC (W/EXH RR MANIF PIPE) (SEE GROUP 03.000 EXHAUST SYSTEM FOR DETAILED ILLUSTRATED VIEW) DM (LFW, LFX) (EXC CZ2) 2012-2012 01
526 20943055 CONVERTER, 3WAY CTLTC (W/EXH RR MANIF PIPE) (SEE GROUP 03.000 EXHAUST SYSTEM FOR DETAILED ILLUSTRATED VIEW) DR (LFW, LFX) (EXC CZ2) (EXPORT) 2012-2012 01
527 20893953 GASKET, EXH PIPE (W/4 MTG HOLES) DM 2012-2013 02
527 20893953 GASKET, EXH PIPE (W/4 MTG HOLES) DR (EXPORT) 2012-2013 02
528 12620142 TUBE, PCV (FRESH AIR) DM (LFW) 2012-2013 01
528 12620142 TUBE, PCV (FRESH AIR) DR (LFW) 2012-2013 01
529 12611866 SHIELD, F/INJN FUEL RL NOISE (UPR) DM (LFW) 2012-2013 01
529 12611866 SHIELD, F/INJN FUEL RL NOISE (UPR) DR (LFW) 2012-2013 01
530 12647743 SHIELD, F/INJN FUEL RL NOISE (BELOW FUEL RAIL) (LWR) DM (LFW) 2012-2013 01
530 12647743 SHIELD, F/INJN FUEL RL NOISE (BELOW FUEL RAIL) (LWR) DR (LFW) 2012-2013 01
531 12609163 GASKET, LWR INT MANIF (*KIT1, KIT2) DM (LFW, LFX) 2012-2013 01
531 12609163 GASKET, LWR INT MANIF (*KIT1, KIT2) DR (LFW, LFX) (EXPORT) 2012-2013 01
532 12611155 MANIFOLD, LWR INT (MACH) (ACDelco #12611155) DM (LFW, LFX) 2012-2013 01
532 12611155 MANIFOLD, LWR INT (MACH) (ACDelco #12611155) DR (LFW, LFX) (EXPORT) 2012-2013 01
533 GASKET, UPR INT MANIF (*KIT1, KIT3) 2012-2013
534 12634371 GASKET, THROT BODY (*KIT1, KIT2) (ACDelco #12634371) DR (LFW, LFX) (EXPORT) 2012-2013 01
534 12634371 GASKET, THROT BODY (*KIT1, KIT2) (ACDelco #12634371) DM (LFW, LFX) 2012-2013 01
535 12632172 BODY, THROT (W/SEN) (ACDelco #12632172) DM (LFW, LFX) 2012-2013 01
535 12632172 BODY, THROT (W/SEN) (ACDelco #12632172) DR (LFW, LFX) (EXPORT) 2012-2013 01
536 11519972 BOLT, THROT BODY (M6X1X50) DM (LFW, LFX) 2012-2013 04
536 11519972 BOLT, THROT BODY (M6X1X50) DR (LFW, LFX) (EXPORT) 2012-2013 04
537 12581807 SHIELD, KNOCK SEN (3.270) DM (LFW, LFX) 2012-2013 01
537 12581807 SHIELD, KNOCK SEN (3.270) DR (LFW, LFX) (EXPORT) 2012-2013 01
538 24574534 STUD, KNOCK SEN SHLD (M6X1X20) (1.166) DM (LFW, LFX) 2012-2013 01
538 24574534 STUD, KNOCK SEN SHLD (M6X1X20) (1.166) DR (LFW, LFX) (EXPORT) 2012-2013 01
539 24574534 STUD, RAD OTLT HOSE CLIP BRKT (M6X1X20) DM (LFW) 2012-2012 01
539 24574534 STUD, RAD OTLT HOSE CLIP BRKT (M6X1X20) DR (LFW) (EXPORT) 2012-2012 01
540 11609738 NUT, PUSH ON, M6X1, 12.7 OD, 2.18 THK, SAE 1050 STL, GMW3200. (KNOCK SEN SHLD) (8.921) 2012-2013 03
K01 12646460 GASKET KIT, CYL HD (INCLS 531, 533, 534) DM (LFW) 2012-2013 01
K01 12646460 GASKET KIT, CYL HD (INCLS 531, 533, 534) DR (LFW) (EXPORT) 2012-2013 01
K02 12646459 GASKET KIT, INT MANIF (INCLS 531, 534) (ACDelco #12646459) DM (LFW, LFX) 2012-2013 01
K02 12646459 GASKET KIT, INT MANIF (INCLS 531, 534) (ACDelco #12646459) DR (LFW, LFX) (EXPORT) 2012-2013 01
K03 12647263 GASKET KIT, UPR INT MANIF (INCLS 533) (ACDelco #12647263) DM (LFW, LFX) 2012-2013 01
K03 12647263 GASKET KIT, UPR INT MANIF (INCLS 533) (ACDelco #12647263) DR (LFW, LFX) (EXPORT) 2012-2013 01
