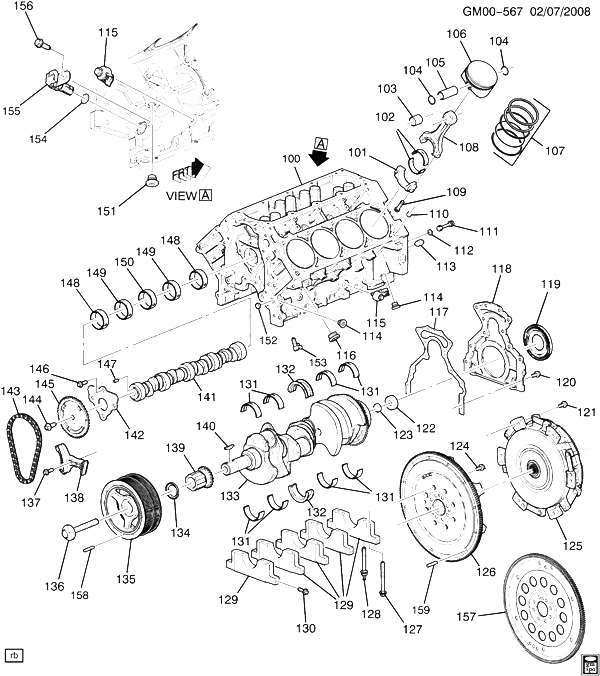

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 100 |
|
BLOCK, ENG |
|
2011-2013 |
|
| 101 |
|
CAP, CONN ROD (PART OF 108) |
|
2011-2013 |
|
| 102 |
19257826 |
BEARING KIT, CONN ROD |
DN (LSA) |
2012-2013 |
08 |
| 103 |
|
BUSHING, CONN ROD (PART OF 108) |
|
2011-2013 |
|
| 104 |
|
RETAINER, PSTN PIN (PART OF 106) |
|
2011-2013 |
|
| 105 |
|
PIN, PSTN (PART OF 106) |
|
2011-2013 |
|
| 106 |
19180413 |
PISTON, (W/PIN) (INCLS 104, 105) (STD) |
DN (LSA) |
2011-2013 |
01 |
| 106 |
19207290 |
PISTON, (W/PIN) (INCLS 104, 105) (0.5MM O.S.) |
DN (LSA) |
2011-2013 |
08 |
| 107 |
19207291 |
RING KIT, PSTN (.5MM O/S. FOR STD, SEE 19180423) |
DN (LSA) |
2011-2013 |
08 |
| 107 |
19180423 |
RING KIT, PSTN (STD SIZE. FOR .5MM O/S SEE 19207291) |
DN (LSA) |
2011-2013 |
01 |
| 108 |
12604857 |
ROD, CONN (INCLS 101, 103, 109) |
DN (LSA) |
2011-2013 |
01 |
| 109 |
11570662 |
BOLT, CONN ROD (PART OF 108) (M9X44, 13 THD, 15.5 OD, 12.9, PL) |
DN (LSA) |
2011-2013 |
02 |
| 110 |
12570326 |
PIN, CYL HD LOC |
DN (LSA) |
2011-2013 |
04 |
| 111 |
12573460 |
PLUG, ENG BLK OIL GAL (INCLS 112) (15.68MM DIA) (INCLS O-RING SEAL (N.S.S.) |
D (LSA) |
2011-2013 |
01 |
| 112 |
|
SEAL, ENG BLK OIL GAL PLUG (O RING) (PART OF 111) |
|
2011-2013 |
|
| 113 |
01453658 |
PIN, TRANS LOC (5/8 X 1 3/16) (8.939) |
DN (MYD) |
2011-2013 |
02 |
| 113 |
01453658 |
PIN, TRANS LOC (5/8 X 1 3/16) (8.939) |
DN (MG9) |
2011-2013 |
02 |
| 114 |
11588949 |
PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK OIL GAL) |
|
2011-2013 |
02 |
| 115 |
12623730 |
SENSOR, KNOCK (MATING CONN W/LEADS USE 13580877) (ACDelco #213-1576) |
DN (LSA) |
2011-2013 |
02 |
| 116 |
11609289 |
PLUG, HEX, M28X1.25X13, 10.9, GMW3044, INT DRIVER W/THD SEAL 9985 (ENG BLK COOL DRN HOLE) (8.971) |
|
2011-2013 |
01 |
| 117 |
12639249 |
GASKET, CR/SHF RR OIL SEAL HSG (PART OF 118) |
DN (LSA) |
2011-2013 |
01 |
| 118 |
12639250 |
HOUSING, CR/SHF RR OIL SEAL (INCLS 117, 119, 120) |
DN (LSA) |
2011-2013 |
01 |
| 119 |
89060436 |
SEAL KIT, CR/SHF RR OIL (PART OF 118) (REVERSE LIP SEAL, INCL INSTRUCTION SHEET) |
DN (LSA) |
2011-2013 |
01 |
| 120 |
11588723 |
BOLT, HFH, M8X1.25X25, 18 THD, 18 OD, 8.8 STL, GMW3359, M-PT (PART OF 118) |
|
2011-2013 |
12 |
| 121 |
12561465 |
BOLT, CLU PRESS PLT (HFH M10X1.5X25 10.9 7114M HDR PT, 17.3 FLANGE) |
DN (LSA, MG9) |
2011-2013 |
06 |
| 122 |
12557583 |
BEARING, CLU PILOT (22.7MM ID, 43.3MM OD, 13 THK) (PART OF 133) (ACDelco #CT1082) |
DN (LSA, MG9) |
2011-2013 |
01 |
| 123 |
24502262 |
PLUG, CUP, 1.014 OD, .32 THK, FROM .05 THK 304 STAINLESS. (PART OF 133) (0.293) |
|
2011-2013 |
01 |
| 124 |
12563485 |
BOLT, FLYWHL (PART OF 126) (M11X1.5X29) |
DN (LSA, MG9) |
2011-2013 |
08 |
| 125 |
24240679 |
PLATE, CLU PRESS DRVN (W/CVR) |
DN (MG9) |
2011-2013 |
01 |
| 126 |
24240678 |
FLYWHEEL, ENG (INCLS 124) |
DN (LSA, MG9) |
2011-2013 |
01 |
| 127 |
12560272 |
BOLT, CR/SHF BRG CAP (M10X2X102.5, 24.5) |
D (LSA) |
2011-2013 |
08 |
| 128 |
12560273 |
STUD, CR/SHF BRG CAP (HFH, M10X2X23, M8X1.25X11, 113.5 TOTAL LONG) |
DN (LSA) |
2011-2013 |
10 |
| 129 |
|
CAP, CR/SHF BRG |
|
2011-2013 |
|
| 130 |
12556127 |
BOLT, CR/SHF BRG CAP (M8X1.25X24) |
DN (LSA) |
2011-2013 |
10 |
| 130 |
12560272 |
BOLT, CR/SHF BRG CAP (M10X2X102.5, 24.5) |
D (LSA) |
2011-2013 |
08 |
| 131 |
19257825 |
BEARING KIT, CR/SHF (#1, 2, 4, 5) (STD) |
DN (LSA) |
2012-2013 |
04 |
| 132 |
89017572 |
BEARING KIT, CR/SHF THR (STD) (#3) |
DN (LSA) |
2011-2013 |
01 |
| 133 |
12641691 |
CRANKSHAFT, (INCLS 122, 123, 140) |
DN (LSA) |
2012-2013 |
01 |
| 134 |
12603843 |
WASHER, CR/SHF BALR (PART OF 135) |
DN (LSA) |
2011-2013 |
01 |
| 135 |
12603916 |
BALANCER, CR/SHF (INCLS 134) (ACDelco #12603916) |
DN (LSA) |
2011-2013 |
01 |
| 136 |
11570046 |
BOLT, CR/SHF BALR (M16X2X110.5) |
DN (LSA) |
2011-2013 |
01 |
| 137 |
11515758 |
BOLT, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (PART OF 138) |
|
2011-2013 |
02 |
| 138 |
12626407 |
TENSIONER KIT, TMG CHAIN (INCLS 137) (ACDelco #12626407) |
DN (LSA) |
2011-2013 |
01 |
| 139 |
12556582 |
SPROCKET, CR/SHF (*KIT1) |
DN (LSA) |
2011-2013 |
01 |
| 140 |
12561513 |
KEY, CR/SHF BALR (PART OF 133) (4.8MMX37.5MM) |
DN (LSA) |
2011-2013 |
01 |
| 141 |
12623064 |
CAMSHAFT, ENG (INCLS 147) |
DN (LSA) |
2011-2013 |
01 |
| 142 |
12589016 |
RETAINER, CM/SHF (INCLS SEAL) (USE WITH BOLT 11561455) |
DN (LSA) |
2011-2013 |
01 |
| 143 |
12586482 |
CHAIN, CM/SHF TMG (*KIT1) |
DN (LSA) |
2011-2013 |
01 |
| 144 |
11561283 |
BOLT, HVY HX FLG HD, M16X1.5X63, GMW25 (8.8) STL, GMW3359 (CM/SHF SPKT) |
|
2011-2013 |
01 |
| 145 |
12591689 |
SPROCKET, CM/SHF (WITH PROVISION FOR ONE (1) 16MM ATTACHMENT BOLT) (*KIT1) |
DN (LSA) |
2011-2013 |
01 |
| 146 |
11561455 |
SCREW, FLAT, CS, M8X1.25X15 (CM/SHF THR PLT) |
|
2011-2013 |
04 |
| 147 |
24575061 |
PIN, CM/SHF SPKT LOC (PART OF 141) (17MM LONG) |
DN (LSA) |
2011-2013 |
01 |
| 148 |
19260874 |
BEARING, CM/SHF (POSITION 1 5) |
DN (LSA) |
2011-2013 |
02 |
| 149 |
19260875 |
BEARING, CM/SHF (POSITION 2 4) |
DN (LSA) |
2011-2013 |
02 |
| 150 |
19260876 |
BEARING, CM/SHF |
DN (LSA) |
2011-2013 |
01 |
| 151 |
11588949 |
PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK COOL DRN HOLE) |
|
2011-2013 |
01 |
| 152 |
09427693 |
PLUG, CUP 5/8, CORROSION RESISTANT STL (ENG BLK OIL GAL) (1.531) |
|
2011-2013 |
01 |
| 153 |
12601222 |
NOZZLE, PSTN OIL |
DN (LSA) |
2011-2013 |
08 |
| 154 |
|
SEAL, CR/SHF POSN SEN (O RING) (PART OF 155) |
|
2011-2013 |
|
| 155 |
12585546 |
SENSOR, CR/SHF POSN (INCLS 154) (ACDelco #213-3520) |
DN (LSA) |
2011-2013 |
01 |
| 156 |
11570082 |
BOLT, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (CR/SHF POSN SEN) (ACDelco #11570082) |
|
2011-2013 |
01 |
| 157 |
12636325 |
PLATE, A/TRNS FLEX |
DN (LSA, MYD) |
2011-2013 |
01 |
| 158 |
03890192 |
WEIGHT, CR/SHF BALR (2380/.2500 X .50) (BARREL-SHAPED PIN) (GROOVE-F) |
DN (LSA, MG9) |
2011-2013 |
AR |
| 159 |
03890191 |
WEIGHT, FLYWHL (BARREL-SHAPED PIN, .625 LONG) |
DN (LSA, MG9) |
2011-2013 |
AR |
| K01 |
19259853 |
SPROCKET SET, CM/SHF CR/SHF (W/CHAIN) (INCLS 139, 143, 145) |
DN (LSA) |
2011-2013 |
01 |
