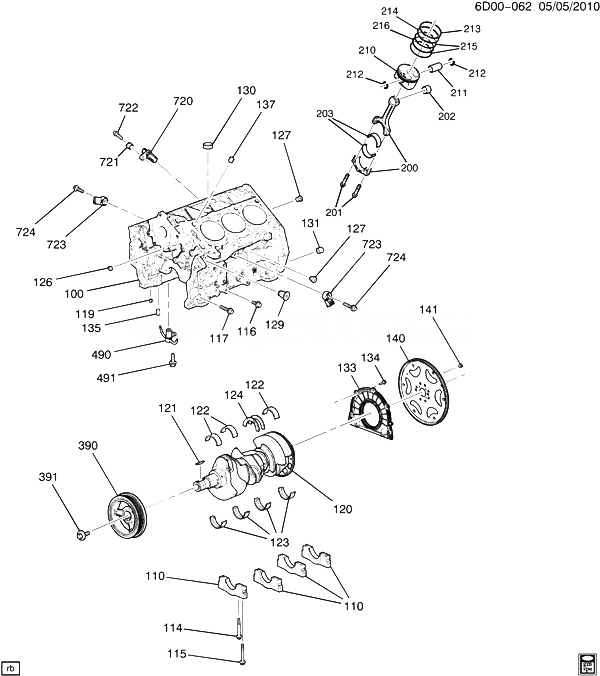

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 100 |
|
BLOCK, ENG (MCHG) |
|
2012-2013 |
|
| 110 |
|
CAP, CR/SHF BRG |
|
2012-2013 |
|
| 114 |
12560272 |
BOLT, CR/SHF BRG CAP (M10X2X102.5, 24.5) |
DM (LFW, LFX) |
2012-2013 |
08 |
| 114 |
12560272 |
BOLT, CR/SHF BRG CAP (M10X2X102.5, 24.5) |
DR (LFW, LFX) |
2012-2013 |
08 |
| 115 |
11518861 |
BOLT, HFH, W/REDCD BODY, M8X1.25X90, 26 THD, 18 O.D., 10.9, GM4277M (CR/SHF BRG CAP) |
|
2010-2013 |
08 |
| 116 |
11609410 |
BOLT, HFH, M8X1.25X25, 10.9, GMW3179 (CR/SHF BRG CAP) (0.056) |
|
2010-2013 |
04 |
| 117 |
11589000 |
BOLT, HFH, M8X1.25X50, 24 THD, 18 OD, 10.9, GMW3359, RED BODY, W/ADH (CR/SHF BRG CAP) |
|
2010-2013 |
04 |
| 119 |
12557520 |
PLUG, ENG BLK OIL GAL (CUP-.390IN OD, .040IN THK, STEEL) |
DM (LFW) |
2012-2013 |
01 |
| 119 |
12557520 |
PLUG, ENG BLK OIL GAL (CUP-.390IN OD, .040IN THK, STEEL) |
DR (LFW) |
2012-2013 |
01 |
| 120 |
12616835 |
CRANKSHAFT, |
DM (LFW) |
2012-2013 |
01 |
| 120 |
12616835 |
CRANKSHAFT, |
DR (LFW) (EXPORT) |
2012-2013 |
01 |
| 121 |
12601937 |
KEY, CR/SHF BALR |
DM (LFW, LFX) |
2012-2013 |
01 |
| 121 |
12601937 |
KEY, CR/SHF BALR |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 122 |
|
BEARING, CR/SHF UPR (*KIT1) |
|
2012-2013 |
|
| 123 |
|
BEARING, CR/SHF LWR (*KIT1, KIT2) |
|
2012-2013 |
|
| 124 |
|
BEARING, CR/SHF THR (*KIT2) |
|
2012-2013 |
|
| 126 |
11562127 |
PLUG, ENG BLK OIL GAL (CUP-14.22 OD, 6.6 THK, 304SS) (0.253) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 126 |
11562127 |
PLUG, ENG BLK OIL GAL (CUP-14.22 OD, 6.6 THK, 304SS) (0.253) |
DR (LFW, LFX) |
2012-2013 |
01 |
| 127 |
11561583 |
PLUG, ENG BLK OIL GAL (M14X1.5X16, 22 OD) (0.253) |
DM (LFW) |
2012-2013 |
04 |
| 127 |
11561583 |
PLUG, ENG BLK OIL GAL (M14X1.5X16, 22 OD) (0.253) |
DR (LFW) |
2012-2013 |
04 |
| 129 |
11561751 |
PLUG, CYL HD WAT JKT HOLE (M20X1.5X30.5) (1.531) |
DM (LFW) |
2012-2012 |
02 |
| 129 |
11561751 |
PLUG, CYL HD WAT JKT HOLE (M20X1.5X30.5) (1.531) |
DR (LFW) |
2012-2012 |
02 |
| 130 |
11569584 |
PLUG, ENG BLK CORE HOLE (CUP DIA 34.4MM) |
DM (LFW, LFX) |
2012-2013 |
02 |
| 130 |
11569584 |
PLUG, ENG BLK CORE HOLE (CUP DIA 34.4MM) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
02 |
| 131 |
12597210 |
PIN, TRANS LOC |
DM (MV7) |
2010-2013 |
02 |
| 131 |
12597210 |
PIN, TRANS LOC |
DM (MYA) |
2010-2013 |
02 |
| 131 |
12597210 |
PIN, TRANS LOC |
DR (MYA) (EXPORT) |
2010-2013 |
02 |
| 131 |
12597210 |
PIN, TRANS LOC |
DR (MV7) (EXPORT) |
2012-2013 |
02 |
| 133 |
12637710 |
SEAL, CR/SHF RR OIL (CLEAN ALL SEALING SURFACES WITH BRAKE CLEANER, AND DRY, TO ENSURE BONDING W/SEALANT) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 133 |
12637710 |
SEAL, CR/SHF RR OIL (CLEAN ALL SEALING SURFACES WITH BRAKE CLEANER, AND DRY, TO ENSURE BONDING W/SEALANT) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 134 |
11588712 |
BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (CR/SHF RR OIL SEAL HSG) |
|
2010-2013 |
05 |
| 135 |
22531637 |
PIN, OIL PAN LOC (8MM DIA, 12MM LONG) (DOWEL) (0.413) |
DM (LFW, LFX) |
2012-2013 |
02 |
| 135 |
22531637 |
PIN, OIL PAN LOC (8MM DIA, 12MM LONG) (DOWEL) (0.413) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
02 |
| 137 |
12570326 |
PIN, CYL HD LOC |
DM (LFW, LFX) |
2012-2013 |
04 |
| 137 |
12570326 |
PIN, CYL HD LOC |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
04 |
| 140 |
12603197 |
PLATE, A/TRNS FLEX |
DM (LFW, LFX) |
2012-2013 |
01 |
| 140 |
12603197 |
PLATE, A/TRNS FLEX |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 141 |
11518862 |
BOLT, HEX, W/ADH, M10X1X15.5, 10.9, HDR-PT (A/TRNS FLEX PLT) |
|
2010-2013 |
08 |
| 200 |
12609597 |
ROD, CONN (INCLS 201, 202) |
DM (LFW) |
2012-2013 |
06 |
| 200 |
12609597 |
ROD, CONN (INCLS 201, 202) |
DR (LFW) (EXPORT) |
2012-2013 |
06 |
| 201 |
11519680 |
BOLT, CONN ROD (PART OF 200) (M9X1X53) |
DM (LFW, LFX) |
2012-2013 |
12 |
| 201 |
11519680 |
BOLT, CONN ROD (PART OF 200) (M9X1X53) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
12 |
| 202 |
|
BUSHING, CONN ROD (PART OF 200) |
|
2012-2013 |
|
| 203 |
12643667 |
BEARING KIT, CONN ROD |
DM (LFW, LFX) (EXC CV2) |
2012-2013 |
06 |
| 203 |
12643667 |
BEARING KIT, CONN ROD |
DR (LFW, LFX) (EXC CV2) (EXPORT) |
2012-2013 |
06 |
| 203 |
19301183 |
BEARING KIT, CONN ROD |
DM, DR (LFW, MYA, MX0, CV2) |
2012-2013 |
06 |
| 203 |
19301183 |
BEARING KIT, CONN ROD |
DM, DR (LFW, MV7, CV2) |
2012-2012 |
06 |
| 210 |
12631195 |
PISTON, (W/PIN) (INCLS 211, 212) (STD) |
DM (LFW) (EXC CV2) |
2012-2013 |
01 |
| 210 |
12631196 |
PISTON, (W/PIN) (INCLS 211, 212) (STD) |
DM (LFW) (EXC CV2) |
2012-2013 |
01 |
| 210 |
12631195 |
PISTON, (W/PIN) (INCLS 211, 212) (STD) |
DR (LFW) (EXC CV2) (EXPORT) |
2012-2013 |
01 |
| 210 |
12631196 |
PISTON, (W/PIN) (INCLS 211, 212) (STD) |
DR (LFW) (EXC CV2) (EXPORT) |
2012-2013 |
01 |
| 211 |
|
PIN, PSTN (PART OF 210) |
|
2012-2013 |
|
| 212 |
12566186 |
RETAINER, PSTN PIN (PART OF 210) (MAHLE PISTONS) |
DM (LFW, LFX) (EXC CV2) |
2012-2013 |
12 |
| 212 |
12566186 |
RETAINER, PSTN PIN (PART OF 210) (MAHLE PISTONS) |
DR (LFW, LFX) (EXC CV2) (EXPORT) |
2012-2013 |
12 |
| 212 |
19300907 |
RETAINER, PSTN PIN (PART OF 210) |
DR (LFW, LFX, CV2) (EXPORT) |
2012-2013 |
01 |
| 212 |
19300907 |
RETAINER, PSTN PIN (PART OF 210) |
DM (LFW, LFX, CV2) |
2012-2013 |
01 |
| 213 |
|
RING, PSTN CMPRN UPR (*KIT3) |
|
2012-2013 |
|
| 214 |
|
RING, PSTN CMPRN LWR (*KIT3) |
|
2012-2013 |
|
| 215 |
|
RAIL, PSTN OIL RING (*KIT3) |
|
2012-2013 |
|
| 216 |
|
SPACER, PSTN OIL RING RL (*KIT3) |
|
2012-2013 |
|
| 390 |
12626355 |
BALANCER, CR/SHF (SINGLE BELT W/KEYWAY) (ACDelco #12626355) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 390 |
12626355 |
BALANCER, CR/SHF (SINGLE BELT W/KEYWAY) (ACDelco #12626355) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 391 |
11569873 |
BOLT, CR/SHF BALR (M14X1.5X48.4) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 391 |
11569873 |
BOLT, CR/SHF BALR (M14X1.5X48.4) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 490 |
12640455 |
NOZZLE, PSTN OIL |
DM (LFW, LFX) |
2012-2013 |
04 |
| 490 |
12640455 |
NOZZLE, PSTN OIL |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
04 |
| 491 |
11588712 |
BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (PSTN OIL NOZ) |
|
2010-2013 |
03 |
| 720 |
12615626 |
SENSOR, CR/SHF POSN (INCLS 721, 722) (ACDelco #213-4573) |
DM |
2010-2013 |
01 |
| 720 |
12615626 |
SENSOR, CR/SHF POSN (INCLS 721, 722) (ACDelco #213-4573) |
DR (EXPORT) |
2010-2013 |
01 |
| 721 |
11518792 |
RETAINER, CR/SHF POSN SEN BOLT (PART OF 720) (FOR M6 BOLT, LENGTH 7MM, WALL THICKNESS 0.60, THERMOPLASTIC) (1.428) |
DM (LFW, LFX) |
2012-2013 |
01 |
| 721 |
11518792 |
RETAINER, CR/SHF POSN SEN BOLT (PART OF 720) (FOR M6 BOLT, LENGTH 7MM, WALL THICKNESS 0.60, THERMOPLASTIC) (1.428) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
01 |
| 722 |
11562426 |
BOLT, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (PART OF 720) |
|
2010-2013 |
01 |
| 723 |
12605738 |
SENSOR, KNOCK (INCLS 724) (MATING CONN W/LEADS USE 88953268) (ACDelco #213-4404) |
DM (LFW, LFX) |
2012-2013 |
02 |
| 723 |
12605738 |
SENSOR, KNOCK (INCLS 724) (MATING CONN W/LEADS USE 88953268) (ACDelco #213-4404) |
DR (LFW, LFX) (EXPORT) |
2012-2013 |
02 |
| 724 |
11519980 |
BOLT, HFH, M8X1.25X40, 22 THD, 18 OD, 8.8, GMW3359, 6MM MATPOINT. (PART OF 723) |
|
2010-2013 |
01 |
| K01 |
12643670 |
BEARING KIT, CR/SHF (#1, 2, 4 STD) (INCLS 122, 123) |
DM, DR (LFW, LFX) |
2012-2013 |
03 |
| K02 |
12643668 |
BEARING KIT, CR/SHF THR (INCLS 123, 124) |
DM (LFW, LFX) |
2012-2013 |
01 |
| K02 |
12643668 |
BEARING KIT, CR/SHF THR (INCLS 123, 124) |
DR (LFW, LFX) |
2012-2013 |
01 |
| K03 |
12631194 |
RING KIT, PSTN (INCLS 213-216) |
DM (LFW) (EXC CV2) |
2012-2013 |
06 |
| K03 |
12631194 |
RING KIT, PSTN (INCLS 213-216) |
DR (LFW) (EXC CV2) (EXPORT) |
2012-2013 |
06 |
| K03 |
19300906 |
RING KIT, PSTN (INCLS 213-216) |
DR (LFW, CV2, MYA, JJB, MX0) (EXPORT) |
2012-2012 |
06 |
| K03 |
19300906 |
RING KIT, PSTN (INCLS 213-216) |
DR (LFW, CV2, MV7) (EXPORT) |
2012-2012 |
06 |
| K03 |
19300906 |
RING KIT, PSTN (INCLS 213-216) |
DR (LFW, CV2, MYA, MX7) (EXPORT) |
2012-2013 |
06 |
| K03 |
19300906 |
RING KIT, PSTN (INCLS 213-216) |
DM (LFW, CV2, MYA, JJB, MX0) |
2012-2012 |
06 |
| K03 |
19300906 |
RING KIT, PSTN (INCLS 213-216) |
DM (LFW, CV2, MV7) |
2012-2012 |
06 |
| K03 |
19300906 |
RING KIT, PSTN (INCLS 213-216) |
DM (LFW, CV2, MYA, MX7) |
2012-2013 |
06 |
