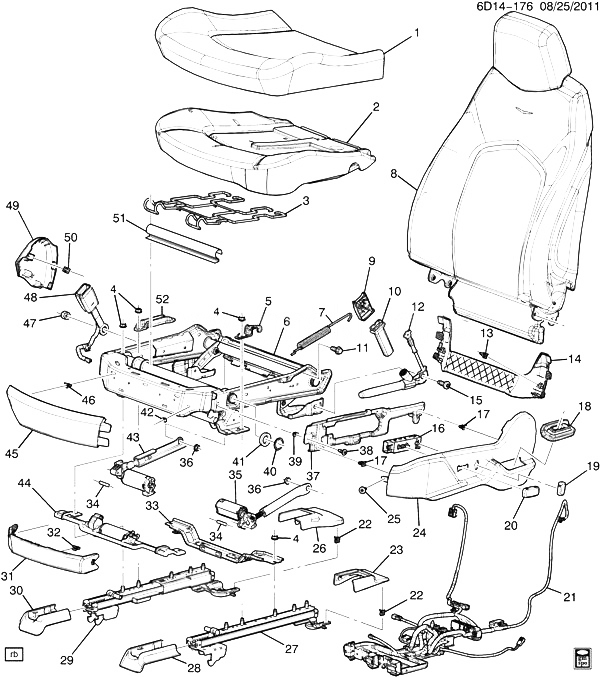

(6D14-176) 2011-2013 DM35-69 СИДЕНЬЕ В СБОРЕ/ВОДИТЕЛЯ-ПОДУШКА (EXC POWER LUMBAR AL2) CADILLAC - CTS WAGON 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20830753 COVER, D/SEAT CUSH (TITANIUM) DM35-69 (AQ9, EAM, 01C) (EXC AL2, A45) 2011-2013 01
001 20830752 COVER, D/SEAT CUSH (EBONY) DM35-69 (AQ9, EAM, 01G) (EXC AL2, A45) 2011-2011 01
002 25994136 PAD, D/SEAT CUSH DM35-69 (AQ9, EAM) (EXC AL2, A45) 2011-2013 01
003 15894132 WIRE, D/SEAT CUSH PAD (PART OF 6) DM35-69 2011-2013 01
004 NUT, D/SEAT CUSH FRM (PART OF 6) 2011-2013
005 BRACKET, D/SEAT CUSH FRM RR OTR (PART OF 6) 2011-2013
006 20993910 FRAME, D/SEAT CUSH (INCLS 3-5, 7, 27, 29, 33-36, 40, 41, 43, 44, 51, 52) (HAS BOLT HOLE NOT A STUD) DM35-69 (AQ9, EAM) (EXC AL2, A45) 2011-2013 01
007 SPRING, D/SEAT ADJR VERT ASST (PART OF 6) 2011-2013
008 PAD, D/SEAT BK (SEE GROUP 14.000 SEAT ASM/DRIVER-BACK FOR DETAILED ILLUSTRATED VIEW) 2011-2013
009 COVER, F/SEAT BELT TENSR (RETR SI) (PART OF 10) 2011-2013
010 22766989 COVER, F/SEAT BELT TENSR (RETR SI) (INCLS 9) (EBONY) (LOWER) DM (01G) 2011-2011 02
010 22766991 COVER, F/SEAT BELT TENSR (RETR SI) (INCLS 9) (TITANIUM) (LOWER) DM, DN (01C) 2011-2011 02
011 25828643 BOLT, F/SEAT DM 2011-2013 08
012 19257693 TENSIONER KIT, D/SEAT BELT (RETR SI) (INCLS 15) D35-69 2011-2013 01
013 15254056 CLIP, 19.2X12.2X13.0, 1050 STL, ZN.PUSH IN (PART OF 14) 2011-2013 04
014 15947259 COVER, D/SEAT CUSH CLOSEOUT (INCLS 13) (EBONY) (11.573) DM (01G) 2011-2013 01
014 25908343 COVER, D/SEAT CUSH CLOSEOUT (INCLS 13) (TITANIUM) (11.573) D35-47-69 (01C) 2011-2013 01
015 11609992 BOLT, D/SEAT BELT TENSR (RETR SI) (PART OF 12) (M10X1.5X30, 30 THD) (8.977) D35 2011-2013 01
016 12451497 SWITCH, D/SEAT ADJR RECL (8-WAY) DM, DN 2011-2013 01
017 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 24) 2011-2013 04
018 25982266 COVER, F/SEAT BELT TENSR (RETR SI) (EBONY) (BOOT SIDE) DM (01G) 2011-2013 01
018 25982268 COVER, F/SEAT BELT TENSR (RETR SI) (TITANIUM) (BOOT SIDE) D35-47-69 (01C) 2011-2013 01
019 15222985 KNOB, D/SEAT RECL LVR (TITANIUM) DM (01C) 2011-2013 01
019 15889530 KNOB, D/SEAT RECL LVR (EBONY) (16.682) DM (01G) 2011-2013 01
020 15222981 KNOB, D/SEAT ADJR SW (TITANIUM) DM (01C) 2011-2013 01
020 15889524 KNOB, D/SEAT ADJR SW (EBONY) (16.682) DM (01G) 2011-2013 01
021 20844831 HARNESS, D/SEAT CONT MDL WRG DM35-69 (AQ9, EAM) (EXC AL2, A45) 2011-2011 01
021 20973029 HARNESS, D/SEAT CONT MDL WRG DM35-69 (AQ9, AX4, EAM) (EXC AL2, A45) 2011-2011 01
021 20973029 HARNESS, D/SEAT CONT MDL WRG DM35-69 (AQ9, EAM) (EXC AL2, A45) 2011-2012 01
021 20973029 HARNESS, D/SEAT CONT MDL WRG DM35-69 (AQ9, EAM) (EXC AL2, AX4, A45) 2011-2011 01
022 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 23, 26) 2011-2013 04
023 15947287 COVER, D/SEAT OTR ADJR TRK RR FIN (INCLS 22) (EBONY) DM35-69 (01C, 01G) 2011-2013 01
024 25994760 BEZEL, D/SEAT ADJR SW (INCLS 17) (EBONY) (8 WAY W/O LUMBAR AND W/ PRETENSIONER) DM35-69 (EAM, 01G) (EXC AL2, A45) 2011-2013 01
024 25994760 BEZEL, D/SEAT ADJR SW (INCLS 17) (EBONY) (8 WAY W/O LUMBAR AND W/ PRETENSIONER) DM35-69 (EAM, 01G) (EXC AL2, A45) 2011-2011 01
024 25994761 BEZEL, D/SEAT ADJR SW (INCLS 17) (TITANIUM) (8 WAY W/O LUMBAR AND W/ PRETENSIONER) DM35-69 (EAM, 01C) (EXC AL2, A45) 2011-2013 01
025 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (D/SEAT ADJR SW BZL) 2011-2013 01
026 15947295 COVER, D/SEAT INR ADJR TRK RR FIN (INCLS 22) (EBONY) DM35-69 (01C, 01G) 2011-2013 01
027 TRACK, D/SEAT OTR ADJR (PART OF 6) 2011-2013
028 15947303 COVER, D/SEAT OTR ADJR TRK FRT FIN (EBONY) DM35-69 (01C, 01G) 2011-2013 01
029 TRACK, D/SEAT INR ADJR (PART OF 6) 2011-2013
030 15947311 COVER, D/SEAT INR ADJR TRK FRT FIN (EBONY) DM35-69 (01C, 01G) 2011-2013 01
031 20777456 COVER, D/SEAT ADJR FIN (INCLS 32) (EBONY) (CARPET) DM, DN 2011-2013 01
032 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 31) 2011-2013 02
033 BRACE, F/SEAT CUSH FRM (PART OF 6) 2011-2013
034 RETAINER, F/SEAT ADJR ACTR (PART OF 6) 2011-2013
035 15894163 ACTUATOR, D/SEAT OTR ADJR RR VERT (PART OF 6) DM (EXC AL2, A45) 2011-2013 01
036 NUT, F/SEAT ADJR ACTR BRKT (PART OF 6) 2011-2013
037 25994139 BRACKET, D/SEAT RECL HDL BZL DM, DN (AQ9) 2011-2013 01
038 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (D/SEAT RECL HDL BZL BRKT) 2011-2013 04
039 NUT, D/SEAT 2011-2013
040 NUT, F/SEAT (PART OF 6) 2011-2013
041 WASHER, F/SEAT (PART OF 6) 2011-2013
042 NUT, D/SEAT 2011-2013
043 15894172 ACTUATOR, F/SEAT TILT ADJR (PART OF 6) DM (AQ9) (EXC AL2, A45) 2011-2013 01
044 15894137 MOTOR, D/SEAT ADJR ACTR (PART OF 6) (W/O SEAT ADJR MEMORY MDL) (ACDelco #15894137) DM 2011-2013 01
045 15947193 COVER, D/SEAT OTR ADJR FRT FIN (INCLS 46) (EBONY) DM (AQ9, 01G) 2011-2013 01
045 25908332 COVER, D/SEAT OTR ADJR FRT FIN (INCLS 46) (TITANIUM) DM (AQ9, 01C) 2011-2013 01
046 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 45) 2011-2013 04
047 NUT, D/SEAT BELT (BKL SI) (PART OF 48) 2011-2013
048 19259317 BELT KIT, D/SEAT (BKL SI) (INCLS 47) (EBONY) DM, DN (01G, 02W) (EXC AX4) 2011-2011 01
048 19259319 BELT KIT, D/SEAT (BKL SI) (INCLS 47) (TITANIUM) DM, DN (01C) (EXC AX4) 2011-2011 01
048 19181819 BELT KIT, D/SEAT (BKL SI) (INCLS 47) (EBONY) DM, DN (AX4, 01D, 01G) (EXPORT) 2011-2011 01
049 25908341 COVER, D/SEAT INR RECL FIN (INCLS 50) (TITANIUM) DM (01C) 2011-2013 01
049 15947251 COVER, D/SEAT INR RECL FIN (INCLS 50) (EBONY) DM (AQ9, 01G) 2011-2013 01
049 25908859 COVER, D/SEAT INR RECL FIN (INCLS 50) (TITANIUM) DM, DN (01C) 2011-2013 01
050 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 49) 2011-2013 01
051 INSULATOR, D/SEAT CUSH FRM (PART OF 6) 2011-2013
052 BRACKET, D/SEAT CUSH FRM FRT INR (PART OF 6) 2011-2013
