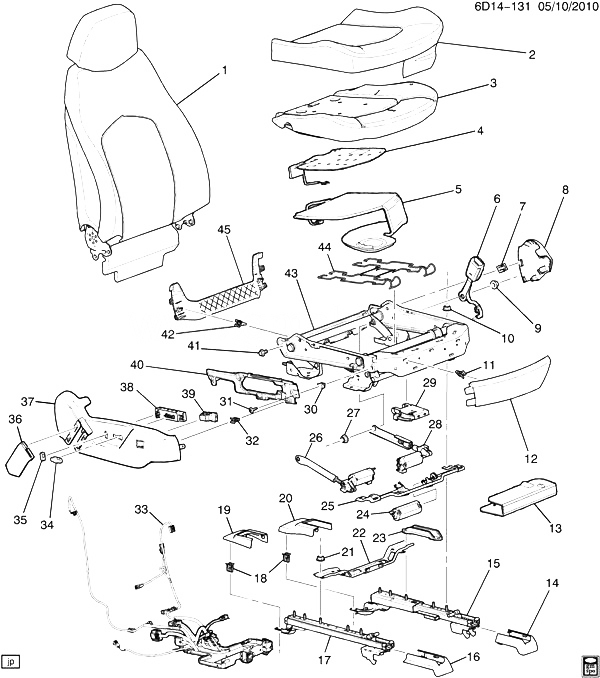

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
COVER, P/SEAT BK (SEE GROUP 14.000 SEAT ASM/PASSENGER-BACK FOR DETAILED ILLUSTRATED VIEW) (CASHMERE) |
|
2010-2013 |
|
| 002 |
25780356 |
COVER, P/SEAT CUSH (CASHMERE) |
DM35-69 (AH8, AL2, AQ9, EBS, KB6, 01D) (EXC KA1) |
2010-2013 |
01 |
| 002 |
25780358 |
COVER, P/SEAT CUSH (EBONY) |
DM35-69 (AH8, AL2, AQ9, EBS, KB6, 01G) (EXC KA1) |
2010-2011 |
01 |
| 002 |
25908925 |
COVER, P/SEAT CUSH (TITANIUM) |
DM35-69 (AH8, AL2, AQ9, EBS, KB6, 01C) (EXC KA1) |
2010-2013 |
01 |
| 002 |
25780354 |
COVER, P/SEAT CUSH (EBONY) |
DR35-69 (AH8, AL2, AQ9, EBS, KB6, 01G) (EXC KA1) (EXPORT) |
2010-2011 |
01 |
| 002 |
20981867 |
COVER, P/SEAT CUSH (CASHMERE) |
DR35-69 (AH8, AL2, AQ9, KB6, 01D) (EXC KA1) (EXPORT) |
2010-2013 |
01 |
| 002 |
20981868 |
COVER, P/SEAT CUSH (TITANIUM) |
DR35-69 (AH8, AL2, AQ9, AX4, EBS, KB6, 01C) (EXC KA1) (EXPORT) |
2010-2013 |
01 |
| 003 |
|
PAD, P/SEAT CUSH (*KIT1) |
|
2010-2013 |
|
| 004 |
|
MODULE, AIRBAG FRT PASS PRESENCE (*KIT1) |
|
2010-2013 |
|
| 005 |
|
MAT, F/SEAT VENT FAN (*KIT1) |
|
2010-2013 |
|
| 006 |
19259317 |
BELT KIT, P/SEAT (BKL SI) (INCLS 9) (EBONY) |
DM, DN (01G, 02W) (EXC AX4) |
2011-2011 |
01 |
| 006 |
19259318 |
BELT KIT, P/SEAT (BKL SI) (INCLS 9) (CASHMERE) |
DM, DN (01D) (EXC AX4) |
2011-2011 |
01 |
| 006 |
19259319 |
BELT KIT, P/SEAT (BKL SI) (INCLS 9) (TITANIUM) |
DM, DN (01C) (EXC AX4) |
2011-2011 |
01 |
| 006 |
19259318 |
BELT KIT, P/SEAT (BKL SI) (INCLS 9) (CASHMERE) |
DR35-69 (01D) (EXC AX4) (EXPORT) |
2011-2011 |
01 |
| 006 |
19181819 |
BELT KIT, P/SEAT (BKL SI) (INCLS 9) (EBONY) |
DR (AX4, 01G) (EXPORT) |
2011-2011 |
01 |
| 006 |
19181820 |
BELT KIT, P/SEAT (BKL SI) (INCLS 9) (CASHMERE) |
DR35-69 (AX4, 01C, 01D) (EXPORT) |
2011-2011 |
01 |
| 006 |
19181819 |
BELT KIT, P/SEAT (BKL SI) (INCLS 9) (EBONY) |
DM, DN (AX4, 01D, 01G) (EXPORT) |
2011-2011 |
01 |
| 007 |
|
CLIP, P/SEAT RECL LWR FIN (PART OF 8) |
|
2010-2013 |
|
| 008 |
25908859 |
COVER, P/SEAT RECL LWR FIN (INCLS 7) (TITANIUM) |
DM, DN (01C) |
2010-2013 |
01 |
| 008 |
15947255 |
COVER, P/SEAT RECL LWR FIN (INCLS 7) (EBONY) |
DM (01G) |
2010-2013 |
01 |
| 008 |
15947253 |
COVER, P/SEAT RECL LWR FIN (INCLS 7) (CASHMERE) |
DM (01D) |
2010-2013 |
01 |
| 008 |
15947251 |
COVER, P/SEAT RECL LWR FIN (INCLS 7) (EBONY) |
DR35-69 (AH8, AL2, AQ9, AX4, EBS, 01G) |
2010-2013 |
01 |
| 008 |
15947249 |
COVER, P/SEAT RECL LWR FIN (INCLS 7) (CASHMERE) |
DR (AH8, AL2, AQ9, AX4, EBS, 01D) (EXPORT) |
2010-2013 |
01 |
| 008 |
25908341 |
COVER, P/SEAT RECL LWR FIN (INCLS 7) (TITANIUM) |
DR35-69 (AH8, AL2, AQ9, AX4, EBS, 01C) (EXPORT) |
2010-2013 |
01 |
| 009 |
|
NUT, P/SEAT BELT (PART OF 6) |
|
2010-2013 |
|
| 010 |
|
NUT, P/SEAT (PART OF 43) |
|
2010-2013 |
|
| 011 |
|
CLIP, P/SEAT ADJR FIN (PART OF 12) |
|
2010-2013 |
|
| 012 |
15947234 |
COVER, P/SEAT OTR ADJR FRT FIN (INCLS 11) (CASHMERE) |
DM (01D) |
2010-2013 |
01 |
| 012 |
15947236 |
COVER, P/SEAT OTR ADJR FRT FIN (INCLS 11) (EBONY) |
DM (01G) |
2010-2013 |
01 |
| 012 |
25908857 |
COVER, P/SEAT OTR ADJR FRT FIN (INCLS 11) (TITANIUM) |
DM (01C) |
2010-2013 |
01 |
| 012 |
15947191 |
COVER, P/SEAT OTR ADJR FRT FIN (INCLS 11) (CASHMERE) |
DR35-69 (01D) (EXPORT) |
2010-2013 |
01 |
| 012 |
15947193 |
COVER, P/SEAT OTR ADJR FRT FIN (INCLS 11) (EBONY) |
DR35-69 (01G) (EXPORT) |
2010-2013 |
01 |
| 012 |
25908332 |
COVER, P/SEAT OTR ADJR FRT FIN (INCLS 11) (TITANIUM) |
DR35-69 (01C) (EXPORT) |
2010-2013 |
01 |
| 013 |
20777456 |
COVER, P/SEAT ADJR FIN (EBONY) (CARPET) |
DM, DN |
2010-2013 |
01 |
| 013 |
20777456 |
COVER, P/SEAT ADJR FIN (EBONY) (CARPET) |
DR (EXPORT) |
2010-2013 |
01 |
| 014 |
15947313 |
COVER, P/SEAT INR ADJR TRK FRT FIN (CASHMERE) |
DM35-69 (01D) |
2010-2013 |
01 |
| 014 |
15947315 |
COVER, P/SEAT INR ADJR TRK FRT FIN (EBONY) |
DM35-69 (01C, 01G) |
2010-2013 |
01 |
| 014 |
15947309 |
COVER, P/SEAT INR ADJR TRK FRT FIN (CASHMERE) |
DR35-69 (01D) (EXPORT) |
2010-2013 |
01 |
| 014 |
15947311 |
COVER, P/SEAT INR ADJR TRK FRT FIN (EBONY) |
DR35-69 (01C, 01G) (EXPORT) |
2010-2013 |
01 |
| 015 |
|
TRACK, P/SEAT INR ADJR (PART OF 43) |
|
2010-2013 |
|
| 016 |
15947305 |
COVER, P/SEAT OTR ADJR TRK FRT FIN (CASHMERE) |
DM35-69 (01D) |
2010-2013 |
01 |
| 016 |
15947307 |
COVER, P/SEAT OTR ADJR TRK FRT FIN (EBONY) |
DM35-69 (01C, 01G) |
2010-2013 |
01 |
| 016 |
15947301 |
COVER, P/SEAT OTR ADJR TRK FRT FIN (CASHMERE) |
DR35-69 (01D) (EXPORT) |
2010-2013 |
01 |
| 016 |
15947303 |
COVER, P/SEAT OTR ADJR TRK FRT FIN (EBONY) |
DR35-69 (01C, 01G) (EXPORT) |
2010-2013 |
01 |
| 017 |
|
TRACK, P/SEAT OTR ADJR (PART OF 43) |
|
2010-2013 |
|
| 018 |
|
CLIP, P/SEAT (PART OF 19, 20 |
|
2010-2013 |
|
| 019 |
15947289 |
COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 18) (CASHMERE) |
DM35-69 (01D) |
2010-2013 |
01 |
| 019 |
15947291 |
COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 18) (EBONY) |
DM35-69 (01C, 01G) |
2010-2013 |
01 |
| 019 |
15947285 |
COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 18) (CASHMERE) |
DR35-69 (01D) (EXPORT) |
2010-2013 |
01 |
| 019 |
15947287 |
COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 18) (EBONY) |
DR35-69 (01C, 01G) (EXPORT) |
2010-2013 |
01 |
| 020 |
15947297 |
COVER, P/SEAT INR ADJR TRK RR FIN (INCLS 18) (CASHMERE) |
DM35-69 (01D) |
2010-2013 |
01 |
| 020 |
15947299 |
COVER, P/SEAT INR ADJR TRK RR FIN (INCLS 18) (EBONY) |
DM35 (01C, 01G) |
2010-2013 |
01 |
| 020 |
15947293 |
COVER, P/SEAT INR ADJR TRK RR FIN (INCLS 18) (CASHMERE) |
DR35-69 (01D) (EXPORT) |
2010-2013 |
01 |
| 020 |
15947295 |
COVER, P/SEAT INR ADJR TRK RR FIN (INCLS 18) (EBONY) |
DR35-69 (01C, 01G) (EXPORT) |
2010-2013 |
01 |
| 021 |
|
NUT, P/SEAT (PART OF 43) |
|
2010-2013 |
|
| 022 |
|
BRACE, P/SEAT (PART OF 43) |
|
2010-2013 |
|
| 023 |
|
BRACKET, P/SEAT (PART OF 43) |
|
2010-2013 |
|
| 024 |
|
ACTUATOR, P/SEAT ADJR (PART OF 25, 43) |
|
2010-2013 |
|
| 025 |
15894137 |
MOTOR, P/SEAT ADJR ACTR (INCLS 24) (PART OF 43) (W/O SEAT ADJR MEMORY MDL) (ACDelco #15894137) |
DR35-69 (EXPORT) |
2011-2013 |
01 |
| 025 |
15894137 |
MOTOR, P/SEAT ADJR ACTR (INCLS 24) (PART OF 43) (W/O SEAT ADJR MEMORY MDL) (ACDelco #15894137) |
DM |
2011-2013 |
01 |
| 026 |
15894172 |
ACTUATOR, F/SEAT TILT ADJR (PART OF 43) |
DM (AQ9) (EXC AL2, A45) |
2011-2013 |
01 |
| 026 |
15894173 |
ACTUATOR, F/SEAT TILT ADJR (PART OF 43) |
DM (AL2, A45) |
2011-2013 |
01 |
| 026 |
15894170 |
ACTUATOR, F/SEAT TILT ADJR (PART OF 43) |
DM (AH8, AL2) |
2011-2013 |
01 |
| 027 |
|
NUT, P/SEAT (PART OF 43) |
|
2010-2013 |
|
| 028 |
15894154 |
ACTUATOR, P/SEAT INR ADJR RR VERT (PART OF 43) |
DM |
2011-2011 |
01 |
| 028 |
15894154 |
ACTUATOR, P/SEAT INR ADJR RR VERT (PART OF 43) |
DR35-69 (EXPORT) |
2010-2011 |
01 |
| 028 |
15894163 |
ACTUATOR, P/SEAT INR ADJR RR VERT (PART OF 43) |
DR35-69 (AH8, AL2, AQ9, AX4, EBS) (EXPORT) |
2010-2011 |
01 |
| 029 |
25780793 |
BLOWER, P/SEAT CUSH VENTILATION HEAT COOL |
DM (EBS, KB6) (EXC KA1) |
2010-2013 |
01 |
| 029 |
25780793 |
BLOWER, P/SEAT CUSH VENTILATION HEAT COOL |
DR35-69 (KB6) (EXPORT) |
2011-2013 |
01 |
| 030 |
11517068 |
NUT, METRIC HEX FLANGE, M6X1, 10MM SOCKET (P/SEAT) |
|
2010-2013 |
09 |
| 031 |
11508765 |
SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (D/SEAT) |
|
2010-2013 |
09 |
| 032 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 37) |
|
2010-2013 |
04 |
| 033 |
20973024 |
HARNESS, P/SEAT CONT MDL WRG |
DM35-69 (AH8, AL2, AQ9, AX4, EBS, KB6) (EXC KA1) |
2011-2011 |
01 |
| 033 |
20973024 |
HARNESS, P/SEAT CONT MDL WRG |
DM35-69 (AH8, AL2, AQ9, EBS, KB6) (EXC AX4, KA1) |
2011-2011 |
01 |
| 033 |
20973024 |
HARNESS, P/SEAT CONT MDL WRG |
DM35-69 (AH8, AL2, AQ9, EBS, KB6) (EXC KA1) |
2011-2012 |
01 |
| 033 |
20973022 |
HARNESS, P/SEAT CONT MDL WRG |
DR35-69 (AH8, AL2, AQ9, AX4, EBS, KB6) (EXC KA1) (EXPORT) |
2011-2012 |
01 |
| 034 |
15222981 |
KNOB, P/SEAT ADJR SW (TITANIUM) |
DM, DN (01C) |
2011-2013 |
01 |
| 034 |
15889524 |
KNOB, P/SEAT ADJR SW (EBONY) (16.682) |
DM, DN35-47-69 (01G) |
2011-2013 |
01 |
| 034 |
15889525 |
KNOB, P/SEAT ADJR SW (CASHMERE) (16.682) |
DM35-69 (01D) |
2010-2013 |
01 |
| 034 |
15222981 |
KNOB, P/SEAT ADJR SW (TITANIUM) |
DR35-69 (01C) (EXPORT) |
2010-2013 |
01 |
| 034 |
15889524 |
KNOB, P/SEAT ADJR SW (EBONY) (16.682) |
DR35-69 (01G) (EXPORT) |
2010-2013 |
01 |
| 034 |
15889525 |
KNOB, P/SEAT ADJR SW (CASHMERE) (16.682) |
DR35-69 (01D) (EXPORT) |
2011-2013 |
01 |
| 035 |
15222985 |
KNOB, P/SEAT RECL (TITANIUM) |
DM (01C) |
2010-2013 |
01 |
| 035 |
15889530 |
KNOB, P/SEAT RECL (EBONY) (16.682) |
DM35-69 (01G) |
2010-2013 |
01 |
| 035 |
15889531 |
KNOB, P/SEAT RECL (CASHMERE) (16.682) |
DM35-69 (01D) |
2011-2013 |
01 |
| 035 |
15222985 |
KNOB, P/SEAT RECL (TITANIUM) |
DR35-69 (01C) (EXPORT) |
2010-2013 |
01 |
| 035 |
15889530 |
KNOB, P/SEAT RECL (EBONY) (16.682) |
DR35-69 (01G) (EXPORT) |
2011-2013 |
01 |
| 035 |
15889531 |
KNOB, P/SEAT RECL (CASHMERE) (16.682) |
DR (01D) (EXPORT) |
2011-2013 |
01 |
| 036 |
15952350 |
COVER, P/SEAT BELT OPG TR (RETR SI) (CASHMERE) |
DM35-69 (01D) |
2010-2011 |
01 |
| 036 |
15952352 |
COVER, P/SEAT BELT OPG TR (RETR SI) (EBONY) |
DM35-69 (01G) |
2010-2013 |
01 |
| 036 |
25908893 |
COVER, P/SEAT BELT OPG TR (RETR SI) (TITANIUM) |
DM35-69 (01C) |
2010-2013 |
01 |
| 036 |
15952346 |
COVER, P/SEAT BELT OPG TR (RETR SI) (CASHMERE) |
DR35-69 (01D) (EXPORT) |
2010-2011 |
01 |
| 036 |
25908345 |
COVER, P/SEAT BELT OPG TR (RETR SI) (TITANIUM) |
DR35-69 (01C) (EXPORT) |
2010-2013 |
01 |
| 037 |
15947244 |
BEZEL, P/SEAT ADJR SW (USED W/O PRETENSIONER) (INCLS 32) (EBONY) |
DM35-69 (AH8, AL2, AQ9, 01G) |
2010-2012 |
01 |
| 037 |
25908858 |
BEZEL, P/SEAT ADJR SW (USED W/O PRETENSIONER) (INCLS 32) (TITANIUM) (8-WAY) |
DM (AH8, AL2, 01C) |
2010-2011 |
01 |
| 037 |
25994758 |
BEZEL, P/SEAT ADJR SW (USED W/PRETENSIONER) (INCLS 32) (CASHMERE) |
DM35-69 (AH8, AL2, AQ9, EBS, 01D) |
2011-2013 |
01 |
| 037 |
15947240 |
BEZEL, P/SEAT ADJR SW (USED W/O PRETENSIONER) (INCLS 32) (EBONY) |
DR (01G) (EXPORT) |
2010-2011 |
01 |
| 037 |
25994748 |
BEZEL, P/SEAT ADJR SW (USED W/PRETENSIONER) (INCLS 32) (CASHMERE) (8 WAY W/ LUMBAR AND W/ PRETENSIONER) |
DR35-69 (AH8, AL2, AQ9, EBS, 01D) (EXPORT) |
2011-2013 |
01 |
| 038 |
12451498 |
SWITCH, P/SEAT ADJR RECL (8-WAY) |
DM |
2010-2013 |
01 |
| 039 |
15210786 |
SWITCH, P/SEAT LUMBAR CONT (CASHMERE) |
DM (01D) |
2010-2013 |
01 |
| 039 |
10315826 |
SWITCH, P/SEAT LUMBAR CONT (EBONY) |
DM (01G) |
2010-2011 |
01 |
| 039 |
25908452 |
SWITCH, P/SEAT LUMBAR CONT (TITANIUM) |
DR (01C) (EXPORT) |
2010-2013 |
01 |
| 039 |
10315826 |
SWITCH, P/SEAT LUMBAR CONT (EBONY) |
DR (01G) (EXPORT) |
2010-2013 |
01 |
| 039 |
15210786 |
SWITCH, P/SEAT LUMBAR CONT (CASHMERE) |
DR35-69 (01D) (EXPORT) |
2011-2013 |
01 |
| 040 |
25994140 |
BRACKET, P/SEAT RECL HDL BZL |
DM (AQ9, EBS, EAM, EWH) |
2011-2013 |
01 |
| 041 |
25828643 |
BOLT, F/SEAT |
DM |
2011-2013 |
08 |
| 041 |
25828643 |
BOLT, F/SEAT |
DR35-69 (EXPORT) |
2011-2013 |
08 |
| 042 |
|
CLIP, P/SEAT ADJR FIN (PART OF 45) |
|
2010-2013 |
|
| 043 |
20993914 |
FRAME, P/SEAT CUSH (INCLS 10, 15, 17, 21-28, 44) (HAS BOLT HOLE NOT A STUD) |
DM35-69 (AH8, AL2, AQ9, EBS) |
2011-2013 |
01 |
| 043 |
20993910 |
FRAME, P/SEAT CUSH (INCLS 10, 15, 17, 21-28, 44) (HAS BOLT HOLE NOT A STUD) |
DR35-69 (AH8, AL2, AQ9, AX4, EBS) (EXPORT) |
2011-2011 |
01 |
| 044 |
|
WIRE, P/SEAT CUSH PAD (PART OF 43) |
|
2010-2013 |
|
| 045 |
15947257 |
COVER, P/SEAT CUSH CLOSEOUT (INCLS 42) (CASHMERE) (11.573) |
DM (01D) |
2010-2013 |
01 |
| 045 |
15947259 |
COVER, P/SEAT CUSH CLOSEOUT (INCLS 42) (EBONY) (11.573) |
DM, DN (01G) |
2010-2013 |
01 |
| 045 |
25908343 |
COVER, P/SEAT CUSH CLOSEOUT (INCLS 42) (TITANIUM) (11.573) |
D35-47-69 (01C) |
2011-2013 |
01 |
| 045 |
15947259 |
COVER, P/SEAT CUSH CLOSEOUT (INCLS 42) (EBONY) (11.573) |
DR (01G) (EXPORT) |
2010-2013 |
01 |
| 045 |
15947257 |
COVER, P/SEAT CUSH CLOSEOUT (INCLS 42) (CASHMERE) (11.573) |
DR35-69 (01D) (EXPORT) |
2011-2013 |
01 |
| K01 |
22739288 |
MODULE KIT, AIRBAG FRT PASS PRESENCE (W/ SEN) (INCLS 3-5) |
DM, DN (EBS, ECH, KB6) |
2010-2013 |
01 |
