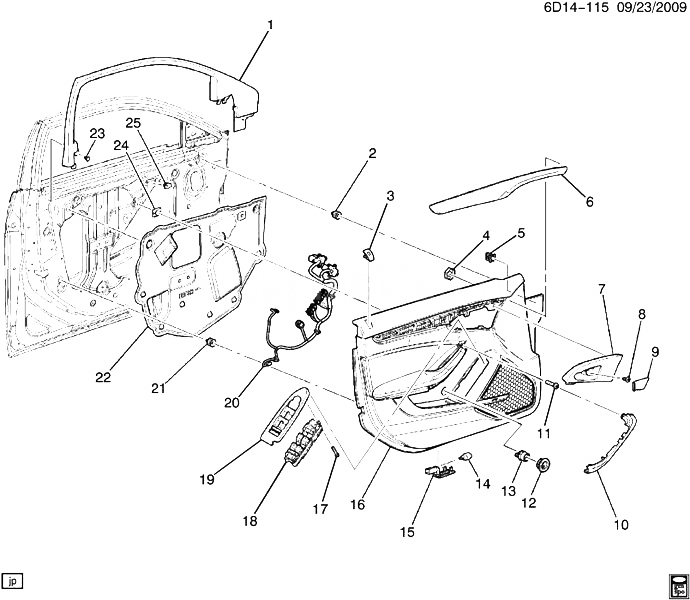

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25846021 |
MOLDING, FRT S/D GARN (INCLS 23) (EBONY) |
DM35-69 |
2010-2013 |
01 |
| 002 |
11519032 |
RETAINER, PUSH IN, 19.5X28.4X1.8, FITS HOLE 9.1, ACETAL, BLK (PART OF 16) |
|
2010-2013 |
03 |
| 003 |
20860950 |
BEZEL, FRT S/D LKG ROD P/BUT (PART OF 16) (EBONY) |
D35 (DR5, FBL, 1AH, 2A5, 4AL) (EXC ATH) |
2010-2011 |
01 |
| 003 |
20860950 |
BEZEL, FRT S/D LKG ROD P/BUT (PART OF 16) (EBONY) |
DM35 (DR5, FBL, 1AD, 4AM) (EXC ATH, TSQ) |
2011-2011 |
01 |
| 004 |
11503417 |
NUT, M6.3 STMPD TYPE SR ZC (PART OF 16) |
|
2010-2013 |
04 |
| 005 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 16) |
|
2010-2013 |
01 |
| 006 |
15243588 |
APPLIQUE, FRT S/D TR FIN PNL (PART OF 16) (SAPELE) (USE W/NUT 11503417 QTY 7 FOR 08QTY 4 FOR 09 AND LATER) |
D35-69 (2A5) |
2011-2013 |
01 |
| 007 |
|
BEZEL, FRT S/D I/S HDL (PART OF 16) |
|
2010-2013 |
|
| 008 |
11609539 |
SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (FRT S/D TR) |
|
2010-2013 |
01 |
| 009 |
15871923 |
COVER, FRT S/D PULL HDL (EBONY) |
DM35-69 (4AL) |
2010-2012 |
01 |
| 009 |
25914599 |
COVER, FRT S/D PULL HDL (TITANIUM) |
DM35-69 (4AM) |
2010-2013 |
01 |
| 010 |
25927093 |
CAP, FRT S/D PULL HDL BOLT (EBONY) |
DM35-69 (4AL) |
2010-2012 |
01 |
| 010 |
25927109 |
CAP, FRT S/D PULL HDL BOLT (TITANIUM) |
DM35-69 (4AM) |
2010-2013 |
01 |
| 011 |
03539184 |
BOLT, FRT S/D PULL HDL (14.683) |
D35-69 |
2010-2013 |
04 |
| 012 |
25901191 |
BEZEL, L/GATE CLOSE SW (PART OF 16) |
DM35 (1AH, 4AL) |
2010-2013 |
01 |
| 012 |
25901192 |
BEZEL, L/GATE CLOSE SW (PART OF 16) |
DM35 (1AD, 4AM) |
2010-2013 |
01 |
| 013 |
25777730 |
SWITCH, L/GATE ACTR CONT (PART OF 16) (ARGENT) (ACDelco #25777730) |
DM35 (EXC TID) |
2011-2011 |
01 |
| 014 |
19115808 |
BULB, FRT S/D C/LP (PART OF 16) (8.991) (ACDelco #19115808) |
D |
2010-2013 |
02 |
| 015 |
10359030 |
LAMP, CTSY (S/D LAMP) (PART OF 16)) |
D |
2010-2013 |
01 |
| 016 |
20938687 |
TRIM, FRT S/D (INCLS 2-7, 12-15, 17-21) (EBONY) |
DM35 (DR5, FBL, 1AH, 4AL) (EXC ATH, A45, TSQ, 2A5) |
2011-2011 |
01 |
| 016 |
20938688 |
TRIM, FRT S/D (INCLS 2-7, 12-15, 17-21) (TITANIUM) |
DM35 (DR5, FBL, 1AD, 4AM) (EXC ATH, A45, TSQ, 2A5) |
2011-2011 |
01 |
| 016 |
22815779 |
TRIM, FRT S/D (INCLS 2-7, 12-15, 17-21) (TITANIUM) (MECH LATCH) |
DM35 (DR5, FBL, 1AD, 2A5, 4AM) (EXC ATH, A45, TSQ) |
2011-2013 |
01 |
| 016 |
22815809 |
TRIM, FRT S/D (INCLS 2-7, 12-15, 17-21) (TITANIUM) (ELEC LATCH) |
DM35 (ATG, DL7, FBL, UTT, 1AD, 2A5, 4AM) (EXC A45, TSQ) |
2011-2013 |
01 |
| 016 |
22773844 |
TRIM, FRT S/D (INCLS 2-7, 12-15, 17-21) (EBONY) |
DM35 (DR5, FBL, 1AH, 2A5, 4AL) (EXC ATH, A45, TSQ) |
2011-2011 |
01 |
| 016 |
22773868 |
TRIM, FRT S/D (INCLS 2-7, 12-15, 17-21) (EBONY) |
DM35 (ATG, DL7, FBL, UTT, 1AH, 4AL) (EXC A45, TSQ, 2A5) |
2011-2011 |
01 |
| 016 |
22773870 |
TRIM, FRT S/D (INCLS 2-7, 12-15, 17-21) (EBONY) |
DM35 (ATG, DL7, FBL, UTT, 1AH, 2A5, 4AL) (EXC A45, TSQ) |
2011-2011 |
01 |
| 016 |
22815808 |
TRIM, FRT S/D (INCLS 2-7, 12-15, 17-21) (TITANIUM) (ELEC LATCH) |
DM35 (ATG, DL7, FBL, UTT, 1AD, 4AM) (EXC A45, TSQ, 2A5) |
2011-2011 |
01 |
| 017 |
11561274 |
BOLT, FRT S/D WDO SW (PART OF 16) (SCREW-PAN HEAD, #6-19X1.5, 0.83 THD, 0.26 OD) (16.263) |
D |
2010-2013 |
03 |
| 018 |
25970550 |
SWITCH, DR LK SI WDO (PART OF 16) (ARGENT) |
DM35-69 (DL7, FBL, UA6) (EXC ATG) |
2010-2011 |
01 |
| 018 |
25970550 |
SWITCH, DR LK SI WDO (PART OF 16) (ARGENT) (10.485) |
DM35-69 (DL7, FBL, UA6) (EXC ATG) |
2010-2011 |
01 |
| 018 |
22810047 |
SWITCH, DR LK SI WDO (PART OF 16) (ARGENT) |
DM35-69 (ATH, DL7, DR5, FBY, TSQ) (EXC ATG) |
2010-2013 |
01 |
| 018 |
22810047 |
SWITCH, DR LK SI WDO (PART OF 16) (ARGENT) |
DM35-69 (DL7, DR5, FBL, UA2) |
2010-2013 |
01 |
| 018 |
22810047 |
SWITCH, DR LK SI WDO (PART OF 16) (ARGENT) |
DM35-69 (DL7, DR5, FBY, TSQ) (EXC ATG) |
2010-2013 |
01 |
| 018 |
22810047 |
SWITCH, DR LK SI WDO (PART OF 16) (ARGENT) (10.485) |
DM35-69 (DL7, DR5, FBL, UA2) |
2010-2013 |
01 |
| 018 |
22810047 |
SWITCH, DR LK SI WDO (PART OF 16) (ARGENT) (10.485) |
DM35-69 (DL7, DR5, FBY, TSQ) (EXC ATG) |
2010-2013 |
01 |
| 019 |
15867890 |
BEZEL, FRT S/D WDO SW (PART OF 16) (EBONY) |
DM35 (DR5, 4AL) |
2010-2013 |
01 |
| 019 |
25920925 |
BEZEL, FRT S/D WDO SW (PART OF 16) (LT TITANIUM) (WDO/PWR MIR/FLD MIR/DR LK) |
DM35 (DL7, 1AD, 4AM) |
2010-2013 |
01 |
| 019 |
25920929 |
BEZEL, FRT S/D WDO SW (PART OF 16) (LT TITANIUM) (WDO/PWR MIR/DR LK) |
DM35 (DR5, 1AD, 4AM) |
2010-2013 |
01 |
| 019 |
15867893 |
BEZEL, FRT S/D WDO SW (PART OF 16) (EBONY) |
DM35 (DL7, 4AL) |
2010-2013 |
01 |
| 020 |
20858179 |
HARNESS, FRT S/D WRG (PART OF 16) |
DM35 (TSQ, DR5) |
2010-2013 |
02 |
| 020 |
20858181 |
HARNESS, FRT S/D WRG (PART OF 16) |
DM35 (DL7) (EXC TSQ) |
2010-2013 |
01 |
| 020 |
20928118 |
HARNESS, FRT S/D WRG (PART OF 16) |
DM35 (DR5, FBL) (EXC ATH, A45, TSQ) |
2010-2013 |
01 |
| 021 |
11519031 |
RETAINER, PUSH IN, 19.5X26.1X1.8, ACETAL, NATURAL, FOAM SEALER (PART OF 16) |
|
2010-2013 |
05 |
| 022 |
20794762 |
DEFLECTOR, FRT S/D WAT |
DM35-69 |
2010-2013 |
01 |
| 023 |
20699808 |
RETAINER, FRT S/D G/MLDG (PUSH IN) (PART OF 1) (BLACK) (12.0MM) (X-MAS TREE) (14.875) |
D35 |
2010-2013 |
04 |
| 024 |
20310739 |
NUT, FRT S/D PULL HDL (3.125 MM) (RECTANGULAR NYLON) (14.690) |
D35-69 |
2010-2013 |
04 |
| 025 |
11570654 |
NUT, FRT S/D TR (4.2 X 1.41) (PUSH-IN NUT) (FITS 8.75 SQ HOLE) (9.665) |
D35 |
2010-2013 |
02 |
