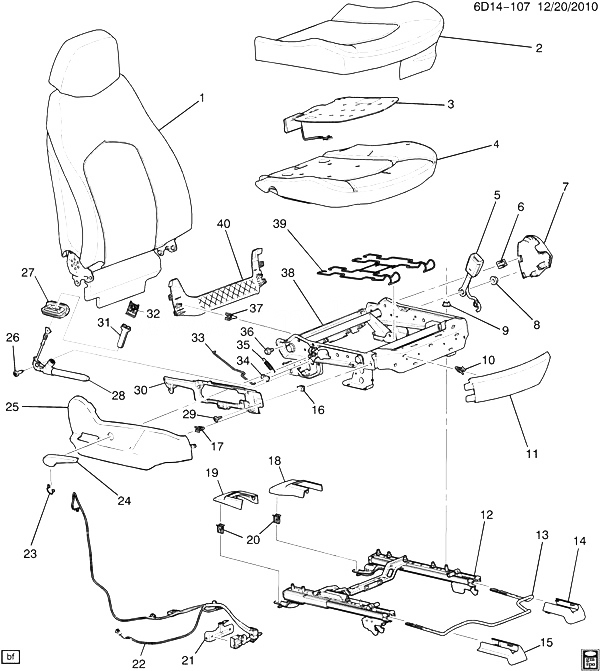

(6D14-107) 2011-2012 DM35-69 СИДЕНЬЕ В СБОРЕ/ПАССАЖИРА-ПОДУШКА (EXC POWER ADJUSTER AH8, POWER LUMBAR AL2) CADILLAC - CTS WAGON 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 COVER, P/SEAT BK (SEE GROUP 14.000 SEAT ASM/PASSENGER-BACK FOR DETAILED ILLUSTRATED VIEW) 2011-2013
002 20830833 COVER, P/SEAT CUSH (EBONY) DM35-69 (AQ9, EAM, 01G) (EXC AH8, AL2) 2011-2011 01
002 22795266 COVER, P/SEAT CUSH (TITANIUM) DM35-69 (AQ9, EAM, 01C) (EXC AH8, AL2) 2011-2013 01
003 20778918 MODULE KIT, AIRBAG FRT PASS PRESENCE (W/ SEN) DM (EXC KB6, KA1) 2011-2013 01
004 PAD, P/SEAT CUSH 2011-2012
005 19259317 BELT KIT, P/SEAT (BKL SI) (INCLS 8) (EBONY) DM, DN (01G, 02W) (EXC AX4) 2011-2011 01
005 19259319 BELT KIT, P/SEAT (BKL SI) (INCLS 8) (TITANIUM) DM, DN (01C) (EXC AX4) 2011-2011 01
005 19181819 BELT KIT, P/SEAT (BKL SI) (INCLS 8) (EBONY) DM, DN (AX4, 01D, 01G) (EXPORT) 2011-2011 01
006 CLIP, P/SEAT RECL LWR FIN (PART OF 7) 2011-2012
007 25908859 COVER, P/SEAT RECL LWR FIN (INCLS 6) (TITANIUM) DM, DN (01C) 2011-2013 01
007 15947255 COVER, P/SEAT RECL LWR FIN (INCLS 6) (EBONY) DM (01G) 2011-2013 01
008 NUT, P/SEAT BELT (PART OF 5) 2011-2012
009 NUT, P/SEAT (PART OF 38) 2011-2012
010 CLIP, P/SEAT ADJR FIN (PART OF 11) 2011-2012
011 15947236 COVER, P/SEAT OTR ADJR FRT FIN (INCLS 10) (EBONY) DM (01G) 2011-2013 01
011 25908857 COVER, P/SEAT OTR ADJR FRT FIN (INCLS 10) (TITANIUM) DM (01C) 2011-2013 01
012 TRACK, P/SEAT ADJR (PART OF 38) 2011-2012
013 HANDLE, P/SEAT ADJR (PART OF 38) 2011-2012
014 15947315 COVER, P/SEAT INR ADJR TRK FRT FIN (EBONY) DM35-69 (01C, 01G) 2011-2013 01
015 15947307 COVER, P/SEAT OTR ADJR TRK FRT FIN (EBONY) DM35-69 (01C, 01G) 2011-2013 01
016 11517068 NUT, METRIC HEX FLANGE, M6X1, 10MM SOCKET (P/SEAT) 2011-2013 09
017 CLIP, P/SEAT ADJR SW (PART OF 25) 2011-2012
018 15947299 COVER, P/SEAT INR ADJR TRK RR FIN (INCLS 20) (EBONY) DM35 (01C, 01G) 2011-2013 01
019 15947291 COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 20) (EBONY) DM35-69 (01C, 01G) 2011-2013 01
020 CLIP, P/SEAT (PART OF 18, 19) 2011-2012
021 BRACKET, P/SEAT WRG HARN (PART OF 22) 2011-2013
022 20973025 HARNESS, P/SEAT CONT MDL WRG (INCLS 21) DM35-69 (AQ9, AX4, EAM) (EXC AH8, AL2) 2011-2011 01
022 20973025 HARNESS, P/SEAT CONT MDL WRG (INCLS 21) DM35-69 (AQ9, EAM) (EXC AH8, AL2, AX4) 2011-2011 01
023 SPRING, P/SEAT RECL HDL (PART OF 24) 2011-2012
024 15947266 HANDLE, P/SEAT RECL (INCLS 23) (EBONY) DM35-69 (01G) 2011-2013 01
024 25908976 HANDLE, P/SEAT RECL (INCLS 23) (TITANIUM) DM35-69 (AQ9, 01C) (EXC AH8) 2011-2013 01
025 25930325 BEZEL, P/SEAT ADJR SW (INCLS 17) (TITANIUM) DM35-69 (AQ9, EAM, 01C) (EXC AH8) 2011-2011 01
025 25994763 BEZEL, P/SEAT ADJR SW (INCLS 17) (EBONY) DM35-69 (AQ9, EAM, 01G) (EXC AH8, AL2) 2011-2013 01
026 BOLT, P/SEAT BELT TENSR (RETR SI) (PART OF 28) 2011-2012
027 25982262 COVER, F/SEAT BELT TENSR (RETR SI) (EBONY) (BOOT SIDE) DM (01G) 2011-2013 01
027 25982264 COVER, F/SEAT BELT TENSR (RETR SI) (TITANIUM) (BOOT SIDE) DM35-69 (01C) (EXC AL2) 2011-2013 01
028 19257694 TENSIONER KIT, P/SEAT BELT (RETR SI) (INCLS 26) D35-69 2011-2013 01
029 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (D/SEAT) 2011-2013 09
030 25994140 BRACKET, P/SEAT RECL HDL BZL DM (AQ9, EBS, EAM, EWH) 2011-2013 01
031 22766989 COVER, F/SEAT BELT TENSR (RETR SI) (INCLS 32) (EBONY) (LOWER) DM (01G) 2011-2011 02
031 22766991 COVER, F/SEAT BELT TENSR (RETR SI) (INCLS 32) (TITANIUM) (LOWER) DM, DN (01C) 2011-2011 02
033 25807305 ROD, P/SEAT ADJR LAT DM35-69 (AQ9) (EXC AH8, AL2) 2011-2013 01
034 BUSHING, P/SEAT ADJR HDL 2011-2012
035 25807307 SPRING, P/SEAT ADJR HDL DM35-69 (AQ9) (EXC AH8, AL2) 2011-2013 01
036 25828643 BOLT, F/SEAT DM 2011-2013 08
037 CLIP, P/SEAT ADJR FIN (PART OF 40) 2011-2012
038 20993913 FRAME, P/SEAT CUSH (INCLS 9, 12, 13, 39) (HAS BOLT HOLE NOT A STUD) DM35-69 (AQ9, EAM) (EXC AH8, AL2) 2011-2012 01
039 15894132 WIRE, P/SEAT CUSH PAD (PART OF 38) DM35-47-69 2011-2013 01
040 15947259 COVER, P/SEAT CUSH CLOSEOUT (INCLS 37) (EBONY) (11.573) DM, DN (01G) 2011-2013 01
040 25908343 COVER, P/SEAT CUSH CLOSEOUT (INCLS 37) (TITANIUM) (11.573) D35-47-69 (01C) 2011-2013 01
