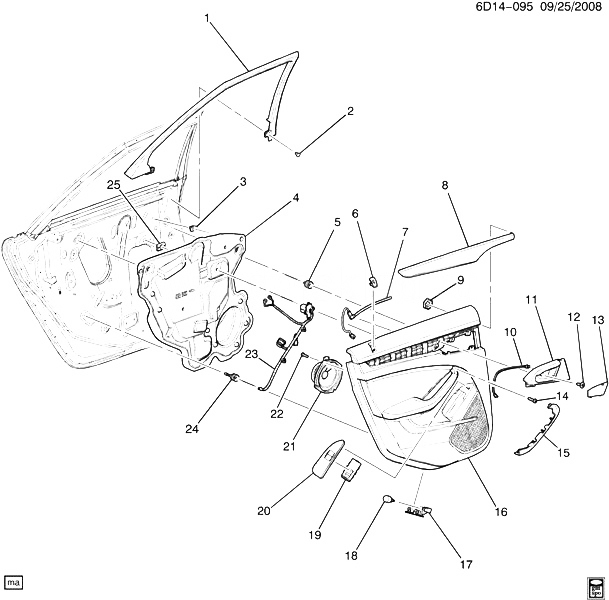

(6D14-095) 2011-2013 DM,DN,DR35 ОТДЕЛКА ЗАДНЕЙ ДВЕРИ (LAMP PACKAGE TSQ) CADILLAC - CTS WAGON 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25846025 MOLDING, RR S/D GARN (INCLS 2) (EBONY) D35 2010-2013 01
001 25846026 MOLDING, RR S/D GARN (INCLS 2) (EBONY) D35 2010-2013 01
002 20699808 RETAINER, FRT S/D G/MLDG (PUSH IN) (PART OF 1) (BLACK) (12.0MM) (X-MAS TREE) (14.875) D35 2010-2013 04
003 11570654 NUT, RR S/D TR (4.2 X 1.41) (PUSH-IN NUT) (FITS 8.75 SQ HOLE) (9.665) D35 2010-2013 02
004 20868603 DEFLECTOR, RR S/D WAT DM, DN35-69 2011-2013 01
004 20868602 DEFLECTOR, RR S/D WAT DM, DN35-69 2011-2013 01
004 20868603 DEFLECTOR, RR S/D WAT DR (EXPORT) 2010-2013 01
004 20868602 DEFLECTOR, RR S/D WAT DR (EXPORT) 2010-2013 01
005 11519031 RETAINER, PUSH IN, 19.5X26.1X1.8, ACETAL, NATURAL, FOAM SEALER (PART OF 16) 2010-2013 05
006 22773339 BEZEL, RR S/D LKG ROD P/BUT (PART OF 16) (CASHMERE) (10.550) D35-69 (4AC, 4AR) 2011-2013 01
006 22773340 BEZEL, RR S/D LKG ROD P/BUT (PART OF 16) (CASHMERE) (10.550) D35-69 (4AC, 4AR) 2011-2013 01
006 22773341 BEZEL, RR S/D LKG ROD P/BUT (PART OF 16) (EBONY) (10.550) D35-69 (4AM, 4AL) 2010-2013 01
006 22773342 BEZEL, RR S/D LKG ROD P/BUT (PART OF 16) (EBONY) (10.550) D35-69 (4AM, 4AL) 2010-2013 01
007 15243684 LAMP, RR S/D WRNG (PART OF 16) (REAR LIGHT PIPE) D35-69 (FBL, TSQ) 2010-2013 02
008 15243632 APPLIQUE, RR S/D T/PNL (PART OF 16) (SAPELE) (USE W/NUT 11503417 QTY 7 FOR 08QTY 4 FOR 09 AND LATER) DM35-69 2010-2013 01
008 15243633 APPLIQUE, RR S/D T/PNL (PART OF 16) (SAPELE) (USE W/NUT 11503417 QTY 7 FOR 08QTY 4 FOR 09 AND LATER) DM35-69 2010-2013 01
008 20822848 APPLIQUE, RR S/D T/PNL (PART OF 16) (SAPELE) DN35 (FBY, TSQ, 2CK, 4AL, 4AM, 4AR) 2011-2013 01
008 20822846 APPLIQUE, RR S/D T/PNL (PART OF 16) (SAPELE) DN35-69 (FBY, TSQ, 2CK, 4AL, 4AM, 4AR) 2011-2013 01
008 15243632 APPLIQUE, RR S/D T/PNL (PART OF 16) (SAPELE) (USE W/NUT 11503417 QTY 7 FOR 08QTY 4 FOR 09 AND LATER) DR35-69 (EXPORT) 2010-2013 01
008 15243633 APPLIQUE, RR S/D T/PNL (PART OF 16) (SAPELE) (USE W/NUT 11503417 QTY 7 FOR 08QTY 4 FOR 09 AND LATER) DR35-69 (EXPORT) 2010-2013 01
009 11503417 NUT, M6.3 STMPD TYPE SR ZC (PART OF 16) 2010-2013 AR
010 25856525 LAMP, RR S/D WRNG (PART OF 16) (LED PIN SPOT) (14.691) D35 (TSQ) 2010-2012 02
011 BEZEL, RR S/D I/S HDL (PART OF 16) 2011-2013
012 15809005 BOLT, RR S/D TR (D40X1.46X12, 9.5THD) (3.682) D35-69 2010-2012 04
013 15871923 COVER, RR S/D PULL HDL (EBONY) (14.691) DM35-69 (4AL) 2010-2012 01
013 15871924 COVER, RR S/D PULL HDL (EBONY) (14.691) DM35-69 (4AL) 2010-2013 01
013 15871927 COVER, RR S/D PULL HDL (CASHMERE) (14.691) DM35-69 (4AC) 2010-2013 01
013 15871928 COVER, RR S/D PULL HDL (CASHMERE) (14.691) DM35-69 (4AC) 2010-2013 01
013 25914599 COVER, RR S/D PULL HDL (TITANIUM) (14.691) DM35-69 (4AM) 2010-2013 01
013 25914600 COVER, RR S/D PULL HDL (TITANIUM) (14.691) DM35-69 (4AM) 2010-2013 01
013 15871923 COVER, RR S/D PULL HDL (EBONY) (14.691) DN (4AL, 4AR) 2011-2011 01
013 15871923 COVER, RR S/D PULL HDL (EBONY) (14.691) DR35-69 (4AL) (EXPORT) 2010-2012 01
013 15871924 COVER, RR S/D PULL HDL (EBONY) (14.691) DR35-69 (4AL) (EXPORT) 2010-2012 01
013 15871927 COVER, RR S/D PULL HDL (CASHMERE) (14.691) DR35-69 (4AC) (EXPORT) 2010-2013 01
013 15871928 COVER, RR S/D PULL HDL (CASHMERE) (14.691) DR35-69 (4AC) (EXPORT) 2010-2013 01
013 25914599 COVER, RR S/D PULL HDL (TITANIUM) (14.691) DR35-69 (4AM) (EXPORT) 2010-2013 01
013 25914600 COVER, RR S/D PULL HDL (TITANIUM) (14.691) DR35-69 (4AM) (EXPORT) 2010-2013 01
013 25914599 COVER, RR S/D PULL HDL (TITANIUM) (14.691) DN35 (4AM) 2011-2013 01
013 25914600 COVER, RR S/D PULL HDL (TITANIUM) (14.691) DN35-69 (4AM) 2011-2013 01
013 15871924 COVER, RR S/D PULL HDL (EBONY) (14.691) DN35 (4AL, 4AR) 2011-2013 01
014 03539184 BOLT, RR S/D PULL HDL (14.683) D35-69 2010-2013 04
015 25927101 CAP, RR S/D PULL HDL BOLT (EBONY) DM35-69 (4AL) 2010-2012 01
015 25927102 CAP, RR S/D PULL HDL BOLT (EBONY) DM35-69 (4AL) 2010-2012 01
015 25927105 CAP, RR S/D PULL HDL BOLT (CASHMERE) DM35-69 (4AC) 2010-2013 01
015 25927106 CAP, RR S/D PULL HDL BOLT (CASHMERE) DM35-69 (4AC) 2010-2013 01
015 25927111 CAP, RR S/D PULL HDL BOLT (TITANIUM) DM35-69 (4AM) 2010-2013 01
015 25927112 CAP, RR S/D PULL HDL BOLT (TITANIUM) DM35-69 (4AM) 2010-2013 01
015 25927101 CAP, RR S/D PULL HDL BOLT (EBONY) DR35-69 (4AL) (EXPORT) 2010-2012 01
015 25927102 CAP, RR S/D PULL HDL BOLT (EBONY) DR35-69 (4AL) (EXPORT) 2010-2012 01
015 25927105 CAP, RR S/D PULL HDL BOLT (CASHMERE) DR35-69 (4AC) (EXPORT) 2010-2013 01
015 25927106 CAP, RR S/D PULL HDL BOLT (CASHMERE) DR35-69 (4AC) (EXPORT) 2010-2013 01
015 25927111 CAP, RR S/D PULL HDL BOLT (TITANIUM) DR35-69 (4AM) (EXPORT) 2010-2013 01
015 25927112 CAP, RR S/D PULL HDL BOLT (TITANIUM) DR35-69 (4AM) (EXPORT) 2010-2013 01
015 25927101 CAP, RR S/D PULL HDL BOLT (EBONY) DN35 (4AL, 4AR) 2011-2011 01
015 25927102 CAP, RR S/D PULL HDL BOLT (EBONY) DN35 (4AL, 4AR) 2011-2011 01
015 25927111 CAP, RR S/D PULL HDL BOLT (TITANIUM) DN35 (4AM) 2011-2013 01
015 25927112 CAP, RR S/D PULL HDL BOLT (TITANIUM) DN35 (4AM) 2011-2013 01
016 25924826 TRIM, RR S/D (INCLS 5-11, 17-24) (EBONY) DM35-69 (FBL, TSQ, 1AH, 2A5, 4AL) 2010-2011 01
016 25924829 TRIM, RR S/D (INCLS 5-11, 17-24) (EBONY) DM35-69 (FBL, TSQ, 1AH, 4AL) (EXC 2A5) 2010-2011 01
016 25924830 TRIM, RR S/D (INCLS 5-11, 17-24) (TITANIUM) DM35-69 (FBL, TSQ, 1AD, 4AM) (EXC 2A5) 2010-2011 01
016 25924841 TRIM, RR S/D (INCLS 5-11, 17-24) (EBONY) DM35-69 (FBL, TSQ, 1AH, 2A5, 4AL) 2010-2011 01
016 25924845 TRIM, RR S/D (INCLS 5-11, 17-24) (TITANIUM) DM35-69 (FBL, TSQ, 1AD, 4AM) (EXC 2A5) 2010-2011 01
016 20851036 TRIM, RR S/D (INCLS 5-11, 17-24) (EBONY) DN35-69 (FBY, TSQ, 1AH, 2CK, 4AL) 2011-2011 01
016 20851037 TRIM, RR S/D (INCLS 5-11, 17-24) (TITANIUM) DN35-69 (FBY, TSQ, 1AD, 2CK, 4AM) 2011-2011 01
016 25924838 TRIM, RR S/D (INCLS 5-11, 17-24) (EBONY) DN35-69 (FBY, TSQ, 1AH, 4AL) (EXC 2CK) 2011-2011 01
016 20851033 TRIM, RR S/D (INCLS 5-11, 17-24) (TITANIUM) DN35-69 (FBY, TSQ, 1AD, 2CK, 4AM) 2011-2011 01
016 20851034 TRIM, RR S/D (INCLS 5-11, 17-24) (CASHMERE) DN35-69 (FBY, TSQ, 1AE, 2CK, 4AR) 2011-2011 01
016 20851038 TRIM, RR S/D (INCLS 5-11, 17-24) (CASHMERE) DN35-69 (FBY, TSQ, 1AE, 2CK, 4AR) 2011-2011 01
016 25924824 TRIM, RR S/D (INCLS 5-11, 17-24) (TITANIUM) DN35-69 (FBY, TSQ, 1AD, 4AM) (EXC 2CK) 2011-2011 01
016 25924839 TRIM, RR S/D (INCLS 5-11, 17-24) (TITANIUM) DN35-69 (FBY, TSQ, 1AD, 4AM) (EXC 2CK) 2011-2011 01
016 25924840 TRIM, RR S/D (INCLS 5-11, 17-24) (CASHMERE) DN35-69 (FBY, TSQ, 1AE, 4AR) (EXC 2CK) 2011-2011 01
016 22773384 TRIM, RR S/D (INCLS 5-11, 17-24) (EBONY) DN35-69 (FBY, TSQ, 1AH, 4AL) (EXC 2CK) 2011-2011 01
016 22773664 TRIM, RR S/D (INCLS 5-11, 17-24) (EBONY) DN35-69 (FBY, TSQ, 1AH, 2CK, 4AL) 2011-2011 01
016 22773382 TRIM, RR S/D (INCLS 5-11, 17-24) (CASHMERE) DN35-69 (FBY, TSQ, 1AE, 4AR) (EXC 2CK) 2011-2011 01
016 22773376 TRIM, RR S/D (INCLS 5-11, 17-24) (CASHMERE) DM35-69 (FBL, TSQ, 1AE, 4AC) (EXC 2A5) 2010-2013 01
016 22850898 TRIM, RR S/D (INCLS 5-11, 17-24) (TITANIUM) DM35-69 (FBL, TSQ, 1AD, 2A5, 4AM) 2010-2013 01
016 22773355 TRIM, RR S/D (INCLS 5-11, 17-24) (CASHMERE) DM35-69 (FBL, TSQ, 1AE, 4AC) (EXC 2A5) 2010-2013 01
016 22773357 TRIM, RR S/D (INCLS 5-11, 17-24) (EBONY) DM35-69 (FBL, TSQ, 1AH, 4AL) (EXC 2A5) 2010-2011 01
016 22850897 TRIM, RR S/D (INCLS 5-11, 17-24) (CASHMERE) DM35-69 (FBL, TSQ, 1AE, 2A5, 4AC) 2010-2013 01
016 22850918 TRIM, RR S/D (INCLS 5-11, 17-24) (TITANIUM) DM35-69 (FBL, TSQ, 1AD, 2A5, 4AM) 2010-2013 01
016 22850917 TRIM, RR S/D (INCLS 5-11, 17-24) (CASHMERE) DM35-69 (FBL, TSQ, 1AE, 2A5, 4AC) 2010-2013 01
016 25924826 TRIM, RR S/D (INCLS 5-11, 17-24) (EBONY) DR35-69 (FBL, TSQ, 1AH, 2A5, 4AL) (EXC TID) (EXPORT) 2010-2011 01
016 25924829 TRIM, RR S/D (INCLS 5-11, 17-24) (EBONY) DR35-69 (FBL, TSQ, 1AH, 4AL) (EXC 2A5) (EXPORT) 2010-2011 01
016 25924830 TRIM, RR S/D (INCLS 5-11, 17-24) (TITANIUM) DR35-69 (FBL, TSQ, 1AD, 4AM) (EXC 2A5) (EXPORT) 2010-2011 01
016 25924841 TRIM, RR S/D (INCLS 5-11, 17-24) (EBONY) DR35-69 (FBL, TSQ, 1AH, 2A5, 4AL) (EXPORT) 2010-2011 01
016 25924845 TRIM, RR S/D (INCLS 5-11, 17-24) (TITANIUM) DR35-69 (FBL, TSQ, 1AD, 4AM) (EXC 2A5) (EXPORT) 2010-2011 01
016 22773376 TRIM, RR S/D (INCLS 5-11, 17-24) (CASHMERE) DR35-69 (FBL, TSQ, 1AE, 4AC) (EXC 2A5) (EXPORT) 2010-2013 01
016 22850898 TRIM, RR S/D (INCLS 5-11, 17-24) (TITANIUM) DR35-69 (FBL, TSQ, 1AD, 2A5, 4AM) (EXPORT) 2010-2013 01
016 22773355 TRIM, RR S/D (INCLS 5-11, 17-24) (CASHMERE) DR35-69 (FBL, TSQ, 1AE, 4AC) (EXC 2A5) (EXPORT) 2010-2013 01
016 22773357 TRIM, RR S/D (INCLS 5-11, 17-24) (EBONY) DR35-69 (FBL, TSQ, 1AH, 4AL) (EXC 2A5) (EXPORT) 2010-2011 01
016 22850897 TRIM, RR S/D (INCLS 5-11, 17-24) (CASHMERE) DR35-69 (FBL, TSQ, 1AE, 2A5, 4AC) (EXPORT) 2010-2013 01
016 22850918 TRIM, RR S/D (INCLS 5-11, 17-24) (TITANIUM) DR35-69 (FBL, TSQ, 1AD, 2A5, 4AM) (EXPORT) 2010-2013 01
016 22850917 TRIM, RR S/D (INCLS 5-11, 17-24) (CASHMERE) DR35-69 (FBL, TSQ, 1AE, 2A5, 4AC) (EXPORT) 2010-2013 01
017 10359030 LAMP, CTSY (S/D LAMP) (PART OF 16) (INCLS 18) D 2010-2013 04
018 19115808 BULB, FRT S/D C/LP (PART OF 16, 17) (8.991) (ACDelco #19115808) D 2010-2013 02
019 20845791 SWITCH, RR S/D WDO (PART OF 16) (ARGENT) D35-69 2010-2013 02
020 15867926 BEZEL, RR S/D WDO SW (PART OF 16) (EBONY) DM35-69 (FBL, 1AH, 4AL) 2010-2013 01
020 15867927 BEZEL, RR S/D WDO SW (PART OF 16) (EBONY) DM35-69 (FBL, 1AH, 4AL) 2010-2013 01
020 15867930 BEZEL, RR S/D WDO SW (PART OF 16) (CASHMERE) DM35-69 (FBL, 1AE, 4AC) 2010-2011 01
020 15867931 BEZEL, RR S/D WDO SW (PART OF 16) (CASHMERE) DM35-69 (FBL, 1AE, 4AC) 2010-2011 01
020 25920874 BEZEL, RR S/D WDO SW (PART OF 16) (LT TITANIUM) D35 (FBL, 1AD, 4AM) 2010-2013 01
020 25920875 BEZEL, RR S/D WDO SW (PART OF 16) (LT TITANIUM) D35 (FBY, FBL, 1AD, 4AM) 2011-2012 01
020 15867926 BEZEL, RR S/D WDO SW (PART OF 16) (EBONY) DN35-69 (4AL) 2011-2013 01
020 15867926 BEZEL, RR S/D WDO SW (PART OF 16) (EBONY) DR35-69 (FBL, 1AH, 4AL) (EXPORT) 2010-2013 01
020 15867927 BEZEL, RR S/D WDO SW (PART OF 16) (EBONY) DR35-69 (FBL, 1AH, 4AL) (EXPORT) 2010-2013 01
020 15867930 BEZEL, RR S/D WDO SW (PART OF 16) (CASHMERE) DR35-69 (FBL, 1AE, 4AC) (EXPORT) 2010-2013 01
020 15867931 BEZEL, RR S/D WDO SW (PART OF 16) (CASHMERE) DR35-69 (FBL, 1AE, 4AC) (EXPORT) 2010-2013 01
020 15867931 BEZEL, RR S/D WDO SW (PART OF 16) (CASHMERE) DR35 (FBL, 1AE, 4AC) (EXPORT) 2010-2013 01
021 25725733 SPEAKER, RDO RR S/D (PART OF 16) (ACDelco #25725733) D35 2010-2013 02
022 15809005 BOLT, RDO RR SPKR (PART OF 16) (D40X1.46X12, 9.5THD) (3.682) D35 2010-2013 04
023 20919360 HARNESS, RR S/D WRG (PART OF 16) DM35-69 (TSQ) 2010-2013 02
023 20919360 HARNESS, RR S/D WRG (PART OF 16) DR35-69 (TSQ) (EXPORT) 2010-2013 02
024 11519032 RETAINER, PUSH IN, 19.5X28.4X1.8, FITS HOLE 9.1, ACETAL, BLK (PART OF 16) 2010-2013 03
025 20310739 NUT, RR S/D PULL HDL (3.125 MM) (RECTANGULAR NYLON) (14.690) D35 2010-2013 04
