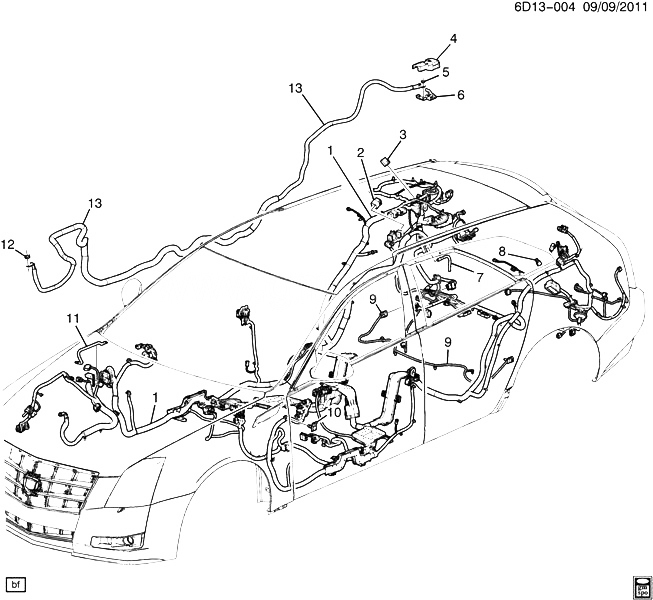

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20941683 |
HARNESS, BODY WRG (INCLS 2-8, 11, 13) |
DM35 (A45, N38, UQA) (EXC T79) |
2011-2011 |
01 |
| 001 |
20941687 |
HARNESS, BODY WRG (INCLS 2-8, 11, 13) |
DM35 (N38, UQ3, U2S) (EXC T79) |
2011-2011 |
01 |
| 001 |
20941691 |
HARNESS, BODY WRG (INCLS 2-8, 11, 13) |
DM35 (UQS, U2X) (EXC N38) |
2011-2011 |
01 |
| 001 |
20941692 |
HARNESS, BODY WRG (INCLS 2-8, 11, 13) |
DM35 (N38, UQS, U2X) |
2011-2011 |
01 |
| 001 |
20941696 |
HARNESS, BODY WRG (INCLS 2-8, 11, 13) |
DM35 (UQS, U2Y) (EXC N38) |
2011-2011 |
01 |
| 001 |
20941698 |
HARNESS, BODY WRG (INCLS 2-8, 11, 13) |
DM35 (N38, UQS, U2Y) |
2011-2011 |
01 |
| 001 |
20982019 |
HARNESS, BODY WRG (INCLS 2-8, 11, 13) |
DN35 (UAV) |
2011-2011 |
01 |
| 001 |
22751318 |
HARNESS, BODY WRG (INCLS 2-8, 11, 13) |
DM35 (A45, UQA) (EXC N38, T79) |
2011-2011 |
01 |
| 001 |
22751320 |
HARNESS, BODY WRG (INCLS 2-8, 11, 13) |
DM35 (UQA) (EXC A45, T79) |
2011-2011 |
01 |
| 001 |
22751322 |
HARNESS, BODY WRG (INCLS 2-8, 11, 13) |
DM35 (UQS, U2S) (EXC N38, T79) |
2011-2011 |
01 |
| 001 |
22751327 |
HARNESS, BODY WRG (INCLS 2-8, 11, 13) |
DM35 (UAV, UQS) (EXC N38) |
2011-2011 |
01 |
| 001 |
22751333 |
HARNESS, BODY WRG (INCLS 2-8, 11, 13) |
DM35 (N38, UAV, UQS) |
2011-2011 |
01 |
| 001 |
20941679 |
HARNESS, BODY WRG (INCLS 2-8, 11, 13) |
DR35 (UQS) (EXC BTM) (EXPORT) |
2011-2011 |
01 |
| 001 |
20941697 |
HARNESS, BODY WRG (INCLS 2-8, 11, 13) |
DM35 (T79, UQA) (EXC A45) (EXPORT) |
2011-2011 |
01 |
| 001 |
22751311 |
HARNESS, BODY WRG (INCLS 2-8, 11, 13) |
DR35 (BTM, UQS) (EXPORT) |
2011-2011 |
01 |
| 001 |
22751329 |
HARNESS, BODY WRG (INCLS 2-8, 11, 13) |
DM35 (A45, T79, UQA) (EXC N38, T94) (EXPORT) |
2011-2011 |
01 |
| 002 |
20794058 |
RELAY, MULTIUSE (PART OF 1) (ACDelco #20794058) |
DM35-69 (N38) |
2010-2012 |
01 |
| 002 |
20794058 |
RELAY, MULTIUSE (PART OF 1) (ACDelco #20794058) |
DN35 (UAV) |
2011-2012 |
01 |
| 002 |
20794058 |
RELAY, MULTIUSE (PART OF 1) (ACDelco #20794058) |
DM35 (UAV) |
2011-2012 |
01 |
| 002 |
20794058 |
RELAY, MULTIUSE (PART OF 1) (ACDelco #20794058) |
DR35-69 (N38) (EXPORT) |
2010-2012 |
01 |
| 003 |
15319477 |
FUSE, 30AMP, PINK, J-CASE, FEMALE, REGULAR (PART OF 1) |
|
2010-2011 |
01 |
| 004 |
|
COVER, BAT POS CBL TERM (PART OF 1) |
|
2010-2013 |
|
| 005 |
|
NUT, BAT CBL TERM (PART OF 1) |
|
2010-2013 |
|
| 006 |
20794153 |
TERMINAL, BAT POS CBL (PART OF 1) |
D35-47-69 |
2011-2012 |
01 |
| 007 |
|
HOSE, BAT VENT (PART OF 1) |
|
2010-2013 |
|
| 008 |
88988999 |
RESISTOR, DATA LINK (PART OF 1) (BLACK) (121 OHMS) (2-WAY MALE) |
DM35 |
2010-2012 |
01 |
| 008 |
88988999 |
RESISTOR, DATA LINK (PART OF 1) (BLACK) (121 OHMS) (2-WAY MALE) |
DN35 |
2011-2012 |
01 |
| 008 |
88988999 |
RESISTOR, DATA LINK (LAN TERMINATOR) (PART OF 1) (BLACK) (121 OHMS) (2-WAY MALE) (ACDelco #88988999) |
DR35 (EXPORT) |
2010-2012 |
01 |
| 009 |
20896564 |
HARNESS, CHAS RR WRG |
DM35-69 (JJM) |
2011-2011 |
01 |
| 009 |
20836058 |
HARNESS, CHAS RR WRG |
DN |
2011-2013 |
01 |
| 009 |
20896565 |
HARNESS, CHAS RR WRG |
DR35 (JJM) (EXPORT) |
2011-2011 |
01 |
| 010 |
11609599 |
STUD, SPL, M6X1X25, 13 THD, 11 OD HD W/26 WIDE CLIP, 9.8, 6280M, P-PT (BODY WRG HARN CONN BRKT) |
|
2010-2013 |
02 |
| 011 |
20758193 |
HOSE, R/WDO WA PUMP (PART OF 1) |
D35 |
2010-2011 |
01 |
| 012 |
11609412 |
NUT, HEX W/CON WA, M8X1.25, 7.5 THK, 19 OD, 10 STL, GMW3200 (BAT POS CBL) |
|
2010-2013 |
01 |
| 013 |
20794102 |
CABLE, BAT POS (PART OF 1) (ACDelco #20794102) |
DM35 |
2010-2012 |
01 |
| 013 |
20794102 |
CABLE, BAT POS (PART OF 1) (ACDelco #20794102) |
DN35 |
2011-2012 |
01 |
| 013 |
20794102 |
CABLE, BAT POS (PART OF 1) (ACDelco #20794102) |
DR35 (EXPORT) |
2011-2012 |
01 |
