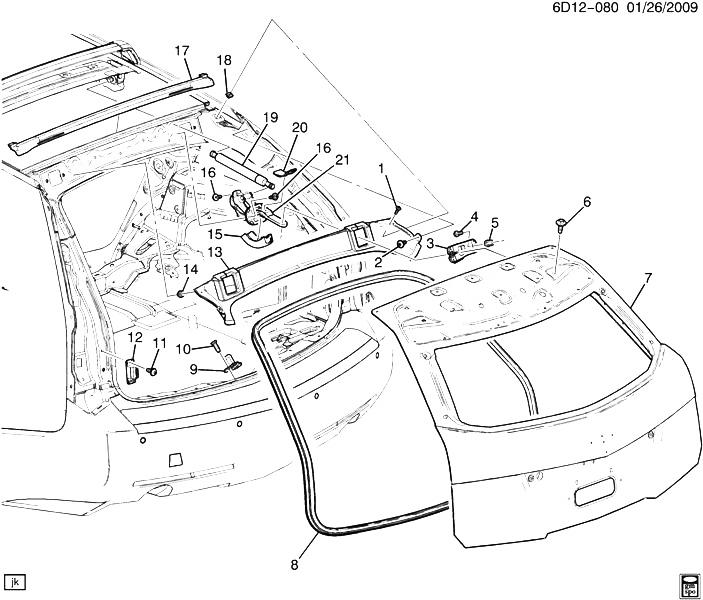

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11609457 |
SCREW, ROUNDWA, M4.2X1.41X20, 14.1 THD, 11.35 OD, 6010M, GMW4205, TAP, (Q/PNL UPR RR MLDG) |
|
2010-2013 |
02 |
| 002 |
11569915 |
BOLT, T/LP (M6X1X19, 13.55) (17.070) |
DM35 |
2010-2013 |
02 |
| 002 |
11569915 |
BOLT, T/LP (M6X1X19, 13.55) (17.070) |
DN35 |
2011-2013 |
02 |
| 002 |
11569915 |
BOLT, T/LP (M6X1X19, 13.55) (17.070) |
DR35 (EXPORT) |
2010-2013 |
02 |
| 003 |
12791802 |
SEAL, L/GATE HGE |
DM35 |
2010-2012 |
01 |
| 003 |
12791802 |
SEAL, L/GATE HGE |
DR35 (EXPORT) |
2010-2012 |
01 |
| 003 |
12795203 |
SEAL, L/GATE HGE (12.181) |
DM35 |
2010-2012 |
01 |
| 003 |
12795203 |
SEAL, L/GATE HGE (12.181) |
DR35 (EXPORT) |
2010-2012 |
01 |
| 004 |
11571248 |
BOLT, L/GATE HGE SEAL (12.237) |
DM35 |
2010-2013 |
04 |
| 004 |
11571248 |
BOLT, L/GATE HGE SEAL (12.237) |
DR35 (EXPORT) |
2010-2013 |
04 |
| 005 |
11610646 |
NUT, L/GATE HGE REINF (BODY SI) (PART OF 7) |
DM, DN35 |
2011-2013 |
02 |
| 005 |
11610646 |
NUT, L/GATE HGE REINF (BODY SI) (PART OF 7) |
DR35 (EXPORT) |
2010-2013 |
02 |
| 006 |
11519388 |
BOLT, HX HD CON WA, M8X1.25X25, 20 THD, 24 OD, 8.8, GMW3359 (SILVER), M-POINT (L/GATE HGE (L/GATE SI)) |
|
2010-2013 |
04 |
| 007 |
20825080 |
GATE, LIFT (INCLS 5) |
D35 (VL5) |
2010-2011 |
01 |
| 007 |
20928189 |
GATE, LIFT (INCLS 5) |
D35 (EXC VL5) |
2010-2011 |
01 |
| 008 |
25929130 |
WEATHERSTRIP, L/GATE |
D35 |
2010-2013 |
01 |
| 008 |
20954788 |
WEATHERSTRIP, L/GATE |
D35 |
2010-2013 |
01 |
| 009 |
15929713 |
STRIKER, L/GATE LAT |
DM35 |
2010-2013 |
01 |
| 009 |
15929713 |
STRIKER, L/GATE LAT |
DN35 |
2011-2013 |
01 |
| 009 |
15929713 |
STRIKER, L/GATE LAT |
DR35 (EXPORT) |
2010-2013 |
01 |
| 010 |
11518445 |
SCREW, FLAT-HD HEX ALLEN, CSINK, M8X1.25X25, 18.05 THD, 14.7 OD, 8.8, GMW3044. (L/GATE LAT STKR) |
|
2010-2013 |
02 |
| 011 |
11609657 |
SCREW, PANWASH, M6X1X20, 16.3 THD, 15 OD, 9.8, GMW4205 (L/GATE TR FIN PNL) |
|
2010-2013 |
04 |
| 012 |
25808027 |
WEDGE, L/GATE (BODY SI) |
DM35 |
2010-2013 |
02 |
| 012 |
25808027 |
WEDGE, L/GATE (BODY SI) |
DR35 (EXPORT) |
2010-2013 |
02 |
| 012 |
25808027 |
WEDGE, L/GATE (BODY SI) |
DR35 (EXPORT) |
2010-2013 |
02 |
| 013 |
25866778 |
MOLDING, Q/PNL UPR RR (INCLS 14) |
D35 |
2010-2013 |
01 |
| 014 |
11569810 |
RETAINER, Q/PNL UPR MLDG (PART OF 13) (USE IN A 0.7-1.3 THICK PANEL) (PUSH-IN W/SEAL) (U-SHAPED HEAD) (12.800) |
DM35 |
2010-2013 |
05 |
| 014 |
11569810 |
RETAINER, Q/PNL UPR MLDG (PART OF 13) (USE IN A 0.7-1.3 THICK PANEL) (PUSH-IN W/SEAL) (U-SHAPED HEAD) (12.800) |
DN35 |
2011-2013 |
05 |
| 014 |
11569810 |
RETAINER, Q/PNL UPR MLDG (PART OF 13) (USE IN A 0.7-1.3 THICK PANEL) (PUSH-IN W/SEAL) (U-SHAPED HEAD) (12.800) |
DR35 (EXPORT) |
2010-2013 |
05 |
| 015 |
12792032 |
COVER, L/GATE HGE (LOWER) (U-SHAPED) |
D35 |
2010-2013 |
02 |
| 016 |
11570646 |
BOLT, L/GATE HGE (BODY SI) (USE T/W ADHESIVE 89021297) |
DM35 |
2010-2013 |
06 |
| 016 |
11570646 |
BOLT, L/GATE HGE (BODY SI) (USE T/W ADHESIVE 89021297) |
DN35 |
2011-2013 |
06 |
| 016 |
11570646 |
BOLT, L/GATE HGE (BODY SI) (USE T/W ADHESIVE 89021297) |
DR35 (EXPORT) |
2010-2013 |
06 |
| 017 |
20908086 |
WEATHERSTRIP, L/GATE UPR |
D35 |
2010-2013 |
01 |
| 018 |
11610510 |
NUT, PUSH-IN, M4.2X1.41, 0.7-2.15 PNL THK, SAE 1050-65, GMW3359 W/BLK SEAL (Q/PNL UPR APLQ) |
|
2010-2013 |
02 |
| 019 |
20906657 |
STRUT, L/GATE |
DN35 |
2011-2013 |
02 |
| 019 |
20906657 |
STRUT, L/GATE |
DM35 |
2010-2013 |
02 |
| 019 |
20906657 |
STRUT, L/GATE |
DR35 (EXPORT) |
2010-2013 |
02 |
| 020 |
12792034 |
COVER, L/GATE HGE |
D35 |
2010-2013 |
02 |
| 021 |
20909797 |
HINGE, L/GATE |
DM35 |
2010-2013 |
01 |
| 021 |
20909797 |
HINGE, L/GATE |
DN35 |
2011-2013 |
01 |
| 021 |
20909798 |
HINGE, L/GATE |
DN35 |
2011-2013 |
01 |
| 021 |
20909798 |
HINGE, L/GATE |
DM35 |
2010-2013 |
01 |
| 021 |
20909797 |
HINGE, L/GATE |
DR35 (EXPORT) |
2010-2013 |
01 |
| 021 |
20909798 |
HINGE, L/GATE |
DR35 (EXPORT) |
2010-2013 |
01 |
