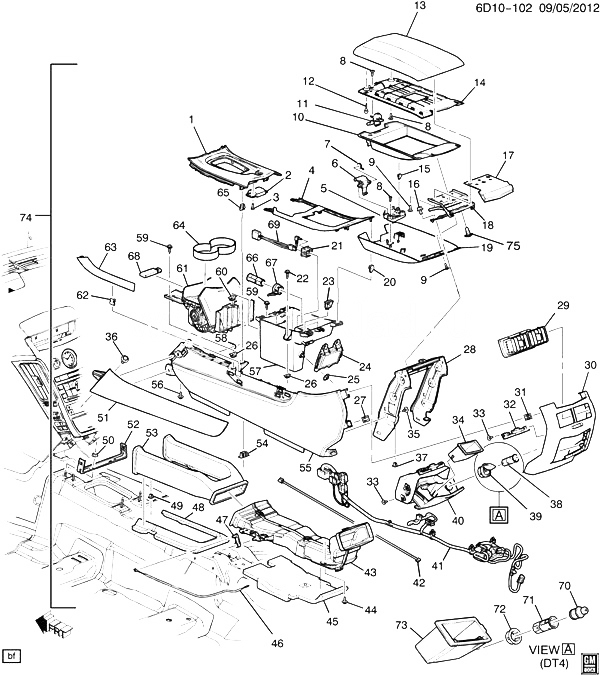

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20933023 |
PLATE, F/FLR CNSL TRANS SHFT OPG TR (SEE GROUP 04.000 SHIFT CONTROL/AUTOMATIC TRANSMISSION FOR DETAILED ILLUSTRATED VIEW) (INCLS 2, 3, 65) (V-BLACK) |
DN35-47-69 (MG9, 4AL, 4AM, 4AR, 4BZ) |
2011-2011 |
01 |
| 001 |
20960680 |
PLATE, F/FLR CNSL TRANS SHFT OPG TR (SEE GROUP 04.000 SHIFT CONTROL/AUTOMATIC TRANSMISSION FOR DETAILED ILLUSTRATED VIEW) (INCLS 2, 3, 65) (SILVER) (FILM) (W/O PARK BRAKE SWITCH) |
D35 (MYA, MYB, 4AC, 4AL, 4AM) |
2010-2011 |
01 |
| 001 |
20933025 |
PLATE, F/FLR CNSL TRANS SHFT OPG TR (SEE GROUP 04.000 SHIFT CONTROL/AUTOMATIC TRANSMISSION FOR DETAILED ILLUSTRATED VIEW) (INCLS 2, 3, 65) |
DM (MV7, 19I, 39I, 84I) |
2010-2013 |
01 |
| 001 |
20933025 |
PLATE, F/FLR CNSL TRANS SHFT OPG TR (SEE GROUP 04.000 SHIFT CONTROL/AUTOMATIC TRANSMISSION FOR DETAILED ILLUSTRATED VIEW) (INCLS 2, 3, 65) |
DM (MV7, 19I, 39I, 89I) |
2010-2013 |
01 |
| 001 |
20960677 |
PLATE, F/FLR CNSL TRANS SHFT OPG TR (SEE GROUP 04.000 SHIFT CONTROL/AUTOMATIC TRANSMISSION FOR DETAILED ILLUSTRATED VIEW) (INCLS 2, 3, 65) (SILVER) (W/ PART BRAKE SWITCH) |
DR (MYA, MYB, 4AC, 4AL, 4AM) (EXPORT) |
2010-2012 |
01 |
| 001 |
20960678 |
BEZEL, F/FLR CNSL TRANS SHFT OPG (SEE GROUP 04.000 SHIFT CONTROL/AUTOMATIC TRANSMISSION FOR DETAILED ILLUSTRATED VIEW) (INCLS 2, 3, 65) (V-BLACK) |
DN (MYD, 4AL, 4AM, 4AR, 4BZ) |
2011-2012 |
01 |
| 002 |
|
COVER, F/FLR CNSL FRT (PART OF 1) |
|
2011-2012 |
|
| 003 |
11509231 |
SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (PART OF 1) |
|
2010-2013 |
03 |
| 004 |
25905699 |
PLATE, F/FLR CNSL TR (INCLS 20) (SILVER) (W/CLIPS) |
D35 |
2010-2013 |
01 |
| 004 |
25943884 |
PLATE, F/FLR CNSL TR (INCLS 20) (BLACK) |
DN |
2011-2012 |
01 |
| 004 |
22983573 |
PLATE, F/FLR CNSL TR (INCLS 20) (PIANO BLACK) |
DN |
2011-2012 |
01 |
| 005 |
25862930 |
RETAINER, F/FLR CNSL COMPT DR LAT (PUSH ON) (LWR A/RST LATCH) (PART OF 13) (*KIT2) |
D35 |
2010-2013 |
01 |
| 006 |
25903344 |
LATCH, F/FLR COMPT DR (LWR A/RST LATCH) (PART OF 13) (*KIT2) |
D35 |
2010-2013 |
01 |
| 007 |
25903345 |
SPRING, F/FLR FRT CNSL COMPT DR (LWR) (PART OF 13) (*KIT2) |
D35 |
2010-2013 |
01 |
| 008 |
11509231 |
SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (PART OF 13) |
|
2010-2013 |
05 |
| 009 |
11509231 |
SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (PART OF 13) |
|
2010-2013 |
06 |
| 010 |
|
TRAY, F/FLR CNSL STOW (PART OF 13) |
|
2011-2012 |
|
| 011 |
25862928 |
LATCH, F/FLR CNSL A/RST (PART OF 13) (UPR) |
D35 |
2010-2013 |
01 |
| 012 |
10215230 |
BUMPER, F/FLR CNSL COMPT DR (PART OF 13) (APPROX LENGTH 15.8M) (10.565) |
D35-69 |
2010-2013 |
02 |
| 013 |
25918862 |
ARMREST, F/FLR CNSL (INCLS 5-12, 14, 15, 17-19, 75) (LT TITANIUM) (PROTEIN VINYL) |
D35-69 (01C) |
2010-2013 |
01 |
| 013 |
20978815 |
ARMREST, F/FLR CNSL (INCLS 5-12, 14, 15, 17-19, 75) (EBONY) |
DM (01G) |
2010-2011 |
01 |
| 013 |
20978815 |
ARMREST, F/FLR CNSL (INCLS 5-12, 14, 15, 17-19, 75) (EBONY) |
DN (01D, 01G) |
2011-2011 |
01 |
| 013 |
20978814 |
ARMREST, F/FLR CNSL (INCLS 5-12, 14, 15, 17-19, 75) (CASHMERE) |
DM, DN (01D) |
2010-2013 |
01 |
| 013 |
25918862 |
ARMREST, F/FLR CNSL (INCLS 5-12, 14, 15, 17-19, 75) (LT TITANIUM) (PROTEIN VINYL) |
D35 (01C) |
2010-2013 |
01 |
| 013 |
20978815 |
ARMREST, F/FLR CNSL (INCLS 5-12, 14, 15, 17-19, 75) (EBONY) |
DR (01G) (EXPORT) |
2010-2011 |
01 |
| 013 |
20978814 |
ARMREST, F/FLR CNSL (INCLS 5-12, 14, 15, 17-19, 75) (CASHMERE) |
DR (01D) (EXPORT) |
2010-2013 |
01 |
| 014 |
|
TRAY, F/FLR CNSL STOW (PART OF 13) |
|
2011-2012 |
|
| 015 |
11570189 |
CLIP, F/FLR CNSL A/RST (A/RST BIN TO LWR RET) (PART OF 13) (15 X 11 X 8) (FITS 6 X 20 HOLE) |
DM |
2010-2013 |
03 |
| 015 |
11570189 |
CLIP, F/FLR CNSL A/RST (A/RST BIN TO LWR RET) (PART OF 13) (15 X 11 X 8) (FITS 6 X 20 HOLE) |
DN |
2011-2013 |
03 |
| 015 |
11570189 |
CLIP, F/FLR CNSL A/RST (A/RST BIN TO LWR RET) (PART OF 13) (15 X 11 X 8) (FITS 6 X 20 HOLE) |
DR (EXPORT) |
2010-2013 |
03 |
| 016 |
11516421 |
BOLT, HFH, M6X1X10, 14.2 O.D., 9.8, 7114M (F/FLR CNSL A/RST HGE) |
|
2010-2013 |
03 |
| 017 |
20786772 |
COVER, F/FLR CNSL A/RST HGE (PART OF 13) (CASHMERE) |
D35 (01D) |
2010-2013 |
01 |
| 017 |
20786773 |
COVER, F/FLR CNSL A/RST HGE (PART OF 13) (EBONY) |
D35 (01G) |
2010-2011 |
01 |
| 017 |
20786774 |
COVER, F/FLR CNSL A/RST HGE (PART OF 13) (TITANIUM) |
D35 (01C) |
2010-2013 |
01 |
| 018 |
15951262 |
HINGE, F/FLR CNSL COMPT DR (PART OF 13) (BLACK) |
D35-69 |
2010-2013 |
01 |
| 019 |
|
ARMREST, F/FLR CNSL (PART OF 13) |
|
2011-2012 |
|
| 020 |
11570189 |
CLIP, F/FLR CNSL TR PLT (PART OF 4) (15 X 11 X 8) (FITS 6 X 20 HOLE) |
DR |
2011-2013 |
04 |
| 020 |
11570189 |
CLIP, F/FLR CNSL TR PLT (PART OF 4) (15 X 11 X 8) (FITS 6 X 20 HOLE) |
D35 |
2010-2013 |
04 |
| 021 |
25814513 |
BRACKET, DIGITAL RDO RCVR |
DM, DN (UAV, U2S, U2X, U2Y) |
2010-2013 |
01 |
| 021 |
25814514 |
BRACKET, DIGITAL RDO RCVR |
DM, DN (U2R, U2T) |
2010-2013 |
01 |
| 021 |
25814513 |
BRACKET, DIGITAL RDO RCVR |
DR (UAV, U2S, U2X, U2Y) (EXPORT) |
2010-2013 |
01 |
| 021 |
25814514 |
BRACKET, DIGITAL RDO RCVR |
DR (U2R, U2T) (EXPORT) |
2010-2013 |
01 |
| 022 |
11609539 |
SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (F/FLR CNSL COMPT) |
|
2010-2013 |
04 |
| 023 |
15907929 |
RETAINER, F/FLR CNSL COMPT (KEY FOB PKT) |
D35 |
2010-2013 |
01 |
| 024 |
25730079 |
ANTENNA, IGN LK KEY XMTR (BLACK) (95 X 114 X 22) (F/FLR) (ACTIVE ANTENNA W/5 PIN CONN) |
D35 |
2010-2013 |
01 |
| 025 |
11502553 |
NUT, STAMPED, M6.3 STUD, SELF THD, STL, PC (R/CON DR LK RCVR ANT) |
|
2010-2013 |
03 |
| 026 |
11589183 |
NUT, PUSH IN, W/SEAL, 4.2X1.41, 6.35-6.48 SQ HL, 9.5 SQ HD, 0.787-2.765 PNL THK, NYL (PART OF 55, 74) |
|
2011-2013 |
01 |
| 027 |
11570189 |
CLIP, F/FLR CNSL SI T/PNL (SI PNL TO END CAP (CVR)) (PART OF 55, 74) (15 X 11 X 8) (FITS 6 X 20 HOLE) |
D35 |
2011-2013 |
02 |
| 028 |
15848492 |
BRACKET, F/FLR CNSL RR (PART OF 74) (INCLS 37) |
DM, DN |
2010-2013 |
01 |
| 028 |
15848492 |
BRACKET, F/FLR CNSL RR (PART OF 74) (INCLS 37) |
DR (EXPORT) |
2010-2013 |
01 |
| 029 |
25770289 |
OUTLET, AUX FLR AIR (EBONY) (*KIT1) |
D |
2010-2013 |
01 |
| 030 |
15923601 |
COVER, F/FLR CNSL RR (TITANIUM) (CVR ONLY) (*KIT1) |
DN (01C) |
2011-2013 |
01 |
| 030 |
15923602 |
COVER, F/FLR CNSL RR (CASHMERE) (CVR ONLY) (*KIT1) |
DM (01D) |
2011-2013 |
01 |
| 030 |
25918852 |
COVER, F/FLR CNSL RR (TITANIUM) (W/O COMPT) (*KIT1) |
D35-47 (01C) |
2011-2013 |
01 |
| 030 |
15923602 |
COVER, F/FLR CNSL RR (CASHMERE) (CVR ONLY) (*KIT1) |
DN35 (01D) |
2011-2013 |
01 |
| 030 |
15923600 |
COVER, F/FLR CNSL RR (EBONY) (CVR ONLY) (*KIT1) |
D35 (01G) |
2010-2013 |
01 |
| 030 |
15923602 |
COVER, F/FLR CNSL RR (CASHMERE) (CVR ONLY) (*KIT1) |
DR (01D) (EXPORT) |
2011-2013 |
01 |
| 031 |
11570189 |
CLIP, F/FLR CNSL RR CVR (15 X 11 X 8) (FITS 6 X 20 HOLE) (*KIT1) |
DM |
2010-2013 |
04 |
| 031 |
11570189 |
CLIP, F/FLR CNSL RR CVR (15 X 11 X 8) (FITS 6 X 20 HOLE) (*KIT1) |
DN |
2011-2013 |
04 |
| 031 |
11570189 |
CLIP, F/FLR CNSL RR CVR (15 X 11 X 8) (FITS 6 X 20 HOLE) (*KIT1) |
DR (EXPORT) |
2010-2013 |
04 |
| 032 |
|
CONTROL, VENT (*KIT1) |
|
2011-2012 |
|
| 033 |
11509231 |
SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (F/FLR CNSL RR CVR) (*KIT1) |
|
2010-2013 |
06 |
| 034 |
15848491 |
COMPARTMENT, F/FLR CNSL RR (PART OF 40) (NO FINISH) (ASHTRAY) (PO COMPRT ASM) (*KIT1) |
DM |
2010-2013 |
01 |
| 034 |
15848491 |
COMPARTMENT, F/FLR CNSL RR (PART OF 40) (NO FINISH) (ASHTRAY) (PO COMPRT ASM) (*KIT1) |
DN |
2011-2013 |
01 |
| 034 |
15848491 |
COMPARTMENT, F/FLR CNSL RR (PART OF 40) (NO FINISH) (ASHTRAY) (PO COMPRT ASM) (*KIT1) |
DR (EXPORT) |
2010-2013 |
01 |
| 035 |
11609492 |
BOLT, F/FLR FRT CNSL BRKT (8 X 1.25 X 372) (17.208) |
DM, DN |
2010-2013 |
06 |
| 035 |
11609492 |
BOLT, F/FLR FRT CNSL BRKT (8 X 1.25 X 372) (17.208) |
DR (EXPORT) |
2010-2013 |
06 |
| 036 |
11588337 |
BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (F/FLR CNSL) |
|
2010-2013 |
08 |
| 037 |
11589183 |
NUT, PUSH IN, W/SEAL, 4.2X1.41, 6.35-6.48 SQ HL, 9.5 SQ HD, 0.787-2.765 PNL THK, NYL (PART OF 28, 74) |
|
2010-2013 |
01 |
| 038 |
25774623 |
RECEPTACLE, ACSRY PWR (PART OF 40) (EBONY) (W/O COVER) (ACSRY PWR RECEPTACLE ASSEM LABELED 25774623) (12V) (*KIT1) |
D35 |
2010-2013 |
01 |
| 039 |
15187371 |
RETAINER, ACSRY PWR RCPT (PART OF 40) (EBONY) (INCLS COVER) (*KIT1) |
D |
2010-2013 |
01 |
| 040 |
15866927 |
COMPARTMENT, F/FLR CNSL RR (INCLS 34, 38, 39) (CASHMERE) (*KIT1) |
DM (01D) |
2010-2013 |
01 |
| 040 |
15866927 |
COMPARTMENT, F/FLR CNSL RR (INCLS 34, 38, 39) (CASHMERE) (*KIT1) |
DN35 (01D) |
2011-2013 |
01 |
| 040 |
22780555 |
COMPARTMENT, F/FLR CNSL RR (INCLS 34, 38, 39) (TITANIUM) (*KIT1) |
D35 (01C) |
2010-2013 |
01 |
| 040 |
22780552 |
COMPARTMENT, F/FLR CNSL RR (INCLS 34, 38, 39) (EBONY) (PO CVR ASM) (*KIT1) |
DM (01G) |
2010-2013 |
01 |
| 040 |
22780552 |
COMPARTMENT, F/FLR CNSL RR (INCLS 34, 38, 39) (EBONY) (PO CVR ASM) (*KIT1) |
DN (01G) |
2011-2013 |
01 |
| 040 |
22780553 |
COMPARTMENT, F/FLR CNSL RR (INCLS 34, 38, 39) (LT TITANIUM) (*KIT1) |
DN35 (01C) |
2011-2013 |
01 |
| 040 |
15866927 |
COMPARTMENT, F/FLR CNSL RR (INCLS 34, 38, 39) (CASHMERE) (*KIT1) |
DR (01D) (EXPORT) |
2010-2013 |
01 |
| 040 |
22780552 |
COMPARTMENT, F/FLR CNSL RR (INCLS 34, 38, 39) (EBONY) (PO CVR ASM) (*KIT1) |
DR (01G) (EXPORT) |
2010-2013 |
01 |
| 041 |
20877755 |
HARNESS, F/FLR CNSL WRG (INCLS 42) |
D35 (ATG, EBS, UAV, U2S, U2X, U2Y) (EXC J77) |
2010-2013 |
01 |
| 041 |
20877756 |
HARNESS, F/FLR CNSL WRG (INCLS 42) |
D35 (ATG, EBS, U2R, U2T) (EXC J77) |
2010-2013 |
01 |
| 041 |
20877756 |
HARNESS, F/FLR CNSL WRG (INCLS 42) |
D35 (EAM, U2R, U2T) (EXC J77) |
2010-2013 |
01 |
| 041 |
20877757 |
HARNESS, F/FLR CNSL WRG (INCLS 42) |
D35 (ATH, EBS, UAV, U2S, U2X, U2Y) (EXC J77) |
2010-2013 |
01 |
| 041 |
20877754 |
HARNESS, F/FLR CNSL WRG (INCLS 42) |
DN35-47-69 (ATH, ECH, UAV, U2S, U2X, U2Y) |
2011-2013 |
01 |
| 041 |
20877751 |
HARNESS, F/FLR CNSL WRG (INCLS 42) |
DR35 (ATG, EAM, J77, U2R) (EXPORT) |
2010-2013 |
01 |
| 041 |
20877751 |
HARNESS, F/FLR CNSL WRG (INCLS 42) |
DR35-69 (ATG, EBS, J77, U2R, U2T) (EXPORT) |
2010-2013 |
01 |
| 041 |
20877752 |
HARNESS, F/FLR CNSL WRG (INCLS 42) |
DR35-69 (ATG, EBS, J77, UAV, U2S, U2X, U2Y) (EXPORT) |
2010-2013 |
01 |
| 041 |
20877753 |
HARNESS, F/FLR CNSL WRG (INCLS 42) |
DR35-69 (ATH, EBS, J77, U2R, U2T) (EXPORT) |
2010-2013 |
01 |
| 041 |
20772306 |
HARNESS, F/FLR CNSL WRG (INCLS 42) |
DR35-69 (ATH, EBS, J77, UAV, U2X, U2Y) (EXPORT) |
2011-2011 |
01 |
| 041 |
20877754 |
HARNESS, F/FLR CNSL WRG (INCLS 42) |
DR35-69 (ATH, EBS, UAV, U2S, U2X, U2Y) (EXPORT) |
2011-2013 |
01 |
| 042 |
25833058 |
CABLE, AUDIO VIDEO MDL (I/P) (PART OF 41) (F/FLR) (ACDelco #25833058) |
D35-69 (U2R, U2T) |
2011-2013 |
01 |
| 042 |
25833059 |
CABLE, AUDIO VIDEO MDL (I/P) (PART OF 41) (F/FLR) (ACDelco #25833059) |
D35-47-69 (UAV, U2S, U2X, U2Y) |
2011-2013 |
01 |
| 043 |
25801211 |
DUCT, F/FLR CNSL RR AIR (PART OF 74) (INCLS 47) (INCLS LEVER) |
D35 |
2010-2013 |
01 |
| 044 |
11609462 |
SCREW, M4.2X1.41X13, GMW4205 (FLR RR AIR OTLT DUCT) |
|
2010-2013 |
03 |
| 045 |
|
INSULATOR, F/FLR CNSL RR AIR DUCT |
|
2011-2012 |
|
| 046 |
25801212 |
CABLE, MODE CONT |
D |
2010-2013 |
01 |
| 047 |
25781507 |
LEVER, F/FLR CNSL RR AIR VLV (PART OF 43, 74) |
D35-47-69 |
2011-2013 |
01 |
| 048 |
|
INSULATOR, F/FLR CNSL RR AIR DUCT |
|
2011-2012 |
|
| 049 |
11589183 |
NUT, PUSH IN, W/SEAL, 4.2X1.41, 6.35-6.48 SQ HL, 9.5 SQ HD, 0.787-2.765 PNL THK, NYL (FLR RR AIR DISTR) |
|
2010-2013 |
02 |
| 050 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (F/FLR CNSL FRT SUPT) |
|
2010-2013 |
02 |
| 051 |
22829349 |
PLATE, F/FLR CNSL TR (INCLS 20) (CASHMERE ONLY) |
D35-47-69 (01D) |
2011-2013 |
01 |
| 051 |
22829350 |
PLATE, F/FLR CNSL TR (INCLS 20) (LT TITANIUM/EBONY) |
D35-47-69 (01C) |
2011-2013 |
01 |
| 051 |
25977110 |
PANEL, F/FLR CNSL EXTN (PART OF 74) (TITANIUM) |
D35-47 (01C) |
2011-2013 |
01 |
| 051 |
22829339 |
PLATE, F/FLR CNSL TR (INCLS 20) (EBONY ONLY) |
D35-47-69 (01G) |
2011-2013 |
01 |
| 052 |
25762739 |
SUPPORT, F/FLR CNSL FRT |
D35 |
2010-2013 |
01 |
| 053 |
15843191 |
DUCT, F/FLR CNSL RR AIR (DUCT ONLY) (U SHAPED) |
DM |
2010-2013 |
01 |
| 053 |
15843191 |
DUCT, F/FLR CNSL RR AIR (DUCT ONLY) (U SHAPED) |
DR |
2010-2013 |
01 |
| 053 |
15843191 |
DUCT, F/FLR CNSL RR AIR (DUCT ONLY) (U SHAPED) |
DN |
2010-2013 |
01 |
| 054 |
11589183 |
NUT, PUSH IN, W/SEAL, 4.2X1.41, 6.35-6.48 SQ HL, 9.5 SQ HD, 0.787-2.765 PNL THK, NYL (PART OF 55, 74) |
|
2011-2013 |
02 |
| 055 |
22829333 |
PLATE, F/FLR CNSL TR (PLATE, F/FLR CNSL TR) (INCLS 20) (EBONY ONLY) |
D35-47-69 (01G) |
2011-2013 |
01 |
| 055 |
22829336 |
PLATE, F/FLR CNSL TR (INCLS 20) (CASHMERE) |
D35-47-69 (01D) |
2011-2013 |
01 |
| 055 |
22829337 |
PLATE, F/FLR CNSL TR (INCLS 20) (LT TITANIUM/EBONY) |
D35-47-69 (01C) |
2011-2013 |
01 |
| 055 |
25977112 |
PANEL, F/FLR CNSL SI TR (PART OF 74) (INCLS 26, 27, 54) (CASHMERE) |
D (01D) |
2011-2013 |
01 |
| 055 |
25977117 |
PANEL, F/FLR CNSL SI TR (PART OF 74) (INCLS 26, 27, 54) (CASHMERE) |
D (01D) |
2011-2013 |
01 |
| 056 |
11609462 |
SCREW, M4.2X1.41X13, GMW4205 (FLR RR AIR DISTR) |
|
2010-2013 |
02 |
| 057 |
25881408 |
COMPARTMENT, F/FLR CNSL (BLACK) |
D35 (01C, 01D, 01G, 02W) |
2010-2013 |
01 |
| 058 |
11501937 |
NUT, PUSH ON, .153 TO .159 DIA STUD, .70 O.D., .35 THK, SPR STL, PC (F/FLR CNSL TR PLT) (ACDelco #11501937) |
|
2010-2013 |
08 |
| 059 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (F/FLR CNSL CUP HLDR) |
|
2010-2013 |
04 |
| 060 |
11570654 |
NUT, F/FLR CNSL CUP HLDR BRKT (PART OF 61) (4.2 X 1.41) (PUSH-IN NUT) (FITS 8.75 SQ HOLE) (9.665) |
D35 |
2010-2013 |
01 |
| 061 |
25943890 |
HOLDER, F/FLR CNSL CUP (INCLS 60, 64) (BLACK) (V) |
DN (01C, 01D, 01G) |
2011-2012 |
01 |
| 061 |
25905704 |
HOLDER, F/FLR CNSL CUP (INCLS 60, 64) (SILVER) (STAINLESS) |
D35 (01C, 01D, 01G) |
2010-2012 |
01 |
| 062 |
16754704 |
CLIP, F/FLR CNSL SI T/PNL (PART OF 63) (10 X 10) (APLQ TO SI PNL) (STEEL) (10.056) |
D35 |
2010-2013 |
03 |
| 063 |
25900697 |
APPLIQUE, F/FLR CNSL (INCLS 62) (PYRAMID) |
DM (EXC VJT) |
2010-2012 |
01 |
| 063 |
25900697 |
APPLIQUE, F/FLR CNSL (INCLS 62) (PYRAMID) |
DN35 (EXC VJT) |
2011-2012 |
01 |
| 063 |
25900697 |
APPLIQUE, F/FLR CNSL (INCLS 62) (PYRAMID) |
DN (EXC VZL) |
2011-2012 |
01 |
| 063 |
25900697 |
APPLIQUE, F/FLR CNSL (INCLS 62) (PYRAMID) |
DR (EXC VJT) (EXPORT) |
2010-2012 |
01 |
| 063 |
20821366 |
APPLIQUE, F/FLR CNSL (INCLS 62) (SAPELE) (8.808) |
DN (VZL) |
2011-2013 |
01 |
| 063 |
25900692 |
APPLIQUE, F/FLR CNSL (INCLS 62) (SAPELE) (8.808) |
D35 (VJT) |
2011-2013 |
01 |
| 063 |
25900693 |
APPLIQUE, F/FLR CNSL (INCLS 62) (SAPELE) (8.808) |
D35 (VJT) |
2011-2013 |
01 |
| 063 |
20821365 |
APPLIQUE, F/FLR CNSL (INCLS 62) (SAPELE) (8.808) |
DN (VZL) |
2011-2013 |
01 |
| 063 |
25900696 |
APPLIQUE, F/FLR CNSL (INCLS 62) (PYRAMID) |
DM (EXC VJT) |
2010-2012 |
01 |
| 063 |
25900696 |
APPLIQUE, F/FLR CNSL (INCLS 62) (PYRAMID) |
DN (EXC VZL) |
2011-2012 |
01 |
| 063 |
25900696 |
APPLIQUE, F/FLR CNSL (INCLS 62) (PYRAMID) |
DN35 (EXC VJT) |
2011-2012 |
01 |
| 063 |
25900696 |
APPLIQUE, F/FLR CNSL (INCLS 62) (PYRAMID) |
DR (EXC VJT) (EXPORT) |
2010-2012 |
01 |
| 064 |
15866948 |
LINER, F/FLR CNSL CUP HLDR (PART OF 61) (EBONY) |
D35 |
2010-2013 |
01 |
| 065 |
11610112 |
CLIP, F/FLR CNSL TR PLT (TR PLT TO SI PNL) (PART OF 1) (10.4 X 13 X 9) (14.683) |
D35 |
2010-2013 |
02 |
| 066 |
25774623 |
RECEPTACLE, ACSRY PWR (EBONY) (W/O COVER) (ACSRY PWR RECEPTACLE ASSEM LABELED 25774623) (12V) |
D35 |
2010-2013 |
01 |
| 067 |
15187371 |
RETAINER, ACSRY PWR RCPT (EBONY) (INCLS COVER) |
D |
2010-2013 |
01 |
| 068 |
25884445 |
ANTENNA, IGN LK KEY XMTR (PASSIVE ANTENNA W/2 PIN CONN) |
D |
2010-2013 |
01 |
| 069 |
25908035 |
CABLE, MP3 PLYR (IPOD CONNECTION CABLE) (ACDelco #25908035) |
D35-47-69 (UAV, U2S, U2X, U2Y) |
2011-2013 |
01 |
| 070 |
11516141 |
LIGHTER, CIG (BLACK) (W/SMALL PLASTIC KNOB END 14.0MM) (*KIT3) |
D |
2010-2013 |
01 |
| 071 |
25776667 |
RECEPTACLE, C/LTR (2 TERMINALS) (*KIT3) |
D35-47 |
2011-2013 |
01 |
| 072 |
25749635 |
RETAINER, C/LTR RCPT (EBONY) (W/O CAP) (*KIT3) |
D35 |
2010-2013 |
01 |
| 073 |
15844359 |
ASHTRAY, F/FLR CNSL RR (*KIT3) |
D35 |
2010-2013 |
01 |
| 073 |
15844359 |
ASHTRAY, F/FLR CNSL RR (*KIT3) (10.242) (SERV CMP OF ASHTRAY PKG 15244115) |
D |
2011-2013 |
01 |
| 074 |
22780575 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (TITANIUM) |
D35 (ATH, EBS, U2R, U2T, 01C) (EXC J77) |
2011-2011 |
01 |
| 074 |
22780575 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (TITANIUM) |
DM35-69 (ATH, EBS, ECH, U2R, U2T, 01C) (EXC J77) |
2011-2012 |
01 |
| 074 |
22780575 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (TITANIUM) |
DN35 (ATH, EBS, ECH, U2R, U2T, 01C) (EXC J77) |
2011-2012 |
01 |
| 074 |
20978822 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (BLACK) |
D35 (ATG, EBS, UAV, U2S, U2X, U2Y, 01G) (EXC J77) |
2010-2011 |
01 |
| 074 |
20978823 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (TITANIUM) |
DN35 (ATG, EBS, UAV, U2S, U2X, U2Y, 01C) (EXC J77) |
2011-2011 |
01 |
| 074 |
20978823 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (TITANIUM) |
DM35 (ATG, EBS, UAV, U2S, U2X, U2Y, 01C) (EXC J77) |
2010-2011 |
01 |
| 074 |
20978826 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (EBONY) |
DM35 (ATH, EBS, UAV, U2S, U2X, U2Y, 01G) (EXC J77) |
2010-2011 |
01 |
| 074 |
20978826 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (EBONY) |
DN35 (ATH, EBS, UAV, U2S, U2X, U2Y, 01G) (EXC J77) |
2011-2011 |
01 |
| 074 |
20978827 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (TITANIUM) |
DN35 (ATH, EBS, UAV, U2S, U2X, U2Y, 01C) (EXC J77) |
2011-2011 |
01 |
| 074 |
20978827 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (TITANIUM) |
DM35 (ATH, EBS, UAV, U2S, U2X, U2Y, 01C) (EXC J77) |
2010-2011 |
01 |
| 074 |
20978828 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (CASHMERE) |
DN35 (ATH, EBS, UAV, U2S, U2X, U2Y, 01D) (EXC J77) |
2011-2011 |
01 |
| 074 |
20978828 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (CASHMERE) |
DM35 (ATH, EBS, UAV, U2S, U2X, U2Y, 01D) (EXC J77) |
2010-2011 |
01 |
| 074 |
20978820 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (CASHMERE) |
D35 (ATG, EBS, U2R, U2T, 01D) (EXC J77) |
2010-2012 |
01 |
| 074 |
22780561 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (EBONY) |
D35 (ATG, EBS, U2R, U2T, 01G) (EXC J77) |
2010-2011 |
01 |
| 074 |
22780561 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (EBONY) |
D35 (EAM, U2R, U2T, 01G) (EXC J77) |
2010-2011 |
01 |
| 074 |
22780563 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (TITANIUM) |
D35 (ATG, EBS, U2R, U2T, 01C) (EXC J77) |
2011-2011 |
01 |
| 074 |
22780563 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (TITANIUM) |
D35 (EAM, U2R, U2T, 01C) (EXC J77) |
2011-2011 |
01 |
| 074 |
22780575 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (TITANIUM) |
DR35 (ATH, EBS, ECH, U2R, U2T, 01C) (EXC J77) (EXPORT) |
2011-2012 |
01 |
| 074 |
20978823 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (TITANIUM) |
DR35 (ATG, EBS, UAV, U2S, U2X, U2Y, 01C) (EXC J77) (EXPORT) |
2010-2011 |
01 |
| 074 |
20978824 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (CASHMERE) |
DM35 (ATG, EBS, UAV, U2S, U2Y, 01D) (EXC J77) (EXPORT) |
2010-2011 |
01 |
| 074 |
20978824 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (CASHMERE) |
DR35 (ATG, EBS, UAV, U2S, U2Y, 01D) (EXC J77) (EXPORT) |
2010-2011 |
01 |
| 074 |
20978824 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (CASHMERE) |
DN35 (ATG, EBS, UAV, U2S, U2Y, 01D) (EXC J77) (EXPORT) |
2011-2011 |
01 |
| 074 |
20978826 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (EBONY) |
DR35 (ATH, EBS, UAV, U2S, U2X, U2Y, 01G) (EXC J77) (EXPORT) |
2010-2011 |
01 |
| 074 |
20978827 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (TITANIUM) |
DR35 (ATH, EBS, UAV, U2S, U2X, U2Y, 01C) (EXC J77) (EXPORT) |
2010-2011 |
01 |
| 074 |
20978828 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (CASHMERE) |
DR35 (ATH, EBS, UAV, U2S, U2X, U2Y, 01D) (EXC J77) (EXPORT) |
2010-2011 |
01 |
| 074 |
22780566 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (CASHMERE) |
D35 (ATG, EBS, UAV, U2S, U2X, U2Y, 01D) (EXC J77) |
2011-2012 |
01 |
| 074 |
22780567 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (TITANIUM) |
D35 (ATG, EBS, UAV, U2S, U2X, U2Y, 01C) (EXC J77) |
2011-2012 |
01 |
| 074 |
22780570 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (CASHMERE) (EASY KEY) |
D35 (ATH, EBS, UAV, U2S, U2X, U2Y, 01D) (EXC J77) |
2011-2012 |
01 |
| 074 |
22780571 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (TITANIUM) (EASY KEY) |
D35 (ATH, EBS, UAV, U2S, U2X, U2Y, 01C) (EXC J77) |
2011-2012 |
01 |
| 074 |
22780574 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (CASHMERE) |
D35 (ATH, EBS, U2R, U2T, 01D) (EXC J77) |
2010-2012 |
01 |
| 074 |
22780582 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (CASHMERE) |
DM35-47-69 (ATG, EBS, J77, UAV, U2S, U2X, U2Y, 01D) |
2011-2012 |
01 |
| 074 |
22780583 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (TITANIUM) |
DM35-47-69 (ATG, EBS, J77, UAV, U2S, U2X, U2Y, 01C) |
2011-2012 |
01 |
| 074 |
22780594 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (TITANIUM) (EASY KEY) (V SERIES) |
DN35-47-69 (ATH, ECH, J77, UAV, U2X, U2Y, 01C) |
2011-2012 |
01 |
| 074 |
22780578 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (CASHMERE) |
DR35-69 (ATG, J77, U2R, U2T, 01D) (EXPORT) |
2011-2012 |
01 |
| 074 |
22780579 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (TITANIUM) |
DR35 (ATG, EAM, J77, U2R, 01C) (EXPORT) |
2011-2012 |
01 |
| 074 |
22780579 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (TITANIUM) |
DR35-69 (ATG, EBS, J77, U2R, U2T, 01C) (EXPORT) |
2011-2012 |
01 |
| 074 |
22780582 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (CASHMERE) |
DR35-69 (ATG, EBS, J77, UAV, U2S, U2X, U2Y, 01D) (EXPORT) |
2010-2012 |
01 |
| 074 |
22780583 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (TITANIUM) |
DR35-69 (ATG, EBS, J77, UAV, U2S, U2X, U2Y, 01C) (EXPORT) |
2011-2012 |
01 |
| 074 |
22780586 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (CASHMERE) |
DR35-69 (ATH, EBS, J77, U2R, U2T, 01D) (EXPORT) |
2010-2012 |
01 |
| 074 |
22780587 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (TITANIUM) |
DR35-69 (ATH, EBS, J77, U2R, U2T, 01C) (EXPORT) |
2010-2012 |
01 |
| 074 |
22780590 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (CASHMERE) |
DR35-69 (ATH, EBS, J77, UAV, U2S, U2X, U2Y, 01D) (EXPORT) |
2010-2012 |
01 |
| 074 |
22780577 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (EBONY) |
DR35 (ATG, EAM, J77, U2R, 01G) (EXPORT) |
2010-2011 |
01 |
| 074 |
22780577 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (EBONY) |
DR35-69 (ATG, EBS, J77, U2R, U2T, 01G) (EXPORT) |
2010-2011 |
01 |
| 074 |
22780581 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (EBONY) |
DR35-69 (ATG, EBS, J77, UAV, U2S, U2X, U2Y, 01G) (EXPORT) |
2010-2011 |
01 |
| 074 |
22780583 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (TITANIUM) |
DR35-69 (ATG, EBS, J77, UAV, U2S, U2X, U2Y, 01C) (EXPORT) |
2010-2012 |
01 |
| 074 |
22780585 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) |
DR35-69 (ATH, EBS, J77, U2R, U2T, 01G) (EXPORT) |
2010-2011 |
01 |
| 074 |
22780589 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) |
DR35-69 (ATH, EBS, J77, UAV, U2S, U2X, U2Y, 01G) (EXPORT) |
2010-2011 |
01 |
| 074 |
22780581 |
CONSOLE, F/FLR (INCLS 26-28, 37, 43, 47, 51, 54, 55) (EBONY) |
DM35-47-69 (ATG, EBS, J77, UAV, U2S, U2X, U2Y, 01G) |
2011-2011 |
01 |
| 075 |
11609460 |
SCREW, RND WA, M4.2X1.41X10, 4.2 THD, 11 OD, GM6010M, GMW4205, C/R, TAP (PART OF 13) |
|
2010-2013 |
02 |
| K01 |
22784265 |
COVER, F/FLR CNSL RR (INCLS 29-34, 38-40) (EBONY) (W/CVR RR COMPT) |
D35 (01G) |
2010-2013 |
01 |
| K01 |
22784264 |
COVER, F/FLR CNSL RR (INCLS 29-34, 38-40) (CASHMERE) (W/CVR RR COMPT) |
DM (01D, 4AC) |
2010-2012 |
01 |
| K01 |
22784263 |
COVER, F/FLR CNSL RR (INCLS 29-34, 38-40) (TITANIUM) (W/CVR RR COMPT) |
DN (01C) |
2011-2013 |
01 |
| K01 |
25918844 |
COVER, F/FLR CNSL RR (INCLS 29-34, 38-40) (TITANIUM) (W/COMPT) |
DM, DN (01C) |
2010-2013 |
01 |
| K01 |
22784264 |
COVER, F/FLR CNSL RR (INCLS 29-34, 38-40) (CASHMERE) (W/CVR RR COMPT) |
DR (01D, 4AC) (EXPORT) |
2010-2012 |
01 |
| K01 |
25918844 |
COVER, F/FLR CNSL RR (INCLS 29-34, 38-40) (TITANIUM) (W/COMPT) |
DR (01C) (EXPORT) |
2010-2013 |
01 |
| K02 |
25903343 |
LATCH, F/FLR CNSL A/RST (INCLS 5-7) (LWR) |
D35 |
2010-2013 |
01 |
| K03 |
15244115 |
ASHTRAY PKG, I/P (INCLS 70-73) (BLACK) (BIN TYPE) (FRT RR) (PLSTC) |
D35 (DT4) |
2010-2013 |
01 |
